Hi everyone

Making a study of Caspar aircraft , I came across a project
( Caspar CC 15 ) of 1924 , a torpedo aircraft with a crew of 2
, anyone knowing more , or having
a drawing?

Source ; Die verbotenen flugzeuge 1921-1935 Heinz J.Nowarra


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55

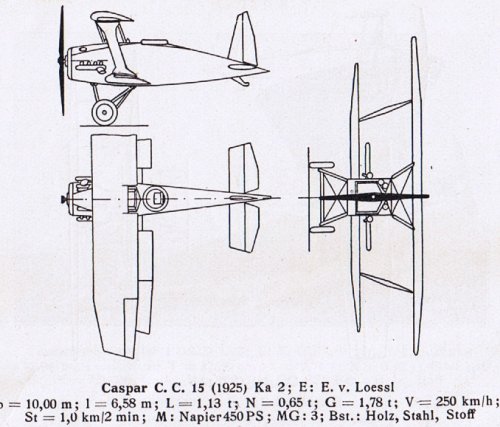

The only pic I know : from " Taschenbuch der Luftflotten " 1926


Attachments

  • CC 15.jpg
    CC 15.jpg
    160.4 KB · Views: 157

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
577
Reaction score
223
Not to be unhelpful but that doesn't look like a torpedo aircraft. The undercarriage struts would inhibit centerline storage.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
I agree .

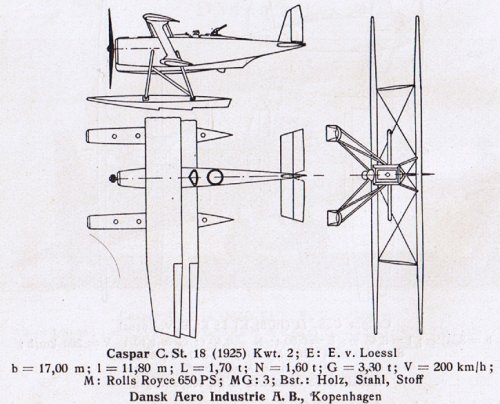

I think that the torpedo aircraft is the Caspar C.St.18 shown in the same " Taschenbuch der Luftflotten "

BUT the Caspar designations are very confusing :

- CI 14 single seater for Langsdorff is CS 14 for Green and a 2 seater for Lange
- CS 14 for Langsdorff is CJ 14 for Lange and CI 14 for Nowarra
- CC 15 for Langsdorff is a land 2 seater ,but a seaplane for Lange
- CSt 18 for Langsdorff and Lange is a seaplane ,a land single seater for Nowarra (the Langsdorff's CS 14 )

Maybe Swallow could help ?


swallow

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
61
Reaction score
7
Hello Richard ,

As far as I know , Caspar CC 15 is a torpedobomber with a crew off 2 ,
and the Caspar Cst 18 a fighter with a crew off 1 ,
the Caspar Cst 18 also used a undercarriage who was not so good for the use
off a torpedo ! ( The Cst 18 was a development of the CI 14 )

Source Die Verbotenen Flugzeuge 1921-1935


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,340
Reaction score
1,493
"CS 14 for Langsdorff is CJ 14 for Lange and CI 14 for Nowarra "

To make matters even more confusing :

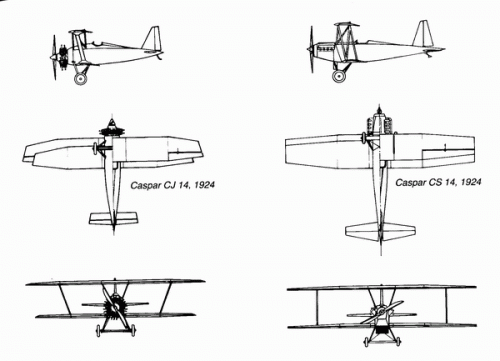

Here are the CJ 14 and the CS 14, as shown in H.Stützer "Die deutschen
Militärflugzeuge 1919-1934" Both were fighters, but I think, they have not
much in common, apart from the "C" and the "14" in the designation


Attachments

  • Caspar.GIF
    39.9 KB · Views: 146

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Hello
Looking closer in

-Taschenbuch der Luftflotten 1926
-Verbotene Flugzeuge
-German combat planes
-Typenhandbuch Luftfahrttechnik

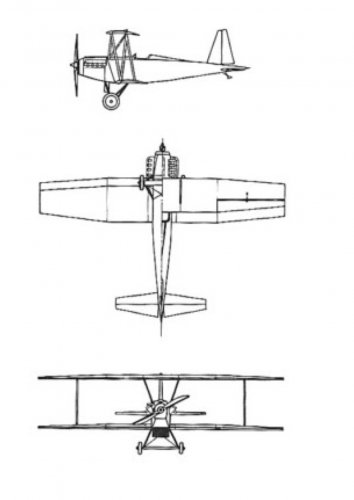

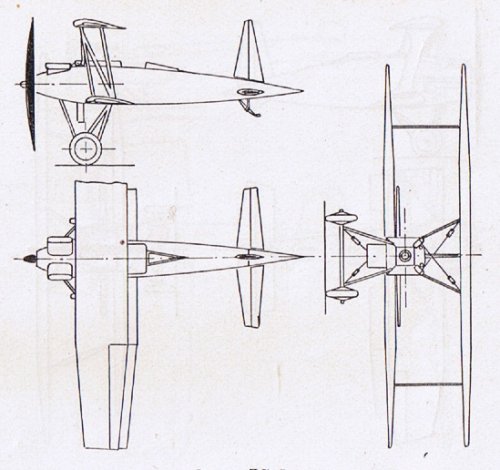

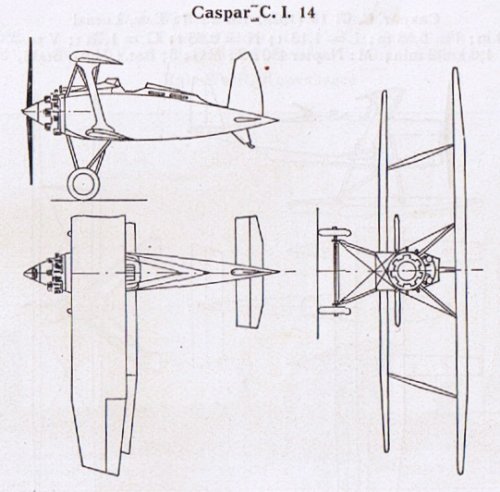

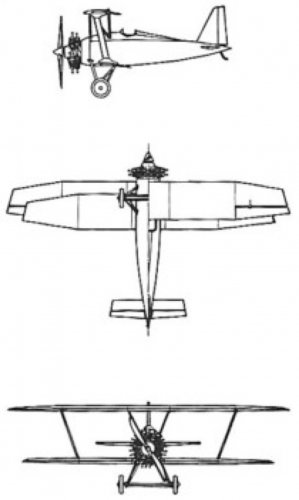

I think that this could be the right ID ,but ,indeed ,I'm not 100% sure :


Attachments

  • CS14.jpg
    119.4 KB · Views: 107
  • CS 14.jpg
    CS 14.jpg
    129.7 KB · Views: 115
  • CI14.jpg
    164.4 KB · Views: 99
  • CI 14.jpg
    CI 14.jpg
    125.4 KB · Views: 63
  • C St 18.jpg
    C St 18.jpg
    225.2 KB · Views: 76

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55

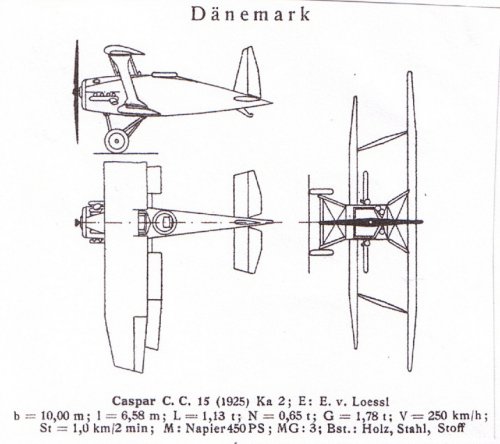

And the CC 15 lost somewhere on the net !


Attachments

  • CC 15.jpg
    CC 15.jpg
    188.3 KB · Views: 67

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55
Have to say that 2 of the 3 views are from the excellent HISTAVIATION site
