Bugatti 100 Racer and 110 Fighter Projects

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,363
Reaction score
28
Aviation Magazine Num 768 (15-XII-79)

On page 71 we find a reference about 110P fighter which was a development of Type 100P racer ordered in 1939 by Ministère de l'Air but never developed due to the outbreak of WWII.

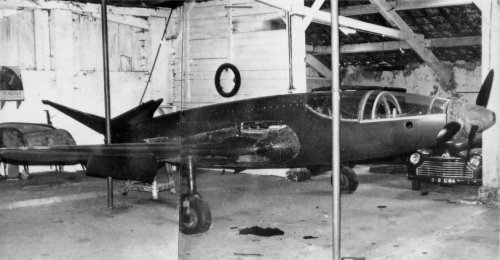

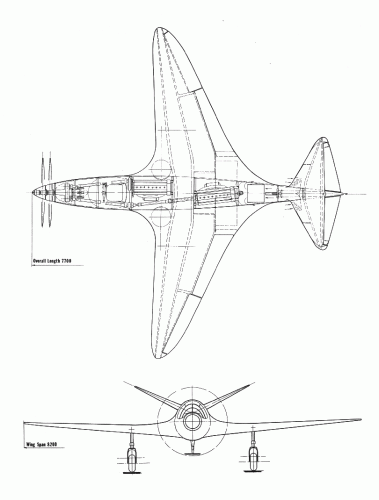

Type 100 info and pics here:

http://www.bugattiaircraft.com/

http://www.bugattiaircraft.com/kalempa.htm

Could anybody post pics of Model 110P? :)

Thanks


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,631
Reaction score
22
Website
beyondthesprues.com
Try here: http://www.lionheartcreations.com/BugattiP110InterceptorInfo.html



Regards,

Greg


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Hi all..
I've read this topic with great interest and visited the mentioned sites.
I'm itching to do a profile of the P110 Interceptor and was wondering what developments/changes/modifications would have been required to make the 110 from the 100.

Red Admiral mentions clipped wings and the armament. The illustration shows 2 guns in each wing but not clipped wings.
I wondered where the 6 guns and the single 37mm may have been housed and how?

I ask those more wise and sage than I, what other mods may have been applied?

Many thanks
Peter


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
553
Reaction score
2
The 37mm gun fired through the propellor. I assume the 6x7.5mm mgs were in the wings as there isn't much space left in the fuselage. For other mods I'd think a radio aerial at least.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,974
Reaction score
81
... and I think, in most cases, where fighters got a curved windscreen, it turned out
to be less than ideal, so I would include at least a flat panel into the canopy.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Many thanks to one and all.
I wil definitely do a profile in the near future and will include all these tips.
The only thing I'm a little wary of, is doing the flat pane windscreen on such a large canopy.
I agree with you Jemiba, but I'll have to put my thinking cap on to sort it out and try and make it look "pukka"...lol.

Cheers
Peter
;D


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
PS...
Skybolt
I have not forgotten the Italian project...
Cheers
Peter
;D


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,974
Reaction score
81

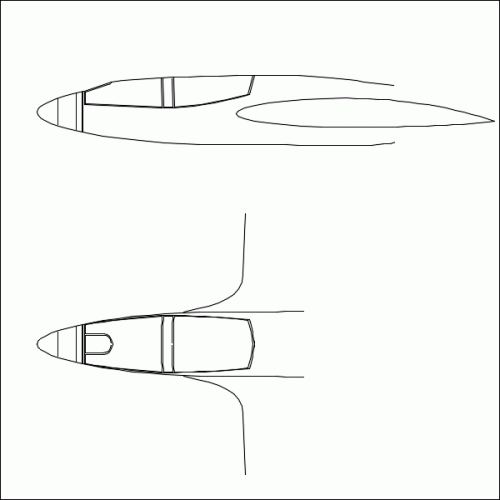

Just a proposal for the flat windscreen . In fact I think, a fighter
with such a heavy armament would have been much larger.


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,782
Reaction score
3
Jemiba ,

The Bugatti Aircraft Association (www.bugattiaircraft.com)
speak about the 110P asof a light pursuit version with 2 guns.
Other sources speak of a "chasseur reconnaissense" reccon. fighter.

This is maybe closer to the real fighter proposal.

(one 37mmm and six wing guns-2x3- in indeed a bit to much for the
racer develloped fighter)


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,974
Reaction score
81
Well, two guns seems to be much more plausible.
Tomorrow, I'll look for the article about the Bugatti 100 in
the Aviation Francais Magazine, maybe there's a clue.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Thanks for the illustration Jemiba.
Just what I hoped for.
When I start I may add a forward hoop too...I'll see what it looks like when I get there.

Excellent.
Cheers
Peter
;D


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Another little question...
The 100P had contra 2 blade props.
Do you think for the 110P these would have been upgraded to say 3 bladed ones?

Cheers
Peter


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,974
Reaction score
81
Difficult question indeed .... ???
I think, in contrast to the britains, who built the first batches of their
Hurricanes and Spitfires still with two bladed props, the french seems to
have favoured three bladed ones for the fighters of that era, just before
the war. But a contra prop may be quite a different affair ! Probably three
blades would allow a lower diameter, compared to two blades and so allow
the installation of guns further inward. But that's just an amateurs opinion,
we need the experts here !
At least, three blades (or better six of two three bladed props) look better ! ;D


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,246
Reaction score
1
You could get by with a somewhat lower prop rpm using three-bladed props rather than two-bladed ones for the same, or modestly higher, engine output, or you could go with a slightly smaller prop diameter and keep the same rpm. Personally, I'd go for three-bladed props and an uprated engine for the fighter.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Thank you ...

Nice juicy 3 bladers seem to be in order then.

You are right Jemiba....they will look better... ;D :eek:

Cheers
Peter

J

joncarrfarrelly

Guest
elmayerle said:
You could get by with a somewhat lower prop rpm using three-bladed props rather than two-bladed ones for the same, or modestly higher, engine output, or you could go with a slightly smaller prop diameter and keep the same rpm. Personally, I'd go for three-bladed props and an uprated engine for the fighter.
The question on the engine is, uprated to what?
The racer was to be powered by twin straight-8s, the airframe doesn't have the space for larger engines mounted in the same fashion and getting a useful power boost from the Bugatti engines could have been problematic. Aside from space issues I doubt the rather complicated drive system would have been able to absorb greatly increased power. A more likely power choice would be a single super-charged Hispano 12Y diving a single three-blade propeller...not as sexy as contra-props but much simpler.
Or I suppose one could have the beast powered by Harry A. Millers 1,200 cu in. V-16 aircraft engine design, Miller rated the design at 2,000 hp. ;)

Cheers, Jon


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,246
Reaction score
1
I suspect the only useful power boost one could give the Bugatti engines, assuming they were stressed for it, would be supercharging or turbo-supercharging (most likely the former unless you were going for alititude performance). For simplicity's sake, I rather like the idea of a Hispano 12Y driving a simple three-bladed prop as you can make the prop gearbox stronger when you don't have to worry about contra-rotating props (fewer gears mean to fit the volume means you can make the individual components more robust). I wonder, though, if a 16-cylinder equivalent of the 12Y was available and would fit?

I'd like to know more about the Miller engine, but comparing displacement and output values with the V1650 (Merlin) and Allison V1710, I'm a bit skeptical of that output.

J

joncarrfarrelly

Guest
Hi Evan,
the Miller V-16 was one of Harry's 'paper projects' from later in his career. He no longer had Leo Goossen by his side
to turn dreams into practical reality, so its anybody's guess how the engine woudl have turned out.
Miller also worked on a V-16 engine design for Bell during the same period...a replacement for the V-1710 in the P-39.

Cheers, Jon


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Hi again

So far for the P110 version, I have...

3 blade prop,
Flat panel windscreen to cockpit,
Clipped wings
and a choice of engines....

I ask...
Which engine(s) would have been the most likely?

Also would the fabric/dope skin have been retained or would a metal one have been adopted instead?


Many thanks
Peter

;D


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
553
Reaction score
2
Hispano-Suiza 12 Y or Z quite likely. Not much weight increase. Plenty of space to accomodate one. Have to dtich the original contra-props though.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Hi all...

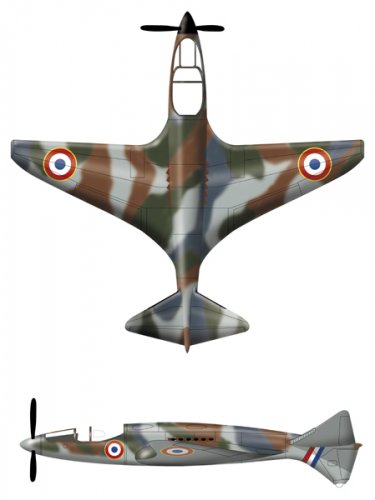

work in progress of the P110 profile.
I decided to go with one of the HS 12's as red admiral suggested.

Your comments would be a big help.
Many thanks
Peter
;D


Attachments

smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
544
Reaction score
0
Not sure about the tail unit. The vertical surface may be OK on the racer, but looks a bit vulnerable to a rough landing by a damaged fighter or a wounded pilot. Is a "conventional" butterfly going too far from the original?


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Hi smurf,
You could well be right, but I didn't want to be too radical in changes from the P100, visual ones at least.
I'm trying to do the minimum changes to get a reasonable representation of the P110 version.

But....lol...I could do two versions. One as is and one with more logical changes.

For example, I'm still not sure if I should do the skin in metal or stick with the doped fabric of the P100?

Many thanks
Peter
;D


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,206
Reaction score
27
red admiral said:
Hispano-Suiza 12 Y or Z quite likely. Not much weight increase. Plenty of space to accomodate one. Have to dtich the original contra-props though.
Very good!

I would say 12Y (860 hp) for a 1939 aircraft. 12Z only see the light of the day in the 1945-1946 era. 12Y was the engine of MS-406, VG-33 and D-520 ;)


smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
544
Reaction score
0
I'm trying to do the minimum changes to get a reasonable representation of the P110 version.
Yes, I thought so. There is a precedent - the Martin-Baker MB2 appeared with a variety of tails before settling to a conventional one, and later the Supermarine 508 etc. I'd be interested to see the variant.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Thanks for the input...great stuff.

I'll continue with this version, then do a set of side views at least with a variety of tail choices.

Any views on metal skin yet? ::)


Cheers
Peter
;D


Kim Margosein

CLEARANCE: Confidential
Joined
Feb 10, 2007
Messages
103
Reaction score
0
With all the modification to make the Bugatti fit for military use, I am reminded of the Bf-209 (the speed record aircraft) that went down the same road. By the time you make the aircraft and engine robust enough to be useful, you're left with an aircraft with little or no advantage over off the shelf contemporary fighters.

Kim Margosein


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Hi Farloccus
Yes its down at the moment and I don't know why... :-\

My workmate runs it but he's away on holiday, so I'll have to wait his return.

And Kim
you are probably right, but I do this sort of thing for fun and just to see what "might" have been.
It's just that the French had their aircraft development put on hold, so to speak, and with the Bugatti P100 hidden away, I thought it interesting enough to see how things may have panned out under different circumstances.

Many thanks
Peter


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Hi all'

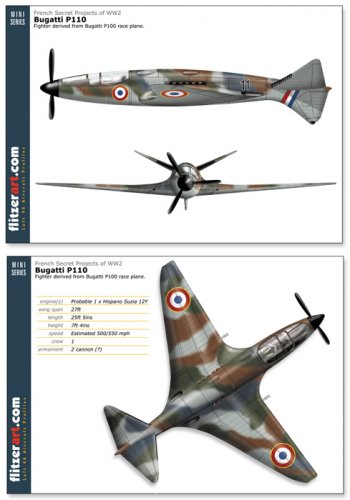

this is as far as I got with the P110 profile.
Tail variants at a later date.

Cheers
Peter


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,974
Reaction score
81
Really great !
And with regards to the tail unit, I would point to the fact, that
the ventral part isn't just a fin, but has a rudder. So it's more
a reversed conventional tail, but a butterfly tail, I think.


red admiral

CLEARANCE: Top Secret
Joined
Sep 16, 2006
Messages
553
Reaction score
2
Shouldn't the wing guns be slightly further outboard? Currently they still need interrupter gear as the prop interferes with them. Generally looks good though.


smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
544
Reaction score
0
Jemiba said
the ventral part isn't just a fin, but has a rudder
which was part of the reason I thought it vulnerable. If we are voting, I'd go for a butterfly tail rather than a conventional fin upwards tail unit. IMHO it somehow seems to fit the plane better.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Many thanks for your comments.

Red Admiral.
You are right. I didn't notice the guns being in line for fouling the prop blades.
I'll fix it. Thanks for the lone of your hawkeye.

Smurf.
I will do another version with, as you say, a Butterfly tail at a later date.

Cheers
Peter
;D


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,974
Reaction score
81

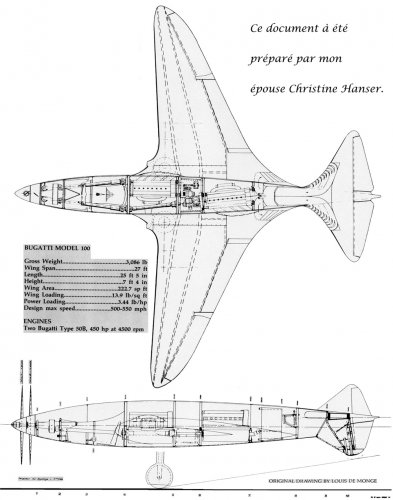

Just read the article about the Bugatti 100 and the 110P fighter version
in the Fliegerkalender 2007 ("Aviators Calendar 2007), written by Ferdinand
c.W. Käsmann. He says, the 110P would have been powered by two 525hp,
liquid powered Bugatti 50B engines, derivatives of the type which was used
in sports cars. No mention of the type of prop to be used .


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,888
Reaction score
11
Excuse me for asking but shouldn't there also be some form of air intakes for both the engine aspiration and cooling? I seem to remember on the racer there were intakes in the roots (which I felt were far too small) for radiater inlets. They appear to be missing from your profile.


Flitzer

CLEARANCE: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,002
Reaction score
2
Many thanks for your comments.

Jemiba
I was going to do the 2 x 50B's, but the concensus of opinion suggested the best bet for the fighter version would have been the Hispano Suzia 12Y.
But as I hope to do more variants, I could always do one with the two 50B's.

Rickshaw.
You are right there should be a wing root intake. But on the 100P there was a novel cooling system with intakes on the leading edges of the tail fins and exits at the trailing edges of the main wings right up against the fuselage sides, so the wing root intakes may have only needed comparitively small openings...(?)

Interesting stuff..
Cheers
Peter

;D


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,888
Reaction score
11
Rather complex a cooling system. I wonder if it would have, like so many novel cooling methods have proven good enough for the job? At least they didn't attempt that other useless system, evaporative cooling! I think you'll find in a service aircraft, they'd have needed to have larger wing root intakes for the radiators. Ensuring sufficient cooling has often been the downfall of many a novel aircraft design. :'(

Top
