British VG Projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,177
Reaction score
6,325

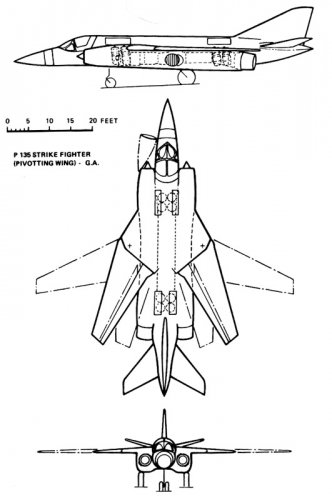

Blackburn P.135

1962 project for a supersonic Buccaneer successor.


Source:
  • Roy Boot From Spitfire to Eurofighter


Attachments

  • P.135.jpg
    64.6 KB · Views: 2,741
  • P.135a.jpg
    43.8 KB · Views: 1,176

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
overscan said:
Blackburn P.135

1962 project for a supersonic Buccaneer successor. From "From Spitfire to Eurofighter".

I wonder how Tony Buttler managed to miss this one?

The Blackburn P.135 is an excellent example of how a Spey 25R powered VG strike platform would have been intermediate in size between the cancelled TSR.2 and the final Panavia Tornado. The desire to reduce unit costs lead to the entire series of RB.153 and M45 powered design studies, before the final RB.199 was chosen.

I do have to wonder if it actually cost in the more in the end to engineer and produce a scaled down powerplant for a scaled down airframe rather than using the off-the-shelf Spey and producing a somewhat larger aircraft?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379

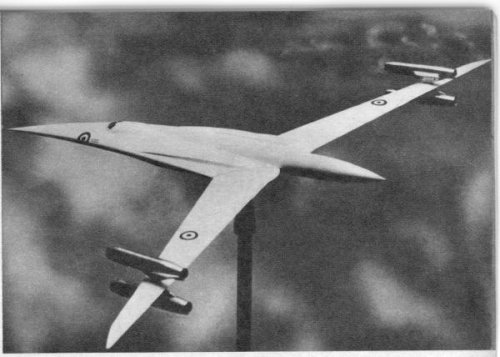

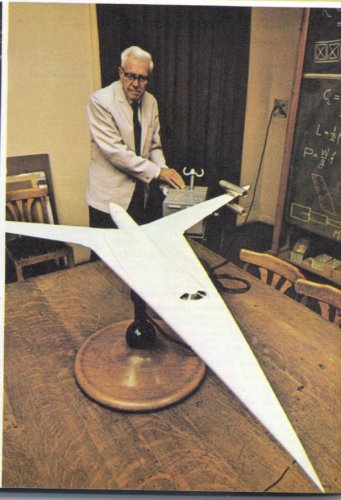

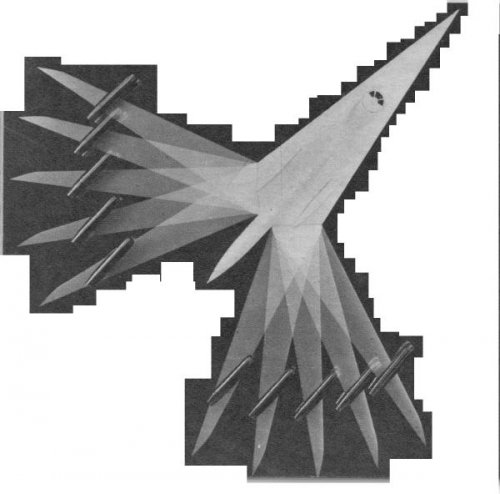

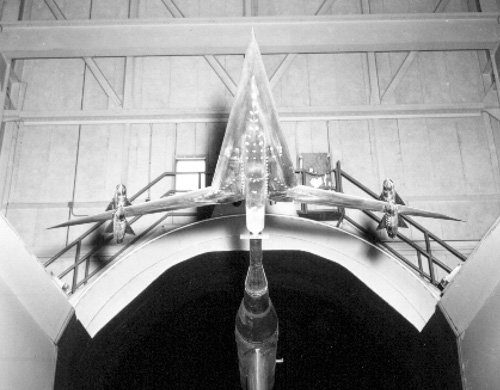

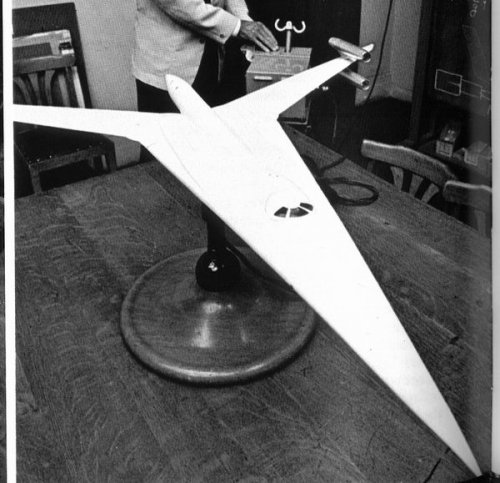

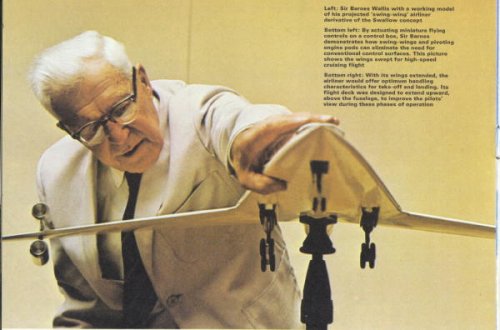

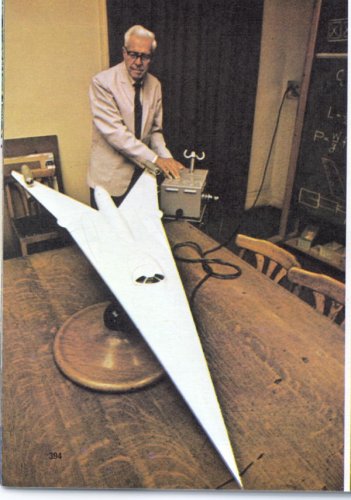

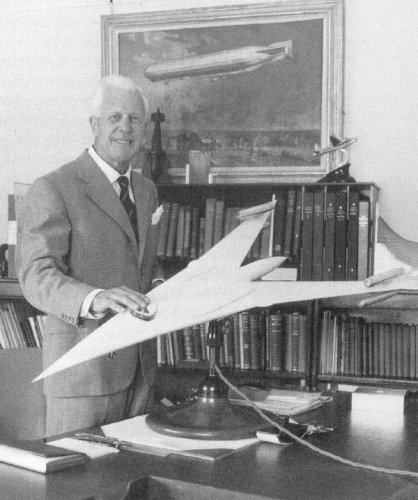

Back to the roots ! In GB that means : Barnes Wallis swing wing designs, here
the Swallow, in military and civil versions :


Attachments

  • SWALLOW1.JPG
    51.3 KB · Views: 819
  • SWALLOW2.JPG
    60.4 KB · Views: 738
  • Swallow-3.gif
    69.4 KB · Views: 939

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,136
Reaction score
5,655
there anther two projects,
Poulton Paul P.121 VG fighter and Saro P.149 VG fighter.


bluesteel

ACCESS: Restricted
Joined
Jun 23, 2006
Messages
1
Reaction score
0
Does anyone have the estimated dimensions of the Wallis Swallow? I'm attempting a scratch build of one in 1:72 and the more information I can glean the better.

Bluesteel


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
858
Reaction score
200
Bluesteel,

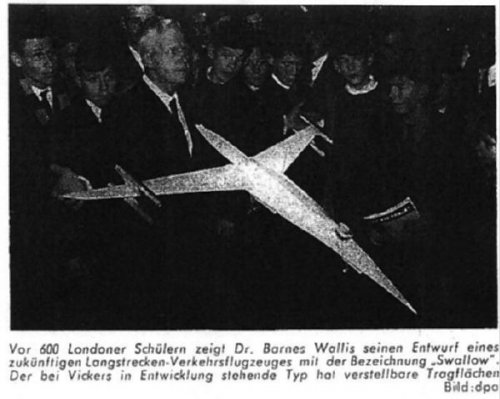

I know it's not the same but another Barnes Wallis design for a tailless swing-wing aircraft. I photographed it in the Imperial War Museum in Duxford in July 1998. Maybe the F-111 in front of/under the Wallis model should give a size comparison to the viewer - ?


Attachments

  • Wallis swing-wing project.JPG
    Wallis swing-wing project.JPG
    163.7 KB · Views: 512

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379
"Does anyone have the estimated dimensions of the Wallis Swallow?"

Just what can be seen on these pictures :

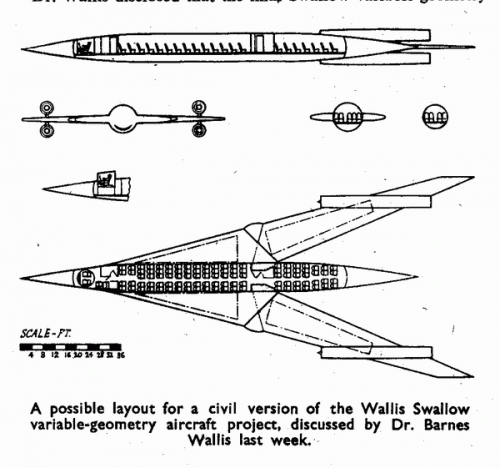

For the civil version it probably is quite acurate, as a scale is given, so that
fuselage lenght would be about 140 ft (42,7 m) and span with wings swept back
about 70 ft (21,3 m) and 167 ft (50,8m) swept forward. Judging the photo of
the model, I would expect the military version to be slightly smaller, if wings and
engines are basically the same.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
649
Reaction score
151
Erm don't forget the UKVG follow on to AFVG Paul ;).

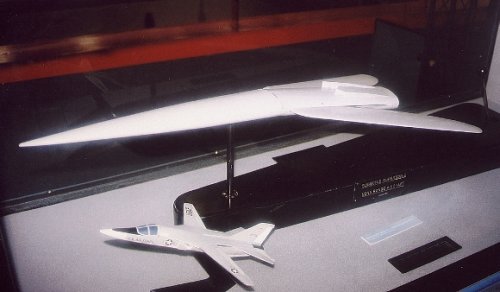

Sods law is that i had the UKVG & P45 together on show at the North Show this month and didn't get a photo - Doh

G


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
Thorvic said:
Erm don't forget the UKVG follow on to AFVG Paul ;).

Sods law is that i had the UKVG & P45 together on show at the North Show this month and didn't get a photo - Doh

G

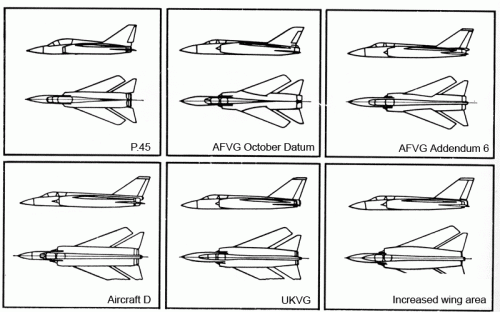

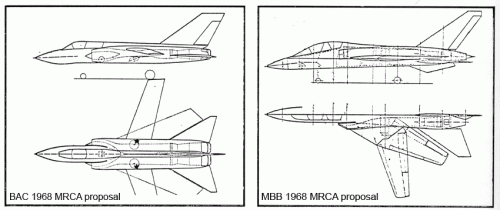

I think these drawing were originally posted by Overscan in another forum.


Attachments

  • P45toTornado.gif
    58.5 KB · Views: 515
  • MRCA-1968.gif
    34.6 KB · Views: 511

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379
Some years ago I' tried to made a drawing of the Vickers/ Barnes Wallis
Swallow design for O.R.330. Details are, of course guesswork ...


Attachments

  • swallow.JPG
    63.8 KB · Views: 558

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
192
Website
www.hitechweb.genezis.eu

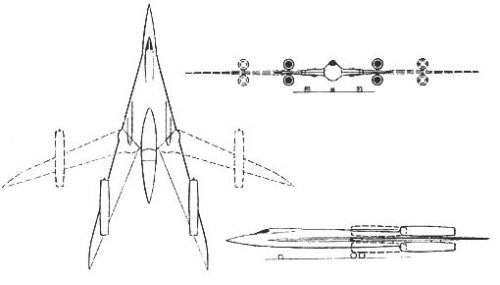

Another 3-view from old czech book - Vojenske Letadla from Vaclav Nemecek. However picture done by Jemiba is much better.


Attachments

  • Swallow.jpg
    14.3 KB · Views: 480

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379
Judging the position of the cockpit and the more protruding fuselage, it seems
to show another stage of the design, maybe closer to the civil version ?
But it's really good to see it ! Are there any lenght / span data ?
I've one volume of vojenska letadla, too. Interesting designs in it, unfortunately
I can't read it . ::)


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,960
Reaction score
1,098
Hmmm ... ??? Maybe a stupid question but reagrding the numerous VG-TSR-2 models which can be found at the what-if forum pages or several displays: Was there ever a VG-version of that beast under consideration or are they pure "what-if-fiction" ???

Cheers, Deino ???


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,177
Reaction score
6,325
English Electric studied VG in the earliest studies for what became TSR.2, but (wisely) decided not to go down that route.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,136
Reaction score
5,655
I heard that, Blackburn B-90 was a VG fighter project.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
Deino said:
Hmmm ... ??? Maybe a stupid question but reagrding the numerous VG-TSR-2 models which can be found at the what-if forum pages or several displays: Was there ever a VG-version of that beast under consideration or are they pure "what-if-fiction" ???

Cheers, Deino ???

Proposals for a variable geometry TSR.2 were apparently shown in 1964, not all that long before the cancellation of the doomed type.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,136
Reaction score
5,655
Anther VG aircraft project was the Bristol model-183 fighter.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
Pioneer said:
I agree with your point 100% Matej

But like almost every collaboration / multi national aircraft, tank, and ship project the French have been involved in, has been turned on its head, dragged out or just flat out cancelled.
Why? – Because they have always wanted control of the project or on their terms!
But the be all and end all with the French, is-
1/ the aircraft, ship or tank must be exportable to everyone and anyone who has the
money to buy it over all else!
2/ If the other multi-national country has morals, and shows sign, that it is designing a
aircraft that is for the sole purpose to meet the needs of its armed force over that of
export need – the French will pull out

Sadly at the cost of the French Air Force

I am still amazed to this day that the Concord was ever built!

P.S. I may put forward a thread - Collaboration / multi-national project that the French destroyed!

What do you think?

Regards
Pioneer

The sad truth is that many - if not most - collaborative programs have been fatally flawed from inception.

I think it's a mistake to display such blatantly anti-Francophone sentiments, especially when the reasons underlying program cancellations can be so complex.

To be sure, the French have their own national and industrial considerations, but the same can be said of any other country.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,047
Reaction score
540
Sorry TinWing if I have offended you!
I am not anti-French at all
I have just stated this in relation to the number of projects that they have been involved in and pulled out of.

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379
It's true, multinational projects with France as a partner seem to have special problems.
And especially the AFVG, I think, is a good example, that France's partner in such
joint ventures have to be really careful. But France still today has a national aerospace
industry, that is building a fighter aircraft of the 4th generation. Of course, this is only
possible in close co-operation with the government and in fact for other nations it may be
quite a rough way to protect the own industry. But I really don't know, if this way
is better or worse, than for example the british way, as Britain has to call the Blackburn,
later HS Buccaneer the last really indigenous design, first flown in 1958 !


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,071
Reaction score
4,472
Pioneer, Airbus is the perfect exeption to the rule you mentioned ;D
Hey this is a program in which the french are involved... and it is SUCCESSFULL and they have NOT pulled out :p
I agree that concerning programs in cooperation, Dassault is sometimes a pain in the...neck (to stay correct) become of its obsession for having leadership. This was not true for Breguet or the public firms...(SNCA-s)
But well this is not the main subject of the thread...

Interesting thread to complete BSP chapter on the subject...


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,071
Reaction score
4,472
Blackburn P.135

Tony butttler didn't really missed this one, the project figure on the index at the end of the book.
but I would be glad to see a 3-view of this one...

Aparently the M45 engine of the AFVG found its way on the VFW-614 (sorry if I scorched the name).
The adour was aparently a scaled down variant of the M-45 / RB-172.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
Archibald said:
Blackburn P.135

Tony butttler didn't really missed this one, the project figure on the index at the end of the book.
but I would be glad to see a 3-view of this one...

This was a Brough project, and there is a 3-view in Roy Boot's "From Spitfire to Eurofighter."

If you don't have the book, you could always check out the first post, on the first page in this thread, where Overscan uploaded a 3-view of the P.135. Yes, I had forgotten that is was there as well.

Archibald said:
Aparently the M45 engine of the AFVG found its way on the VFW-614 (sorry if I scorched the name).
The adour was aparently a scaled down variant of the M-45 / RB-172.

Careful. The M45 engine that flew in the VFW-614 regional jet had a 3.25:1 bypass ratio, while the reheated, military version had only a 1.2:1 bypass ratio. There also was a projected lower powered turbojet version of the M45. The M45 was an engine family, not a single engine.

Early desciptions of the RB.172 seem to vary wildly, and there was even some idea of civilian variants for large business and regional jets - although this came to nothing. The RB.172 seems to have covered the entire thrust range from just above the Viper to just below the eventual RB.199.


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,294
Reaction score
2,111
BAC 583 designs

Following the thread on UKVG projects it is worth mentioning the BAC 583 design of the early 60s. Although I have both Buttler books and Project Cancelled I am still confused by the lack of really good three views of this type. Those in Buttler are very basic. In fact the best images are two distinct models shown in an Air Enthusiast article from the early 70s on swing planes.

One variant of 583 derived from Vickers swing wing and BAC TSR2 work and the model shown in AE is of a TSR type plane in white RN colours.

The second variant, the BAC 583 V, is better covered and has been modelled on the What if Modelers site. This is essentially a swing wing Harrier style aircraft for the RN and RAF.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
649
Reaction score
151
Re: BAC 583 designs

Hi Ralph

What issue of Air Enthusiast was the article in ?

BTW the 583 i modelled was the contventional VG one not the VTOL one, but that was based on the drawings in Tony's BSP: Fighters as thats all i had at the time.

Cheers

Geoff


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,177
Reaction score
6,325
Re: BAC 583 designs

I think uk75 means "Annals of the Polymorph" Air International, May 1975.

I will scan in the 583 model pics tonight.

Paul.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,177
Reaction score
6,325
Re: BAC 583 designs

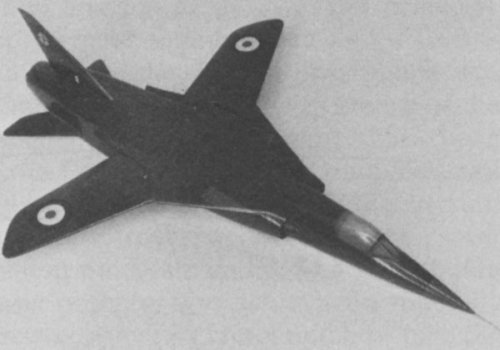

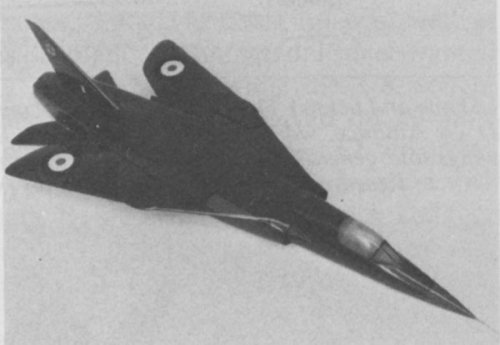

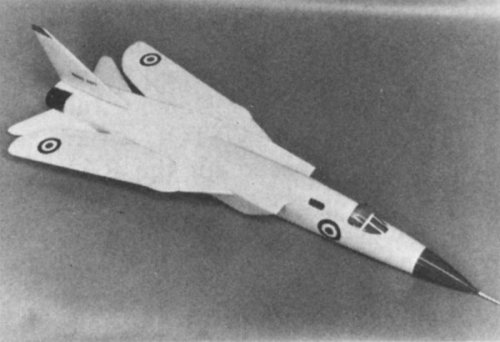

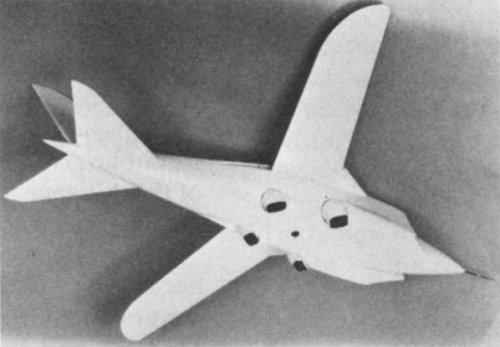

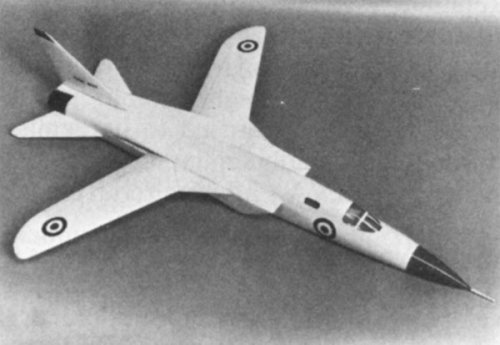

The article features

Type 581 (final submission to OR.346; initial submission was tailless variable geometry design with 4 x RB.153 engines)
Type 583V (tendered to a bi-service requirement; VSTOL development of a VG aircraft developed as a Sea Vixen replacement)
Type 584 (tendered to NATO NMBR 3)


Attachments

  • Type584-02.jpg
    27.8 KB · Views: 260
  • Type584-01.jpg
    28.9 KB · Views: 622
  • Type583V-02.jpg
    32.3 KB · Views: 616
  • Type583V-01.jpg
    36.6 KB · Views: 626
  • Type581-02.jpg
    36.9 KB · Views: 632
  • Type581-01.jpg
    35.7 KB · Views: 728

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,177
Reaction score
6,325
Re: BAC 583 designs

Alan Clifton used the NASA outboard hinge concept for the Type 581, aimed at OR 346.

Similar configuration used on Type 583 tandem two seater designed for AW 406 requirement for Sea Vixen successor.

Type 583 became designation of a whole family of vg fighter studies

Official interest crystallised on a single airplane to replace both Sea Vixen and Hunter (583V, V/STOL)

One 583V version used a 20,000lb class reheated Rolls-Royce RB.141 Medway turbofan with switched-in deflectors, another the Bristol Pegasus.

In 1961-1962 higher priority was given to the Type 584 submission to NMBR 3. Single reheated RB.177 with eight RB.162 lift engines.

Source:
"Annals of the Polymorph" Air International May 1975


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
636
Reaction score
272
Buttler is your friend, always.Bombers,P.119/T.581:RB.142;Fighters,P.117/T.583:RB.153;P.118/T.583V RB.141,or P.122, RB.168(Spey!)

Prof.Willi Messerschmitt in 1969-71 roamed MBB/Ottobrunn and Panavia/Munich to nurture "his" VG vindication. What had caused his P.1101(1945), Bell X-5, Grumman F10F, Swallows and other UK schemes to lapse was not aerodynamics, but fabrication. Sealing, lightweight pivot, load on the ornithopter outer wing. (Vickers')/BAC 1960s' VG studies had been part-funded by US MWDP and fed into NASA, thus into the TFX Spec, but the innovation that turned a theory into a weapon was by Grumman. Their F-111B wing centre box, titanium, electron-beam welded, was licenced by MBB, who had design-lead on that chunk of MRCA.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
163
More Barnes Wallis Swallow.


Attachments

  • Swallow6 (2).jpg
    Swallow6 (2).jpg
    109.4 KB · Views: 133
  • Swallow4 (2).jpg
    Swallow4 (2).jpg
    90.5 KB · Views: 132
  • Swallow3 (2).jpg
    Swallow3 (2).jpg
    85.9 KB · Views: 162
  • Swallow2 (2).jpg
    Swallow2 (2).jpg
    42.4 KB · Views: 198
  • Swallow5 (2).jpg
    Swallow5 (2).jpg
    40.2 KB · Views: 205
  • Swallow (3).jpg
    Swallow (3).jpg
    39.3 KB · Views: 141

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,214
Reaction score
1,527
Wow, thanks for these! Not much of Swallow pictorial info could be found these days.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,214
Reaction score
1,527
From the LARC site
http://oea.larc.nasa.gov/PAIS/Partners/F_111.html


Attachments

  • fig03.jpg
    61.1 KB · Views: 281

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
163
Hmmm, are those fins on the engine pods of the previous wind tunnel model?

Regards,
Barry


Attachments

  • Swallow (2).jpg
    Swallow (2).jpg
    109 KB · Views: 378

weirc

ACCESS: Confidential
Senior Member
Joined
Jan 15, 2008
Messages
61
Reaction score
8
Yes they are fins on the engines. During wind tunnel tests at NASA Langley that configuation was tested along with the bare wing without engine pods. See NASA TM SX-269 and NASA TM SX-306

Colin


Similar threads

Top
