Top advanced project of 1941 ?
Yes this really project from 1941.
On my belief, in 1940-41 was made maximum amount the most interesting and innovative project for soviet union (within the framework of section Early Secret Projects certainly)

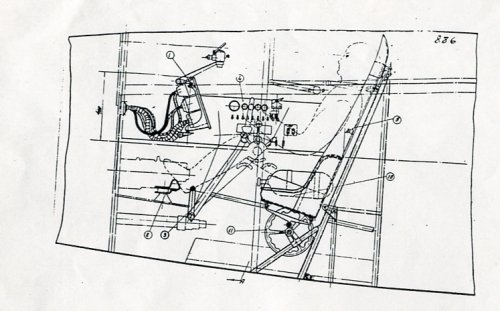

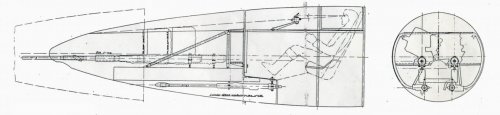

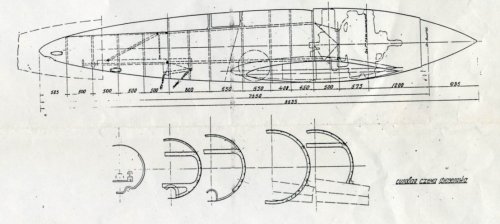

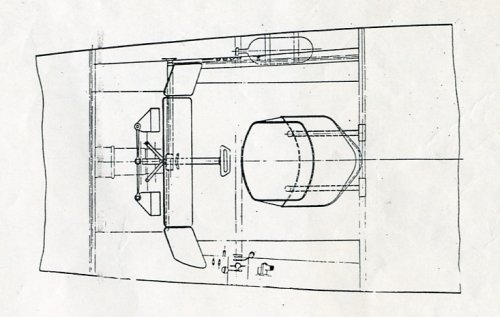

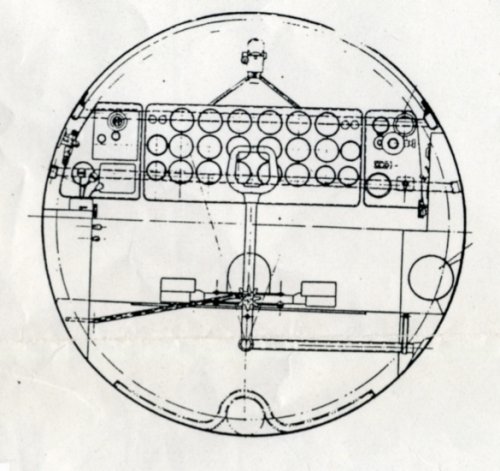

Several preliminary drawings:
1-2) from Aviation #2/99
3-7) courtesy by M.Maslov


Attachments

  • =D= 1941.jpg
    =D= 1941.jpg
    98.4 KB · Views: 457
  • cocp4.jpg
    55.1 KB · Views: 106
  • cocp3.jpg
    205.6 KB · Views: 75
  • cocp2.jpg
    205.1 KB · Views: 308
  • cocp..jpg
    243 KB · Views: 342
  • inb..jpg
    75.9 KB · Views: 359
  • =D=.jpg
    83.4 KB · Views: 429

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
946
Reaction score
93
Hi Borovik,

excellent pics. I also love this beauty. Any clues on the escape system? I remember reading that the seat tilted downwards and then ejected the pilot clear of the propeller arc. Bye.

More here:

http://www.geocities.com/unicraftmodels/on/bord/bord.htm


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
Hi Wurger,

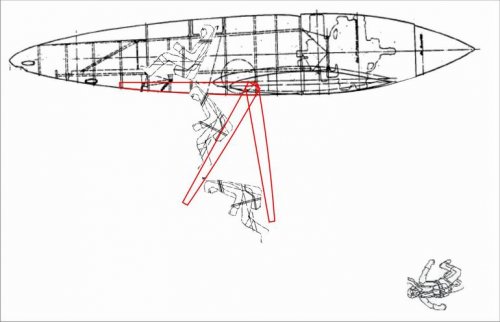

That's right. In the beginning they planned to install detachable hatch-door , but forward gear prevented to leave the cabin quickly; and then they decided to use floor's fragment throwing back and downwards with falling-in pilot's seat.
The ejector-seat first used in the USSR in 1941 at project V.Bolkhovitinov's "I" / "И" , (chief project
engineer A.Isaev), further development of "SI"(TsKB-21)/project 1935, by N.Polikarpov, and
"B-10" / Б-10 G.Beriev's http://www.secretprojects.co.uk/forum/index.php/topic,4532.0.html
The diversity of project "I" were air-scoops by the sides of booms and radiators on them.
Stopper airscrew was provided on "B-10".
Excuse me for my english.


Attachments

  • escape.jpg
    38.5 KB · Views: 112

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
946
Reaction score
93
Thanks, Borovik,

this soviet birds are quite challenging. I agree with you, the immediate years before the war were the most interesting in soviet aircraft industry, developing radical configurations and achieving fantastic solutions. The war put an almost end to this creativity, but not to ingenuity. Bye.


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,022
Reaction score
106
Wouldn't that sharply raked windscreen have caused problems with vision? How likely would it have been to be replaced by a normal, stepped one?

Did this aircraft have an annular intake for engine cooling?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
Thought it might be interesting to compare the Japanese Mitsubishi J4M Senden with its unbuilt Russian equivalent, the Borovkov-Florov Aircraft D of 1941.


theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
12
blackkite thanks again for the pictures of a beatiful japanese planes.

I agree withStargazer2006the Senden is one of the most beautiful planes of ww2.

Stargazer2006 do you have more information on the Aircraft D? It's the first time I see that one.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580
Alcides said:
I agree withStargazer2006the Senden is one of the most beautiful planes of ww2.

Stargazer2006 do you have more information on the Aircraft D? It's the first time I see that one.


Yes it's a very interesting and clean Russian project! Thanks for sharing us.
Twin booms had additional power plants?
It's a big topic. How about to begin independent topic of this beauty?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
Aircraft "D" (1941) had a swept wing laminar profile and was to be powered by an M-71 engine with a pusher propeller and two additional Merkulov ramjets, in the tail booms. The estimated speed was 850 km/h (!); length was 11.67 m, span was 14.5 m.

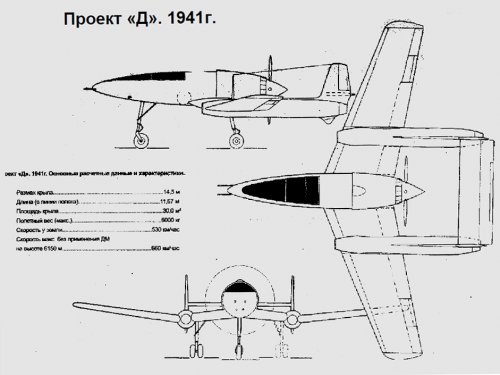

More pics of the "D" project:


Attachments

  • =D= 1941.jpg
    =D= 1941.jpg
    98.4 KB · Views: 653
  • Borovkov.gif
    19.5 KB · Views: 626

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
12
Does anyone knows if the atractive color schema for the first picture was real? Mabybe that was the color for prototypes?


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Hi all!

A bit more technical data: wing area - 30.0 m2; takeoff weight - 6000 kg; maximum speed without the ramjets - 660 km/h at 6000 m, 530 km/h at sea level. (From the book "Lost victories of Soviet aviation" by Mikhail Maslov).

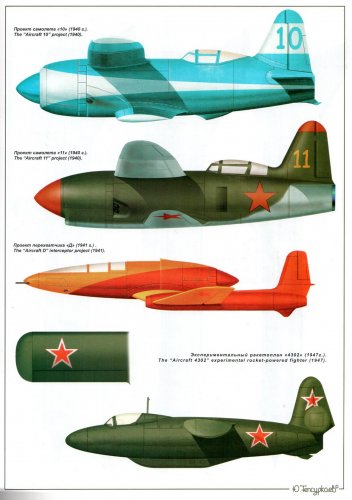

About the color scheme. There was no standard color scheme for prototypes in Soviet Union (every OKB painted them as they wanted), so this seems to be pure fantasy of the artist Yuri Tepsurkaev. I attach here the whole page from No.2 Aviatsiya magazine; you can see that he "painted" different Borovkov/Florov projects in totally different way.

But I personally think that, if the Nazis wouldn't invade Soviet Union and the "D" aircraft prototype would be built and flown in peace time - it could be painted in similar scheme. But most probably it would be red/silver, rather than red/yellow. If the "D" would be built at wartime, most likely it would have upper surfaces painted protective green and lower surfaces painted blue.


Attachments

  • BoF projects_color.jpg
    BoF projects_color.jpg
    170.7 KB · Views: 566

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
12
redstar72 said:
About the color scheme. There was no standard color scheme for prototypes in Soviet Union (every OKB painted them as they wanted), so this seems to be pure fantasy of the artist Yuri Tepsurkaev. I attach here the whole page from No.2 Aviatsiya magazine; you can see that he "painted" different Borovkov/Florov projects in totally different way.

But I personally think that, if the Nazis wouldn't invade Soviet Union and the "D" aircraft prototype would be built and flown in peace time - it could be painted in similar scheme. But most probably it would be red/silver, rather than red/yellow. If the "D" would be built at wartime, most likely it would have upper surfaces painted protective green and lower surfaces painted blue.

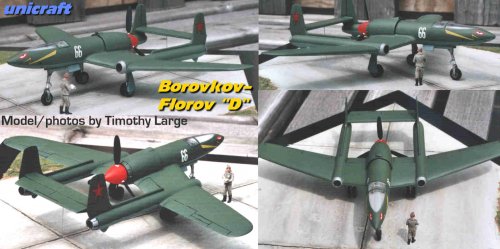

Thanks for the data about paint schemes. I think the last scheme was the one selected by unicraft for their model. I'm attaching a picture of a model with that colors.

I've to say maybe we need to start a thread about Borovkov-Florow projects because I didn't know about the Aircraft 10 and 11 projects. A search in on the web shows a lot about the I-207. Are these advanced versions of 207?


Attachments

  • bord.jpg
    87.8 KB · Views: 492

Taranov

ACCESS: Confidential
Joined
Jan 23, 2011
Messages
119
Reaction score
9
Bit better quality ;)


Attachments

  • bfdblueprint001.png
    905.4 KB · Views: 99
  • bfdblueprint002.png
    1.3 MB · Views: 121
  • borfroldprofile001.jpg
    76.4 KB · Views: 99

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Alcides said:
Thanks for the data about paint schemes. I think the last scheme was the one selected by unicraft for their model. I'm attaching a picture of a model with that colors.

This model wears tactical number, even some nose art elements - it seems to represent the "D" as operational fighter, not a prototype... But during WW2, operational fighter of the VVS could not be painted in this scheme: it was pre-war scheme, at wartime it was used only for prototypes. The production fighter aircraft were camouflaged - in green/black scheme (AMT-4/6) until July 1943, and in two-tone grey camo (AMT-11/12) after that date.

Alcides said:
I've to say maybe we need to start a thread about Borovkov-Florow projects because I didn't know about the Aircraft 10 and 11 projects. A search in on the web shows a lot about the I-207. Are these advanced versions of 207?

Done: http://www.secretprojects.co.uk/forum/index.php/topic,15103.0.html.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458

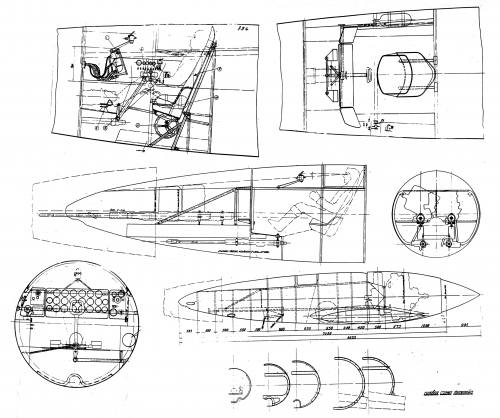

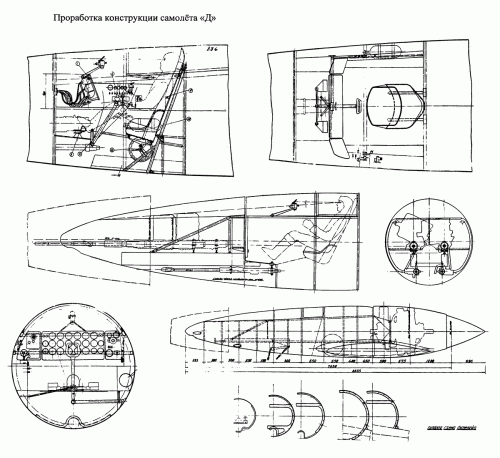

I have reworked/cleaned the cutaway views for better visibility:


Attachments

  • cutaway-web.gif
    155.5 KB · Views: 327

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458

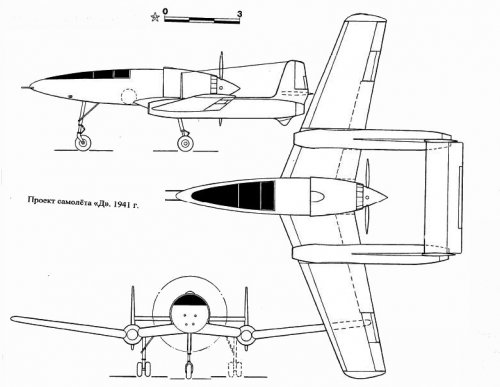

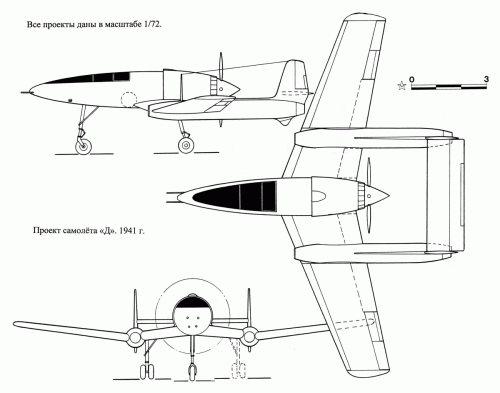

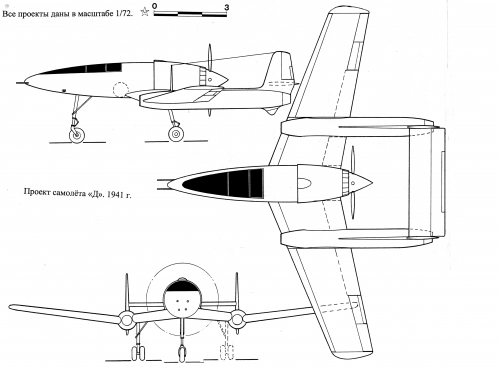

Here is also the three-view reworked in the same way, smaller but cleaner, for easier reference:


Attachments

  • 3view-web.gif
    172.2 KB · Views: 344

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
Topics merged and useless bits removed.

I'm awfully sorry about all the« Last Edit: Today at xx:xx:xx am by Stargazer2006 » mentions at the bottom of manyposts. When I merge topics, I often remove duplicate pictures, quotes ciontaining mistakes that have since been removed from the original post, moderators' messages indicate a merge or a split, etc.). If there were another way to do so, believe me I would!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

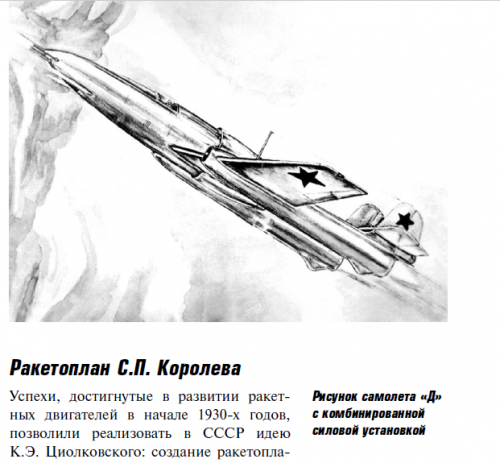

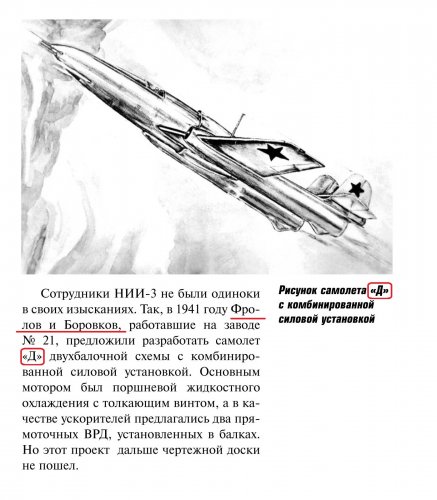

in the book; Реактивные первенцы СССР: МиГ-9, Як-15, Су-9, Ла-150, Ту-12, Ил-22,
I found this strange project,what was it ?,was it related to Korolev?.


Attachments

  • 1.png
    180 KB · Views: 406

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Thank you my dear Flateric,


and I know it,but sorry,I can't ID it in this form.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
978
Reaction score
505
I was sure that Marek Rys have done it Under the Red Star ( http://www.secretprojects.co.uk/forum/index.php/topic,17243.75.html ). By the way long time no message from Marek


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580
Hi!

http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Falternathistory.com%2Fistrebitel-d-borovkov-i-florov-sssr&sandbox=1
