Bolkhovitinov BDD heavy bomber project of 1936

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Hi,

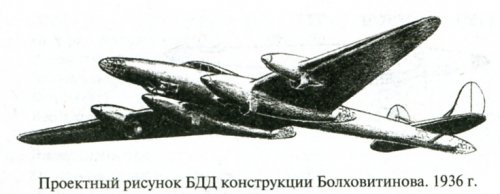

Bolkhovitinov BDD was a project of 1936 for heavy bomber aircraft,
it was powered by four 1200 hp M-34FRGN engines,pressurized
cabin and its span was 36,2m and length 26m.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
137

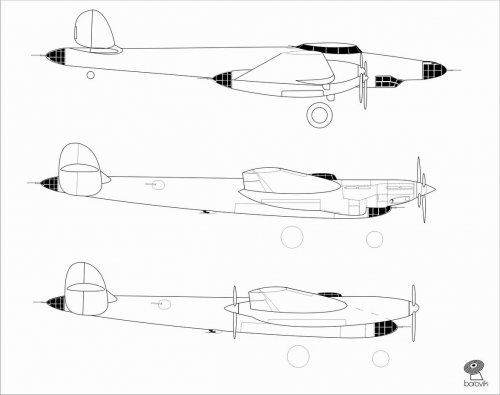

Bolkhovitinov's heavy bomber projects.
1) BDD 4M-34FRN (bomber "B")
2) "D" 4M-103
3) "D" 4M-40F

source M.Maslov "Lost Victories Soviet aviation"


Attachments

  • Bolkhovitinov's  heavy bomber projects.jpg
    Bolkhovitinov's heavy bomber projects.jpg
    61.9 KB · Views: 198

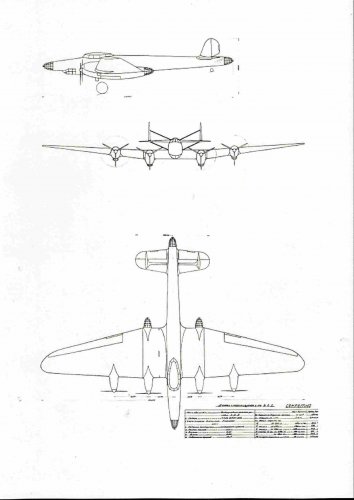

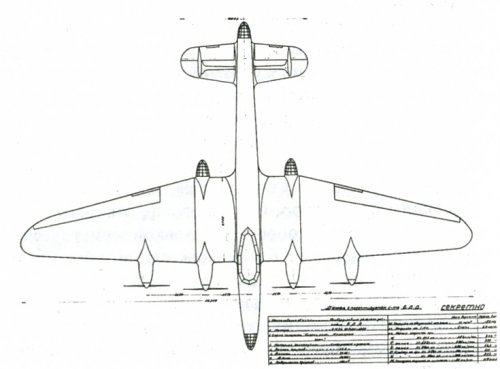

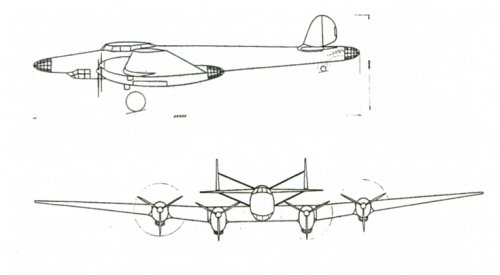

  • BDD.jpg
    108.9 KB · Views: 166
  • BDD  2.jpg
    BDD 2.jpg
    85.7 KB · Views: 166
  • BDD   1.jpg
    BDD 1.jpg
    154.4 KB · Views: 158
  • BOL_BOMB 'D'.jpg
    BOL_BOMB 'D'.jpg
    114 KB · Views: 190

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,775
Reaction score
4,894
Very nice work my dear Borovik,

and also the Bolkhovitinov TK-1 was a heavy cruise aircraft projects,
developed from DB-2,and it had crew of 11 and 3 ShVAK (3,000 rounds),
5 ShKAS (11,000 rounds) and underwing rockets.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Hi all

From "alternahistory.org"

It's write in Russian !!!I don't understand ...........

What is this plane ?

Thanks PAUL


Attachments

  • Scan.jpg
    276.6 KB · Views: 209
