Boeing Vertol Model 107 Variants and Projects

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
153

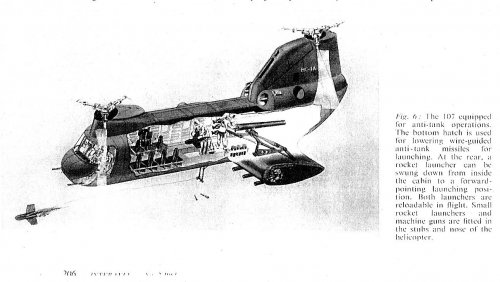

From early 60's Interavia don't know issue number...


Attachments

  • scan0008 (2).jpg
    scan0008 (2).jpg
    149.3 KB · Views: 1,562

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,072
Reaction score
177
Is that some sort of cannon firing off the rear ramp? Mounting looks rather flimsy. SS-11/Entac missiles? What are meant to be in the sponsons? Miniguns?


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,773
Reaction score
2,100
Caption says the weapon on the rear ramp is a rocket launcher meant to swing down and fire forward. It looks rather like a recoilless rifle to me.

The sponsons are supposed to have "small rocket launchers" but they actually look a lot more like grenade launchers to me.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
876
Website
deeptowild.blogspot.com

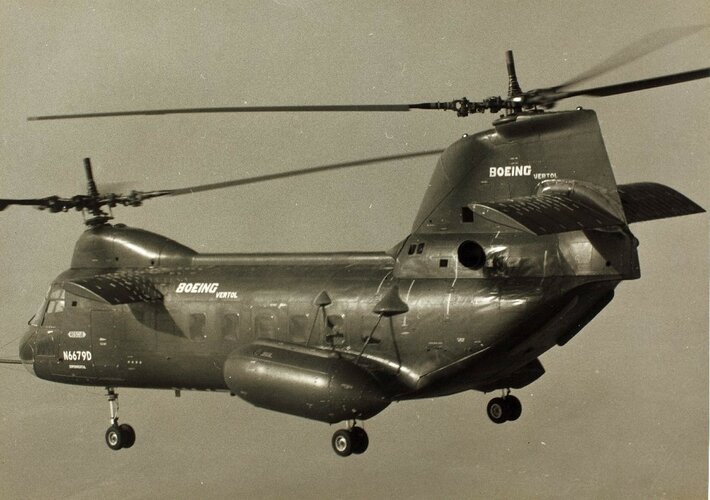

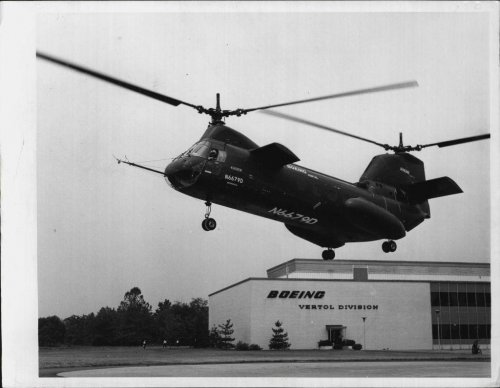

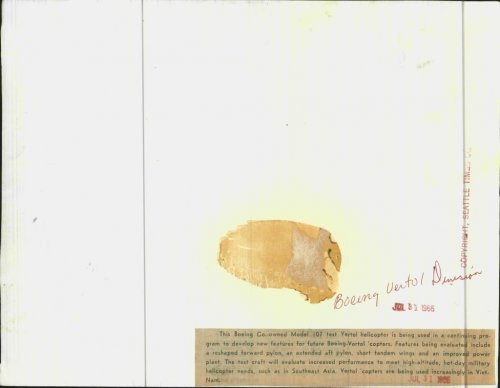

Boeing Vertol Model 107 test helicopter photo dated Jul. 31, 1966 found on ebay.

Source:
http://www.ebay.com/itm/1966-Boeing-Vertol-Division-Press-Photo-/190704760529?pt=Art_Photo_Images&hash=item2c66e3b6d1


Attachments

  • 6_13_308_img2789A.jpg
    78.9 KB · Views: 300
  • 6_13_308_img2789B.jpg
    46 KB · Views: 282

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,323

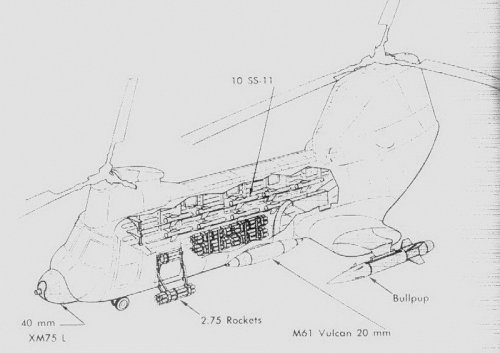

What probably is the most heavily armed version of this helilcopter, someone can
dream of, was shown in "Der Flieger", December 1962. Don't think, that I ever put
more weapons on the drawing of an aircraft as a schoolboy ! ;D


Attachments

  • BV-107_armed_01.jpg
    106.6 KB · Views: 1,054

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,013
Reaction score
481
Jemiba said:
What probably is the most heavily armed version of this helilcopter, someone can
dream of, was shown in "Der Flieger", December 1962. Don't think, that I ever put
more weapons on the drawing of an aircraft as a schoolboy ! ;D

Wow Jemiba that is one hell of a weapons loadout!!
The 2.75in, SS-11's and 40mm grenade launcher looks workable. But the Bullpup ASM's would have to have some major impact on the helicopters overall performance!
Very interesting the conveyer-like arrangement of the 2.75in & SS-11 reloads! I'm assuming the SS-11 (if that's what they are) are fired out the rear door/ramp?

Thanks again

Regards
Pioneer


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,304
Reaction score
1,323
Pioneer said:
I'm assuming the SS-11 (if that's what they are) are fired out the rear door/ramp?

I think so. Every single one of those weapons installations may have been workable, I think,
but not all together in a single airframe, of course. The drawing is from a page titled "Bewaffnete
Hubschrauber" (armed helicopters), all other pictures are photos of real installations.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,013
Reaction score
481
Thank you Jemiba ;) RegardsPioneer


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
193

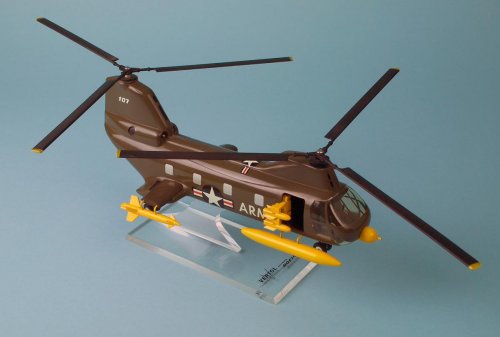

Factory display model of the Armed Vertol 107 helicopter project, from about 1962. The twin SS-11 missile rack retracts into the fuselage for reloading. There is a cannon housing and rocket canisters on the other side.

A wonderful device for metal-plating Charlie.


Attachments

  • Vertol 107 Armed 01sml.jpg
    Vertol 107 Armed 01sml.jpg
    60.4 KB · Views: 667

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
695
Reaction score
473
AW info


Attachments

  • Boeing Vertol.jpg
    Boeing Vertol.jpg
    395.4 KB · Views: 168

TsrJoe

ACCESS: Secret
Senior Member
Joined
Jan 2, 2006
Messages
450
Reaction score
346

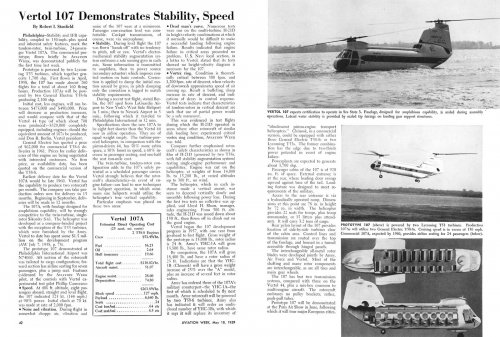

Vertol 107 for Sweden, manufacturers promotional image


Attachments

  • s-l225.jpg
    7.1 KB · Views: 72
