yasotay said:
sferrin said:
They appear to be WAYYYY behind Bell.
I think you overstate the situation. Just because they have no dynamic components, electronics, engines on the aircraft doesn't make them WAY x 4 behind Bell! Flying aircraft is not everything you know. B)
For an aircraft it certainly helps! ;D


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
26
Website
deeptowild.blogspot.com
"Sikorsky S-100 registration confirmed as SB-1 Defiant"
Posted on August 8, 2018 by Vertical Mag

Source:
https://www.verticalmag.com/news/sikorsky-s-100-registration-confirmed-as-sb-1-defiant/

Lockheed Martin has confirmed that the Sikorsky S-100 rotorcraft registered with the U.S. Federal Aviation Administration (FAA) last week is, in fact, the Sikorsky Boeing SB>1 Defiant.

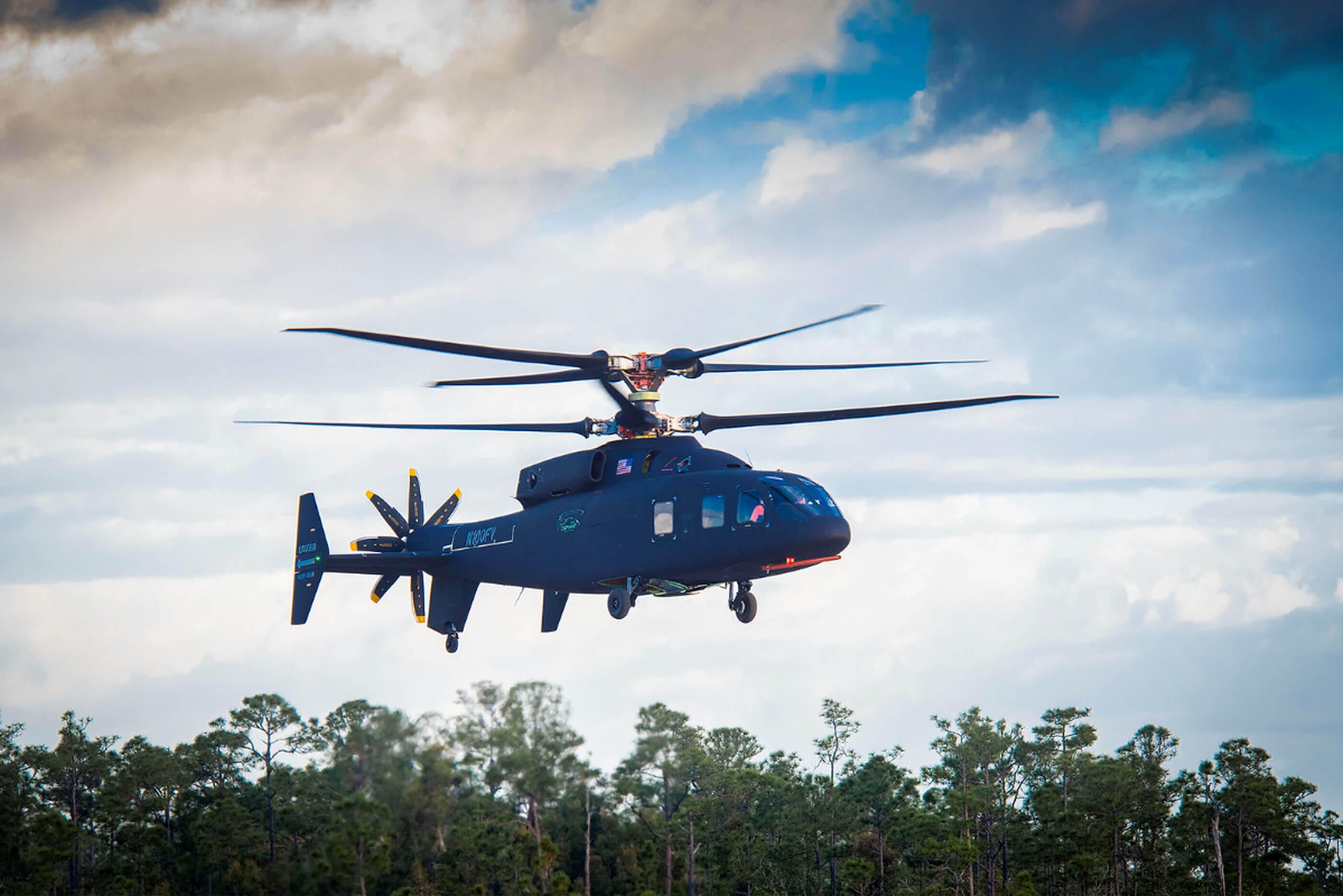

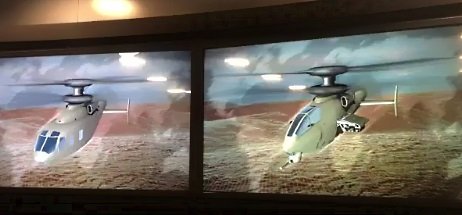

SB>1 Defiant in flight

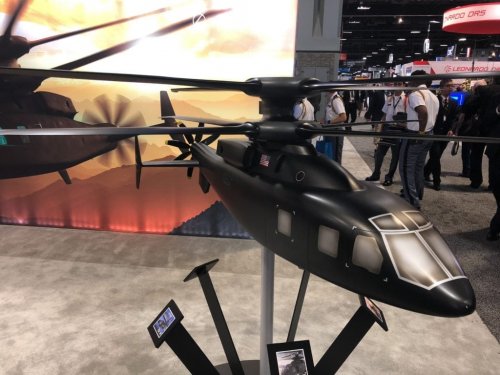

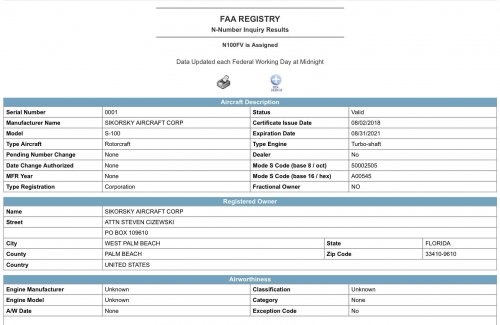

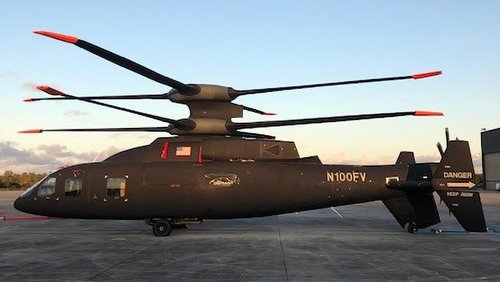

The news of the registration — for N-number N100FV, serial number 0001 — was first reported by Helihub. A spokesperson for Sikorsky parent company Lockheed Martin confirmed to Vertical that the registration is for the compound helicopter that Sikorsky and Boeing are developing for the U.S. Army’s Joint Multi-Role Technology Demonstrator (JMR TD) program, a precursor to the Future Vertical Lift (FVL) program that aims to modernize the Army’s rotorcraft fleet.

“Yes, the registry application for S-100 is referring to the Sikorsky-Boeing SB>1 Defiant,” the spokesperson said. “Our team is following the FAA’s process for how they formally designate experimental aircraft; however, we will continue to use SB>1 Defiant when describing our aircraft asset.”...


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
26
Website
deeptowild.blogspot.com
"SB>1 Defiant blades issue appears solved"
22nd August 2018 - 09:14 GMT | by Tim Martin in London

Source:
https://www.shephardmedia.com/news/defence-helicopter/sb1-defiant-still-short-blades-first-flight-nears/

The Sikorsky-Boeing in-development SB>1 Defiant demonstrator team appear to have resolved production issues concerning the future medium class helicopter's blades....


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,527
Reaction score
4
https://breakingdefense.com/2018/10/sb1-defiant-will-be-worth-the-wait-sikorsky-boeing/

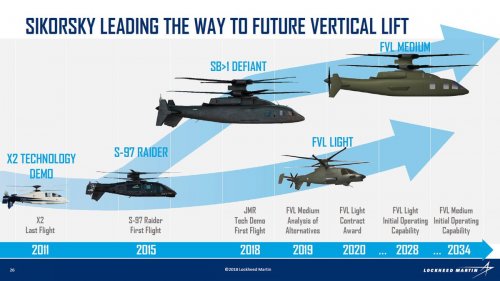

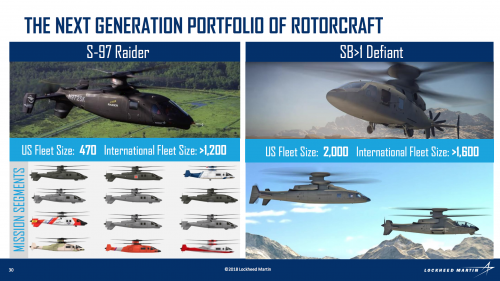

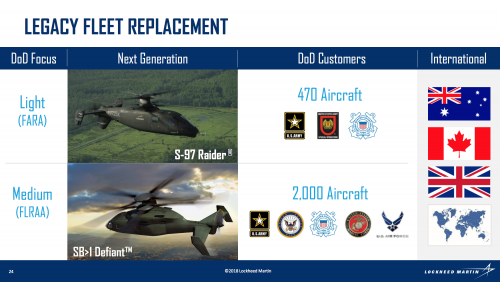

Sikorsky and Boeing are painfully aware they’re a year behind archrival Bell in getting their Future Vertical Lift aircraft off the ground. But, the companies insist that when their SB>1 Defiant does take flight, hopefully this December, the Army will see a revolutionary aircraft, fast and agile, that will be well worth the wait.

“We truly are inventing something here,” said Boeing’s FVL director, Randy Rotte. “The Army wanted… a technological leap, (but) with that great reward there will be challenges, some of which we’ve met and overcome, and some of which are probably still ahead of us.”

So, if ongoing ground testing reveals unexpected problems, I asked, could the first flight slip again, into 2019? Yes, Rotte said bluntly. “(In) the scenario you’ve laid out, which absolutely could happen, (where) we have to do additional work…. and that pushes us out beyond 2018, then we’ll be disappointed, but so be it.”


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,915
Reaction score
17
"Sikorsky and Boeing are saying that their aircraft is taking longer than Bell’s because their design is more inventive — harder, riskier, and more time-consuming, ..."

Not the sort of words that Pentagon bureaucrats like to hear. I think.


GWrecks

Big Wingy Thingy
Joined
Jul 15, 2018
Messages
76
Reaction score
1
yasotay said:
"Sikorsky and Boeing are saying that their aircraft is taking longer than Bell’s because their design is more inventive — harder, riskier, and more time-consuming, ..."

Not the sort of words that Pentagon bureaucrats like to hear. I think.
Do tiltrotors require fly-by-wire? Because otherwise I find that hard to hear on my end.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,915
Reaction score
17
I am not implying that tilt rotors are any less complex. My point is I would not think it prudent to tell people who barely understand the top from the bottom of a rotorcraft, which they already think are very complex (i.e. expensive), that our new rotorcraft is even more complex than the other guys rotorcraft. Which in this case happens to be a tilt rotor.


GWrecks

Big Wingy Thingy
Joined
Jul 15, 2018
Messages
76
Reaction score
1
yasotay said:
I am not implying that tilt rotors are any less complex. My point is I would not think it prudent to tell people who barely understand the top from the bottom of a rotorcraft, which they already think are very complex (i.e. expensive), that our new rotorcraft is even more complex than the other guys rotorcraft. Which in this case happens to be a tilt rotor.
Sorry, I meant that the part about the SB>1 being more complex than the V-280 was hard to hear.

You on the other hand are entirely right.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
26
Website
deeptowild.blogspot.com
Thoughts?

But compound helicopters might be much more agile at low speeds and in tight quarters — the conditions in which most crashes and shoot-downs occur. When you compare a compound helicopter like the SB>1 Defiant to a traditional helicopter, “not only do you not sacrifice maneuverability,” Boeing’s Rotte told me, “you actually have enhanced maneuverability.”

Why? Because they combine traditional helicopter rotors for vertical lift (albeit a sophisticated low-drag, low-vibration version) with a pusher propeller or “propulsor” for high speed. Low to the ground or in tight quarters, you can use the propulsor to maneuver without tilting the whole aircraft the way a traditional helicopter has to do. Higher up, where you do have room to tilt the whole aircraft, you can use both traditional helicopter maneuvers and the propulsor together to maneuver in ways a conventional helicopter can’t.

“It’s really good to get to the objective area in a combat operation quickly, but if you get there (and) you’re not maneuverable… you’re not survivable,” Sikorsky’s Koucheravy said. With a compound helicopter, “I get in and get out much more quickly, and in the face of enemy fire, I can maneuver, I can turn,” he told me. “The propulsor on this aircraft gives you a new independent power vector that no helicopter has ever had” — and, while he didn’t say so outright, no tiltrotor, either.
Source:
https://breakingdefense.com/2018/10/sb1-defiant-will-be-worth-the-wait-sikorsky-boeing/


GWrecks

Big Wingy Thingy
Joined
Jul 15, 2018
Messages
76
Reaction score
1
Triton said:
Thoughts?

But compound helicopters might be much more agile at low speeds and in tight quarters — the conditions in which most crashes and shoot-downs occur. When you compare a compound helicopter like the SB>1 Defiant to a traditional helicopter, “not only do you not sacrifice maneuverability,” Boeing’s Rotte told me, “you actually have enhanced maneuverability.”

Why? Because they combine traditional helicopter rotors for vertical lift (albeit a sophisticated low-drag, low-vibration version) with a pusher propeller or “propulsor” for high speed. Low to the ground or in tight quarters, you can use the propulsor to maneuver without tilting the whole aircraft the way a traditional helicopter has to do. Higher up, where you do have room to tilt the whole aircraft, you can use both traditional helicopter maneuvers and the propulsor together to maneuver in ways a conventional helicopter can’t.

“It’s really good to get to the objective area in a combat operation quickly, but if you get there (and) you’re not maneuverable… you’re not survivable,” Sikorsky’s Koucheravy said. With a compound helicopter, “I get in and get out much more quickly, and in the face of enemy fire, I can maneuver, I can turn,” he told me. “The propulsor on this aircraft gives you a new independent power vector that no helicopter has ever had” — and, while he didn’t say so outright, no tiltrotor, either.
Source:
https://breakingdefense.com/2018/10/sb1-defiant-will-be-worth-the-wait-sikorsky-boeing/
I thought the propulsor only went one way (Well, two ways technically...).

Though the coaxial rotors might give more of a push when input is provided.

Actually, wasn't the entire reason why Kamov used coaxials because they needed to fit a helicopter on a ship with minimal space? Specifically, the rotors would have provided better lift. Does that mean the SB>1 can carry more for its size?

EDIT: Actually, I can kinda get the point for the SB>1 being able to land better, since it takes less space than the V-280.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,399
Reaction score
17
GWrecks said:
Triton said:
Thoughts?

But compound helicopters might be much more agile at low speeds and in tight quarters — the conditions in which most crashes and shoot-downs occur. When you compare a compound helicopter like the SB>1 Defiant to a traditional helicopter, “not only do you not sacrifice maneuverability,” Boeing’s Rotte told me, “you actually have enhanced maneuverability.”

Why? Because they combine traditional helicopter rotors for vertical lift (albeit a sophisticated low-drag, low-vibration version) with a pusher propeller or “propulsor” for high speed. Low to the ground or in tight quarters, you can use the propulsor to maneuver without tilting the whole aircraft the way a traditional helicopter has to do. Higher up, where you do have room to tilt the whole aircraft, you can use both traditional helicopter maneuvers and the propulsor together to maneuver in ways a conventional helicopter can’t.

“It’s really good to get to the objective area in a combat operation quickly, but if you get there (and) you’re not maneuverable… you’re not survivable,” Sikorsky’s Koucheravy said. With a compound helicopter, “I get in and get out much more quickly, and in the face of enemy fire, I can maneuver, I can turn,” he told me. “The propulsor on this aircraft gives you a new independent power vector that no helicopter has ever had” — and, while he didn’t say so outright, no tiltrotor, either.
Source:
https://breakingdefense.com/2018/10/sb1-defiant-will-be-worth-the-wait-sikorsky-boeing/
I thought the propulsor only went one way (Well, two ways technically...).

Though the coaxial rotors might give more of a push when input is provided.

Actually, wasn't the entire reason why Kamov used coaxials because they needed to fit a helicopter on a ship with minimal space? Specifically, the rotors would have provided better lift. Does that mean the SB>1 can carry more for its size?

EDIT: Actually, I can kinda get the point for the SB>1 being able to land better, since it takes less space than the V-280.
You're right on the Kamov design. The Sikorsky design uses counter rotating rotors to prevent roll off at high speed. With helicopters you lose more lift the faster you go on the retreating blade side. That's also why they're using rigid rotors (so they can keep the height reasonable without risking the blades becoming intertwined). The AH-56 avoided roll off by using a wing and unloading the rotor.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,021
Reaction score
9
GWrecks said:
Triton said:
Thoughts?

But compound helicopters might be much more agile at low speeds and in tight quarters — the conditions in which most crashes and shoot-downs occur. When you compare a compound helicopter like the SB>1 Defiant to a traditional helicopter, “not only do you not sacrifice maneuverability,” Boeing’s Rotte told me, “you actually have enhanced maneuverability.”

Why? Because they combine traditional helicopter rotors for vertical lift (albeit a sophisticated low-drag, low-vibration version) with a pusher propeller or “propulsor” for high speed. Low to the ground or in tight quarters, you can use the propulsor to maneuver without tilting the whole aircraft the way a traditional helicopter has to do. Higher up, where you do have room to tilt the whole aircraft, you can use both traditional helicopter maneuvers and the propulsor together to maneuver in ways a conventional helicopter can’t.

“It’s really good to get to the objective area in a combat operation quickly, but if you get there (and) you’re not maneuverable… you’re not survivable,” Sikorsky’s Koucheravy said. With a compound helicopter, “I get in and get out much more quickly, and in the face of enemy fire, I can maneuver, I can turn,” he told me. “The propulsor on this aircraft gives you a new independent power vector that no helicopter has ever had” — and, while he didn’t say so outright, no tiltrotor, either.
Source:
https://breakingdefense.com/2018/10/sb1-defiant-will-be-worth-the-wait-sikorsky-boeing/
I thought the propulsor only went one way (Well, two ways technically...).

Though the coaxial rotors might give more of a push when input is provided.

Actually, wasn't the entire reason why Kamov used coaxials because they needed to fit a helicopter on a ship with minimal space? Specifically, the rotors would have provided better lift. Does that mean the SB>1 can carry more for its size?

EDIT: Actually, I can kinda get the point for the SB>1 being able to land better, since it takes less space than the V-280.
The improved landing characteristics come from a bunch of things. Smaller rotor span compared to tiltrotors and even conventional helicopters helps, both in terms of where it fits and in how it flies at speed. Not having a tail rotor can apparently allow faster turns, especially when coupled with the smaller diameter and very rigid main rotors.

Also the ability of the tail propulsor to reverse pitch in flight can brake the aircraft for a rapid transition from forward flight to hover or landing. Normally, a quick stop in a helicopter involves a nose-high flare maneuver where the troops get tossed around in the back, pilots can lose situational awareness, and worst case you can get either a tail strike or a settling with power situation. Not needing to pitch up can make a quick insert simpler and safer all around.

The following article about flying the X2/S-97 is pretty interesting. Granted it's by a Sikorsky employee, but it seems pretty candid.

http://digitaledition.rotorandwing.com/april-may-2018/x2-from-the-pilots-view/


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,915
Reaction score
17
I suspect that at high speed the V-280 will have better roll, possibly pitch and yaw. At low speed I would give SB>1 better pitch and roll. Yaw rate will depend on how much flexibility the V-280 has in the prop-rotors. Both are big aircraft.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
714
Reaction score
4
@TomS:
Don't forget also that S-97 and SB-1 are sons of the Advancing Blade Concept design where the symmetry of having two blades advancing simultaneously in the relative wind allows an increase in blade maximal admissible momentum that results in a superior value of the blade loading and stability.
The concept fielded by Sikorsky is not only to have contra-rotating rotors or "rigid" rotors. Primarily, It's the ABC.

https://youtu.be/TIFkCxQWAfU


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
26
Website
deeptowild.blogspot.com

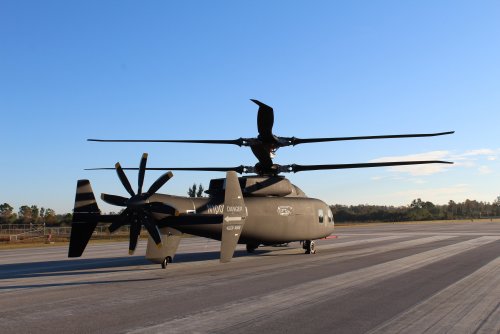

"Sikorsky-Boeing SB-1 Defiant Prototype Complete, Except For Main Rotors"
by Dan Parsons | October 8, 2018

Source:
https://www.rotorandwing.com/2018/10/08/sikorsky-boeing-sb-1-defiant-prototype-complete-except-main-rotors/

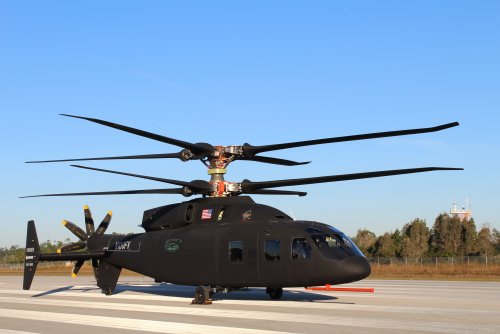

Installation of its eight 30-foot-long rigid rotor blades is all the SB-1 Defiant needs to be a complete compound helicopter scheduled for a first flight before the end of the year.

“Defiant has been completely built, minus the rotor blades,” Rich Koucheravy, Sikorsky’s future vertical lift director, said Oct. 8 at the Association of the U.S. Army’s annual expo in Washington, D.C. “We have run nearly all of the aircraft systems, so not only have the individual components been put through bench testing, but now we’ve got the aircraft completely configured. We’ve run the engines, we’ve run the electrical system. We’ve run the hydraulics. We’ve even turned the transmission without blades.”

Half of the aircraft’s eight 30-foot rigid rotors will arrive at Sikorsky’s West Palm Beach, Florida, flight test facility by Oct. 9, said Boeing FVL Program Manager Ken Eland. The other four will arrive by next weekend.

Prior to first flight and during ground runs, engineers will gain hundreds of hours of system performance data from the powertrain systems test bed, which is essentially a replica of the Defiant that stays bolted to the ground and contains all of the dynamic systems configured exactly as they are in the aircraft. It has been run twice without the eight rigid rotor blades installed, according to Ken Eland, Boeing’s FVL program manager. It’s aft propulsor blades are installed.

The main rotor blades for the test bed have been delivered to West Palm Beach, but have not been installed, Eland said. The plan is to run the powertrain test bed once more before installing the blades. At that point, the test bed will start at zero and will be run a total 200 hours before the Defiant takes off, Eland said.

Koucheravy said the test bed should be fully up and running before the end of October. It will operate concurrently with Defiant ground runs, which should begin in November. The companies are eyeing a first flight in December.

“Between Sikorsky and Boeing, we have worked tremendously hard over the past six months to remove as much risk … from the program to get our aircraft up in the air,” Koucheravy said. “We remain on a path to complete the build of Defiant shortly and get it in the air by the end of the year.”

If the Defiant breaks contact with the ground in December, it will be about a year later than originally planned. That delay was primarily due to problems with automating the layering of fibers to create the central spar of the blades.

“We took the approach to automate the core part of this blade, so the spar is very long. It’s very thick and it’s composite material,’ Eland said. “To set the precedent for the future, of being a low-cost aircraft, we went right in with an automated approach to doing that. It was actually tooling for the rotor blades that set that back for a while.”

Because Boeing was developing the rotor lamination process — called automatic fiber placement — as it went, it took two years to build the first rotor spar. The last one took just 11 days, Eland said.

The same rotor configuration has flown in smaller scale on Sikorsky’s experimental X2 aircraft and on the S-97 Raider. The airfoil design is proven, said Randy Rotte, Boeing's director of business development for cargo helicopters and future vertical lift programs.

“It’s not about the airfoil challenges there,” Rotte said. “It really was about the process that we embarked upon — by the way at the request of the Army — to improve the manufacturing readiness level of that process and the discoveries we made on how to do that, which, yes, took us way longer than we expected because we ran into unexpected challenges.”

If Defiant lifts off in December, Eland said it could be flying at upward of 200 kt by mid-2019 as part of a gradual, phased flight test program that has been worked out in cooperation with the Army. A six-month “window is not an unrealistic time period for us to get there.”

“The true answer is when the aircraft says it’s ready, we’ll get there,” Eland said. “It’s a little hard to predict with what we’re doing. We have a revolutionary technology. … Expanding the flight envelope is going to be step-by-step to make sure that we do it safely and properly. To assign timelines to it at this time would be a little naive on my part.”
