Boeing "Quiet Bird" 1962 Stealth project

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,616
Reaction score
3,544
That date is pretty interesting. Who made that?


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89

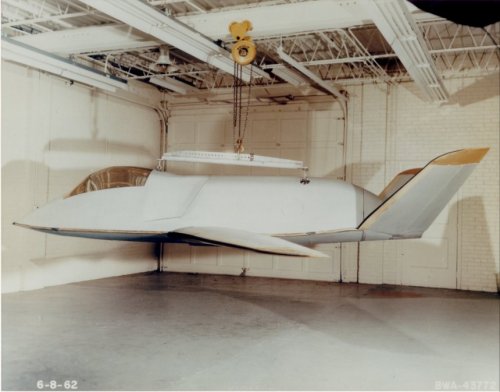

That's the RCS model. When the hell did they release this one?


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,616
Reaction score
3,544
SOC said:
That's the RCS model. When the hell did they release this one?

And how is it YOU know about it? (And what else have you been holding out on? :) )


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,384
Reaction score
412
Is 6-8-62 the date the picture was taken?
If that's the case, I'm impressed. the model seems to conform more to what we now understand to be 'stealth rules' than other early designs (chined fuselage, flat bottom, Vee-tails, shielded fan face, although no planform alignment). All the more so because I thought Boeing was a late starter in the field of LO.

For early stealth designs, see

Do you know what was the mission? Light attack?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
210
Website
www.hitechweb.genezis.eu
We already heard about it ::) Yay! I must be much observing next time.

And then there are th issues of extremely long periods between application and grant. I can recall off the top of my head at least one aircraft design (Boeing "Quiet Bird") that spent about 30 years between application and publication; an early stealth aircraft from the 1960's that wasn't patented until after the F-117 and B-2 were flying around in broad daylight.



Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
210
Website
www.hitechweb.genezis.eu

quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,223
Reaction score
330
Orionblamblam said:
Matej said:
Which can be 4 924 228

Yup, that's the one. Notice that it was filed in 1963, but only granted in 1990. That means that a patent filed for a stealth aircraft designed in 1962 only expired two years ago.

I've seen the same patent behavior before with very, very secret stuff. I would have to look around, but as I recall there were a number of VLO satellite patents from the 60s and 70s that were all granted on about the same day in the 90s.
From what I have heard this is common practice for some three letter agencies, I may have a reference for that.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,837
Reaction score
3,260
Website
www.aerospaceprojectsreview.com
Matej said:
Just WOW! I also want to know more!

I have more, freely and openly obtained from Boeing a fesw years back. But since then relations with Boeing have gotten... a little creepy. Which is why I posted it here, rather than in a public forum. I've been wanting to do an APR article on this for a few years, but I'll need to do a complete redraw of all the diagrams (and there are a number), as well as procure new "art." Unfortunately, while I have the design down pretty pat, the actual *story* is at best vague. There was not a whole lot of explanatory documentation.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671

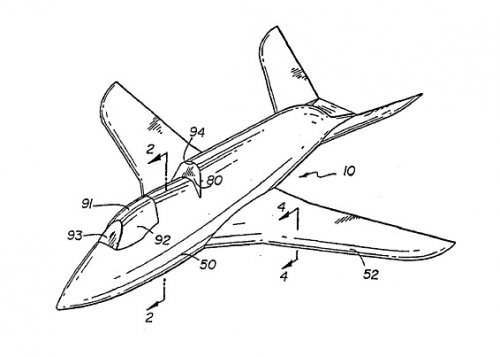

Patent says its a recce aircraft. Its actually quite interesting, goes into some depth on the RAM stuff, though the shaping is rudimentary.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,213
Reaction score
89
sferrin said:
And how is it YOU know about it? (And what else have you been holding out on? :) )

You forget...I'm awesome B)


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
133
Website
theavgeeks.com
Wouldn't this be about the same time frame as the Compass Arrow UAV? Compass Arrow had inward canted fins, though, but the general configuration seems similar.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
123
Awesome, thanks Scott. I had a feeling the tail was v shaped.


I'm drawing this old-skool style as my school is on break for two weeks and I don't have AutoCAD at home.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,837
Reaction score
3,260
Website
www.aerospaceprojectsreview.com
XP67_Moonbat said:
Awesome, thanks Scott. I had a feeling the tail was v shaped.


I'm drawing this old-skool style as my school is on break for two weeks and I don't have AutoCAD at home.

Drawings are coming. The scans are on my hard drive, easily accessible; the drawings are on paper, somewhat less accessible. And I suspect I'll be re-drawing them.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671
If it was an army project, I wonder if the "Quiet Bird" name has any relation to the fixed wing O-1 Bird Dog - maybe a low observable observation platform? Sort of a manned UAV? Predecessor to the Lockheed YO-3A "Quiet Star" programme?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671
"Quiet" code is permanently assigned to the US Army, according to designation-systems.net. So assuming Quiet Bird is an official codeword and not a Boeing name, then it must be an Army project, confirming what Scott says is on the drawing.

I'm betting on a "stealthy" observation platform.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671
O-4
The designation ZO-4A (indicating a design in the planning stage) was reserved by the USAF on 28 May 1969. The O-4 was to be a quiet observation aircraft, similar in concept to the Lockheed YO-3A. It seems that one candidate (possibly the only one) for the O-4 requirement was the Wren 460QB, a modified Wren 460B (itself a highly modified derivative of the Cessna 182). In 1969, the USAF proposed the purchase of 28 of these aircraft. However, the O-4 program was terminated in the early 1970s because of budget restrictions.

The Wren 460QB was also "Quiet Bird".


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,384
Reaction score
412
Given the lack of weapons bay, it could well be a reconnaissance bird. At the same time, wouldn't it then be a two seater?


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,877
Reaction score
1,617
If it was indeed an Army effort, it would have been interesting to see how the USAF would have reacted to a swept-wing jet combat aircraft in the Army inventory... even if it did meet the weight restrictions of the Key West Accord.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,837
Reaction score
3,260
Website
www.aerospaceprojectsreview.com
AeroFranz said:
Given the lack of weapons bay, it could well be a reconnaissance bird.

No, it looks to be pretty much a research plane. I have no doubt that there were plans for operational variants (the drawings I have - which match the photos - are for the Model 853-21, indicating at least 20 other versions), but this particular plane had almost no payload capability of any kind. It was a really small plane. Looks to have been a flying RCS target, little more.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671
It make sense - kind of a proof of concept manned demonstrator like the XST. Its streamlined shape is likely more related to signature management rather than speed.


vulture

ACCESS: Confidential
Joined
Sep 25, 2009
Messages
96
Reaction score
8
New topic

No outlandish posting of speculative images this time. I should have known better than to have put forward anything like the "flaming pumpkinseed" thingy - like pouring gasoline on a fire. Any information on the Quietbird from Boeing or on the
YF-113G.

Vulture


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671

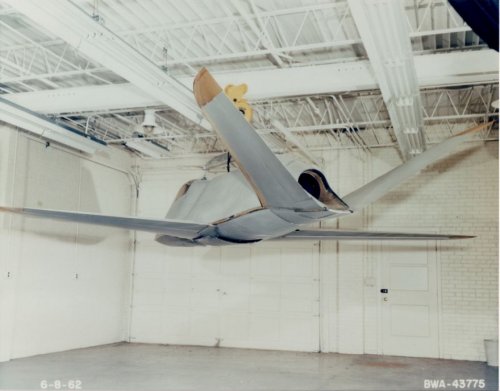

Yes. We have photos of the Boeing Quiet Bird mockup posted in a forum section visible to senior members. Its a 1962 project for a reduced RCS Army observation aircraft. Not well known, but not very secret, and not built.


vulture

ACCESS: Confidential
Joined
Sep 25, 2009
Messages
96
Reaction score
8
any chance you posting the image or images of Quietbird?

Vulture


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,615
Reaction score
7,671
I don't think they are connected. YF-113G is a cover designation for another program.


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,223
Reaction score
330
overscan said:
I don't think they are connected. YF-113G is a cover designation for another program.

Quiet Bird predates the designations that include YF-113G.
