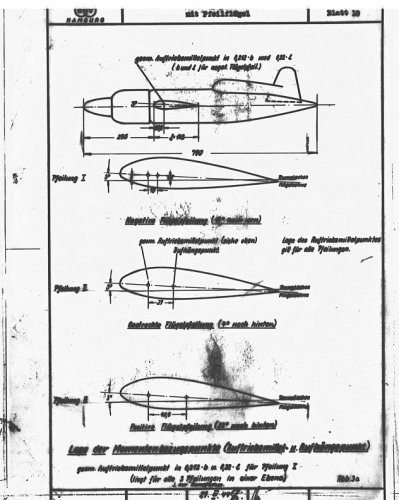

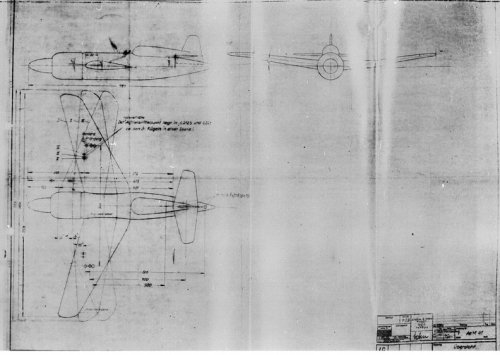

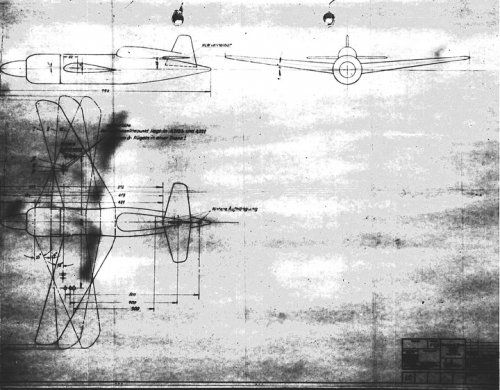

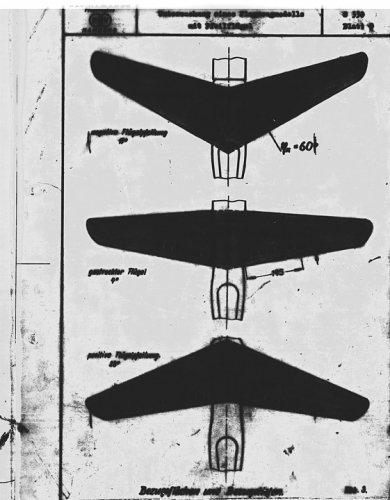

I have some microfilm from the NASM archives that shows an unknown Blohm und Voss Project.

The drawings are labeled Ae M 41.

Can anyone shed some light on this project?

Gary Webster


Attachments

  • 2433_351.jpg
    140.7 KB · Views: 590
  • 2433_352.jpg
    176.7 KB · Views: 560
  • 2433_355.jpg
    155.9 KB · Views: 494
  • 2433_354.jpg
    126.1 KB · Views: 456

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
59
:) Nothing to add ,but a big " THANK YOU " It's a scoop !!!!


Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
992
Reaction score
142
Hi Gary,

nice to know from you again. You might remember me, some years ago I sent you some copies of Kiryll von Gersdorff`s book on german helicopters. Welcome.

Carlos Henriques


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
592
Reaction score
260
Wow! What a find! I am unable to read any of the dimensions, any chance of posting clearer or larger images?

Any idea what the engine is? The Cowling looks very long, as does the spinner suggesting a contra prop?


kiradog

ACCESS: Confidential
Joined
Feb 3, 2008
Messages
77
Reaction score
22
Nick,

I'll post a closer file with the dimensions more readable in a few days.

The associated document is virtually unreadable. The microfilm is out of focus and I can not make out anything readable.

Carlos, good to hear from you again.

Gary


kiradog

ACCESS: Confidential
Joined
Feb 3, 2008
Messages
77
Reaction score
22

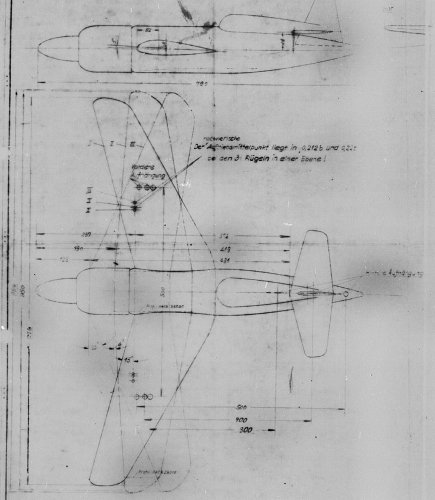

Here is a cleaner version with measurements.

Documents are dated 1944.

Gary Webster


Attachments

  • 2433_351.jpg
    300.6 KB · Views: 481

Wurger

ACCESS: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
992
Reaction score
142
Hi guys,

the spinner does sugest contrarotating propellers, but the estimated cowling measurements imply a radial engine with no more than two rows. It could be a 14 cylinder ( BMW 801/804/805 family ), a 18 cylinder ( BMW802 ) or the enigmatic Argus Ar403 radial , either P5 or P9 variants. Bye.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,543
Reaction score
6,272
Hi Kiradog,


I saw something like that in NASA report from while,but to be honest,I don't find the name of
Blohm and Voss on it.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,598

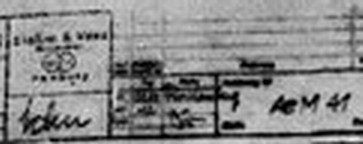

In the upper left corner of the drawings key you can see the Blohm & Voss logo,
so, assuming it's authentic, there's no question, I think.


Attachments

  • B&V.jpg
    30.4 KB · Views: 60
  • blohm-voss-logo.jpg
    8.2 KB · Views: 252

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,543
Reaction score
6,272
Jemiba said:
In the upper left corner of the drawings key you can see the Blohm & Voss logo,
so, assuming it's authentic, there's no question, I think.


My dear Jemiba,


I speak about the NASA report,the drawing is different,and no signal on it.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,598
Then, perhaps you should post those drawings, so we can discuss, if it actually is
the same aircraft ? ;)
As it's a design with variable geometry, it's understandable, that it was interesting for
NASA, so it may well have been pictured in other reports.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,543
Reaction score
6,272
Sorry my dear Jemiba,


I saw a report in NASA site from long time ago,but unfortunately I didn't keep it,I think it was
just a hypothetical model.


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
News like this give sense to my life!
Two questions:
1- Is the "Ae" prefix related to any known company or designer? I don't remember, actually. :-\
2- Would be interesting to translate exactly the notes. I can guess that one reads "front suspension" (landing gear attachment point, maybe?) and the second could be related to the centre of gravity or pressure of the wing. Both have three slightly shifted position for three different wing layout (+ and - swept and straight). Hardly understandable how the sweepback wing's root would be attached to the front fuselage.

Thank you very much.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
713
Reaction score
406
kiradog said:
Here is a cleaner version with measurements.

Documents are dated 1944.

Gary Webster


Translation of this text, from leftmost block to right


Front suspension


Computed center of lift for 0.221b and 0.22t(?) flight for the 3 in one plane


Rear suspension


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,598

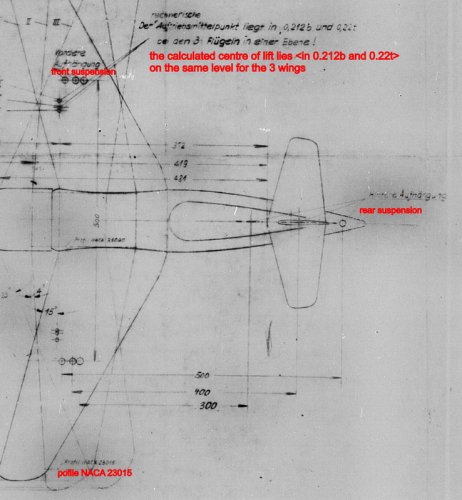

The draftsman obviously made an insertion/correction to the caption about the center of lift,
actually writing to sentences, using the beginning for both.


Attachments

  • translation.jpg
    150.9 KB · Views: 163
