Blohm und Voss P.200 Transocean Seaplane Project

kiradog

ACCESS: Confidential
Joined
Feb 3, 2008
Messages
77
Reaction score
21

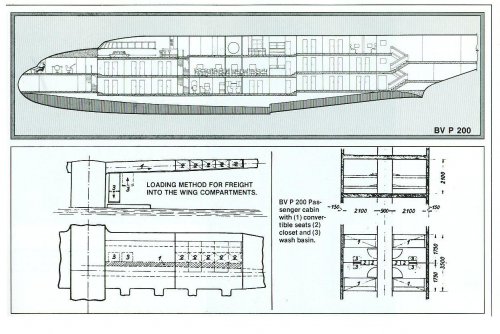

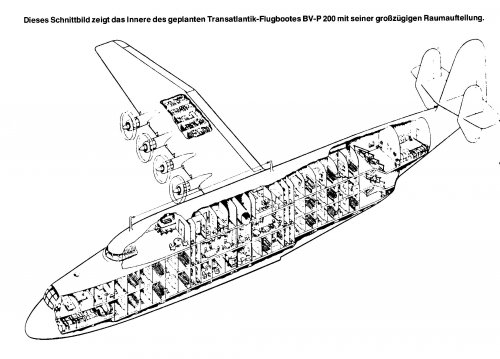

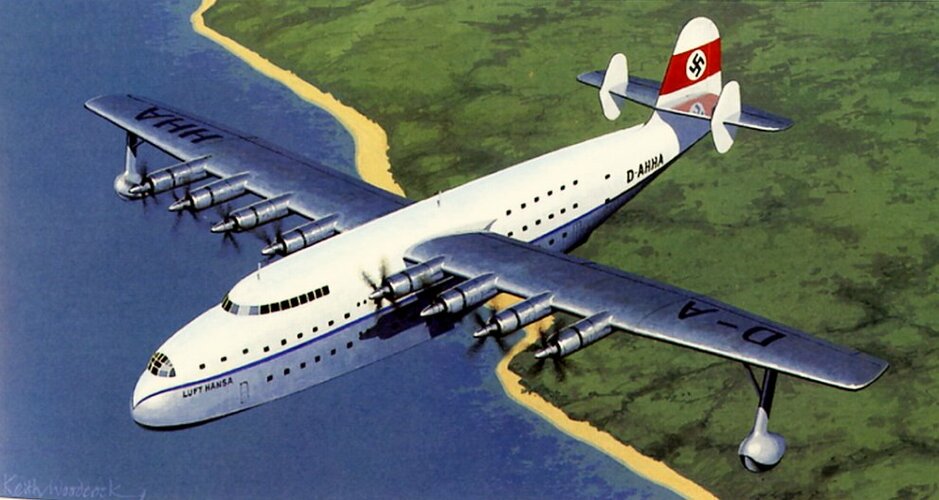

I have this poor scan of the Blohm und Voss P.200 Transocean seaplane. Does anyone know if a cleaner version of this cutway exists in any published books or articles? I'd like to find a cleaner version.

Thanx in advance,
Gary


Attachments

  • bv P.200.jpg
    bv P.200.jpg
    809.1 KB · Views: 654

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,033
Reaction score
432

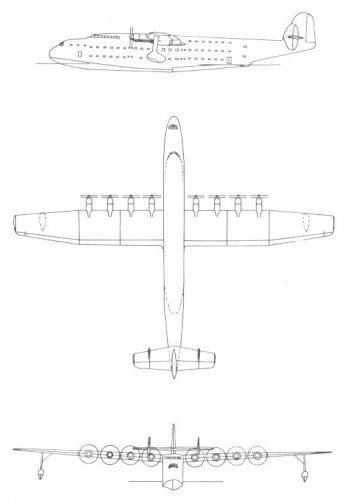

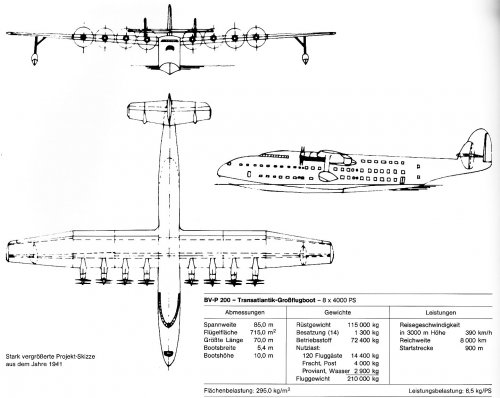

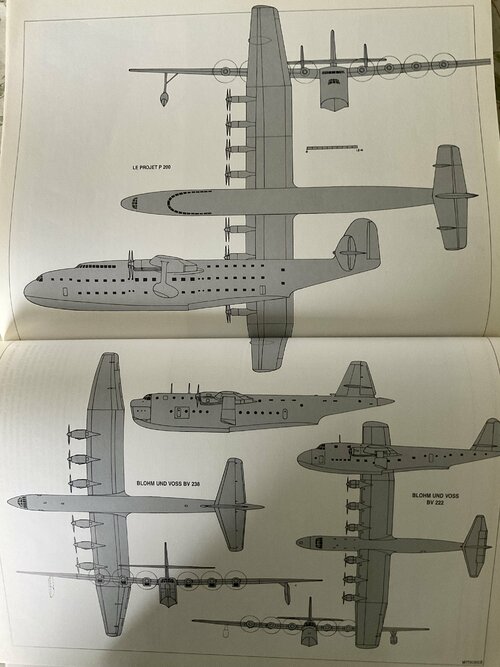

a 3view drawing from "Die deutsche Luftrüstung" von Nowarra.


Attachments

  • Blohm & Voss P-200-.jpg
    Blohm & Voss P-200-.jpg
    73 KB · Views: 674

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
159

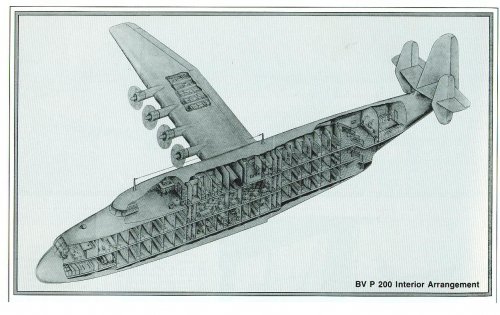

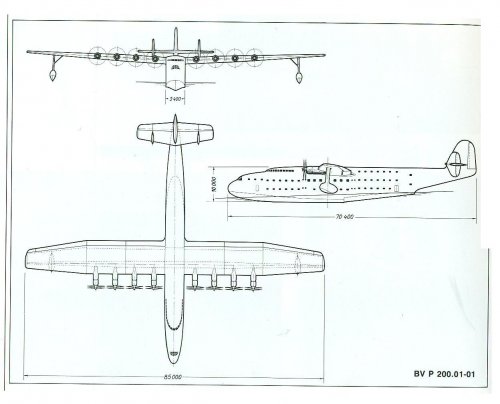

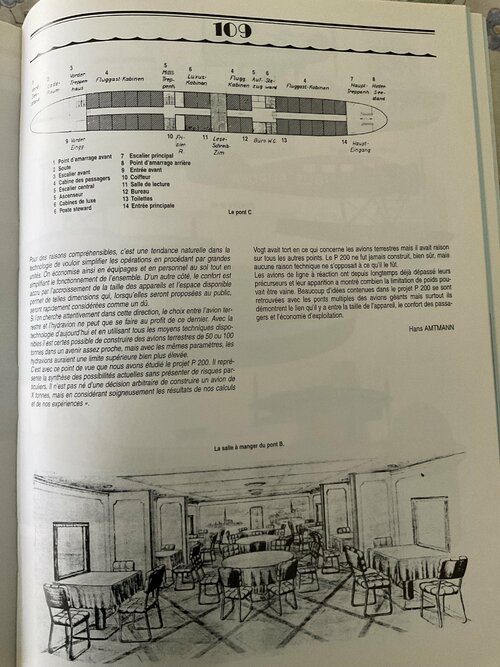

Two drawings from "Prof. Junkers nannte es "Die Fliege"" from Hermann Pohlmann; Motorbuch Verlag Stuttgart, 1983.


Attachments

  • P200a.jpg
    79.4 KB · Views: 626
  • P200b.jpg
    67.9 KB · Views: 604

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545

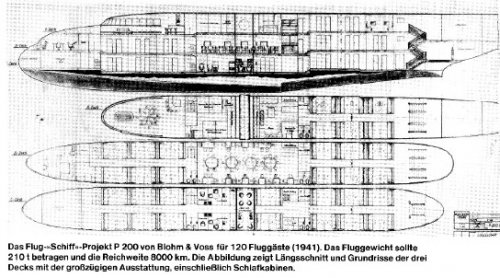

From F.Guetschow "Die deutschen Flugboote" :


Attachments

  • P-200.jpg
    350.9 KB · Views: 590

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
74
airman said:
was it civilian or military aircraft ? ???

Isn't it obvious that this is an airliner?
They projected it for transatlantic airlines (after German victory in WWII of course :D ). It would carry 120 passengers with maximum luxury. It would be really BIG aircraft - similar to the Spruce Goose in size, and even 1.5x heavier!

Technical data for BV P.200 (calculated):
Wing span - 85.0 m
Length - 70.4 m
Wing area - 715 m2
Max. takeoff weight - 210 000 kg
Powerplant - 8x BMW-803, 4000 hp each
Maximum speed - 440 km/h
Cruise speed - 350 km/h
Vertical speed - 3.6 m/s
Flight range - 8000 km
Service ceiling - 6000 m

Source: Aero Revue magazine (Czech Republic), issue 60 (1997), p.65-66.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
Additional information of the book by Guetschow:

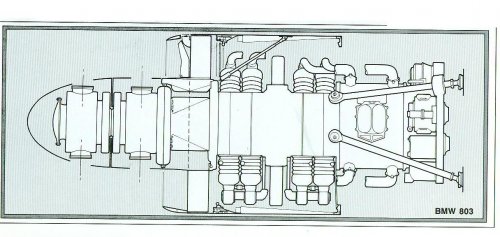

The BMW 8003 should drive counter rotating props with a diameter of 5m each and would have be
accessible during flight by a tunnel. The wing was based on the typical B & V tubular spar, which
doubled as fuel tank. Apart from the engines and fuel, each wing housed five cargo compartments

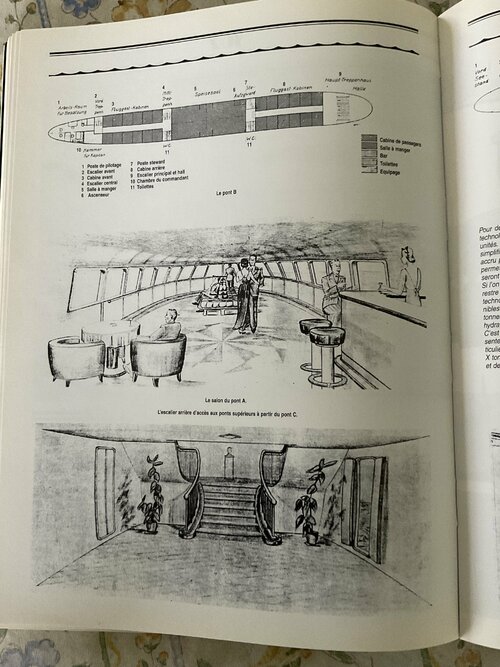

of 2m³. The fuselage had a height of 10m, a usable width of 5,40 m and was divided into three decks.

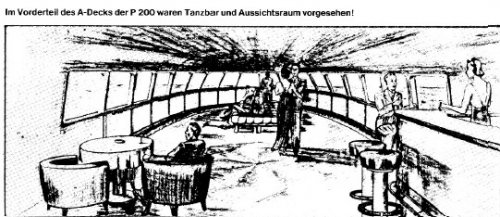

The A-deck was to be fitted with a bar and a dance floor !
The cabins height was 2,10 m, height of the dining room 2,35m. The 120 passengers would have been
served by 8 crew members, plus the flight crew of 6. The reason for all that luxury was, that
passengers should have been poached from the shipping companies and a faster journey wasn't
regarded as enough reason for wealthy travellers to change their means of transportation.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
74

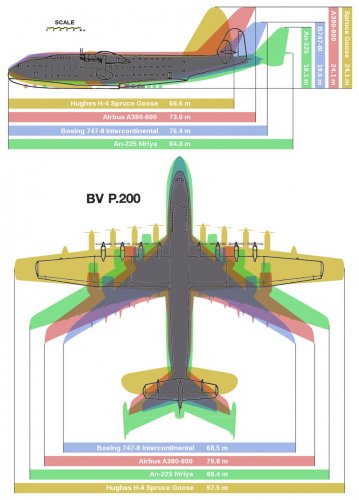

This is for better imagination, how big P.200 actually would be. I implanted it into well-known picture with giant planes comparison.


Attachments

  • 1000px-Giant_comparison + BV P200.jpg
    1000px-Giant_comparison + BV P200.jpg
    171.4 KB · Views: 233

foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
307
Reaction score
50
Excellent quality & very interesting 4 view Jemiba. A beautiful aircraft, too.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,455
Reaction score
6,108

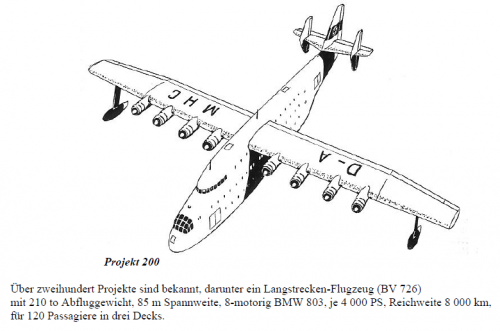

From a report about Hamburger aircraft company,


here is the Blohm and Voss P.200 Transocean flying boat.


Attachments

  • P.200.png
    91.9 KB · Views: 264
