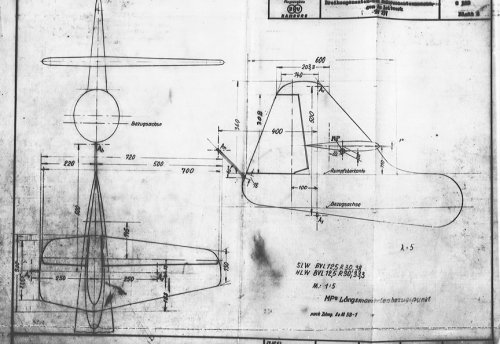

Here is a technical drawing for the tail construction on the Blohm und Voss BV 237.

I have poor B/W photos showing the wind tunnel models of the tail being tested.

Do any other drawings exist on this project? How far did this project progress?

Gary Webster


Attachments

  • 2433_405.jpg
    181.3 KB · Views: 506

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,267
Reaction score
129
Website
zeef.com
in internet you will find more informations about bv 237 :

http://www.geocities.com/asymmetrics/bv237.htm

http://forums.x-plane.org/index.php?showtopic=19604
(tridimensional reconstruction)
http://www.luft46.com/bv/bv237.html


kiradog

ACCESS: Confidential
Joined
Feb 3, 2008
Messages
77
Reaction score
16

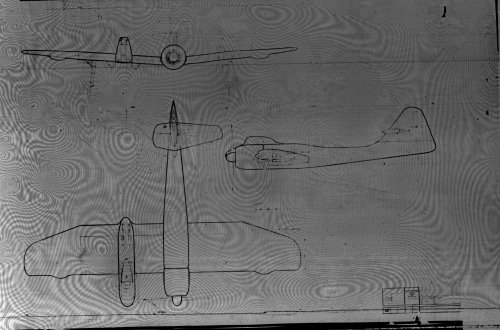

technical drawing


Attachments

  • bv257.jpg
    635.3 KB · Views: 290

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
kiradog said:
technical drawing

Neat! Thanks for this and all the others.

Shouldn't this particular one be labelled Bv 237 instead of "Bv 257", though??
