Bloch MB.1010 and MB.1011 fighter projects

Andrewjs2007

ACCESS: Restricted
Joined
Jun 24, 2007
Messages
41
Reaction score
4
Dear All

I am fascinated by the Bloch MB.1010 and 1011 projects shown in Air Pictorial, but again we are lacking any dimensions. It would be nice to see more detailed plans for these two aircraft.

Can anyone help?

Thanks


Andrew


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

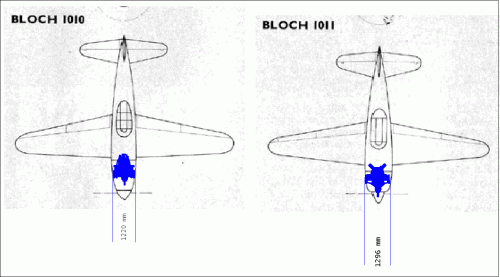

I've tried to guess the dimensions of the Bloch 1010/1011, using the diameter of the
P&W R-1830 and G&R 14R, but it already becomes difficult due to the fact, that the
drawings from AP were quite small, so every single pixel counts ..
So all I would say is, that the 1010 may have had a length of about 8.7 m and a span
of 12 m, whereas the 1011's length could have been about 8 m and its span 11.5 m.
That fits quite well to the origin of both designs the MB.150/152 and to the mentioned
fact, that the 1011 would have been slightly smaller, than the 1010. Precision in the range
of half meters at best !


Attachments

  • dimensions.GIF
    97 KB · Views: 699

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
139
Hi Jens .
Yes certainly rather difficult to calculate with the three view drawings
you have ! Well done !
Bye


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499
Andrewjs2007. Care to post any of the details/images from those articles?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
Many thanks Pepe,

could you help us please, to understand the discussion, that this drawing obviously started
in that forum ? The first post says, I think, that the drawing isn't made by Jean Cuny, but
by a draugthsman, who remained anonymous.
Is there a clue, how reliable it is ? Sorry, but my french isn't good enough for that . :-\


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,856
Reaction score
1,499

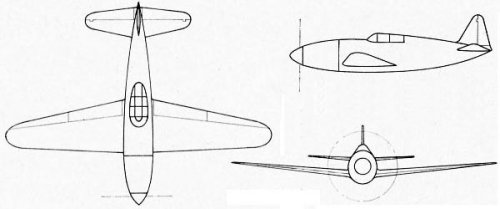

It seems that only the attached drawing (here rearranged) is by Cuny. The more detailed 3-view was meant as a humorous ruse by forum member "gaët la bëte".

What caught my attention was this line: "... bloch 1010, 1011 et 1040 (un biplace à tourelle arrière)."

Was the Bloch MB.1040 a real project for a turret fighter?


Attachments

  • bloch-mb1010-3v.jpg
    20.8 KB · Views: 605

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504

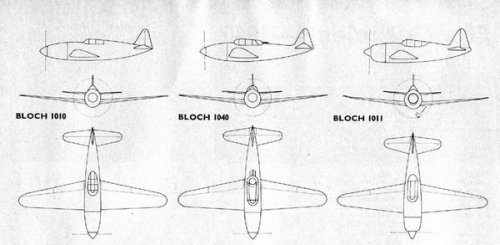

Here are the drawings of the Bloch fighter projects from AirPictorial 3.1970, which
featured french projects from 1940. The design of the MB.1010 is said to have been
carried out quite in depth, the 1040 was a turret fighter based on the 1010, but there
wasn't enough time for further development.


Attachments

  • Bloch-1010-1011-1040.jpeg
    31.1 KB · Views: 665

Pepe Rezende

ACCESS: Confidential
Joined
May 3, 2006
Messages
96
Reaction score
4
Apophenia said:
It seems that only the attached drawing (here rearranged) is by Cuny. The more detailed 3-view was meant as a humorous ruse by forum member "gaët la bëte".

It's not a humorous ruse but a drawing from a source that intended to write an article to Fana d'Aviation. The article was not accepted cause the source of the drawing could not be verified. To me, seems a very plausible alternative. It uses the same system employed to cool Gnome & Rhone engines used at Liore et Olivier 451 bombers.

The size is here:
Span: 42 ft.
lenght: 32 ft 2.5 in.


rv20100

I really should change my personal text
Joined
Sep 3, 2013
Messages
6
Reaction score
9

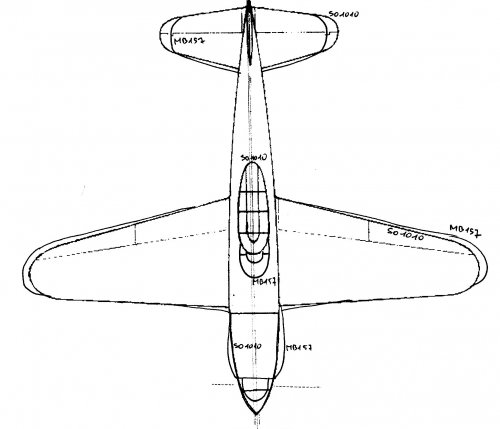

Hi from france. Here you will find some works I used to made to compre SO or Bloch 1010 to last MB157. As 1010 was derived from Bloch 150 family it would be usefull to compare both.
Rv


Attachments

  • so1010compartaifmb157a.jpg
    367.3 KB · Views: 448

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
Welcome rv20100 and many thanks for sharing these drawings.
Can you tell us, where to find them (and maybe even more ;) ) ?


rv20100

I really should change my personal text
Joined
Sep 3, 2013
Messages
6
Reaction score
9

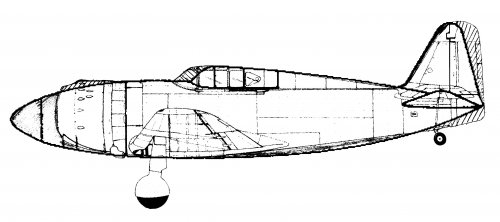

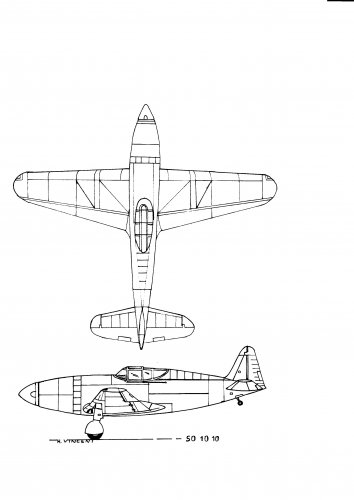

I have a long time project to modify Dujin's 1/72 kit of MB 157 into MB1010. I made myself these sketches.


Attachments

  • SO1010_profil.jpg
    602.2 KB · Views: 211

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,344
Reaction score
1,504
Congratulations for the great work and thanks for sharing !


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,680
Reaction score
5,436
Ha ! I know the author of this blog. He is a member of France Fights On. His blog (SAM-40) is brilliant. He methodically detroys the myths of 1940 France, and expose the bare truths of that era (hint: bureaucratic horrors and inumerable snafus that directly led to the 1940 collapse and from there, to Vichy utter shame and decomposition).

There he destroys the myth of the MB-157 and the following projects. The much vaunted 710 kph top speed was actually the constructor widly optimistic predictions, not the reality.

Google translate (for what is worth)

Last edited:
