Greetings All -

An interesting find for me in the Vought Archives was the Blitzfighter along with some other small/micro fighter and attack aircraft designs. I'll start off first with a couple of reports and a few drawings out of them and later will pull in some Atlas designs that I found over the past two visits.

Would anyone know if the Air Force was actively looking at these low cost small designs or was it a case of trying to scare up some business? Time frame for this effort is 1977 thru 1980 from what I can tell.

Enjoy the Day! Mark


Attachments

  • Vought Blitzfighter Development Engineering Brief.pdf
    331.9 KB · Views: 229

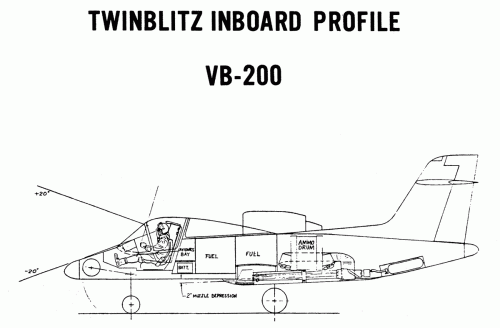

  • Vought VB-200 Blitzfighter Inboard Profile.gif
    Vought VB-200 Blitzfighter Inboard Profile.gif
    77.3 KB · Views: 591

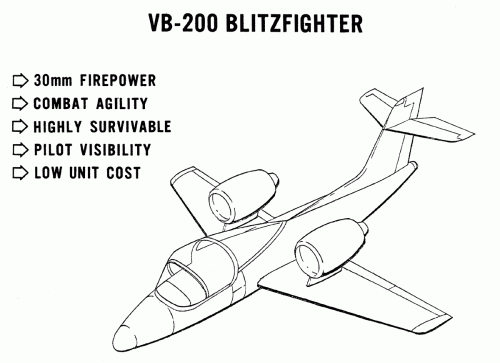

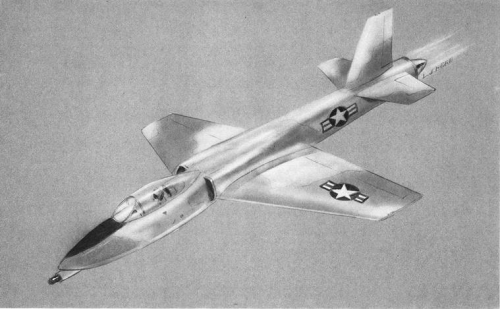

  • Vought VB-200 Blitzfighter.gif
    Vought VB-200 Blitzfighter.gif
    78.9 KB · Views: 1,837

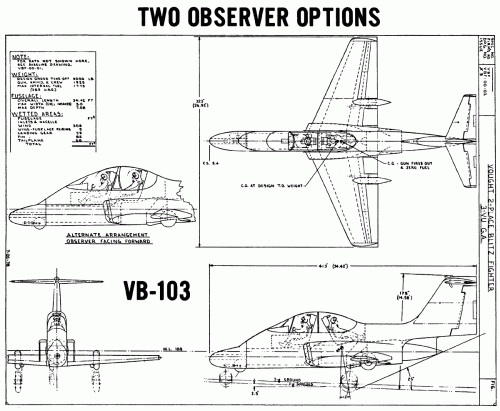

  • Vought VB-103 Blitzfighter 3V.gif
    Vought VB-103 Blitzfighter 3V.gif
    162 KB · Views: 1,945

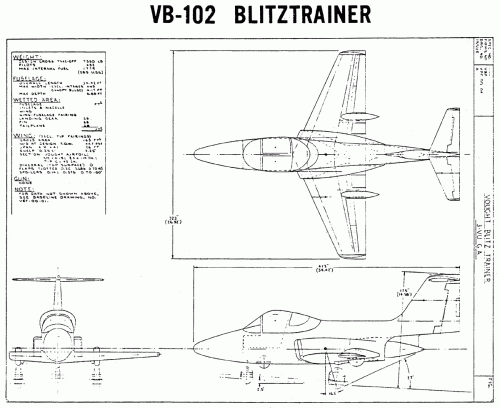

  • Vought VB-102 Blitztrainer 3V.gif
    Vought VB-102 Blitztrainer 3V.gif
    148 KB · Views: 1,996

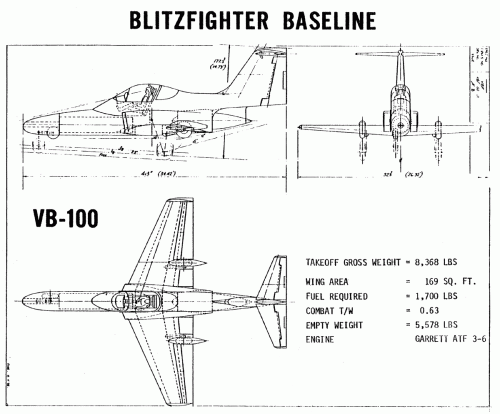

  • Vought VB-100 Blitzfighter 3V.gif
    Vought VB-100 Blitzfighter 3V.gif
    150 KB · Views: 2,154

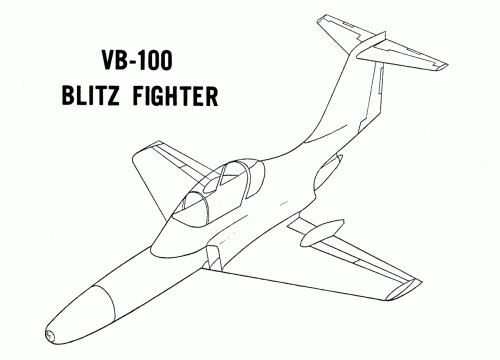

  • Vought VB-100 Blitzfighter.gif
    Vought VB-100 Blitzfighter.gif
    54.2 KB · Views: 2,087
  • Vought Blitzfighter Progress Report.pdf
    118 KB · Views: 162

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
861
Reaction score
140
There's a reference on page 112 of the following .pdf:

http://handle.dtic.mil/100.2/ADA496358

Col James Burton, one of the Fighter Mafia reformers, even proposed the Air Force develop a new airplane, which he named the Blitzfighter. He writes: I prepared an advocacy briefing that called for the development of a small, simple, lethal, and relatively cheap airplane that would be designed solely for close support of the ground troops… I wanted an airplane in the 5,000- to 10,000-pound class (one-tenth the weight of the Enhanced Tactical Fighter), one smaller than any combat airplane in the inventory (one-fourth the size of the A-10), and one that cost less than $2 million. At this price, we could flood the battlefield with swarms of airplanes. The airplane would be designed around a four-barrel version of the same cannon that was in production on the A-10, which used a seven-barrel cannon that fired shells costing only $13 apiece… The Blitzfighter would have no high-tech bells and whistles and no wonder weapons… With the ability to operate from grass fields, the Blitzfighter did not demand fixed, expensive airfields that probably would cease to exist ten minutes after a war started… (Burton 1993:57-58)
This concept is a clear sign of the FIST values at work. Burton’s envisioned Blitzfighter was never built, apparently because Burton’s superiors did not share his values—which is one of the pitfalls inherent in attempting to use the FIST values.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,178
Reaction score
822
That's it!!!

That's what I've been looking for, for ages!
Only I got my wires crossed and thought it was called the 'mudfighter'.


cheers,
Robin.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,804
Reaction score
1,241
Thanks Tin Wing - that's got to be it. I think I'll change the thread title so that other Blitzfighter proposals have a thread to fit into.

You are welcome Robunos - what interested you in this?

Enjoy the Day! Mark


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
259
An aside, but not so much. In the Dan Raymer autobiography there is extensive coverage of a Rockwell project of his regarding a very low cost CAS airplane in late 70s. Probably it was the same general requirement.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,804
Reaction score
1,241
Skybolt, is the book worth acquiring?

Thanks! Mark


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,424
Reaction score
516
Short answer -yes. I think we have a thread on the subject, you can check that out for more info ;)


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
259
Ahem, four thumbs... even if I'd be curious to known in which hell of restaurant in Milan Dan ate that refused him a second turn on spaghetti....


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,804
Reaction score
1,241
Thanks guys - looks like I'll be placing an order soon....

Enjoy the Day! Mark


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
14,409
Reaction score
10,613

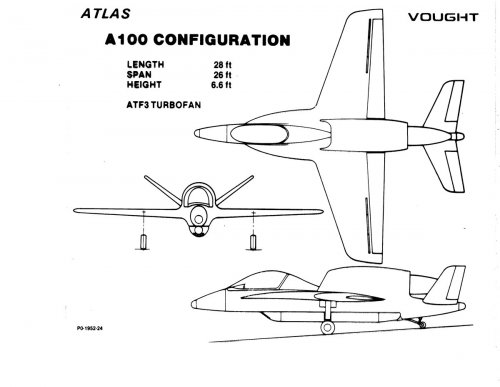

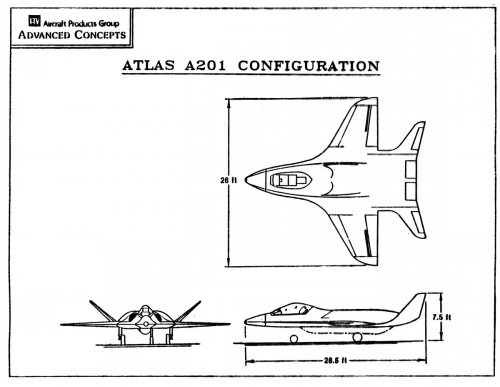

Thanks Mark. Here's the LTV Atlas designs from the PDF. Second design is remarkably like the Boeing Quiet Bird.


Attachments

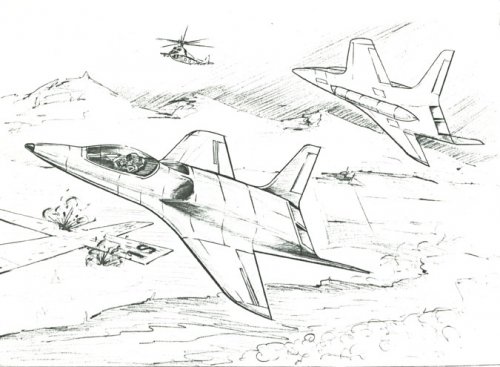

  • LTV Atlas A100.jpg
    LTV Atlas A100.jpg
    83.3 KB · Views: 927
  • LTV Atlas A100b.jpg
    LTV Atlas A100b.jpg
    119.1 KB · Views: 948
  • LTV Atlas A201.jpg
    LTV Atlas A201.jpg
    105.9 KB · Views: 951
  • LTV Atlas A201b.jpg
    LTV Atlas A201b.jpg
    126.7 KB · Views: 676

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781

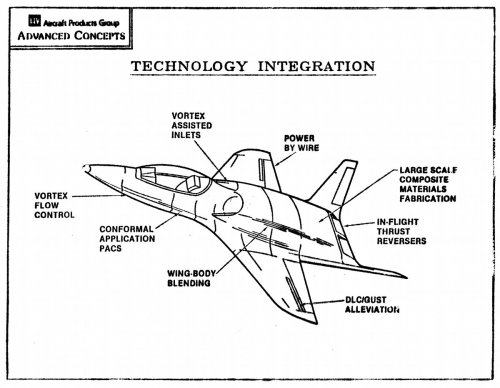

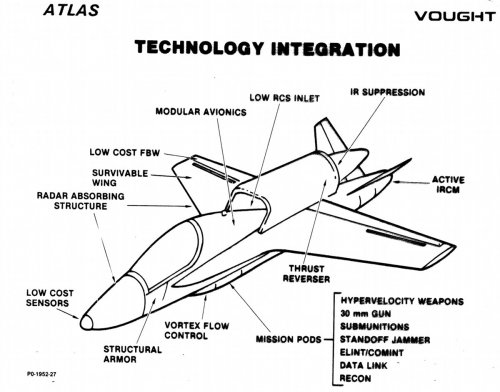

Ran across some ATLAS A100 and A200 stuff that I don't see as having been previously posted.

ALL FROM THE VOUGHT ARCHIVES


Attachments

  • ATLAS_Rapid_Deployment.jpg
    31.6 KB · Views: 588

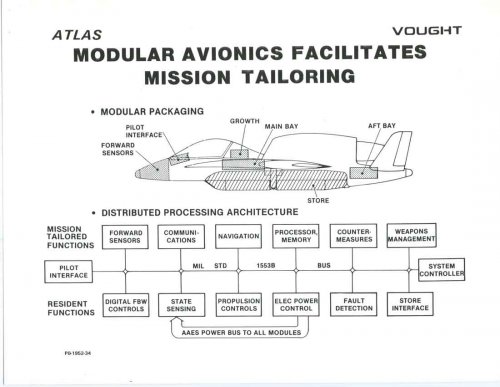

  • ATLAS_Modular_Avionics.jpg
    52.1 KB · Views: 1,122

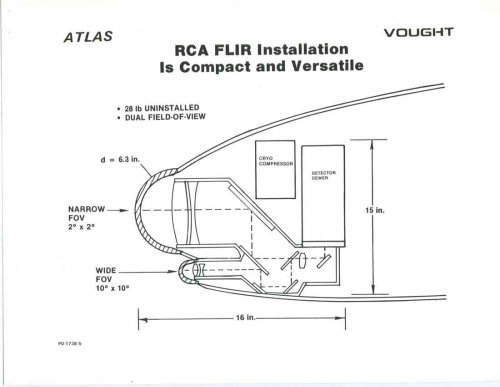

  • ATLAS_Flir.jpg
    33.6 KB · Views: 1,044

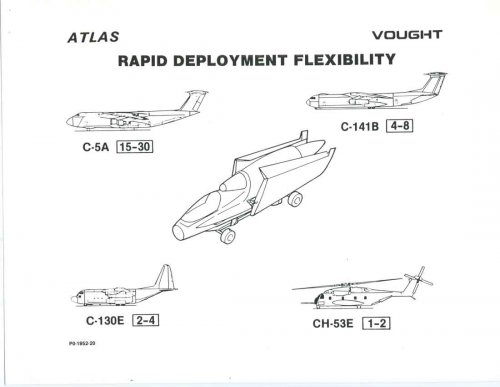

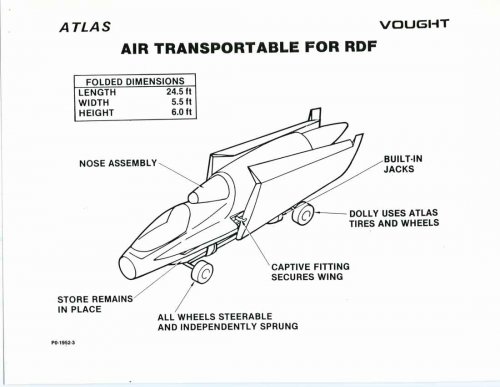

  • Air_Transportable_ATLAS.jpg
    40.3 KB · Views: 1,106

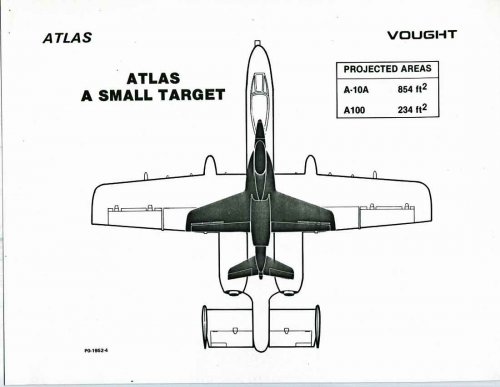

  • A100-vs-A-10-Size.jpg
    32.9 KB · Views: 1,076

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781
More from THE VOUGHT ARCHIVES


Attachments

  • ATLAS_Sensors.jpg
    38.1 KB · Views: 401

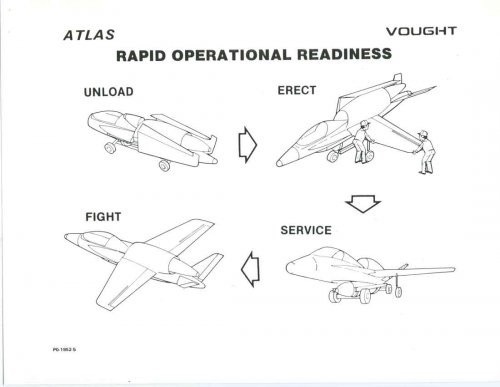

  • ATLAS_Rapid-Readiness.jpg
    33.5 KB · Views: 539

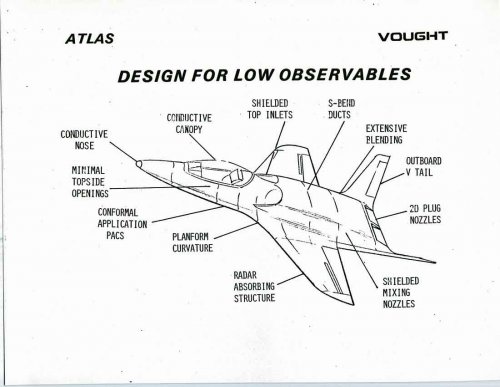

  • A200_Design.jpg
    46.7 KB · Views: 615

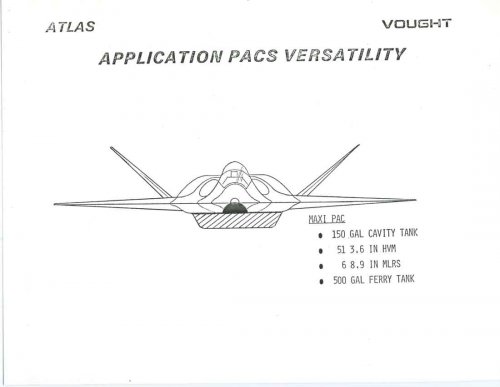

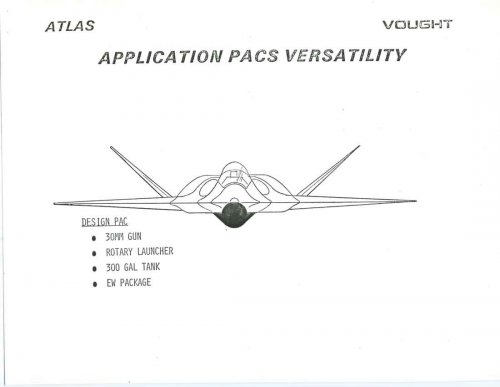

  • A200_PACS-1.jpg
    24.1 KB · Views: 638
  • A200_PACS-2.jpg
    26 KB · Views: 645

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
191
Website
cluttonfred.info
Wonderful stuff, especially the fact that the aircraft was designed to be easily transported and the remarkable size comparison with the A-10. Unfortunately, in the American context, the general USAF disinterest in 1) relatively simple, inexpensive aircraft and 2) close air support means we are never likely to see such an aircraft, except maybe as a very capable UCAV.

I wonder if the Marines would ever be interested in a small, super-STOL aircraft, not STOVL, like this? With more wing area and perhaps control surfaces blown with cold bleed air for low speed control, such a little plane might make a much, much cheaper and simpler alternative or complement to the F-35B. The new America-class LHA is over 800 feet long--that ought to manageable with a design optimized for low-speed handling and control.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
191
Website
cluttonfred.info
Resurrecting an earlier thread...

One of the Vought references that Mark provided in his initial post includes this note:

The Blitzfighter concept was proposed by the OSD Programs and Evaluation (PA&E) Group. Vought and other contractors were asked to determine if the notional performance goals could be met at a unit cost below $2 million. The Vought Advanced Concepts group performed a conceptual design study in May-June 1978 to define a representative Blitzfighter.

Does anyone have...

1) More details or a copy of the original OSD proposal?
2) A list of the contractors involved?
3) Details and/or images of the other conceptual designs proposed?

Cheers,

Matthew

Mark Nankivil said:
Greetings All -

An interesting find for me in the Vought Archives was the Blitzfighter along with some other small/micro fighter and attack aircraft designs. I'll start off first with a couple of reports and a few drawings out of them and later will pull in some Atlas designs that I found over the past two visits.

Would anyone know if the Air Force was actively looking at these low cost small designs or was it a case of trying to scare up some business? Time frame for this effort is 1977 thru 1980 from what I can tell.

Enjoy the Day! Mark


royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
592
Reaction score
188
My first though was, why not fire up the engine and drive it to the battlefield? It's not going to carry much weaponage, and it presumed opponents will have access to .50 cal mgs, or hell, just take pot shots at it for shits and giggles.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
191
Website
cluttonfred.info
An alternative might be to pull the bits of the other thread the include other Vough ATLAS variations and perhaps rename this thread "Vought ATLAS 'Blitzfighter'" or something like that. Right now we have Vought ATLAS sketches in two different threads and the sequence of the designs is not at all clear.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781
Picking up where Mark left off, more from the Vought Archives


Attachments

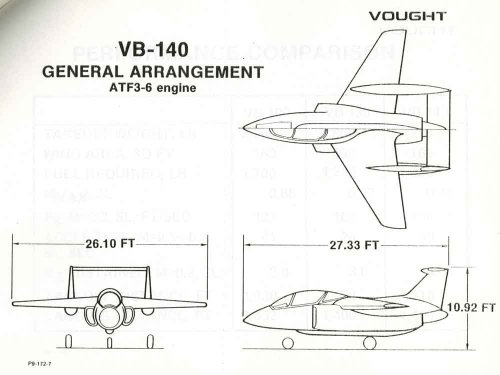

  • VB-140_General_Arrangement.jpg
    30.9 KB · Views: 936

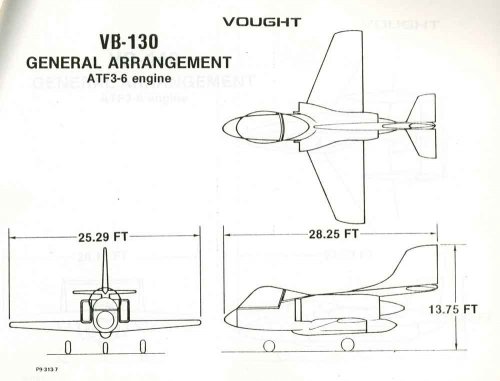

  • VB-130_General_Arrangement.jpg
    28.7 KB · Views: 901

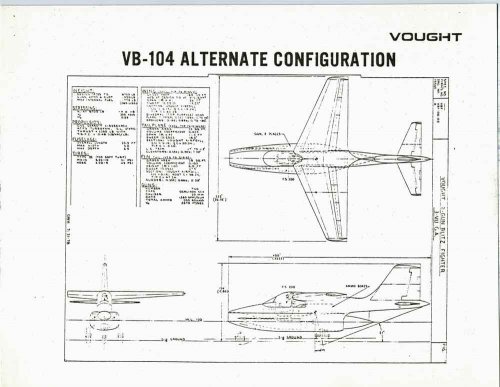

  • VB-104_General_Arrangement.jpg
    49 KB · Views: 943

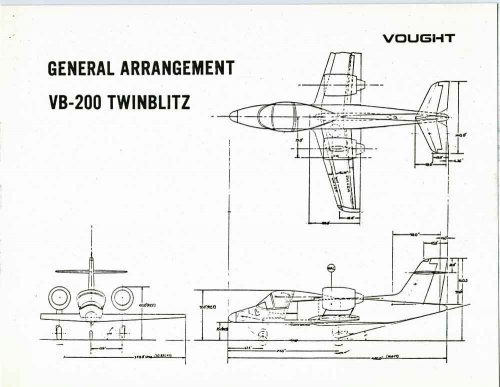

  • VB-200_General_Arrangement.jpg
    43.2 KB · Views: 972

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781
I was getting ready to post some familiar looking VMX V-600 drawings when I found them here:


http://www.secretprojects.co.uk/forum/index.php/topic,12241.msg119636/topicseen.html#msg119636


So I will refer you to that posting rather than duplicate it!


:)


bill


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781

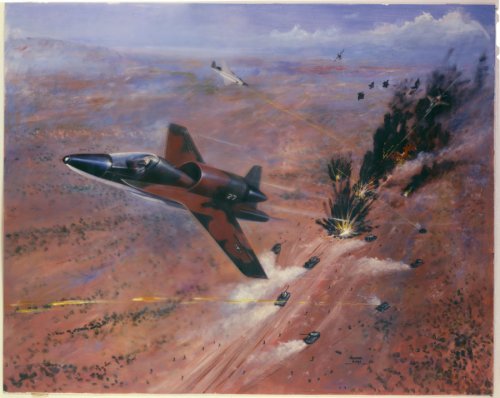

Recently uncovered Atlas A-100 Artwork
credit Vought Heritage




bill


Attachments

  • Atlas-A-100-Artwork.jpg
    116.6 KB · Views: 996

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781
I just realized that ATLAS is not explained in any of these threads.
ATLAS= Advanced Technology Light Attack System
This is from the 1979-80 time frame


Attached from the Vought Heritage Archives

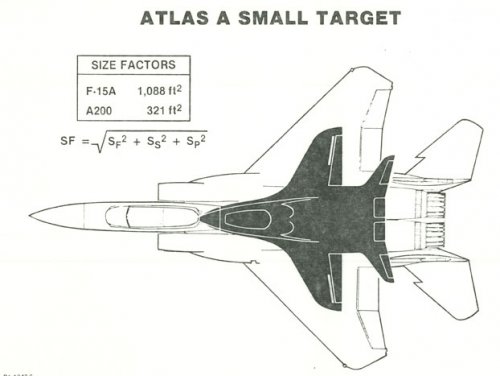

Atlas A200 compared to the F-15

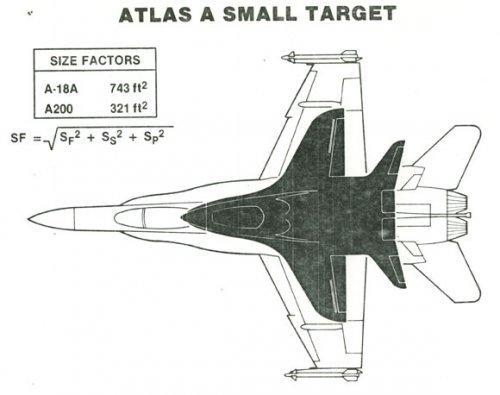

Atlas A200 compared to the A-18
and a piece of Atlas A200 line art for your enjoyment.


A couple of these are similar to those already provided in Mark's pdf file several posts back.


bill


Attachments

  • Atlas-A-200-overlay-F-15.jpg
    35.1 KB · Views: 845
  • Atlas-A-200-overlay-A-18.jpg
    36.4 KB · Views: 763
  • Atlas-A-200-Line-Art.jpg
    65.8 KB · Views: 826

kcran567

ACCESS: Top Secret
Joined
Aug 15, 2009
Messages
675
Reaction score
35
This is great. I really like both versions, the 4 barreled 30mm A-10 Lite, and the blended FBW stealthy version. Would be great for CAS, anti-helicopter, maybe air to air? The Marines would love it, and to be able to call in a flight of these when needed. Thanks for sharing.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,243
Reaction score
359
Remarkable. Most work of that kind was hastily tossed into the memory hole 1982-onwards, as the authorities tried (with some success) to retrospectively classify (or upgrade in classification) anything that pointed to the ideas behind stealth.


JSteel

ACCESS: Restricted
Joined
Aug 5, 2006
Messages
1
Reaction score
0
To me, the Atlas A-200 artwork (especially the last line art drawing) looks quite a bit like the Italeri/Testors "MiG-37 Ferret-E" Russian stealth concept model kits. I wonder if that's where they got their inspiration?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
14,409
Reaction score
10,613
VB-200 Blitzfighter model is now at UT Dallas along with a bunch of reports (probably the source of above images) in the Vought Aircraft Company Collection.


VB200 Blitzfighter plan. 1981 Original VAHF identification number: 226-61.
Blitzfighter development engineering brief, article, report, and drawings. 1979 Original VAHF identification number: 226-63.
Blitzfighter reports. 1978-1979 Original VAHF identification number: 226-64.
Blitzfighter gun simulation wind tunnel test record. 1978 Original VAHF identification number: 226-67.
Blitzfighter engines. 1978-1981 Original VAHF identification number: 226-72.
Blitzfighter investigation of gun gas ingestion. 1979 Original VAHF identification number: 226-73.
Blitzfighter VB-130 and VB-140. 1979 September 7 Original VAHF identification number: 226-168.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
622
Reaction score
781
In going back through my files with a possible interest in creating an ATLAS model, I found a couple of interesting bits.
For ATLAS the presentations shows two design approaches:
ATLAS A100 *Minimum Size * Air Transportable *RDF Compatible (Rapid Deployment Force) * STOL Capability
ATLAS A200 *Stealth *High Subsonic *Stores Versatility * Enhanced STOL

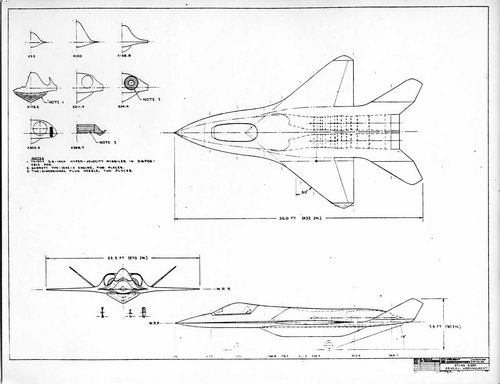

And I found a General Arrangement for ATLAS A300 which is not mentioned. It appears to be aimed at higher speed and stealth.


Attachments

  • Atlas-A300-General-Arrangement.jpg
    76.4 KB · Views: 389

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
4,361
Reaction score
1,985
Could it be the best RDF tank is a
Air Transportable, Stealth. High Subsonic, Stores Versatility, Enhanced STOL fighter bomber?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
9,768
Reaction score
5,150
Website
www.aerospaceprojectsreview.com
Greetings All -

An interesting find for me in the Vought Archives was the Blitzfighter along with some other small/micro fighter and attack aircraft designs. I'll start off first with a couple of reports and a few drawings out of them and later will pull in some Atlas designs that I found over the past two visits.

Would anyone know if the Air Force was actively looking at these low cost small designs or was it a case of trying to scare up some business? Time frame for this effort is 1977 thru 1980 from what I can tell.

Enjoy the Day! Mark
The Lazerpig rants about the A-10 mention the Blitzfighter, and specifically show the isometric view of the VB-200 from the first post in the thread. It *seems* that the Blitzfighter program may have been less sensible and honorable than might have been otherwise surmised, having been *apparently* dreamed up by some charlatans.

https://www.secretprojects.co.uk/threads/lazerpig-rant-on-militar-hardware.38579/
