Hey all, remember the Blackburn B.20 with the retractable hull?

Anyone seen any good pics of her?


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,416
Website
www.amazon.com

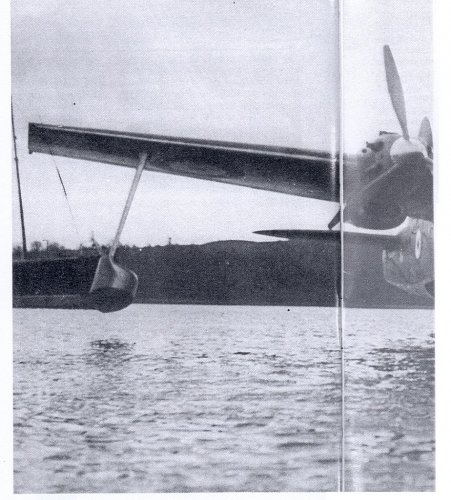

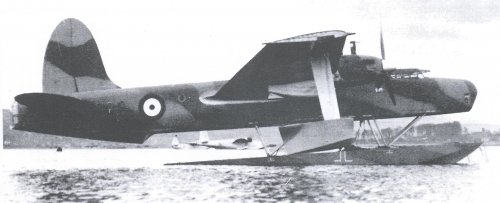

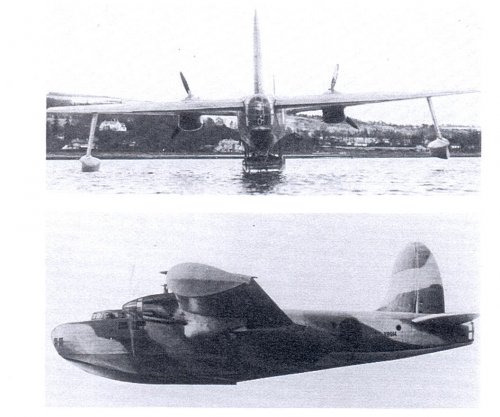

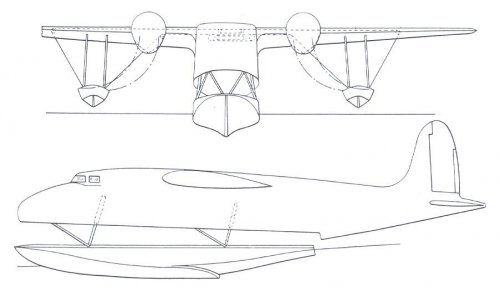

Blackburn B.20 pics -Post-1


Attachments

  • Escanear0001.jpg
    351 KB · Views: 612
  • Escanear0002.jpg
    128.6 KB · Views: 562
  • Escanear0003.jpg
    39.4 KB · Views: 525

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,416
Website
www.amazon.com

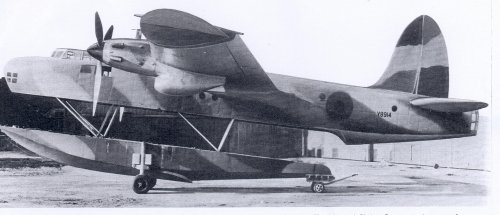

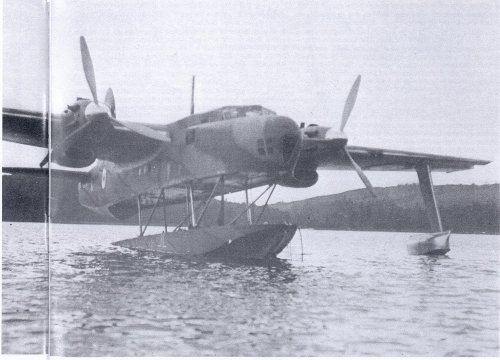

Blackburn B.20 pics -Post-2


Attachments

  • Escanear0006.jpg
    290.1 KB · Views: 46
  • Escanear0005.jpg
    218 KB · Views: 458
  • Escanear0004.jpg
    339.4 KB · Views: 501

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,416
Website
www.amazon.com
Blackburn B.20 pics -Post-3


Attachments

  • Escanear0007.jpg
    436.7 KB · Views: 52
  • Escanear0008.jpg
    86.6 KB · Views: 73
  • Escanear0009.jpg
    106.5 KB · Views: 118
  • Escanear0010.jpg
    199.9 KB · Views: 111

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
801
Reaction score
254
You want info on the B.20 (and B.40).....this guy has it and some damm good drawings

http://myspace.virgin.net/john.dell/blackburn_b20.htm

http://myspace.virgin.net/john.dell/blackburn_b40.htm


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,250

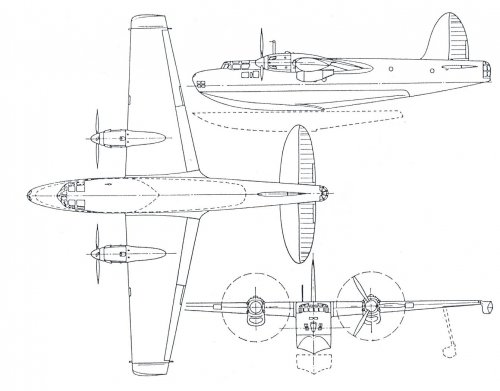

Justo, can you give a explanation for the 3-view, you've posted in #1, please?
Is it an unarmed transport variant, or related to the B.40 (the nose looks similar,
but there's no tail turret) ?


dogsbody

ACCESS: Restricted
Joined
Nov 26, 2007
Messages
22
Reaction score
8

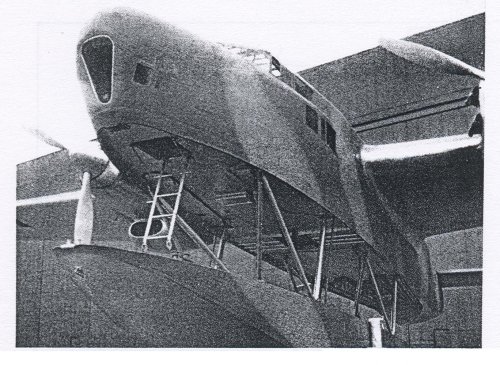

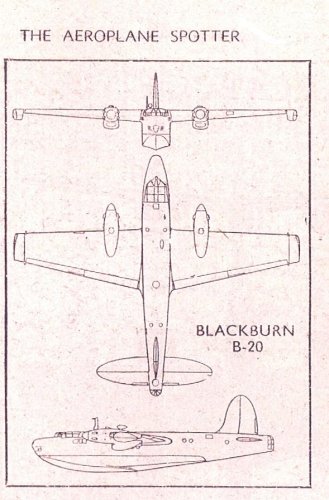

A few other views:














Chris


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
Thanks a lot for these great pictures, dogsbody! I find the B.20 fascinating.

I would love to know if the concept was used on other built types/prototypes elsewhere, or if the B.20 remains unique.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,250

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
661
Jemiba said:
If you are speaking of the retractable "boat" in general, have a look at the thread found again by borovik:
http://www.secretprojects.co.uk/forum/index.php/topic,3303.0.html #7.
Another example coming up my mind is the "Universal Long Range Fighter" designed by Portsmouth Aviation,
(http://www.secretprojects.co.uk/forum/index.php/topic,645.msg4869.html#msg4869 #3)

Thanks Jens! The ULRF qualifies perfectly, while the other doesn't. I was looking for aircraft whose hull completely separated and was an integral part of the design (without it, the aircraft would not be able to fly). In the other example, you can see that the float could probably be jettisoned and the design would still be flyable.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,250
To my opinion, all those designs just feature a kind of float, that (at least theoretically) could be
jettisoned without influencing the fuselage. Of course, this float probably was often used as fuel
tank and the aerodynamic cleannessmay suffer, but the basic structure should remainOr, in other
words, it should be possible to replace those floats with a kind of wheeled landing gear.


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,521
Reaction score
695
Justo Miranda said:
Plase see text
(From "Aircraft Illustrated February 1974"

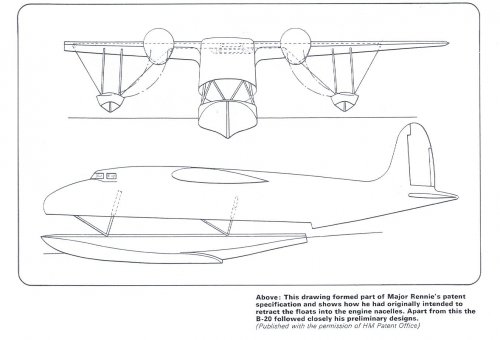

I believe that this patent drawing is highly likely to be Blackburn project B.B.3. The retractable hull concept was tested by the RAE in water tank and wind tunnel in the summer of 1935 and the work is referenced in Blackburn's tender to R.12/35.
