Bell Model 409 / YAH-63 attack helicopter (AAH contender)

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873

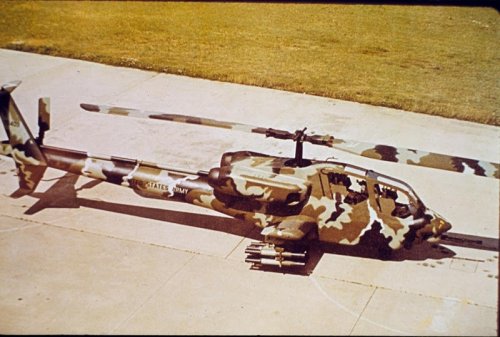

YAH-63 mockup


Attachments

  • YAH-63-Mockup.jpg
    74.3 KB · Views: 1,053
  • YAH-63-Mockup-2.jpg
    120 KB · Views: 984

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873

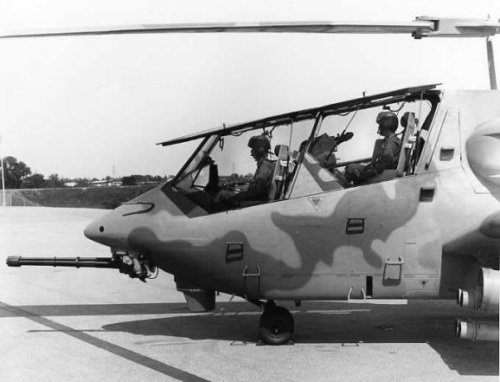

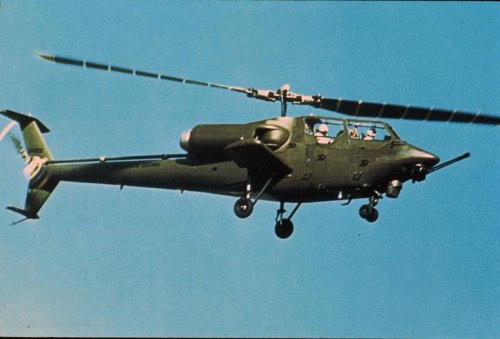

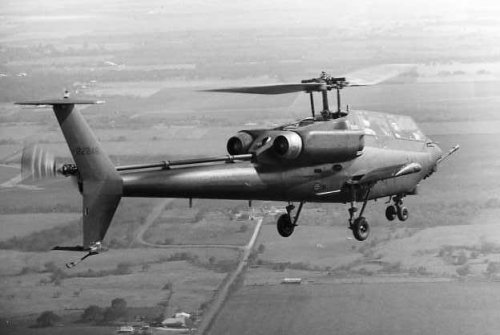

YAH-63

In the second pic you can see the proposed change of the cannon to a lower mounted "chin turret" with the sensors moved to the front of the nose. As Hughes had noted, it was better to crush a $20,000 dollar gun in landing or crash than a $200,000 dollar sensor.


Attachments

  • YAH-63-1.jpg
    67 KB · Views: 907
  • YAH-63-2.jpg
    54.7 KB · Views: 324

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873

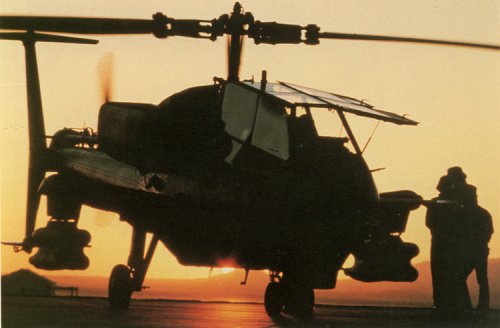

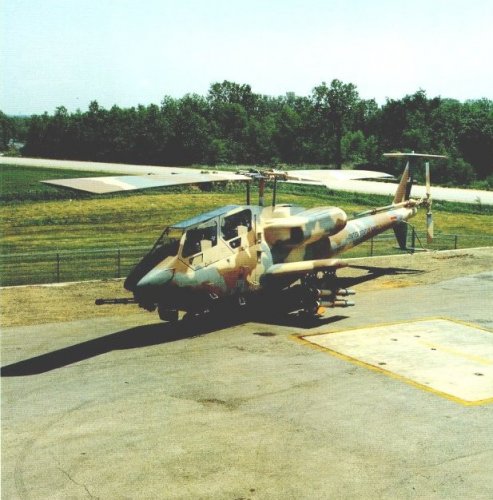

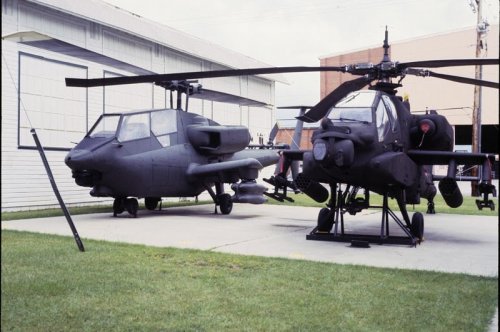

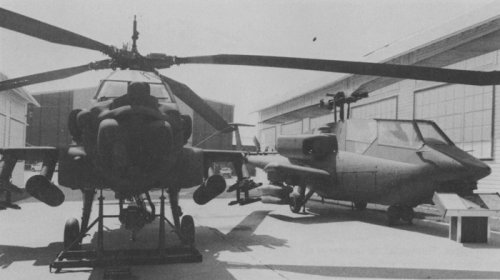

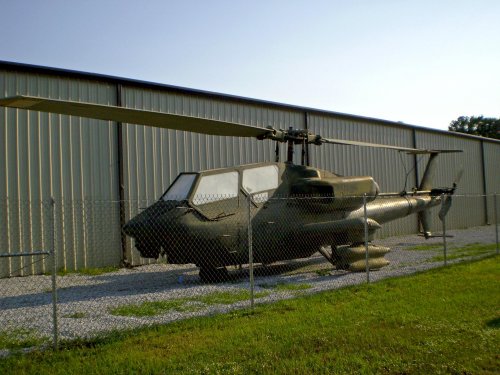

Splendid shot of YAH-63 looking mean and moody,and on show at the US Army Aviation Museum.


Attachments

  • YAH-63-4.jpg
    77.9 KB · Views: 378
  • YAH-63-3.jpg
    128.2 KB · Views: 429

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873

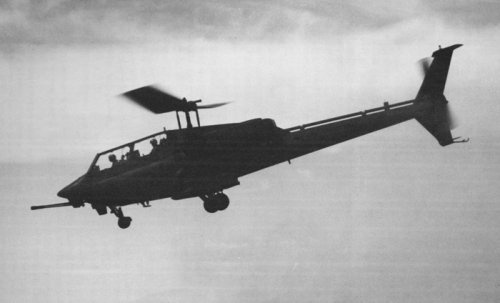

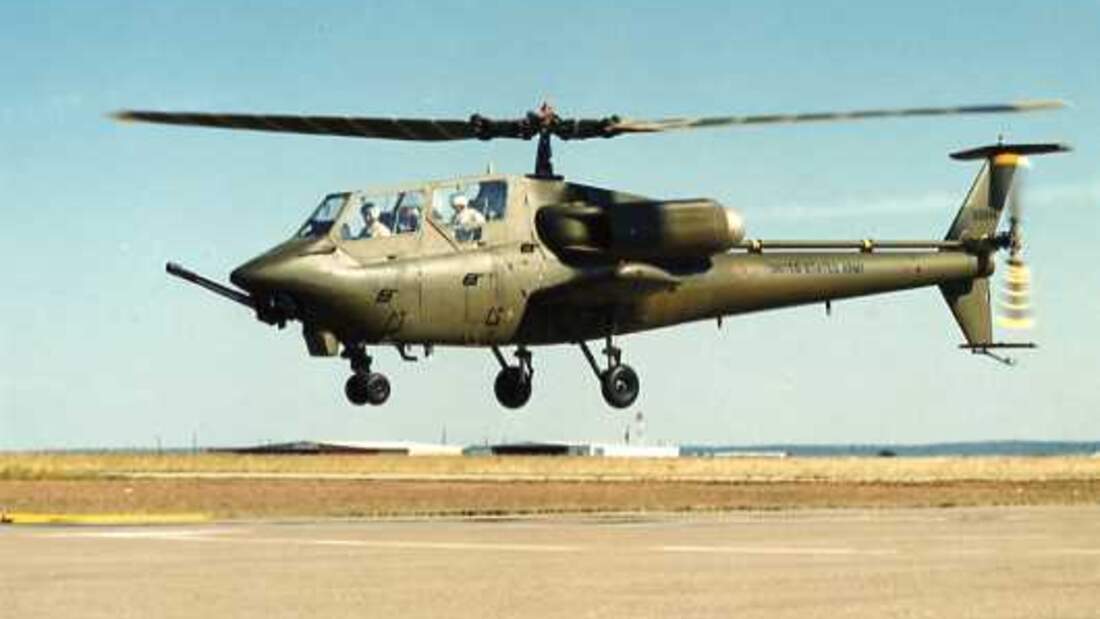

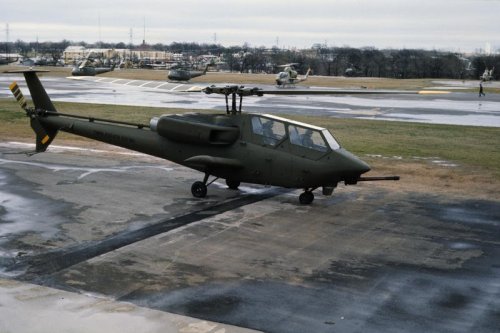

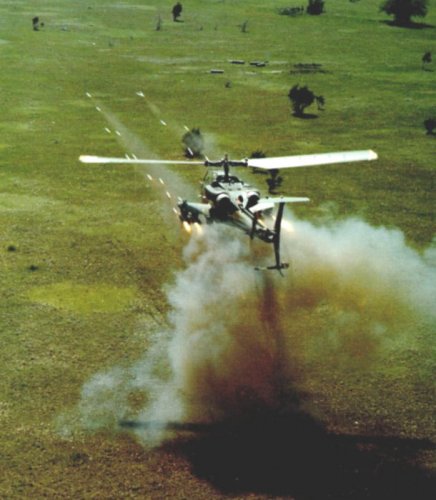

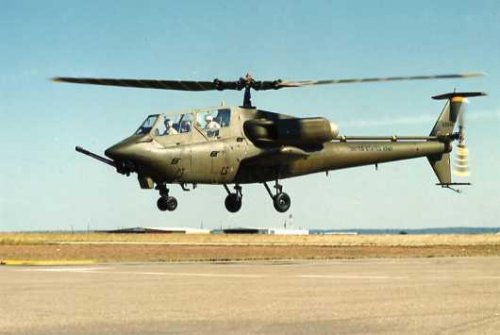

From Matej's site, more YAH-63. Last one from Anigrand's website.


Attachments

  • YAH-63-5.jpg
    60.3 KB · Views: 442
  • YAH-63-7.jpg
    72.4 KB · Views: 407
  • YAH-63-8.jpg
    16.4 KB · Views: 394

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873

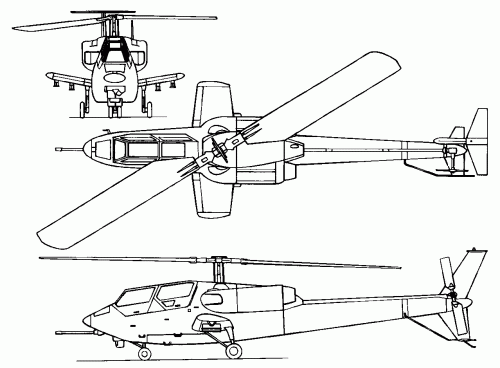

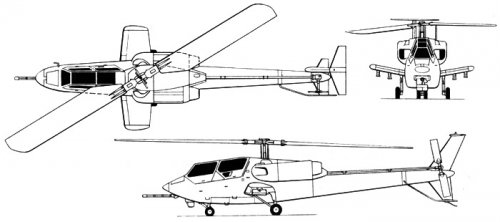

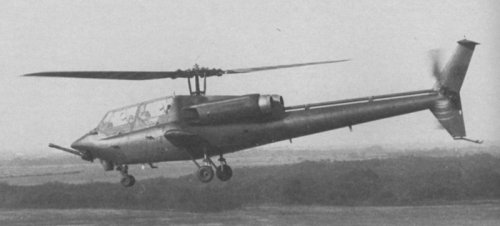

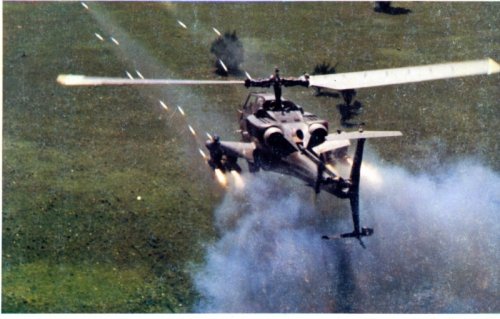

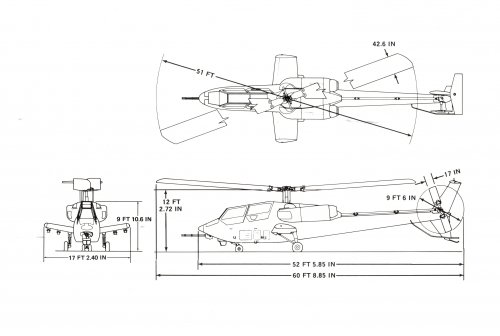

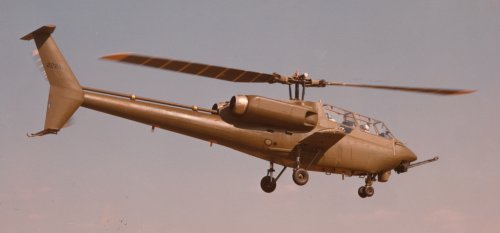

Source: Air International March 1977


Attachments

  • yah-63.jpg
    67.3 KB · Views: 275
  • yah-63b.jpg
    45.6 KB · Views: 255
  • yah-633view.jpg
    44.1 KB · Views: 347

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,367
Reaction score
133
overscan said:
Source: Air International March 1977

I'm told that huge two-bladed rotor led to some canopy strikes, which was one reason this design lost.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,576
Reaction score
1,600
elmayerle said:
overscan said:
Source: Air International March 1977

I'm told that huge two-bladed rotor led to some canopy strikes, which was one reason this design lost.

I seem to recall reading that one of the Cheyennes did that too.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246

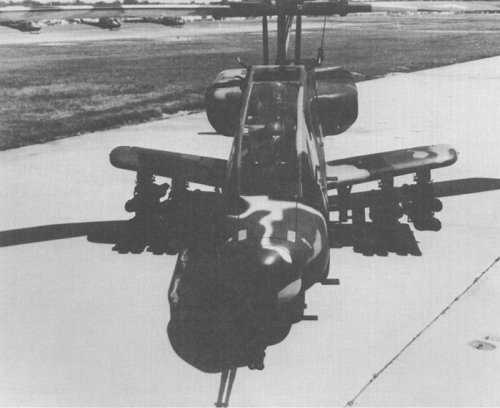

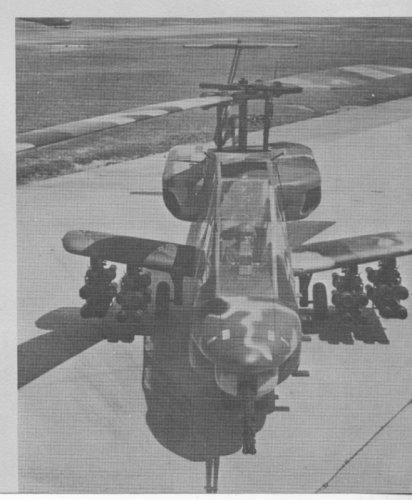

YAH-63 frontal pic from Spanish magazine Flaps


Attachments

  • Bell Model 409.jpg
    Bell Model 409.jpg
    176.2 KB · Views: 272

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,432
Reaction score
612

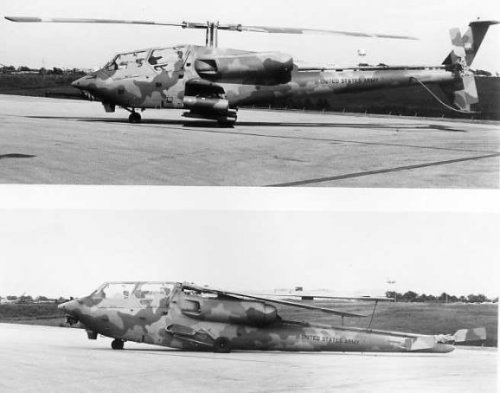

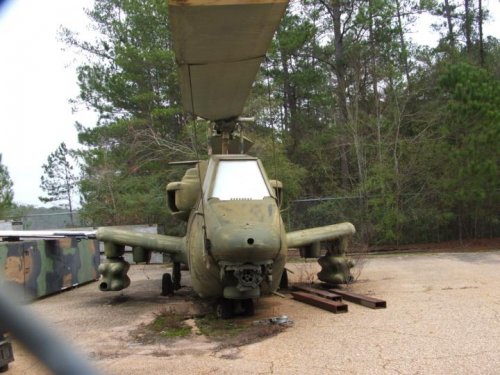

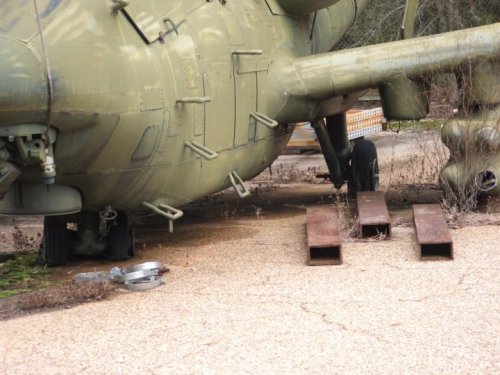

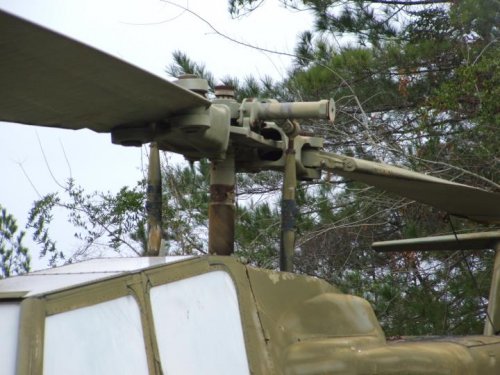

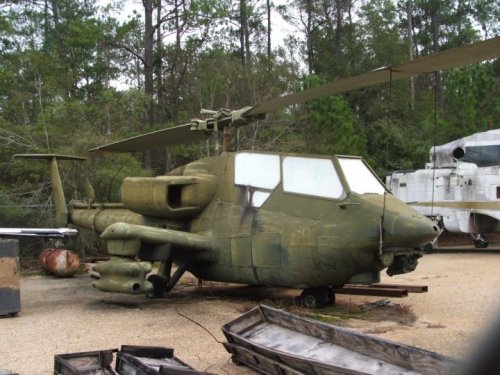

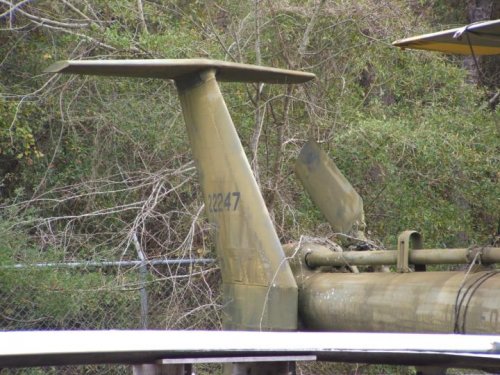

As promised here are some pictures of the YAH-63. As you can see from the photos the airframe has seen better days. I will send copies of the ~1meg photos to those who requested them.


Attachments

  • Slide1.JPG
    71.9 KB · Views: 389
  • Slide9.JPG
    54.3 KB · Views: 226
  • Slide8.JPG
    88.3 KB · Views: 180
  • Slide7.JPG
    64.7 KB · Views: 244
  • Slide6.JPG
    77.3 KB · Views: 334
  • Slide5.JPG
    71.4 KB · Views: 261
  • Slide3.JPG
    66.2 KB · Views: 281
  • Slide4.JPG
    80.5 KB · Views: 335

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,432
Reaction score
612
Less Gregory and Antonio, if you would like the larger photo's I was able to get of the aircraft, please PM me with the address you wish me to post them too. Each pic is ~ 1 meg.

Al


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873
From Flight Global cutaways,

[links no longer working]


Attachments

  • YAH-63A.jpg
    64 KB · Views: 362
  • YAH-64A.jpg
    62.2 KB · Views: 335

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
697
Reaction score
84
Website
www.tommythomason.com
elmayerle said:
overscan said:
Source: Air International March 1977

I'm told that huge two-bladed rotor led to some canopy strikes, which was one reason this design lost.

Actually, it wasn't the two-bladed rotor but the requirement for air transportability dictating a very low rotor placement, and it wasn't canopy strikes, but at least one slight tail rotor drive shaft strike during slope landings, which eventually resulted in a tail rotor drive shaft failure while in high-speed sideward flight during Army pilot training. Ron Erhart, the Bell test pilot providing the training, almost recovered from that very awkward situation (he wasn't on the controls so he lost a few precious seconds before he realized that the Army pilot didn't initiate the resulting yaw) but crashed. Since the upcoming Army evaluation at Edwards AFB (for which the training was being accomplished) required two aircraft, Bell created a replacement in only 30 days from the static test article, spare parts, hardware off the crashed AAH-63, and some new parts.

Neither the Bell nor the Hughes AAH was ready for prime time, (e.g., Hughes had potential canopy strike problems and had to raise their rotor too) but the Army evaluation team believed that the Hughes design deficiencies were more likely to be correctable than Bell's at less penalty to hover and cruise performance and maneuverability.


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,230
Reaction score
87
Website
zeef.com
Tailspin Turtle said:
elmayerle said:
overscan said:
Source: Air International March 1977

I'm told that huge two-bladed rotor led to some canopy strikes, which was one reason this design lost.

Actually, it wasn't the two-bladed rotor but the requirement for air transportability dictating a very low rotor placement, and it wasn't canopy strikes, but at least one slight tail rotor drive shaft strike during slope landings, which eventually resulted in a tail rotor drive shaft failure while in high-speed sideward flight during Army pilot training. Ron Erhart, the Bell test pilot providing the training, almost recovered from that very awkward situation (he wasn't on the controls so he lost a few precious seconds before he realized that the Army pilot didn't initiate the resulting yaw) but crashed. Since the upcoming Army evaluation at Edwards AFB (for which the training was being accomplished) required two aircraft, Bell created a replacement in only 30 days from the static test article, spare parts, hardware off the crashed AAH-63, and some new parts.

Neither the Bell nor the Hughes AAH was ready for prime time, (e.g., Hughes had potential canopy strike problems and had to raise their rotor too) but the Army evaluation team believed that the Hughes design deficiencies were more likely to be correctable than Bell's at less penalty to hover and cruise performance and maneuverability.
At the end Hughes won the competition ! ;D


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

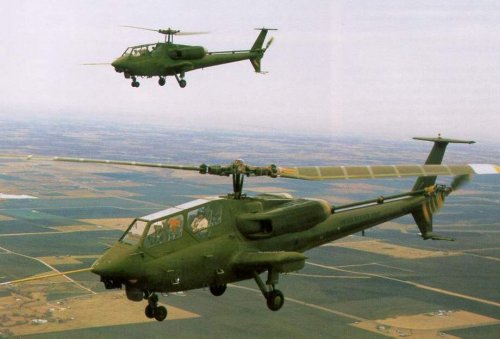

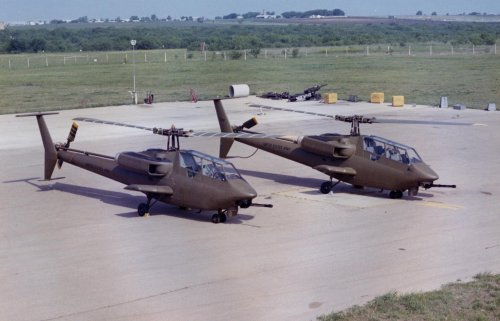

Image of two Bell Model 409 (YAH-63) prototypes from Huey Cobra Gunships
by Chris Bishop, Osprey Publishing Limited, 2006.

A competent design, the Bell Model 409 lost out in the US Army's Advanced Attack Helicopter competition to the [Hughes YAH-64]. Several senior officers did not like the two rotor design, and doubts were expressed about the stability of the tricycle landing gear.


Attachments

  • BellModel409.JPG
    22.4 KB · Views: 854

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

Attachments

  • YAH-63014_1280x848.jpg
    99 KB · Views: 243
  • YAH-63012_1280x852.jpg
    84 KB · Views: 695
  • YAH-63015_1280x867.jpg
    63.6 KB · Views: 701
  • YAH-63005_1280x861.jpg
    90.4 KB · Views: 748
  • YAH-63001_1280x866.jpg
    56.4 KB · Views: 736

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,515
Reaction score
246

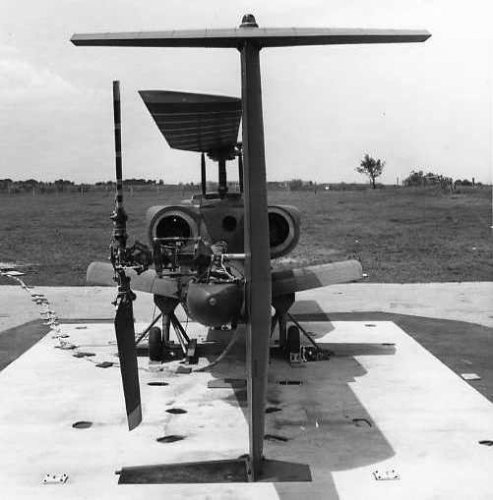

YAH-63 from behind view

Source: Aviation & Marine International


Attachments

  • YAH-63.jpg
    358.3 KB · Views: 167

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982

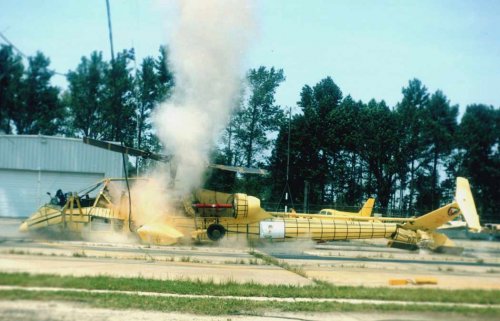

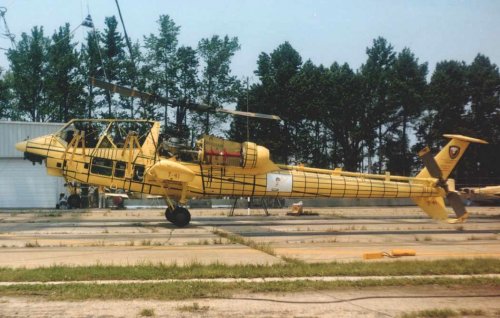

Full-Scale Crash Test of the Bell YAH-63 Helicopter
In 1981, a full-scale crash test of the YAH-63 prototype helicopter was conducted at the IDRF
[37]. This helicopter was designed and manufactured by Bell Helicopter Textron as its bid in the
competition for the Army’s Advanced Attack Helicopter (AAH) program. The crash test was performed
to evaluate the energy-absorbing and load-limiting features of the airframe, landing gear, and seats. A
pre-test photograph of the YAH-63 helicopter in the impact position is shown in Figure 16(a). A
photograph of the YAH-63 during the crash test is shown in Figure 16(b). The Bell airframe did not win
the award, which went to the Hughes Helicopter (now Boeing) AH-64 Apache.

A History of Full-Scale Aircraft and Rotorcraft Crash Testing and Simulation
at NASA Langley Research Center
http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.75.1605


Attachments

  • yah-63crashtest1.jpg
    217.8 KB · Views: 199
  • yah-63crashtest2.jpg
    197.2 KB · Views: 208

Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
692
Reaction score
39
As I understand it Hughes selected the XM230 chain gun from the start while Bell went with the XM188. So was the YAH-63 ever fitted with the XM230 or the YAH-64 fitted with the XM188?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873

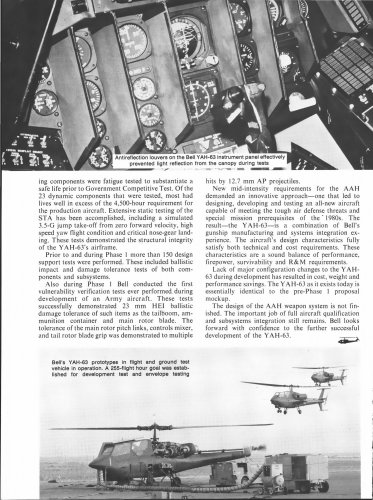

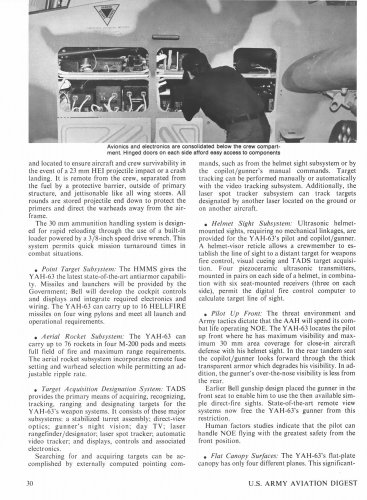

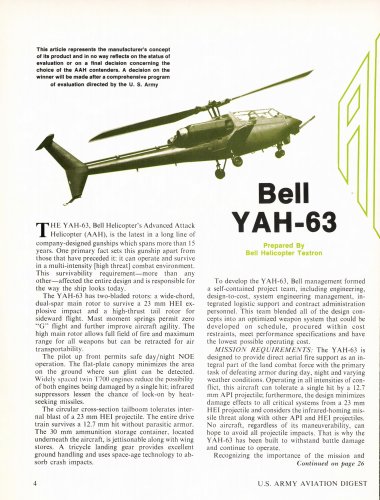

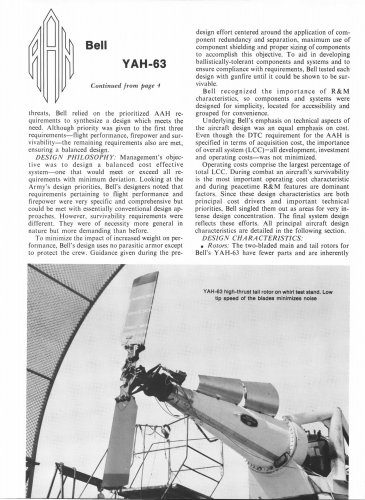

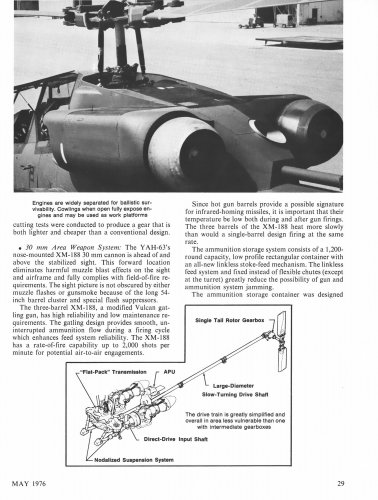

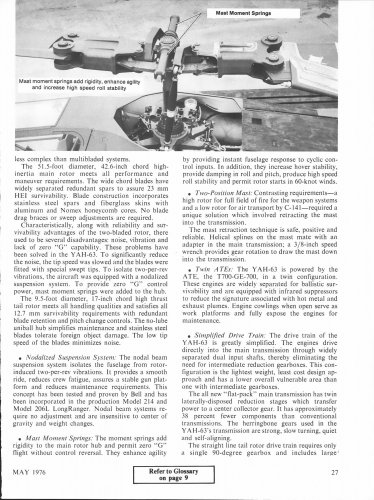

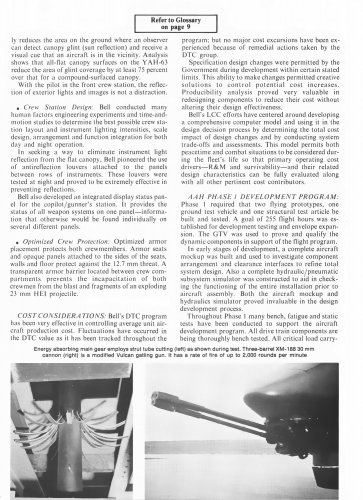

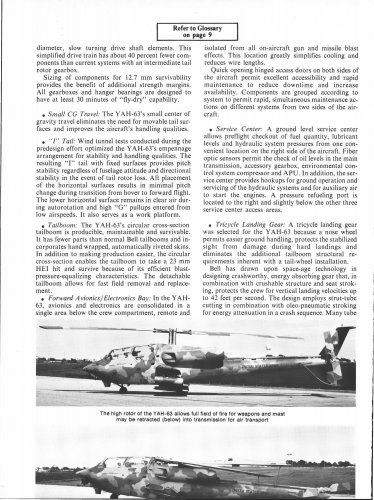

YAH-63 article by Bell from Army Aviation Digest, May 1976. Some nice photos and details.


This issue has detailed articles on UTTAS and AAH finalists.


http://www.rucker.army.mil/avjournal/1970/1976/AVN_DIG_1976_05.pdf


Attachments

  • BellAAH-08.jpg
    534.8 KB · Views: 161
  • BellAAH-07.jpg
    536.6 KB · Views: 133
  • BellAAH-06.jpg
    521.2 KB · Views: 125
  • BellAAH-05.jpg
    443.7 KB · Views: 141
  • BellAAH-04.jpg
    529.6 KB · Views: 125
  • BellAAH-03.jpg
    587.2 KB · Views: 119
  • BellAAH-02.jpg
    474.2 KB · Views: 149
  • BellAAH-01.jpg
    495.3 KB · Views: 149

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Greetings All -

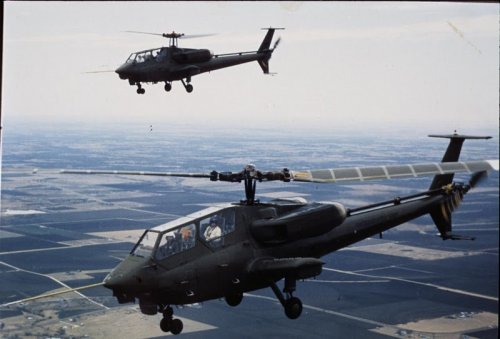

A photo from a recent donation to the Museum.

Enjoy the Day! Mark


Attachments

  • zBell Helicopter YAH-63 pair.jpg
    zBell Helicopter YAH-63 pair.jpg
    255.4 KB · Views: 204

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,395
Reaction score
733

Attachments

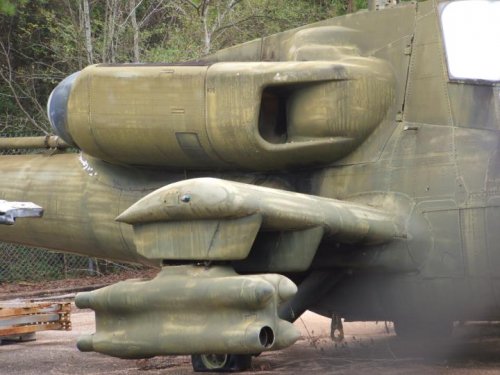

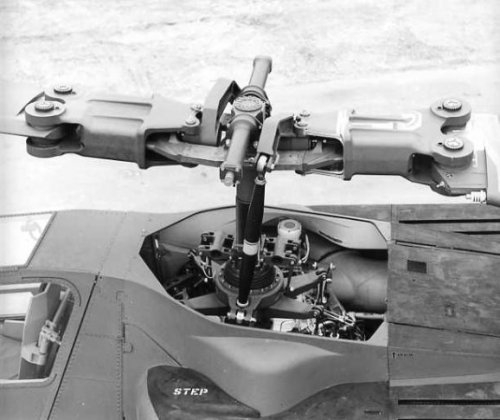

  • kampfhubschrauber-Bell YAH-63-rotormast-versenken.jpg.4473538.jpg
    kampfhubschrauber-Bell YAH-63-rotormast-versenken.jpg.4473538.jpg
    40.4 KB · Views: 188
  • kampfhubschrauber-Bell YAH-63-rotor.jpg.4473520.jpg
    kampfhubschrauber-Bell YAH-63-rotor.jpg.4473520.jpg
    49.7 KB · Views: 90
  • kampfhubschrauber-Bell YAH-63-boden-heck.jpg.4473466.jpg
    kampfhubschrauber-Bell YAH-63-boden-heck.jpg.4473466.jpg
    29.1 KB · Views: 933
  • kampfhubschrauber-Bell YAH-63-boden.jpg.4473452.jpg
    kampfhubschrauber-Bell YAH-63-boden.jpg.4473452.jpg
    37.1 KB · Views: 975
  • kampfhubschrauber-Bell YAH-63-boden-seite.jpg.4473484.jpg
    kampfhubschrauber-Bell YAH-63-boden-seite.jpg.4473484.jpg
    41 KB · Views: 995

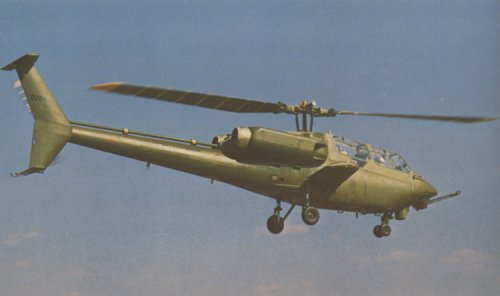

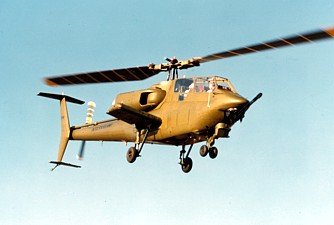

  • Bell YAH-63-flug.jpg.4473578.jpg
    Bell YAH-63-flug.jpg.4473578.jpg
    21.4 KB · Views: 1,005
  • kampfhubschrauber-Bell YAH-63-schwebend.jpg.4473560.jpg
    kampfhubschrauber-Bell YAH-63-schwebend.jpg.4473560.jpg
    17.4 KB · Views: 1,017
Last edited by a moderator:

JimK

ACCESS: Confidential
Joined
Apr 15, 2010
Messages
56
Reaction score
8

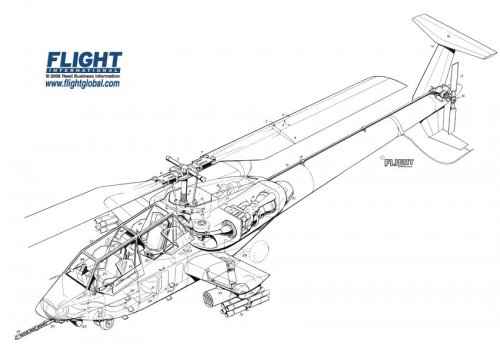

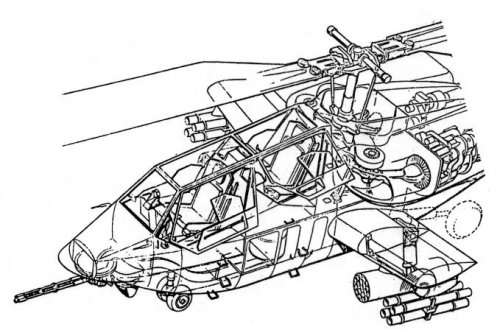

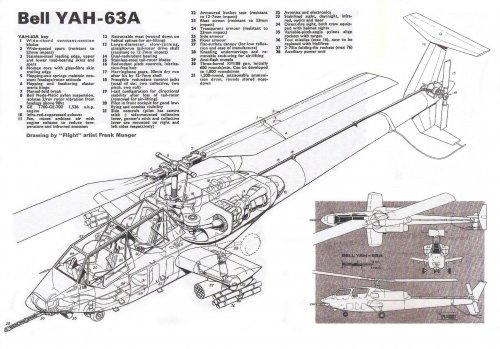

Here's that cutaway image of the YAH-63 from Flight that was mentioned in Reply 12, joined from their two scans and rearranged.


Attachments

  • Bell YAH-63 (1976) Munger.JPG
    Bell YAH-63 (1976) Munger.JPG
    1.3 MB · Views: 249

Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
692
Reaction score
39
Jettisonable ammo drum for the XM188? What's the point of that feature?

Overall I'm not certain what about the XM230 sold the weapon over the XM188. With the XM188 you have the heat buildup divided among three barrels on the XM188 and the possibility of a higher rate of fire for A/A engagements with other helicopters.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
171
There are two good reasons to have a jettisonable ammo drum on an attack helicopter. First and most likely reason it was installed was to provide an instant reduction in aircraft weight in case of an engine out emergency. This would function like dumping pylons and stores and jettisoning fuel to lower weight in an emergency.

The second reason is perhaps they were thinking of installing a caseless propellant gun? USAF required a jettisonable ammunition supply for the FX (F-15) project and its initial caseless 25mm gun requirement. At the time of the state of art of caseless propellant meant the ammunition was more vulnerable to explosion from excessive heat and damage compared to conventional ammunition. So the fighter was required to be able to expel the entire magazine if needed. This is however a much harder thing to do in a fighter jet with far more extreme performance than just a comparatively lumbering attack helicopter.

As an interesting tidbit in Dan Raymer’s autobiography (Living in the Future) he mentions that the FX jettisonable magazine was the inhouse reason given as to why North American Rockwell lost the project. The ‘old timers’ at the company told Raymer that they had included the jettisonable magazine with all its extra weight and complexity in their FX tendered design (NA-335) as required by the specification. But rivals McDonnell had got wind that USAF was unhappy with the 25mm and in their tender left out all the weight of the jettisonable magazine and just provided a design with the conventional M61 20mm gun and ammo drum. So their F-15 was lighter and cheaper than the rivals who actually meet the specification as originally set by the customer.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
702
Reaction score
144
Two questions.

What; if any, was the advantage/disadvantage of using a two bladed rotor?

What was the intended location for the fire control optics and the flir, I presumed that it would be over the cockpit but there is no sign of it on the prototypes.

Regards


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
171
JohnR said:
What; if any, was the advantage/disadvantage of using a two bladed rotor?

Lower weight as two of something is usually lighter than four of something. The wide blades of the AAH and a few other Bell helos of this time were also designed to provide a lot of lift at lower rotation speeds. The slower the rotor spins and the less noise it makes (usually).

JohnR said:
What was the intended location for the fire control optics and the flir, I presumed that it would be over the cockpit but there is no sign of it on the prototypes.

The gunner’s sight is the turret between the nose wheel and the gun turret. Bell placed the sight and gun in this arrangement because having the gun in the nose actually increased its firing arcs when in forward flight and placed the muzzle blast away from the helicopter so it didn’t damage the optics or anything else.
