Hughes Model 77 AAH competition winner (became the AH-64)

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu

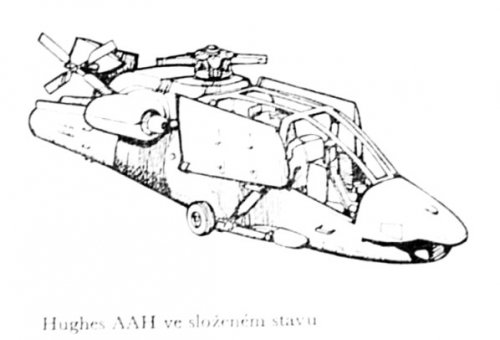

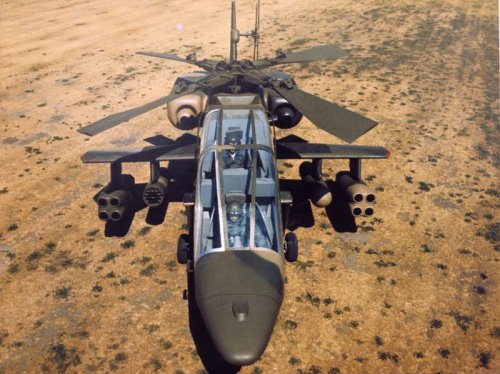

Another interesting Hughes AAH picture - in packed form. Original specifications also called for using of ejector seats and carrying additional antitank missiles internaly, so the helicopter should be re-armed during short landing. Mi-24 crews do it sometimes.


Attachments

  • Hughes.jpg
    33.1 KB · Views: 1,153

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,541
Reaction score
3,793

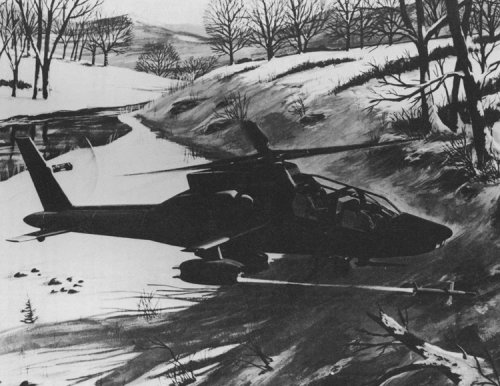

Early Hughes Model 77 sketch.

Source:
Frank Colucci, The McDonnell-Douglas Apache Aero Series 33 1988


Attachments

  • Hughes-Model-77.jpg
    168.8 KB · Views: 1,009

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
131
Website
www.hitechweb.genezis.eu

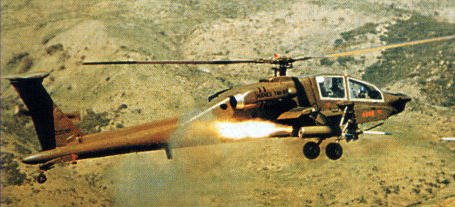

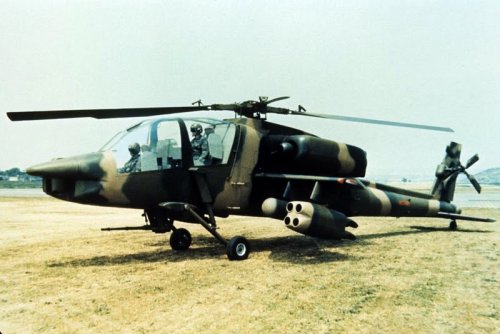

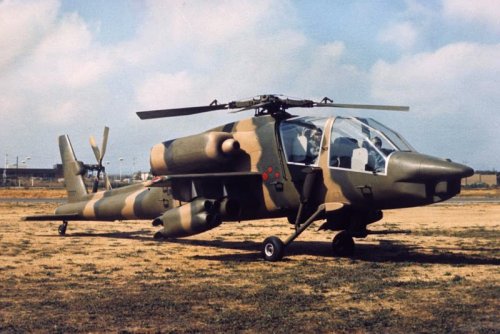

T-tail prototype. I dont know what you mean by "converse T tail"


Attachments

  • image012.jpg
    20.5 KB · Views: 744
  • image013.jpg
    30.7 KB · Views: 720

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
Well, I mean I want some pix of YAH-64 that tailplane not on the top of tail whereas on the buttom of tail. Showing like"⊥".


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130

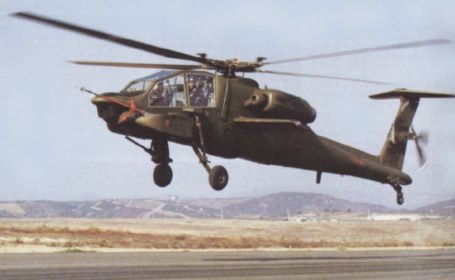

The fixed low-tail YAH-64 never flew. The first prototype was so fitted but after some wind-tunnel tests the low fixed horizontal stabilator was found unsuited and was immediately changed in a high fixed one. So, the only way to see it on the prototype is to find a picture of the roll-out. In 20 years I've seen none :(


rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
No, it looks you are wrong, except this is a fake


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Congratulations, you're proving Frank Colucci "Apache" Aero Series 33 by Aero Publishing pg. 19 and 20, wrong !!! ;)
Which is the prototype pictured, AV02 or AV03 ? To me the number on the side of the cockpit read O2.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
547
Website
deeptowild.blogspot.com

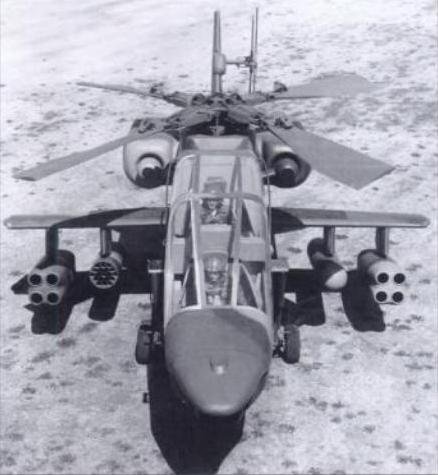

Image of Hughes Model 77 mockup published in Apache AH-64 Boeing (McDonnell Douglas) 1976-2005 by Chris Bishop, Osprey Publishing Ltd, 2005.


Attachments

  • HughesModel77mockup.JPG
    30.6 KB · Views: 213

The Artist

ACCESS: Top Secret
Senior Member
Joined
Nov 2, 2009
Messages
638
Reaction score
255
Matej said:
Another interesting Hughes AAH picture - in packed form. Original specifications also called for using of ejector seats and carrying additional antitank missiles internaly, so the helicopter should be re-armed during short landing. Mi-24 crews do it sometimes.

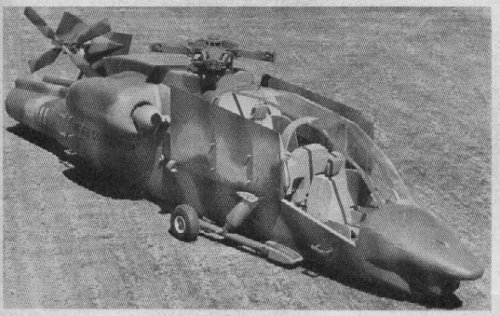

I found this photo in Scale Models magazine, January 1974.


Attachments

  • early Hughes AAH mockup.jpg
    early Hughes AAH mockup.jpg
    117.6 KB · Views: 430

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,281
Reaction score
168
wow, that whole magazine issue is a treasure trove!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
AeroFranz said:
wow, that whole magazine issue is a treasure trove!

Yeah, and in fact if you can take the time to download the whole collection (which obviously will take quite a while) you'll find a lot of interesting stuff.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
547
Website
deeptowild.blogspot.com

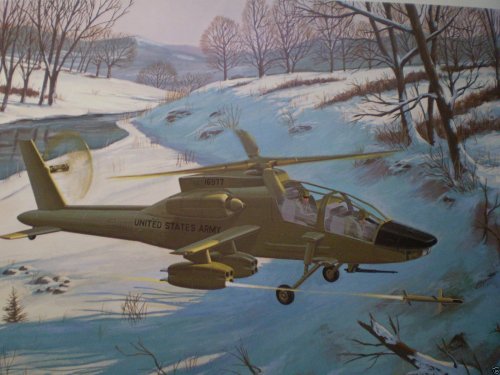

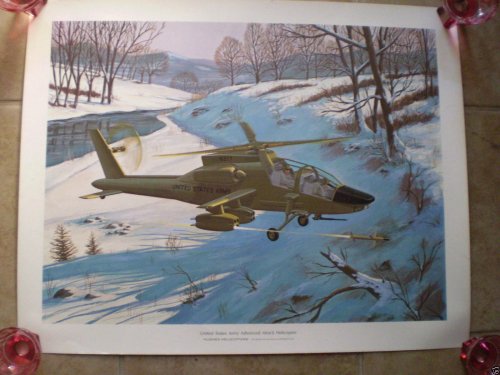

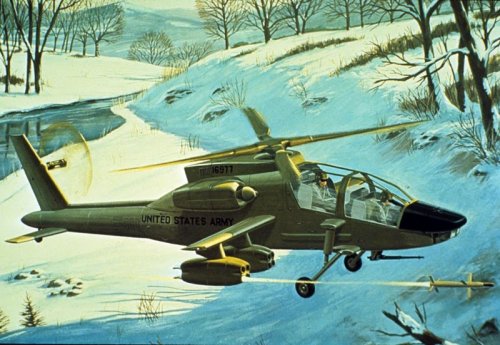

Hughes Advanced Attack Helicopter (AAH) concept poster

Poster of Hughes Advanced Attack Helicopter (AAH) concept that became the YAH-64/AH-64 Apache found on eBay. Measurements are approximate at 18.25" x 23".

Source:
http://www.ebay.com/itm/1950s-60s-Original-Poster-HUGHES-ATTACK-HELICOPTER-US-ARMY-Military-/141442537600?pt=Art_Posters&hash=item20eea1d880


Attachments

  • $_57HughesYA-64.JPG
    356.9 KB · Views: 54
  • $_57HughesYA64.JPG
    341.5 KB · Views: 47

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,083
Reaction score
975
...


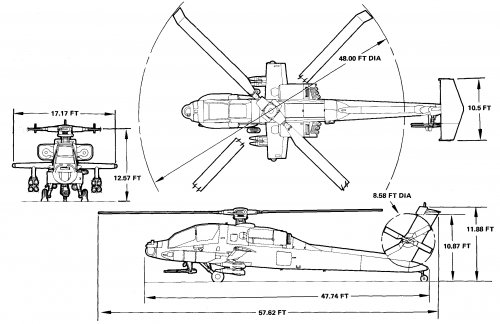

Attachments

  • YAH-64A-1.jpg
    527.6 KB · Views: 286

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,892
Reaction score
239
Matej said:
Another interesting Hughes AAH picture - in packed form. Original specifications also called for using of ejector seats and carrying additional antitank missiles internaly, so the helicopter should be re-armed during short landing. Mi-24 crews do it sometimes.

Would like to see/learn more in relation to this
carrying additional antitank missiles internaly
, if you have anything more on the subject Matej :p Do we know how many additional missiles it was intended to carry and where within the helicopter they were carried - internally? externally?.......

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,892
Reaction score
239
Would be interesting to know how much weight growth has occurred between the original Hughes Model 77 prototype, to that of the production / operational standard AH-64A, if anyone has these figures!


Regards
Pioneer
