Bell - Experimental Spacecraft RCS Thruster (1966)

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,667
Reaction score
438

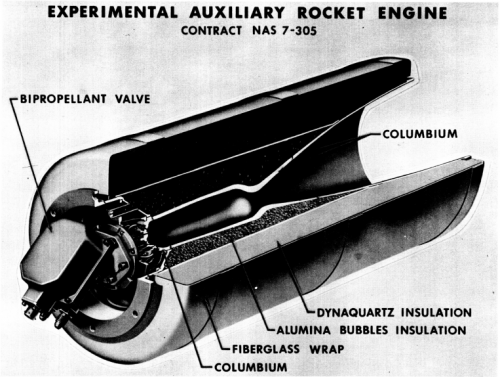

During the 1960's NASA looked at several possible improvements to the existing Block II Apollo's. One such study was by Bell and looked into a new design for RCS thrusters, which was theoretically scaleable from 5lb to 1000lb of thrust.

Experimental auxiliary rocket engine, part I. Final report
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19660021108_1966021108.pdf

Experimental auxiliary rocket engine, part II. Final report
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19660021109_1966021109.pdf


Attachments

  • BellEARE.png
    432.5 KB · Views: 249
  • Bell_EARE_Foldout.png
    262.1 KB · Views: 86

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,667
Reaction score
438

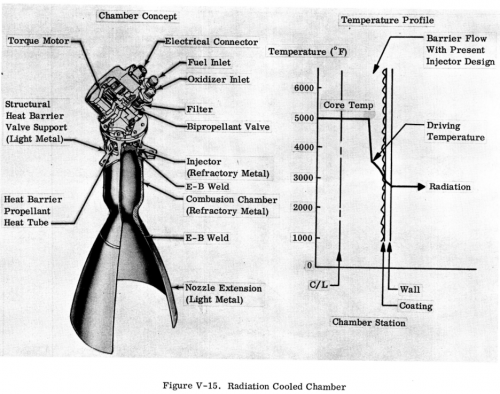

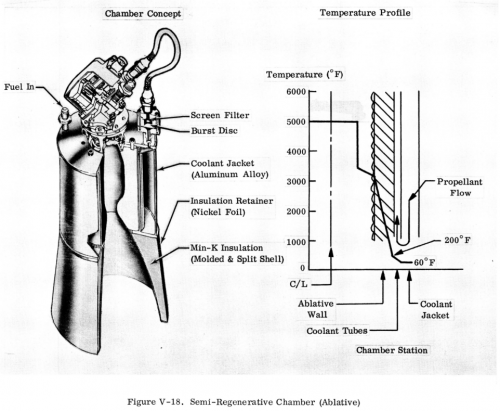

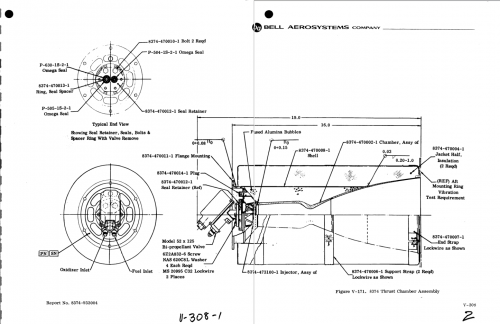

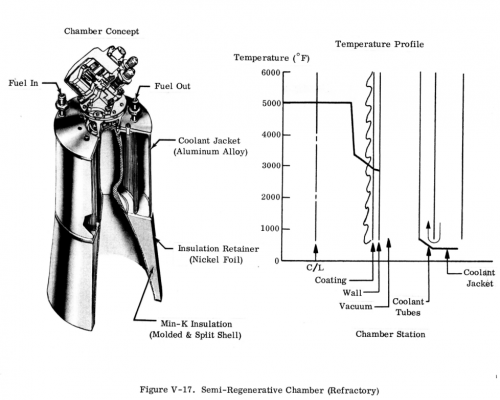

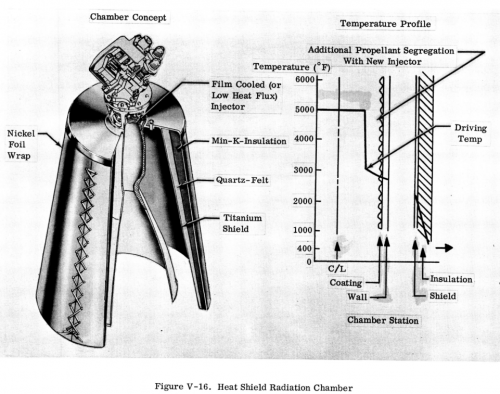

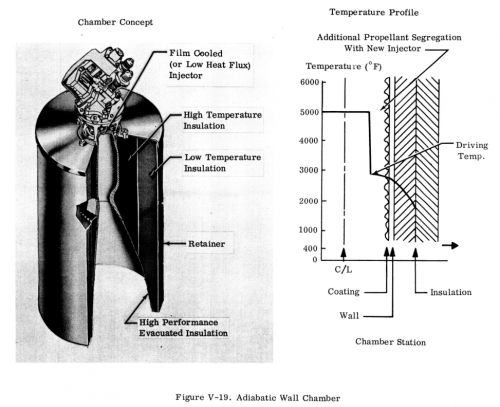

The links to the NTRS disappeared in the 'Cry Wolfe' incident, but I've finally managed to relocate the files on a backup drive and for those who are interested both volumes of the report are available below. The attached pictures show various cooling methods considered for this thruster design.

Experimental auxiliary rocket engine, part I. Final report
https://app.box.com/s/l286c3f418pw77ahuwxpx8puisx9u1ok

Experimental auxiliary rocket engine, part II. Final report
https://app.box.com/s/ej3p5mh1f1c186iy154sy8kezl0678iv

As an aside, I think there's enough information in here to build one, if anyone has the resources in their back shed....


Attachments

  • Bell_EARE_02.png
    628.9 KB · Views: 100
  • Bell_EARE_03.png
    630 KB · Views: 92
  • Bell_EARE_04.png
    241.1 KB · Views: 80
  • Bell_EARE_05.png
    529.1 KB · Views: 19
  • Bell_EARE_06.png
    543.3 KB · Views: 12
