Beech fighter designs...

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
I read a long time ago(the memory fails where) that Beech produced
a few fighter aircraft designs ( late 30's ?) using their -Staggerwing - principle.

Is there someone who knows more.(descriptions- drawings?)

Thanks...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733
My dear lark,

a little information may be help you,was Beech UC-43B with
Staggerwing and registration as NC1193V and N1193V.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Thanks Hesham,but the UC-43 was known very well and NOT a fighter (P or F) design.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733
My dear lark,

please read this;


Attachments

  • untitled.JPG
    49.7 KB · Views: 1,188

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
59
Website
theavgeeks.com

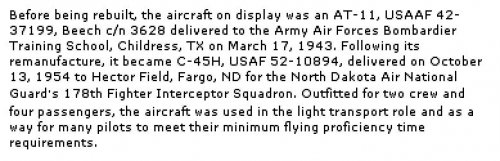

Hesham, a UC-43 and a C-45 are two different aircraft. The UC-43 is based on the Beech Staggerwing and the C-45 is based on the Beech 18 twin.

J

joncarrfarrelly

Guest

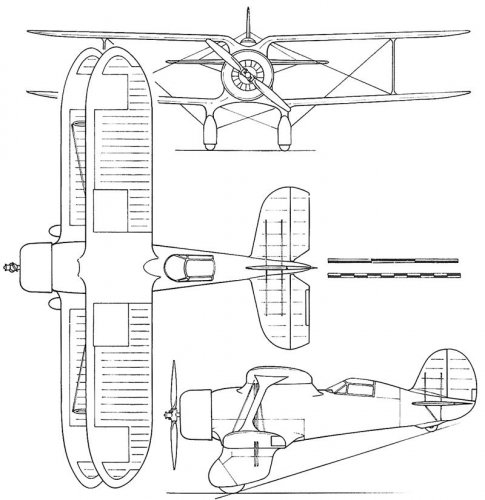

Model 17 based Pursuit circa 1932, drawing from 'Beech Aircraft and Their Predecessors' by Pelletier. The book lists it as the Model 17J, but
based on descriptions in 'The Staggerwing Story' by Phillips it is more likely the A17R, as the 17J was intended to have a two man crew.
A floatplane version was also planned with a single central float and wing mounted stabilizing floats.
Four .30 MG or two .30 and two .50 MG, provision for a 500lb bomb on the centreline of the land-plane.
Wright R-975E3 'Cyclone'.
Span: 34' 4"
Length:26'
Max speed: 220 mph at 2,000'
Ceiling: 22,000'
Empty weight: 2,650 lb
Max weight: 5,100 lb


'Beechcraft Pursuit Biplane' designed early in 1940.
One 37mm cannon and one each .30 and .50 MG.
Allison V-1710 of 1,200 hp mounted behind the pilot, as in the P-39.
Span: 32'
Length: 36'
Max speed: 350 mph at 13,200'
Cruise: 318 mph
Max weight: 6,200lb


Cheers, Jon


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
This it is.Great find! I knew it was somewhere...
Thanks Jon...

J

joncarrfarrelly

Guest
You're welcome Lark.
BTW the wings from the Sword kit in 1/72 or the AMT kit in 1/48th could be used to model the A17R.

I've been thinking about modifying an Airacobra into the BPB.

Cheers, Jon


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Excellent idea , but the Beech BPB fighter looks very sleek
compared with the P.39 , unless you have seen a side or 3 view
of the PBP to rely on...

J

joncarrfarrelly

Guest
Seeing as its an artists rendition, I'm not too sure how sleek it would have been. ;)

Check out artist's renderings and advertisements of the P-39 from the war period...it's much sleeker in those ads than it was in reality.

As to other illustrations, that is the only one I've ever seen.

Cheers, Jon


tallguy

I really should change my personal text
Joined
Jan 31, 2012
Messages
24
Reaction score
5
joncarrfarrelly said:

Model 17 based Pursuit circa 1932, drawing from 'Beech Aircraft and Their Predecessors' by Pelletier. The book lists it as the Model 17J, but
based on descriptions in 'The Staggerwing Story' by Phillips it is more likely the A17R, as the 17J was intended to have a two man crew.
A floatplane version was also planned with a single central float and wing mounted stabilizing floats.
Four .30 MG or two .30 and two .50 MG, provision for a 500lb bomb on the centreline of the land-plane.
Wright R-975E3 'Cyclone'.
Span: 34' 4"
Length:26'
Max speed: 220 mph at 2,000'
Ceiling: 22,000'
Empty weight: 2,650 lb
Max weight: 5,100 lb


'Beechcraft Pursuit Biplane' designed early in 1940.
One 37mm cannon and one each .30 and .50 MG.
Allison V-1710 of 1,200 hp mounted behind the pilot, as in the P-39.
Span: 32'
Length: 36'
Max speed: 350 mph at 13,200'
Cruise: 318 mph
Max weight: 6,200lb


Cheers, Jon

Any chance of reposting those pics?


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
8
As requested:

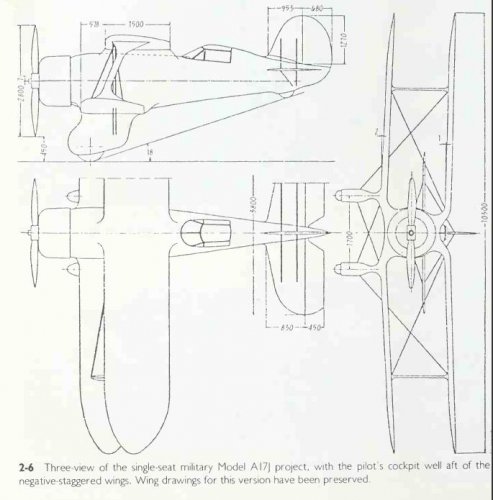

The second picture is with an Allison 1,090 hp V-12 instead of the original 715 hp Wright Cyclone and the cockpit has been moved ahead of the wings


Attachments

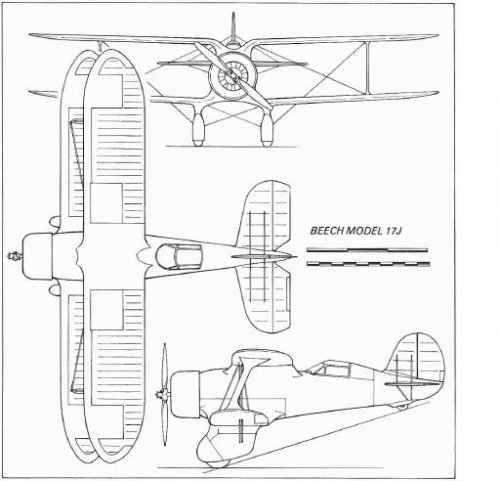

  • Beech Model 17J 3D Drawing.JPG
    Beech Model 17J 3D Drawing.JPG
    35.5 KB · Views: 214
  • Beech Model 17J.JPG
    Beech Model 17J.JPG
    27.7 KB · Views: 247

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,891
Reaction score
2,038
Loren said:
The second picture is with an Allison 1,090 hp V-12 instead of the original 715 hp Wright Cyclone and the cockpit has been moved ahead of the wings

Was it intended to be a ground controlled nightfighter?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
Grey Havoc said:
Was it intended to be a ground controlled nightfighter?

Don't think so, as it's a design from the early '40s, whereas, AFAIK, early warning radar wasn't
fielded (without great enthusiasm !) before the end of 1940. And those radar systems, still had
no means of height measurement, IIRC. So it would have been difficult to guide a fighter at night
to an intruder. Additionally, there probably still was no fear in the US to be attacked from the air.


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
8
Was it intended to be a ground controlled nightfighter?
Doesn't say. It just says that Beech engineers worked on a 1940 fighter aircraft evolved from the Model 17, no designation with it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733

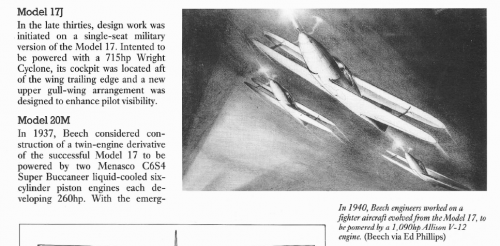

And from Beechcraft Staggerwing book.


Attachments

  • 1.JPG
    51.9 KB · Views: 645

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733
Loren said:
As requested:

The second picture is with an Allison 1,090 hp V-12 instead of the original 715 hp Wright Cyclone and the cockpit has been moved ahead of the wings

The whole Info and drawing.


Attachments

  • L-1.png
    365 KB · Views: 527

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
579
Greetings All!

Back in mid-October, I went to the "Beech Party" at the Beechcraft Heritage Museum in Tullahoma, TN. What a great event and what an amazing Museum.

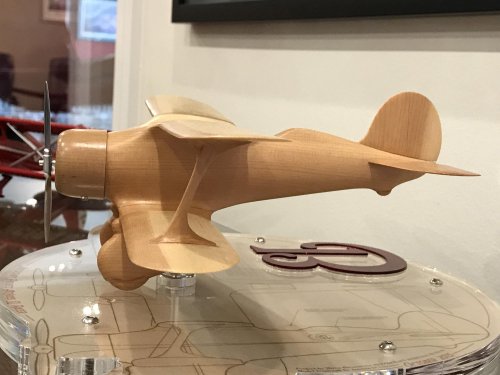

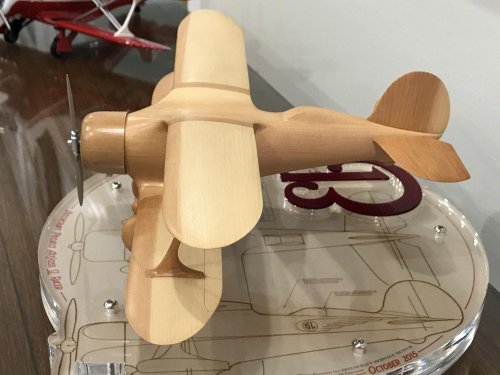

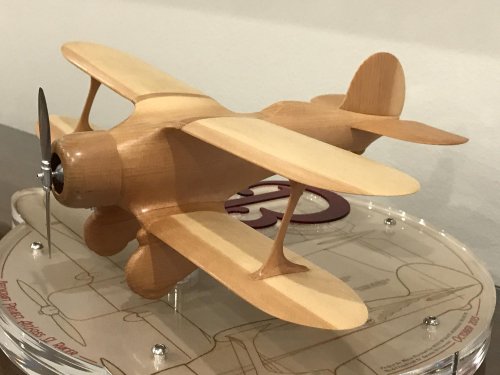

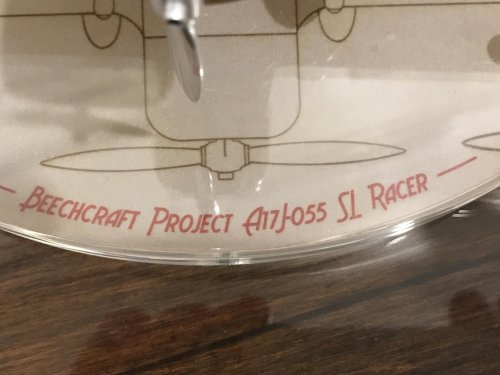

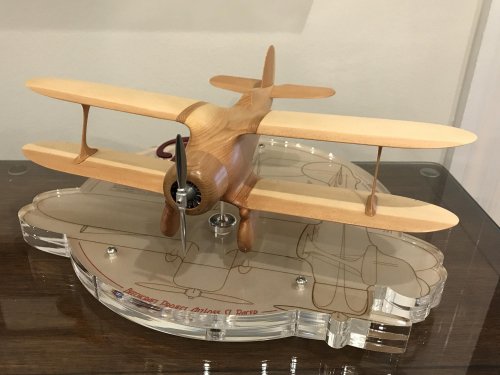

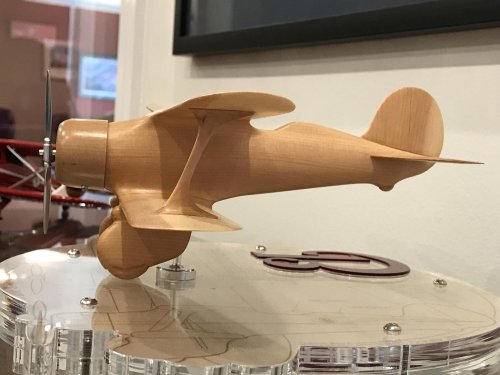

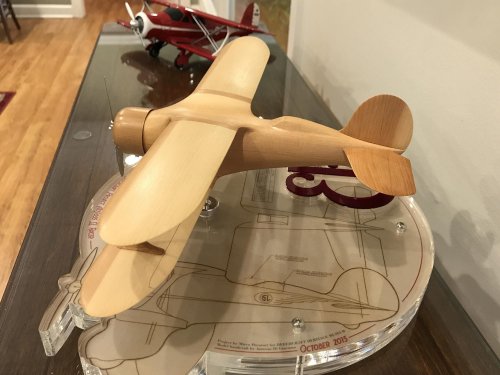

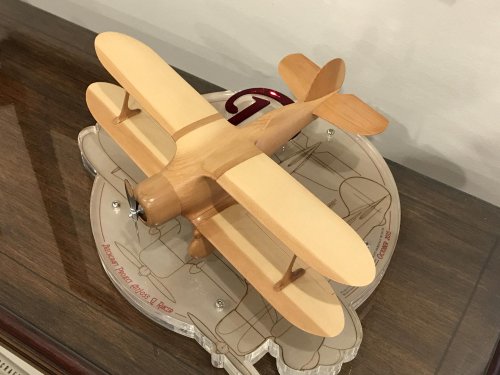

In one of the offices was this fine model of the 17J-55 SL, very similar if not the same as Loren's posting with the 3 view. I took this as being a long distance racer when I saw it and the base seems to confirm that.

A beautiful model.... Mark


Attachments

  • zMG_9453.jpg
    251 KB · Views: 40
  • zMG_9456.jpg
    269.6 KB · Views: 34
  • zMG_9455.jpg
    249.6 KB · Views: 40
  • zMG_9465.jpg
    233.1 KB · Views: 42
  • zMG_9464.jpg
    228.1 KB · Views: 37
  • zMG_9468.jpg
    232.4 KB · Views: 289
  • zMG_9460.jpg
    219.4 KB · Views: 313
  • zMG_9463.jpg
    145.1 KB · Views: 329

jcf

ACCESS: Restricted
Joined
Jun 26, 2017
Messages
35
Reaction score
29
Model 17 based Pursuit circa 1932, drawing from 'Beech Aircraft and Their Predecessors' by Pelletier. The book lists it as the Model 17J, but
based on descriptions in 'The Staggerwing Story' by Phillips it is more likely the A17R, as the 17J was intended to have a two man crew.
A floatplane version was also planned with a single central float and wing mounted stabilizing floats.
Four .30 MG or two .30 and two .50 MG, provision for a 500lb bomb on the centreline of the land-plane.
Wright R-975E3 'Cyclone'.
Span: 34' 4"
Length:26'
Max speed: 220 mph at 2,000'
Ceiling: 22,000'
Empty weight: 2,650 lb
Max weight: 5,100 lb

'Beechcraft Pursuit Biplane' designed early in 1940.
One 37mm cannon and one each .30 and .50 MG.
Allison V-1710 of 1,200 hp mounted behind the pilot, as in the P-39.
Span: 32'
Length: 36'
Max speed: 350 mph at 13,200'
Cruise: 318 mph
Max weight: 6,200lb

Cheers, Jon

update to post from 2007 with defunct image links


Attachments

  • PURSUIT17.jpg
    78.5 KB · Views: 46
  • BEECH_PURSUIT_01.png
    219.1 KB · Views: 51
