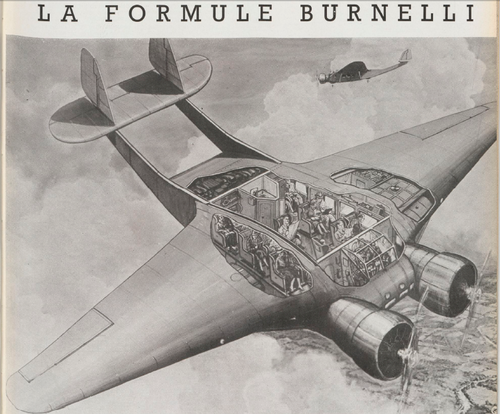

The Scottish Aircraft & Engineering Co. planned to produce
the Burnelli UB-14 under licence in 1936.
This aircraft should have been powered by 2 Rolls-Royce Kestrel XVI
liquid cooled engines ,instead of the radials , and was given the
name 'Clyde Clipper'
Scottish A & E planned a series of designs based on
the Burnelli patents.Among them the
Clyde Carrier - a five ton freighter
Clyde Corsair - a long range bomber

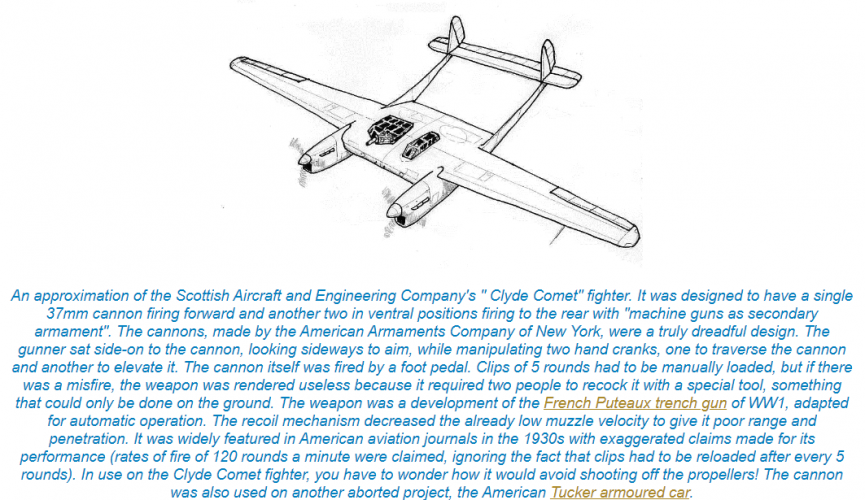

Clyde Comet - two engined fighter armede with a 37 mm cannon.

Is there someone who know more ,descriptions /illustrations, of
these projects ?.

Thanks in advance.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
34

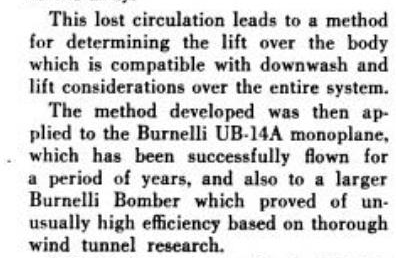

See First of the Wide Bodies Air Enthusiast No58 Summer 1995
and (but I have no record of where this photocopy came from, sorry)


Attachments

  • Clyde Clipper.jpg
    Clyde Clipper.jpg
    270.1 KB · Views: 847

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Thanks Smurf.

It's page 249 from Air Enthusist November 1973.

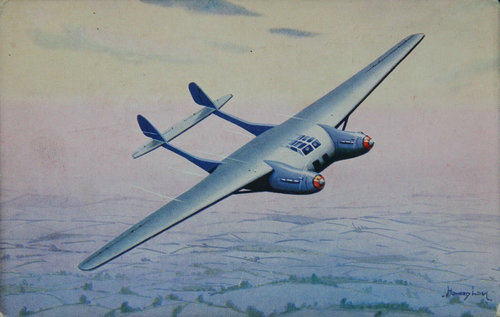

There's also an illustration of the -not flown- RollsRoyce powered
Clyde Clipper on the cover of Model Airplane News of
August 1937.

Have you ever found more info of the other projected designs
Clyde Carrier , Corsair and Comet ?


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
34
Thanks for the ref. I'll note it. The 1995 AE ref has a page of Scottish Aircraft adverts, with pictures (that my scanner will do a poor job on) but I've nothing on the other projects, sorry.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
34
Still nothing on your list, but this may be of interest
http://www.historynet.com/air_sea/flight_technology/3037316.html?page=1&c=y


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Thanks smurf.
A good piece of history.I'm convinced that much is still to be dicsovered
about the work of Vincent Burnelli...


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Thanks Joe...
I'm starting to buy index sheets from the Aeroplane
(hard to find and not cheap) from the U.K. but
I found nothing yet...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
My dear lark,

Some informations about OA.2 was in;
Jane's all the world's aircraft 1940.
Aeroplane Monthly, June 1980.
Le Fana de l'Aviation, April 1988.
Jane's fighting aircraft of WW2.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,516
Reaction score
251
Burnelli bomber - help with identification

Following this link:

http://forum.keypublishing.co.uk/showthread.php?p=1311473

you can find an unidentified Burnelli/Clyde 4-engined bomber model at POST #9. Any idea about its identity?

Thanks in advance.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,642
Reaction score
966

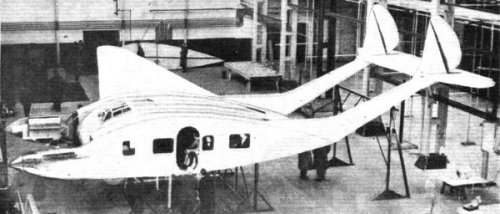

Has this been shown before? The Rolls-Royce powered Clyde Clipper mockup, from a Cunliffe-Owen advert in Flight 18 Feb 1937 (p.16) http://www.flightglobal.com/pdfarchive/view/1937/1937%20-%200444.html


Attachments

  • clyde-clipper-mockup.jpg
    43.7 KB · Views: 408

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
39
Website
cmeunier.chez-alice.fr
lark said:
Clyde Corsair - a long range bomber
Clyde Comet - two engined fighter armede with a 37 mm cannon.

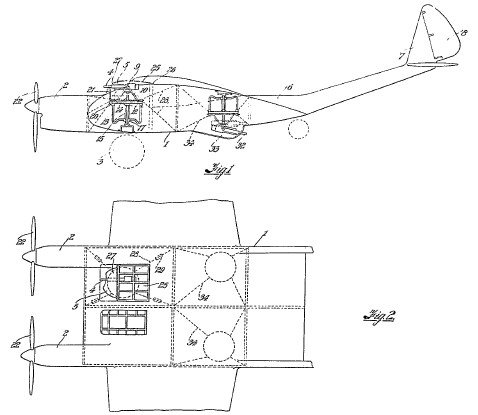

Bombs and guns are mentioned in the patent (from Scottish Aircraft & Engineering Co's) GB494256(A) of 1937/1938
see
http://v3.espacenet.com/publicationDetails/biblio?DB=EPODOC&adjacent=true&locale=fr_fr&FT=D&date=19381024&CC=GB&NR=494256A&KC=A


Attachments

  • clyde.JPG
    34.3 KB · Views: 373

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Re: Burnelli bomber - help with identification

Thanks Antonio...

It's a personal opinion, but I think this four engined design is one of the
Clyde concepts based on the Burnelli patents.
The circular low drag dorsal turret is maybe a Boulton Paul design.
I wonder if this model depicts the Clyde Corsair long range bomber ?

I wonder what's Smurf opinion is about...


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Thanks Tophe.This could be a new one for your encyclopedia I guess ;)


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,925
Reaction score
272
The circular low drag dorsal turret is maybe a Boulton Paul design.
I wonder if this model depicts the Clyde Corsair long range bomber ?

From 'British Aircraft Armament Volume I: RAF Gun Turrets', R Wallace Clark, page 62 :-

" The [Boulton Paul four cannon] turret was also meant to be used on a projected new
bomber, the B.1/39."

Was the Clyde Corsair prepared to this specification?


cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,098
Reaction score
3,788
Hi,


also I found this drawing,and they wrote on it,Mark II.


Attachments

  • Scottish.JPG
    106.9 KB · Views: 446

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
88
I'm trying to figure out the flap setup of the Clyde Clipper.

The OA-1 had three moving surfaces on each wing: flaps on the furthest inboard section of wing, and had two sets of ailerons on the outer wing. The split flaps were apparently to help address wing warping.

However, the Clyde Clipper drawings seem to show only two surface on each wing. They are sufficiently different in depth that it makes me suspect they represent flaps and ailerons. This would mean that the Clipper had a much higher flap area than the OA-1 it was derived from.

One of the drawings also shows the inboard surface using a dotted outline. This makes me suspect it didn't extend to the top of the wing (thus making it a form of split flap or zap flap, if not a fowler).

Any thoughts?


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
311
Reaction score
134
Here is British Movietone newsreel footage of the Clyde Clipper mock-up constructed by Scottish Aircraft and Engineering at Willesden. Also included is some very brief footage aerial of the Burnelli UB (Reg. NX15320 / NC15320).

YouTube - British Movietone: "New York to Paris Air Race"
