Bede Designs

[rlandmann28]

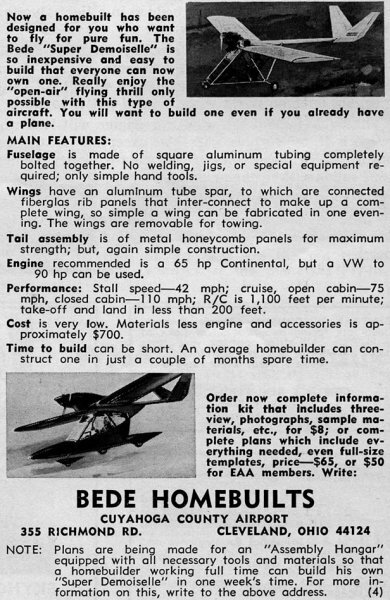

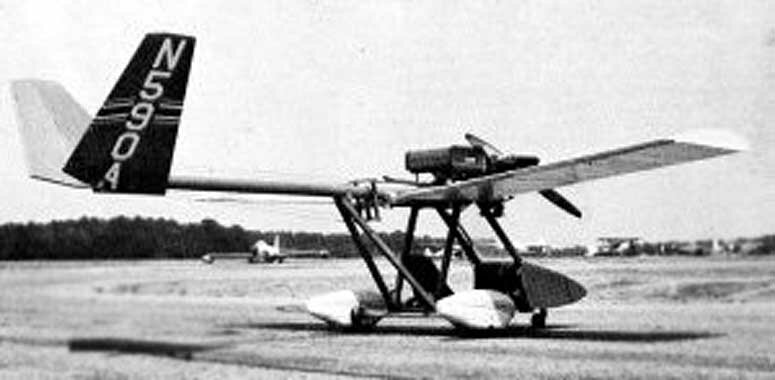

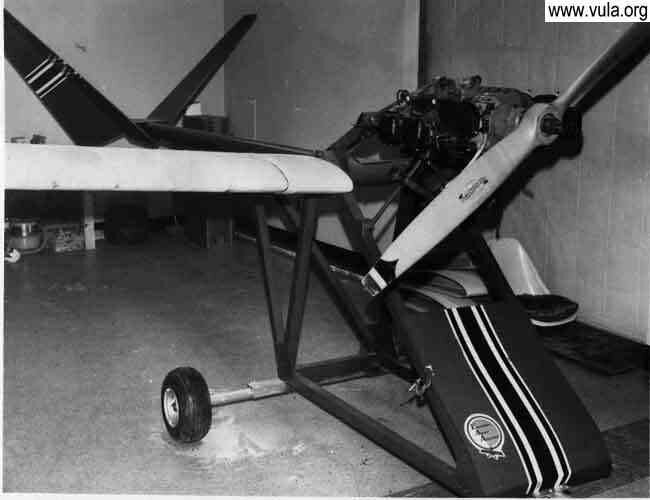

A few more of the Super Demoiselle, from over on homebuiltaircraft.com. The poster claims to own the only set of plans in existence; Bede having bought back all the others.



[hesham]

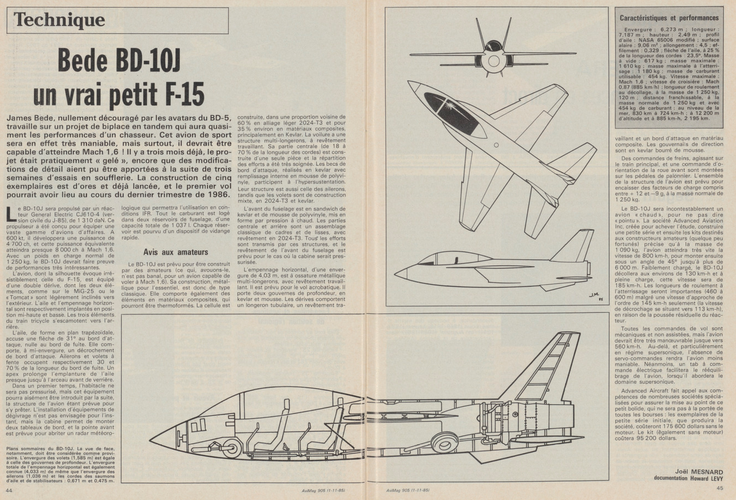

From Aviation magazine 1-11-1985,

I think that's the early drawing to BD-10.



[Mark Nankivil]

From Aviation magazine 1-11-1985,

I think that's the early drawing to BD-10.

Looks more like a guesstimate, the basic layout changed little from when it first went public.

Thanks - Mark



[djfawcett]

From Aviation magazine 1-11-1985,

I think that's the early drawing to BD-10.

This drawing or configuration was never in the design lineage of the BD-10. I believe Mark is right, it is a guesstimate by an artist.



[hesham]

Article published in the magazine Popular Mechanics December 1989

The cover.



[Dynoman]

View: https://www.youtube.com/watch?v=ycG37BQjL9g



[djfawcett]

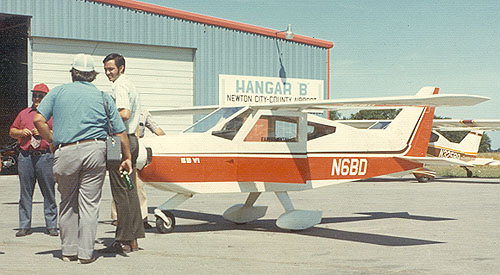

For those that might find some humor in this, the picture below was posted earlier in this thread.

See the tall dark hair fella standing next to the BD-6. Well that is none other than Burt Rutan. He worked for Bede during the BD-5 and -6 days. All I can say is that is a longggg wayyyy from anything Rutan designed later on.



[Dynoman]

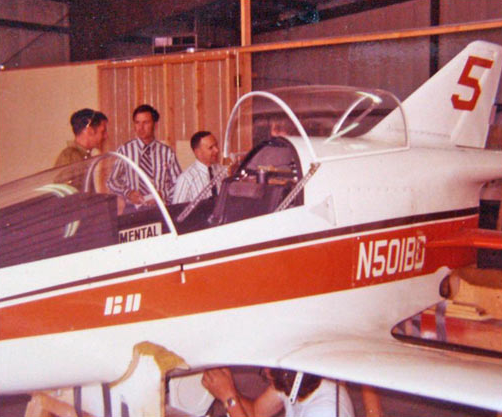

Another Rutan photo (in the middle) with the BD-5. More photos of Rutan and the BD-5. http://airpigz.com/blog/2009/3/23/almost-40-years-later-the-bd-5-still-looks-hot.html



[sienar]

Another Rutan photo (in the middle) with the BD-5. More photos of Rutan and the BD-5. http://airpigz.com/blog/2009/3/23/almost-40-years-later-the-bd-5-still-looks-hot.html
View attachment 794586

You can read about it in Rutans own words here; https://burtrutan.com/brab/PDF/BRAB-Ch18-Bede.pdf



[Dynoman]

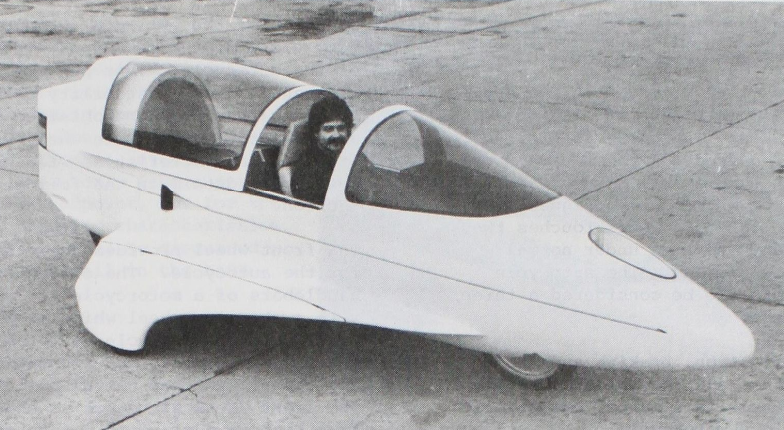

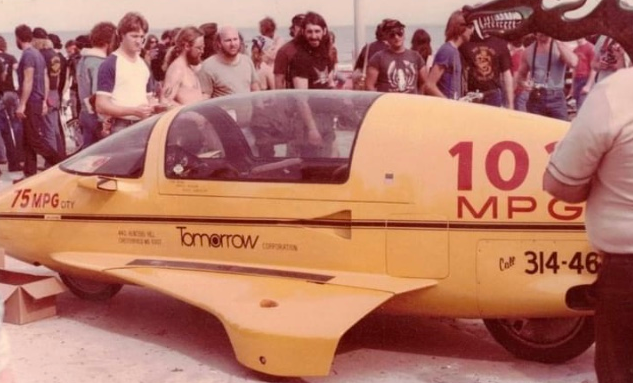

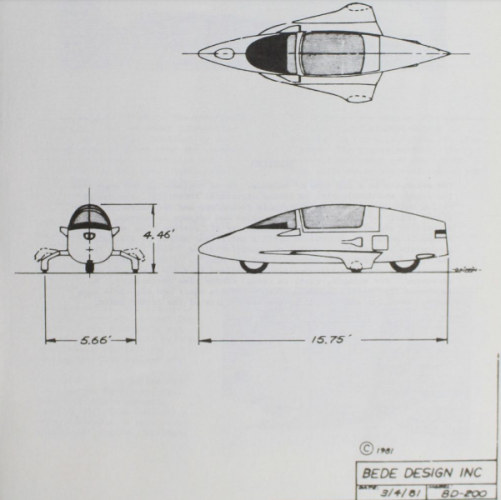

Bede Autocycle (1981). Touted as having 75 mpg/City, 102 mpg/Highway.



[djfawcett]

View attachment 813845

Bede Autocycle (1981). Touted as having 75 mpg/City, 102 mpg/Highway.

This is the Litestar. Stan Leitner contracted Jim Bede to design it. Unfortunately, Leitner lost his backside thru the efforts of Jim Bede.

As a side note, the outriggers made life very interesting when they hit a bump or minor obstruction in the road.
