Hi walter,

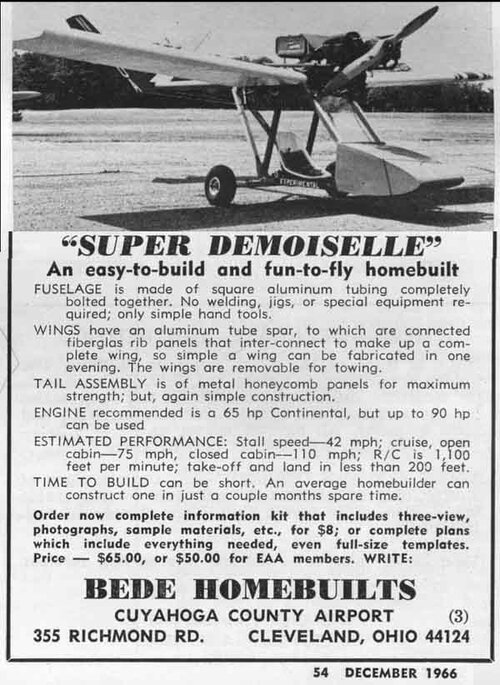

yes I have also the designation H.B.1 for the "Super Demoiselle".
Do you have some technical data for the B.D.9?
Any drawings of the B.D.11? The designation "13" wads not used?
Thanks Maveric


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
131
Hi Maveric :)
Sorry, but I have no details/drawings or the like for the BD-11.
Since the BD-9 was a ultra-light category aircraft, it is not included in my "database". But I never threw away my old typewriter files (you know what a typewriter is?) and found this in an old shoebox:
Single-seat, one 35hp Cuyuna 430-2UL (two-stroke) engine. Wingspan 32ft 2 in, length 21ft 11in
Design by James Bede and his design office for National Aircraft Corporation. Bede also built the prototype which was first flown in June or July 1983. The design was stressed for +6g/-6G. Did not find performance figures.
Hopes this helps
Regards, Walter


djfawcett

With Enough Power, Anything Will Fly
Joined
Dec 16, 2012
Messages
117
Reaction score
74
The BD-11 looks identical to the BD-10 except that the 2 place tandem cockpit is replaced with a 4 place cabin. I have some drawing somewhere. If I find them, I will post. By the way, the engine was to be a Williams FJ-44-1 engine. Dave


djfawcett

With Enough Power, Anything Will Fly
Joined
Dec 16, 2012
Messages
117
Reaction score
74
Unfortunately, I have no information on the 19, 20, 21. I would assume they are designs that are strictly personal to Jim Bede. He has a number of those, and some of them are very, very interesting - i.e. - they were extremely good looking.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
By the way,


during 1980s and 1990s,I went usually to libraries to read a books and magazines about
aviation,and I don't remember the name of book spoke about Bede BD-10 aircraft,said
or mentioned that;


the Bede BD-12 was a ground attack version and BD-14 was a lightweight fighter projected
versions,they were just ideas.


And we must remeber the magic word "re-allocated".


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
30
Can you remember the title of the book so that we read more about this? Because somehow, this attack/fighter stuff seems unlikely to me.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
Jos Heyman said:
Can you remember the title of the book so that we read more about this? Because somehow, this attack/fighter stuff seems unlikely to me.


Sorry my dear Jos,


but I will try to remember.


djfawcett

With Enough Power, Anything Will Fly
Joined
Dec 16, 2012
Messages
117
Reaction score
74
The BD-12 was a 2 place side by side pusher recip powered general aviation aircraft. The BD-14 was the 4 place version. The BD-12 crashed on the take off of its first flight. The BD-14 was never built.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,081
Reaction score
489
@walter: Thanks for your answer.
And no, I don´t know what a typewriter is... B)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
Here's a pretty good Jim Bede story.

In the early 80's a rigid wing ultralight named the NAC Dream showed up at Oshkosh. This little airplane was virtually the first conventionally configured Part 103 vehicle that looked like a real airplane, not a lawn chair. The thing was a hit.

Then word spread around that Bede was associated with the project. Two things happened, the airplane was an instant commercial failure, and lots of people that were still pissed off about losing their deposits for BD-5's were hunting for Bede with intent to give him a thumping. Thousands of people lost deposits for kits and production versions, roughly 12000.

Jim Bede is a hell of a speaker, dreamer, and not a bad airplane configurator. But the trail of shoddy business following him is long, and virtually unbroken. While he was in the St. Louis region working on the BD-10 and a couple of other projects I went to his shop a few times and was stunned about some details I saw on the jet. The tail problems were predicted, that was a no brainer. The wing skin assembly was a real surprise; aluminum honeycomb sandwich tooling board, while not necessary a problem in itself, the connection at the edges of the skins is unacceptable. Only the outermoldline skin was fastened, the inner skin was terminated without attachment. This defeats the advantage of honeycomb construction and long term fatigue life is severly compromised whether or not the static strength is sufficient.

https://www.ar15.com/archive/topic.html?b=1&f=147&t=816470

NOTES: The NAC Dream was the BD-9. — Three of all five BD-10 prototypes crashed fatally.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032
djfawcett said:
The BD-12 was a 2 place side by side pusher recip powered general aviation aircraft. The BD-14 was the 4 place version. The BD-12 crashed on the take off of its first flight. The BD-14 was never built.


Yes Djfawcett,


I know that,but the early allocated to BD-12 & BD-14 maybe was just plan for development
never saw the light.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032

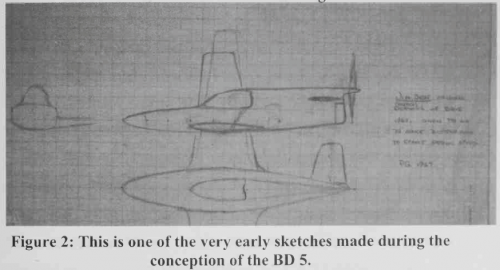

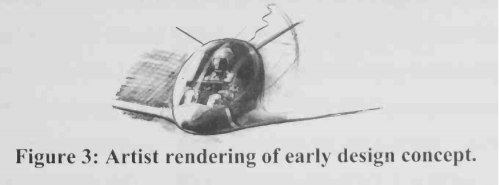

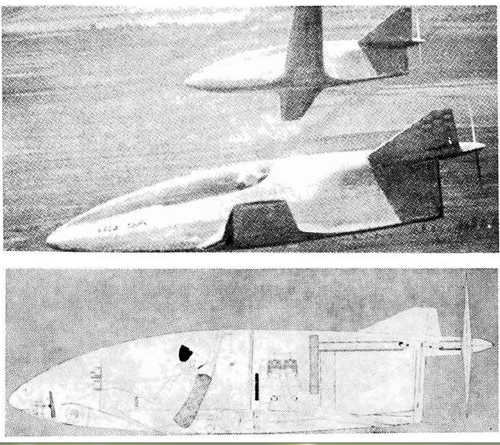

From the book, The BD-5 Story;

a very early concept drawing.


Attachments

  • 1.png
    229.5 KB · Views: 674
  • 2.png
    79.9 KB · Views: 650

Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
325
Reaction score
201
Bede BD-5 promotional film, "Pieces of a Dream" (circa early-1970s), posted by Periscope Film on YouTube. The film even features voiceovers by "BD-5 Director of Development" Burt Rutan (12-minute, 30-second mark), and test pilot Les Berven (13-min, 19-sec mark).

YouTube - Periscope Film: "Pieces of a Dream"

Last edited:

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,926
Reaction score
1,786
"Will the dream dissipate with the morning sun"? Well, having seen the home builder at work, the nightmare remained. Thankfully few of these home builds are around, I just hope there are none in my piece of the world. or are there?..........


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,803
Reaction score
1,240
Good Day All -

In cleaning up for a project, I uncovered my BD-10 material. I guess to pays to clean/move the files once in a while!

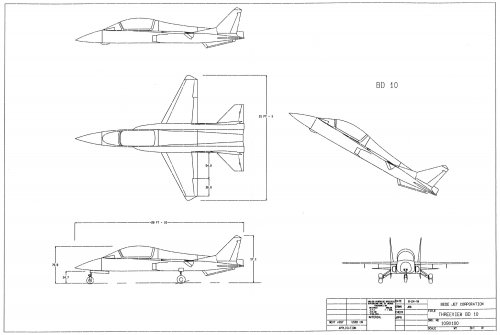

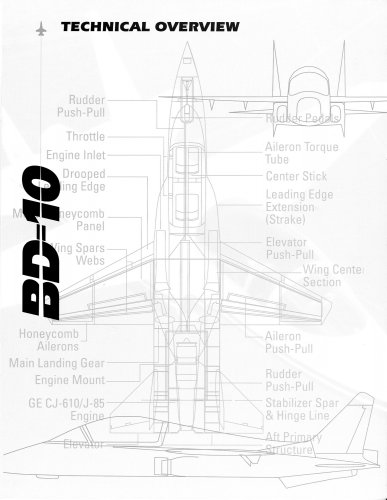

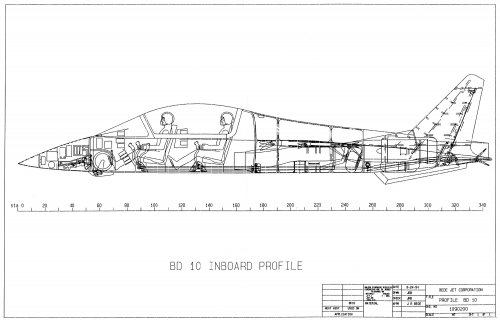

Attached are two drawings of the BD-10 - presently in the process of scanning a couple of the brochures and will post those shortly.

I have a good friend who was an engineer with McDonnell/McDonnell-Douglas who got involved with a design assessment of the BD-10. He stated the design was most definitely subsonic and had marginal directional stability - seems to be a trend in later Bede designs after the BD-5.

Enjoy the Day! Mark


Attachments

  • zBede BD-10 3V.jpg
    zBede BD-10 3V.jpg
    247.2 KB · Views: 365
  • zBede BD-10 Inboard Profile.jpg
    zBede BD-10 Inboard Profile.jpg
    307.8 KB · Views: 343

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,168
Reaction score
676
BD-10 Promotional Film

https://www.youtube.com/watch?v=v2DFJGUKfaI


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,803
Reaction score
1,240

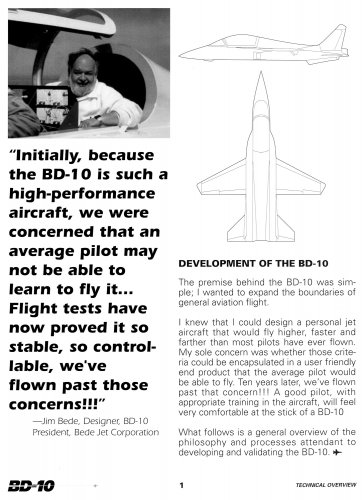

Good Day All -

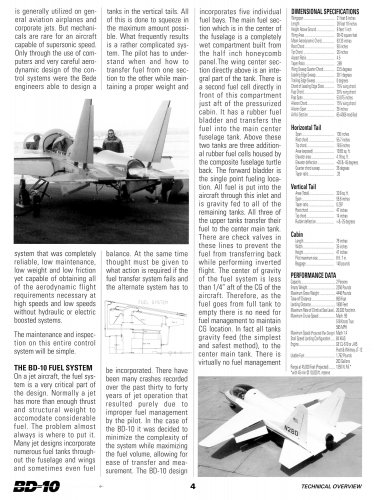

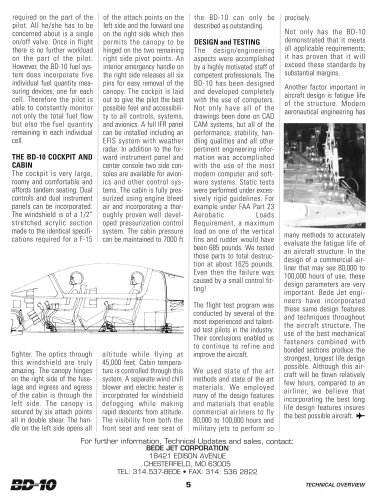

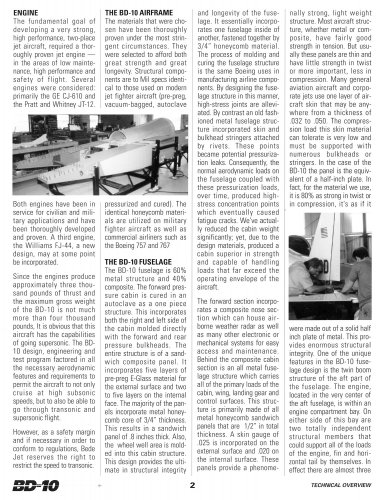

A few bits of paper on the BD-10 from the Promotional Brochure.

Enjoy the Day! Mark


Attachments

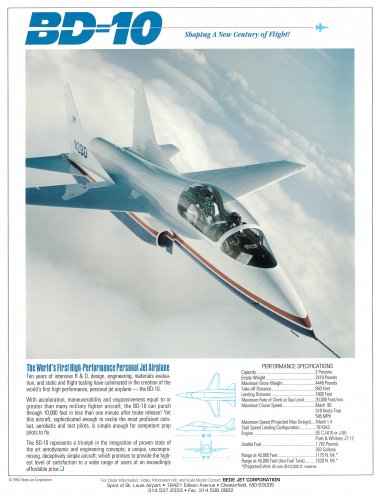

  • Bede BD-10 Info Sheet.jpg
    Bede BD-10 Info Sheet.jpg
    1.8 MB · Views: 161

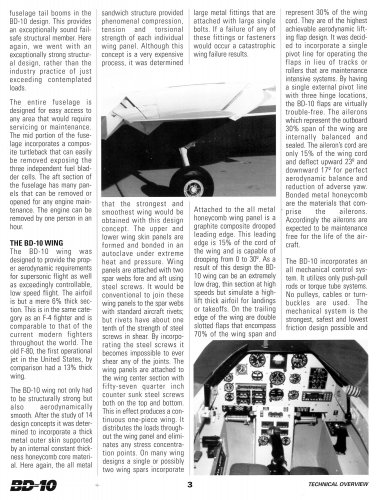

  • zBede BD-10 Technical Description - 5.jpg
    zBede BD-10 Technical Description - 5.jpg
    683.4 KB · Views: 131
  • zBede BD-10 Technical Description - 4.jpg
    zBede BD-10 Technical Description - 4.jpg
    875.3 KB · Views: 122
  • zBede BD-10 Technical Description - 3.jpg
    zBede BD-10 Technical Description - 3.jpg
    962.7 KB · Views: 114
  • zBede BD-10 Technical Description - 2.jpg
    zBede BD-10 Technical Description - 2.jpg
    1 MB · Views: 116
  • zBede BD-10 Technical Description - 1.jpg
    zBede BD-10 Technical Description - 1.jpg
    506.6 KB · Views: 149
  • zBede BD-10 Technical Description - Cover.jpg
    zBede BD-10 Technical Description - Cover.jpg
    445.7 KB · Views: 287

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,926
Reaction score
1,786
Having read a little more about Bede, I am highly surprised that he went on for as long as he did, seemingly spinning one set of tall tales on top of another. Just how many were caught in this trap and ripped of thousands of dollars? Just what is the true potential of these aircraft?


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,168
Reaction score
676
In Jim Bede's defense I don't think he was trying to sell ideas and run off with the deposits. I think he was legitimately trying to design light aircraft that pilot's could afford without mortgaging their homes. If you look at each of the Bede designs they were marketed as relatively low cost, minimal labor, homebuilt designs that were a little more exciting than what was on the market. I think his primary problem was that he lacked the finances or backing to be sustainable, especially in an era when kit plane designs flooded the market place.

An aircraft like the BD-10 was not an aircraft that your typical homebuilt aircraft builder could assemble. In fact a company was started just to become a 'builders assist' company to help you build the BD-10. Unfortunately, even after further testing it was found the parts of the structure (vertical stabilizer spar) was inadequately designed and built, and that 'fixes' for those discrepancies also proved inadequate leading to the builders-assist company owner's death. In this case I believe that Bede was designing an aircraft that needed a higher order of engineering and test capability that was outside of his own ability. But then again, if you look at the history of aircraft manufacturing, many large prime contractors even have been fraught with accidents due to design flaws.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,926
Reaction score
1,786
The impression is that Jim Bede and his company were making claims that could not be achieved, and of kits being ready with no such kits existing and no agreements to supply material for the level of kits being advertised. With the build/structural problems coming to light on the interweb, how did he get the go ahead to release the product? Perhaps there is a need for a greater involvement by the NTSB when any new products are promoted. How would the structure of the BD-10 have stood up to mach 1.4 as the aircraft is claimed to be able to achieve?


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
727
Reaction score
344

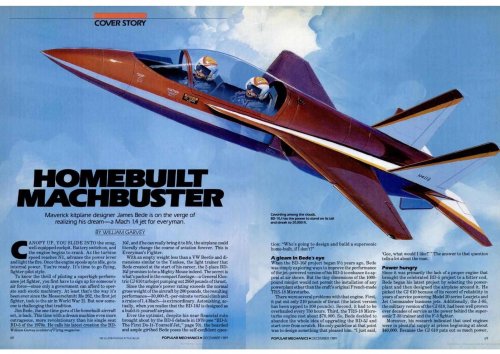

Article published in the magazine Popular Mechanics December 1989


Attachments

  • Article Popular Mechanics 12-1989.JPG
    Article Popular Mechanics 12-1989.JPG
    552.8 KB · Views: 363

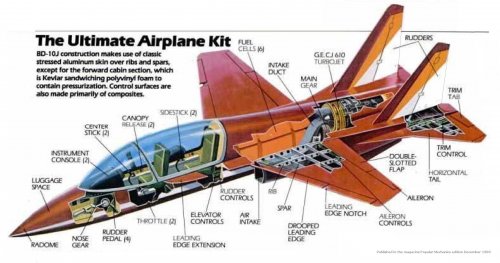

  • Cutaway Bede BD-10 Published in Popular Mechanics 12-1989.jpg
    Cutaway Bede BD-10 Published in Popular Mechanics 12-1989.jpg
    346.5 KB · Views: 352

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,926
Reaction score
1,786
https://en.wikipedia.org/wiki/Bede_BD-10

Endex.


Maury Markowitz

From the Great White North!
Joined
Feb 27, 2014
Messages
156
Reaction score
80
Foo Fighter said:
The impression is that Jim Bede and his company were making claims that could not be achieved
One can say that about practically every design of Bede's. Remember when the BD-5 was supposed to do 210 mph on 40 hp and be able to be built in your garage in a few weekends and flown by anyone? Or the Bede Car that was supposed to get 120 mpg?

There used to be a web site by someone who worked on the Bede Litestar. He told some hair-raising stories. If I find it I'll post a URL.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
727
Reaction score
344

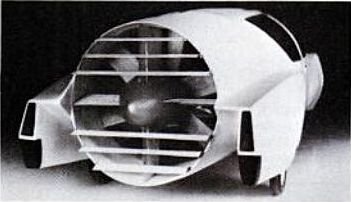

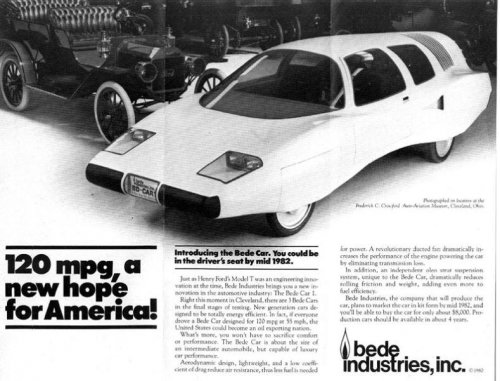

Bede Car only for illustrate, shared from:
https://www.reddit.com/r/RetroFuturism/comments/5kzny3/bede_car_new_hope_for_america/


Attachments

  • 1981 Bede Car_02.jpg
    1981 Bede Car_02.jpg
    14.6 KB · Views: 195
  • dHIwKdFNJrSiqujBIYl0jb0os5QiiBXOkGBNAVavFdE.jpg
    107 KB · Views: 190

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
736
Reaction score
655

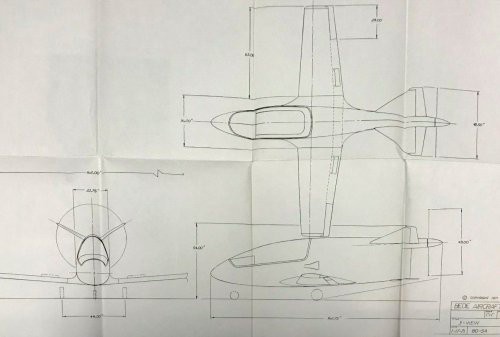

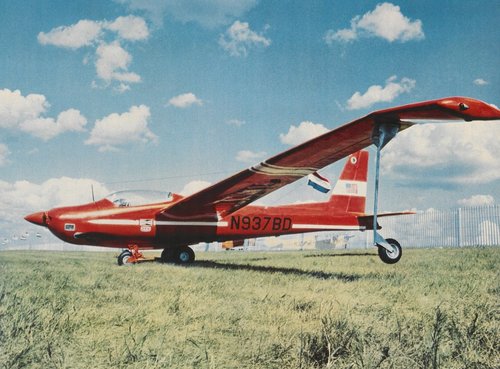

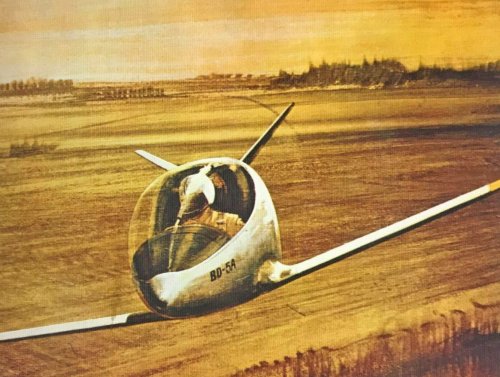

Attachments

  • s-l1600U4DL73OH copy.jpg
    s-l1600U4DL73OH copy.jpg
    330.6 KB · Views: 99
  • s-l1600z.jpg
    77.6 KB · Views: 104
  • s-l16002ISGJQNU_edited-1.jpg
    168.8 KB · Views: 105
  • s-l16007GT4DAQ3_edited-1.jpg
    175.1 KB · Views: 93

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
131
Hi Hesham!

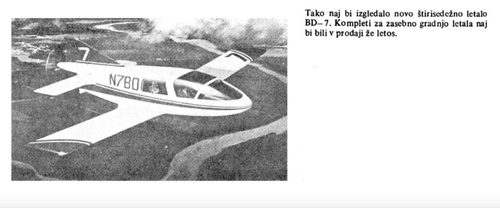

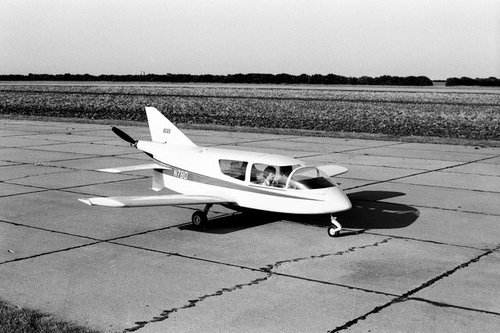

The BD-7 was built as prototype. Some info and a photo.
2-4 seat sport
N7BD: one 200hp Lycoming IO-360-A1A piston engine
max. speed 220 mph, cruise 190 mph, icr 1,500ft/minute, ceiling 25,000ft, range 1,000 miles
wingspan 24ft; length 20.5ft; height 7.5ft
DETAILS: The BD-7 had the same basic external configuration as the BD-5 Micro and was planned to be available as a 2-4-seater, depending on the engine(s) installed. The prototype (N7BD) of the all-metal construction BD-7 was a four-seater with one 200hp Lycoming IO-360 and was first flown in December 1976. The wing design was largely based on that of the high wing BD-4. The test programme was halted when the Bede Aircraft company collapsed, and further development was then abandoned and the prototype made only few flights. Production aircraft were planned with either one 210hp Continental IO-360, Lycoming IO-360 or two coupled Zenoah two-stroke engine of 75 hp each (installed side-by-side and driving a reduction unit).
Production: 1


Attachments

  • Bede BD-7.jpg
    Bede BD-7.jpg
    92.4 KB · Views: 108

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,108
Reaction score
7,032

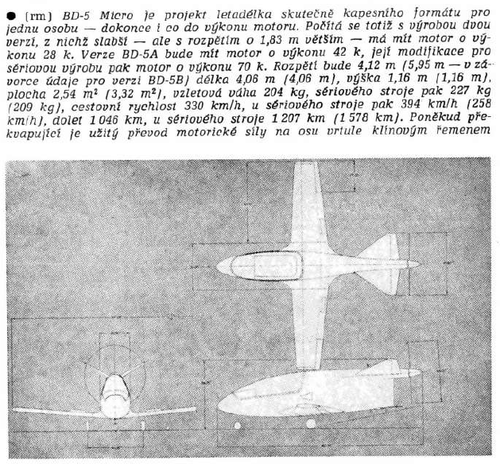

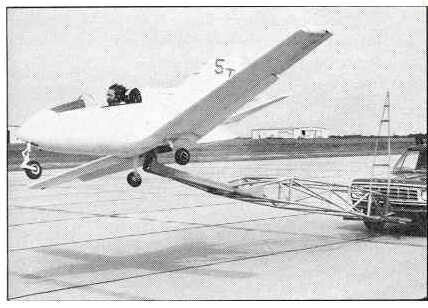

From Aviation magazine 1971.


Attachments

  • 1.png
    602.9 KB · Views: 76

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,103
Reaction score
1,543
The impression is that Jim Bede and his company were making claims that could not be achieved, and of kits being ready with no such kits existing and no agreements to supply material for the level of kits being advertised. With the build/structural problems coming to light on the interweb, how did he get the go ahead to release the product? Perhaps there is a need for a greater involvement by the NTSB when any new products are promoted. How would the structure of the BD-10 have stood up to mach 1.4 as the aircraft is claimed to be able to achieve?
NTSB is the wrong agency to supervise a production airplane. Normally, NTSB only gets involved after a crash. NTSB is more likely to be involved in investigating a locomotive crash or ship sinking.
You really wan the certification and production side of the FAA, but they generally avoid invovlment with amateur-built aircraft.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,926
Reaction score
1,786
Thanks mate. Considering the potential for dropping one of these on a residential area, perhaps they need to sort something out.


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
1,168
Reaction score
676
Bede Designs

BD-1
BD-2
XBD-2
BD-3 (Based on XBD-2, Unbuilt)
BD-4B
BD-4C
BD-5A (Composite with a V-tail)
BD-5B
BD-5C
BD-5D (Unbuilt)
BD-5G
BD-5J (Jet version)
BD-5S (Sailplane)
BD-5T (Turboprop powered)
BD-6
BD-7
BD-8
BD-9 (Ultralight)
BD-10
BD-11 (Proposed 6 place BD-5J)
BD-12/14
BD-16 (Proposed 6 place version of BD-4)
BD-17
BD-17L
BD-18 (Two place development of BD-1)
BD-22
BD-22L
HB-1 (Ultralight)
BeDe-Wing (Hang glider)
Litestar motorcycle
BD Training Truck System
BD-Car

Additional descriptions:

Last edited:
