Bede Designs

elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
5

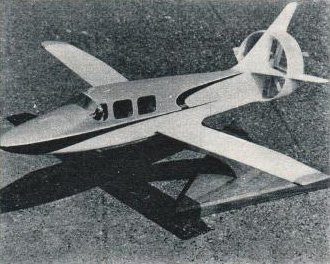

At least this one has a name,but nothing more. Anyone have any info on this/


Attachments

  • 6f3v2o.jpg
    71.3 KB · Views: 934

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
9
It's the Bede BD-10 - one of the world's worst aeroplanes

http://en.wikipedia.org/wiki/Bede_BD-10


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
CammNut -

Why do you say one of the world's worst airplanes?

Enjoy the Day! Mark


Berekhat

I really have changed My personal text
Joined
May 1, 2007
Messages
17
Reaction score
1
I have an old magazine, Flight probably, that mentions this aircraft in glowing terms, and Jim Bede as a messiah! But the following sentences from the linked wiki should give one pause:
"The aircraft was fairly conventional in construction terms, using aluminum sheeting"
"dry weight was only 725 kg, about the same as light aircraft like the Cessna 172"
"at full power would reach Mach 1.4"
"Five examples were built in total, three crashed. Only two examples remain, both unflyable."

This gave me a smile this morning, thanks. It hardly needs be stated that designing any aircraft is a tough job, let alone a supersonic one designed to be built in a backyard shed, and I'm more than a little glad I don't have to worry about having one disintegrate over my like one of the prototypes.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Mach 1.4 is a stretch with the basic design - it was more like .95 and the prototypes were in the .80 to .85 range due to being overweight. I saw the prototype a number of times when Bede was based here in St. Louis and the original design was conventional and quite straightforward in design - nothing really out of the ordinary. Two of the crashes occurred with the two companies that bought the design - Fox (?) and Peregrine Flight International which built a few of their own called the PJ-2. One crashed due to a flap failure on approach and the other a rudder structure failure. The other crash was a kit built aircraft direct from Bede - I'm not sure the FAA report ever concluded exactly what happened.

Enjoy the Day! Mark


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
695
Greetings All -

I was digging thru my archives (or as my wife would put it, "my stash") and uncovered a brochure I acquired from Bede Aircraft when they were based out at Spirit of St. Louis airport. This was about the time the BD-10 development was transitioning into being sold to others and Jim Bede was developing the BD-12 and the BD-14, both being variants of the BD-5 idea but set up for two or four place seating. I actually had the opportunity to photograph the BD-12 while it was under construction and will post those pics when I run them thru PhotoShop. The BD-12 flew but was damaged either on the first or second flight and as far as I know, was never repaired prior to the shop closing its doors. The BD-14 never made it passed the wood desk model stage.

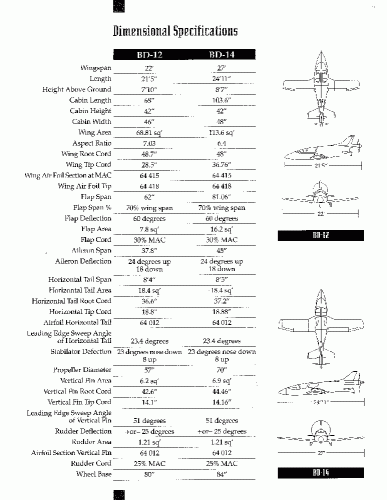

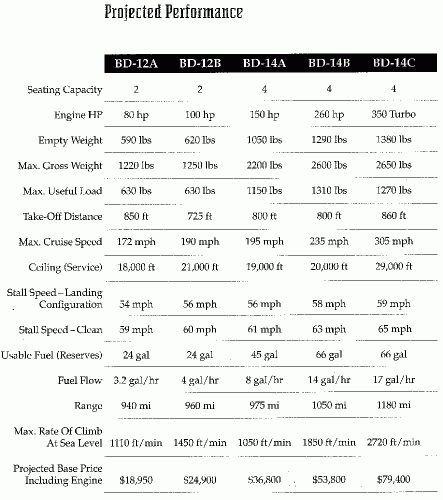

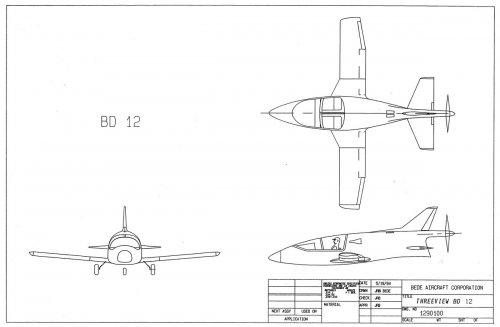

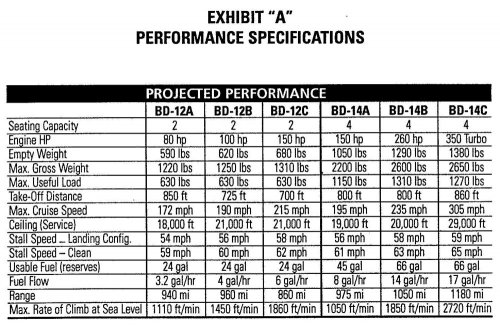

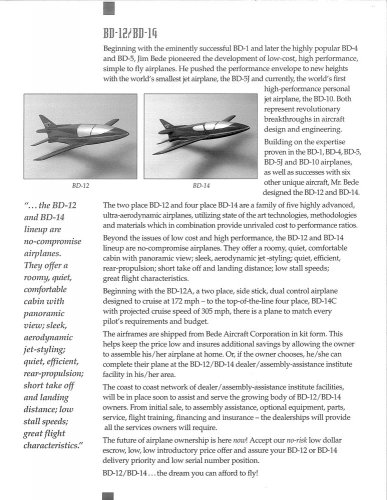

Anyways, here's the info and drawings that were part of the sales brochure.

Enjoy the Day! Mark


Attachments

  • xBede BD-14 3V.jpg
    xBede BD-14 3V.jpg
    111.1 KB · Views: 249
  • xBede BD-12 3V.jpg
    xBede BD-12 3V.jpg
    110.3 KB · Views: 419
  • xBede BD-12 & BD-14 Specs-2.gif
    xBede BD-12 & BD-14 Specs-2.gif
    17.7 KB · Views: 769
  • xBede BD-12 & BD-14 Performance Specs.jpg
    xBede BD-12 & BD-14 Performance Specs.jpg
    237.2 KB · Views: 753
  • xBede BD-12 & BD-14 Description-4.gif
    xBede BD-12 & BD-14 Description-4.gif
    19.7 KB · Views: 818
  • xBede BD-12 & BD-14 Description-2.jpg
    xBede BD-12 & BD-14 Description-2.jpg
    239.7 KB · Views: 1,008

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,034
Reaction score
222

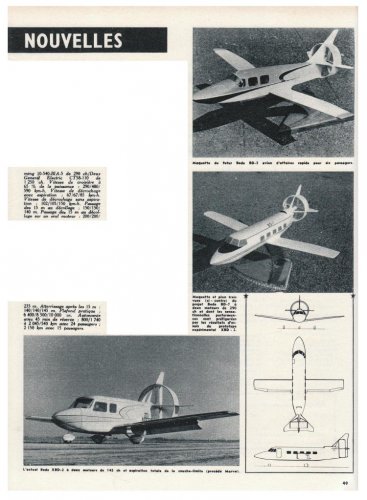

Dear Boys and Girls, here is an feature in French on the Bede BD-3 light aircraft and BD-7 regional airliner which both feature a tail-mounted ducted-propellor. They are both "projects", but they aren't "secret"......

The feature comes from the 15th July 1963 issue of Aviation Magazine......

Terry (Caravellarella)


Attachments

  • Bede BD-3 & BD-7 - Aviation Magazine - Numéro 375 - 15 Juillet 1963 1.......jpg
    Bede BD-3 & BD-7 - Aviation Magazine - Numéro 375 - 15 Juillet 1963 1.......jpg
    66.3 KB · Views: 105
  • Bede BD-3 & BD-7 - Aviation Magazine - Numéro 375 - 15 Juillet 1963 2.......jpg
    Bede BD-3 & BD-7 - Aviation Magazine - Numéro 375 - 15 Juillet 1963 2.......jpg
    121.8 KB · Views: 200

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969

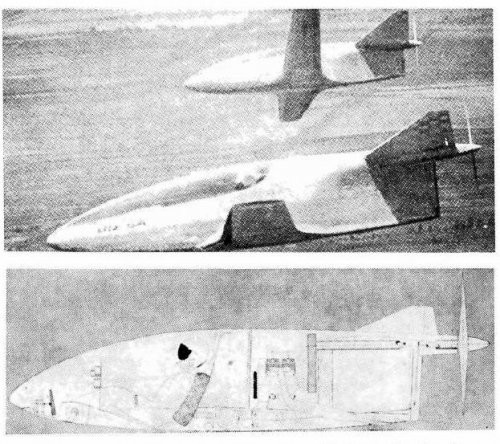

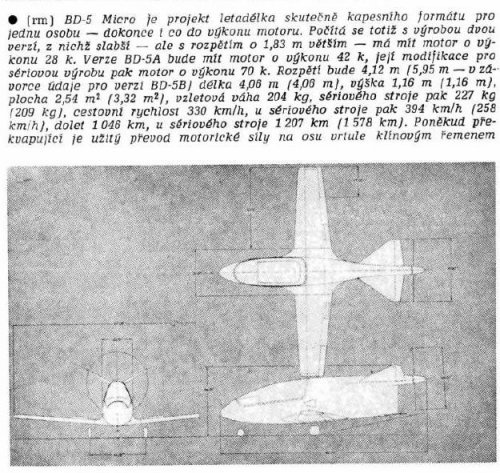

From L+K magazine;


the Bede BD-5 early design with V-tail.


Attachments

  • 1.JPG
    128.9 KB · Views: 113
  • 2.JPG
    108.6 KB · Views: 140

djfawcett

I really should change my personal text
Joined
Dec 16, 2012
Messages
88
Reaction score
40
Actually, the BD-12 really never had a controlled flight. On the first attempt at flight, a minimal stability margin induced PIO resulted.
After 3 occiliations the aircraft impacted the runway. The gear were cleaned off, the prop and drive assembly broke, and the full flying stab
became disconnected from the flight controls. There was significant airframe damage. The prototype was never repaired. The doors
were ultimately closed and Bede started the BD-17.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
22
hesham said:
From L+K magazine;


the Bede BD-5 early design with V-tail.

In fact it is the BD-5B design, with a butterfly tail and not what I would label an 'early design'.


djfawcett

I really should change my personal text
Joined
Dec 16, 2012
Messages
88
Reaction score
40
Actually, "Hesham" is correct. The V-tail was the original prototype. It had marginal stability at best. As a result, the aircraft was
redesigned with a conventional tail.

The BD-5b was the "a model" with a long wing.

Dave


Wahubna

EXPERIMENTAL-AB
Joined
Feb 16, 2015
Messages
41
Reaction score
4

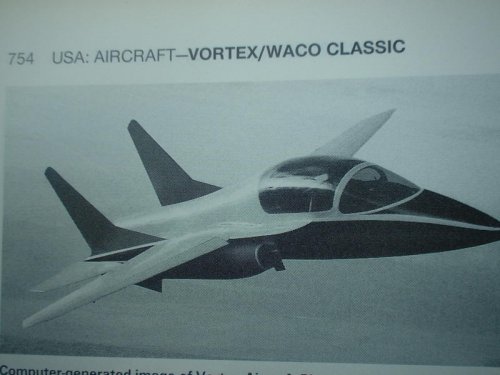

I used to work at WACO Classic and I can promise there is 0 now and always was 0 and always will be 0 connection between something like this and WACO Classic...In short, someone attached that name to it in an illegitimate fashion...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
Wahubna said:
I used to work at WACO Classic and I can promise there is 0 now and always was 0 and always will be 0 connection between something like this and WACO Classic...In short, someone attached that name to it in an illegitimate fashion...

I believe this was in fact much ado about nothing. The photo is from an encyclopedia. The top caption indicates that this very page describes aircraft from "Vortex" to "WACO Classic". Period.


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
113

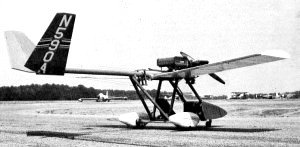

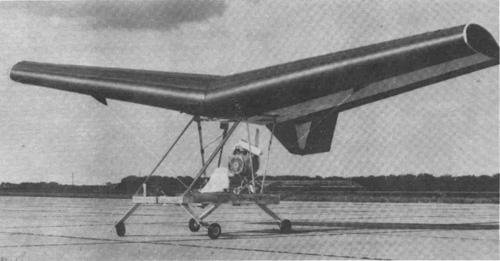

Jim Bede was a busy man. Here are some photos of other designs.


Attachments

  • Bede wing.jpg
    Bede wing.jpg
    20 KB · Views: 268
  • BD8.jpg
    30.1 KB · Views: 265
  • Bede Super Demoiselle.jpg
    Bede Super Demoiselle.jpg
    14.8 KB · Views: 577
  • bd7.jpg
    14.3 KB · Views: 477

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
113
And a photo of the prototype with V-tail.


Attachments

  • BD-5_v-tail.jpg
    29 KB · Views: 264

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

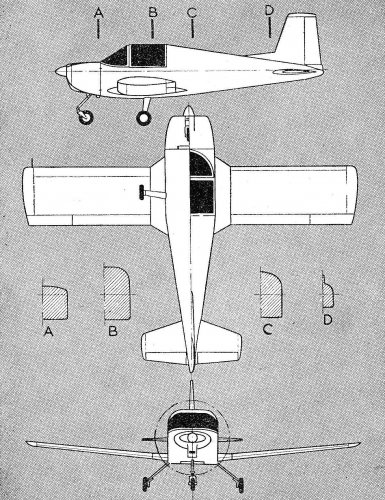

Bede B.D.1 3view (Source: L+K)


Attachments

  • Bede BD-1-.jpg
    Bede BD-1-.jpg
    1.5 MB · Views: 69

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

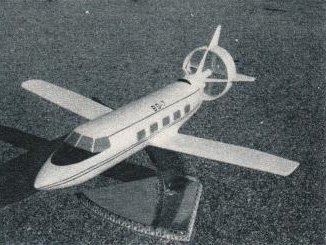

Bede B.D.7


Attachments

  • Bede BD-7-.jpg
    Bede BD-7-.jpg
    55.4 KB · Views: 68
  • Bede BD-7.jpg
    Bede BD-7.jpg
    78.4 KB · Views: 55

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

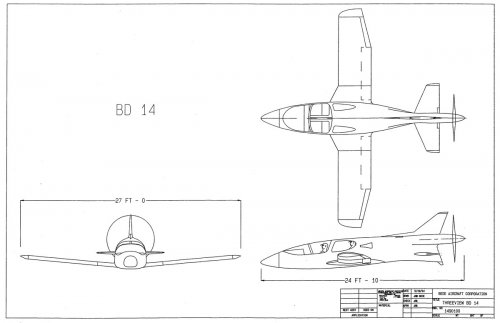

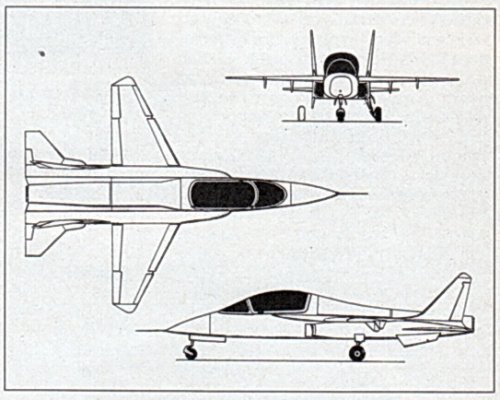

Bede B.D. 14 (Source: Net)


Attachments

  • Bede BD-14.jpg
    Bede BD-14.jpg
    44.7 KB · Views: 461
  • Bede BD-14-.jpg
    Bede BD-14-.jpg
    111.1 KB · Views: 82

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

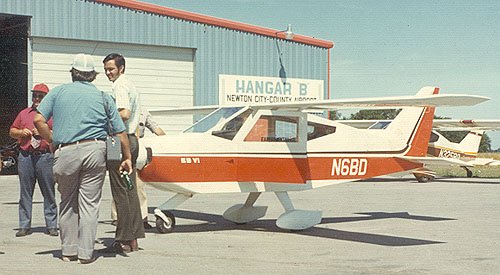

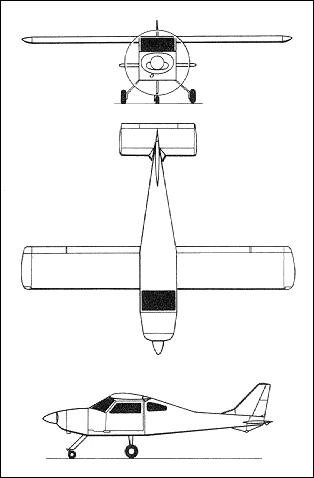

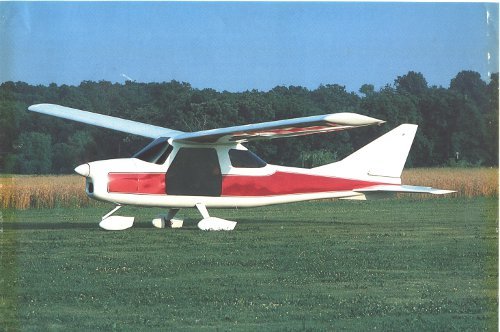

Bede B.D.6 and B.D.7 (Source: Net)


Attachments

  • Bede BD-6.jpg
    Bede BD-6.jpg
    52.5 KB · Views: 59
  • Bede BD-7.jpg
    Bede BD-7.jpg
    44.5 KB · Views: 62

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

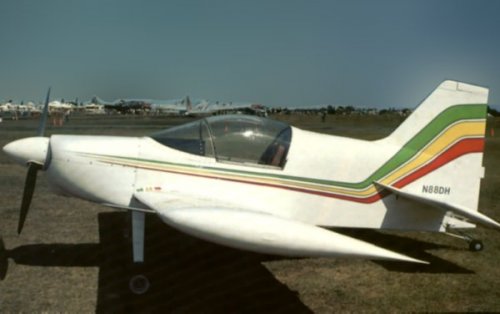

Bede B.D.8 (L+K)


Attachments

  • Bede BD-8-.jpg
    Bede BD-8-.jpg
    151.4 KB · Views: 59
  • Bede BD-8.jpg
    Bede BD-8.jpg
    163 KB · Views: 60

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

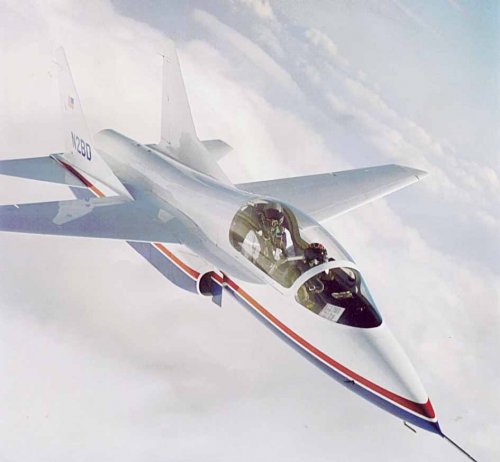

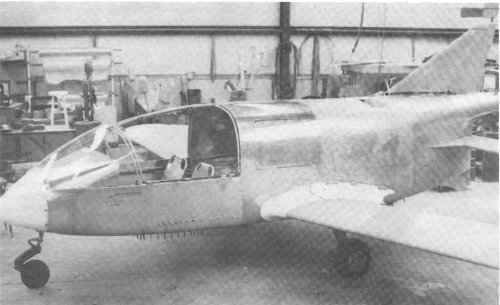

Bede B.D.10 (L+K)


Attachments

  • Bede BD-10.jpg
    Bede BD-10.jpg
    34.5 KB · Views: 73
  • Bede BD-10-.jpg
    Bede BD-10-.jpg
    81 KB · Views: 90

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

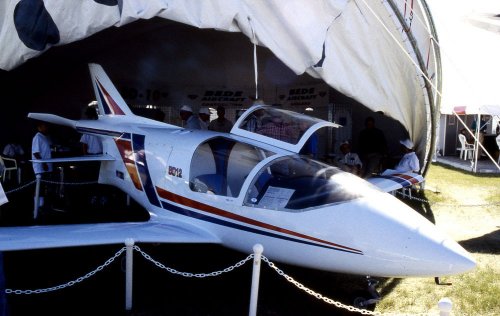

Bede B.D.12 (Source: Net)


Attachments

  • Bede BD-12.jpg
    Bede BD-12.jpg
    142.4 KB · Views: 65
  • Bede BD-12-.jpg
    Bede BD-12-.jpg
    110.3 KB · Views: 79

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

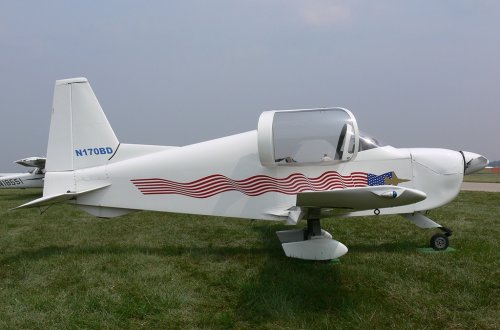

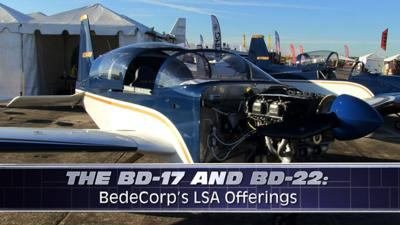

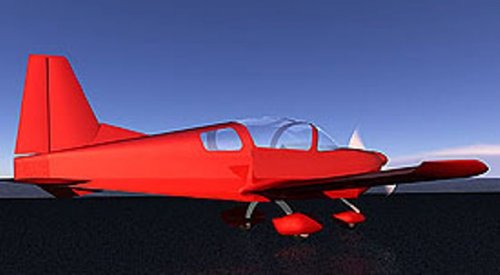

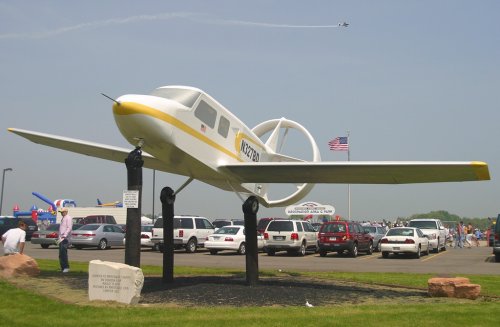

Bede B.D.17 and B.D.18 (Source: Net)


Attachments

  • Bede BD-18.jpg
    Bede BD-18.jpg
    35.6 KB · Views: 66
  • Bede BD-17.jpg
    Bede BD-17.jpg
    244.2 KB · Views: 56

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

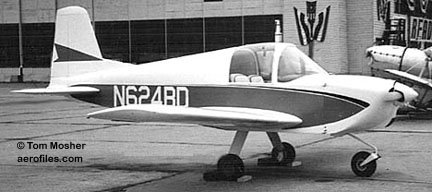

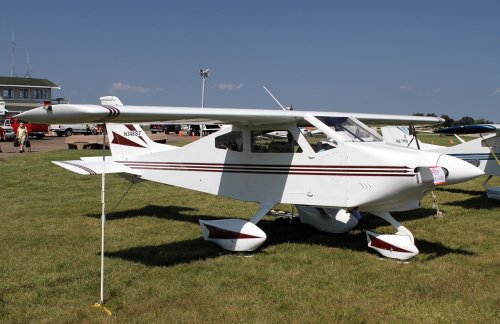

Bede B.D.4


Attachments

  • Bede BD-4.jpg
    Bede BD-4.jpg
    377.7 KB · Views: 51
  • Bede BD-4-.jpg
    Bede BD-4-.jpg
    17.4 KB · Views: 50

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

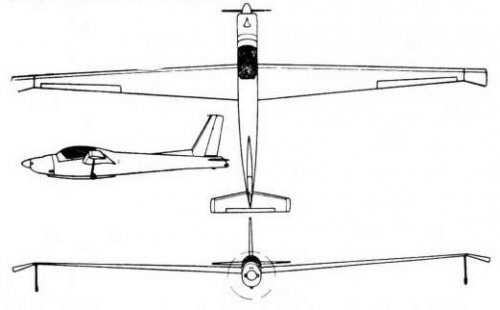

Bede BD-2 LOVE One


Attachments

  • Bede BD-2 Love One.jpg
    Bede BD-2 Love One.jpg
    10.2 KB · Views: 55
  • Bede BD-2 LOVE One-.jpg
    Bede BD-2 LOVE One-.jpg
    47.9 KB · Views: 61

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386
Bede XBD-2


Attachments

  • Bede BD-2 (XBD-2).jpg
    Bede BD-2 (XBD-2).jpg
    203.6 KB · Views: 58

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,000
Reaction score
386

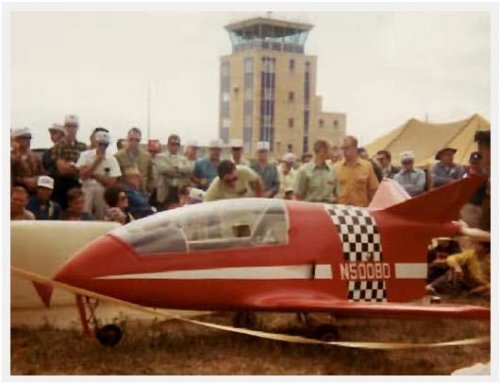

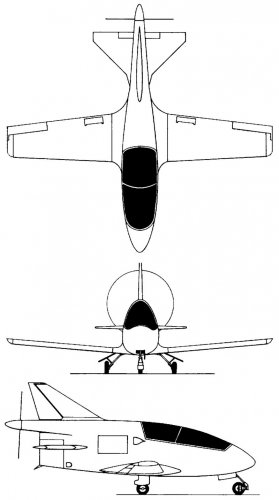

Bede B.D.5A 3view


Attachments

  • Bede BD-5A-.jpg
    Bede BD-5A-.jpg
    81.4 KB · Views: 371
  • Bede BD-5A.jpg
    Bede BD-5A.jpg
    165.9 KB · Views: 383

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

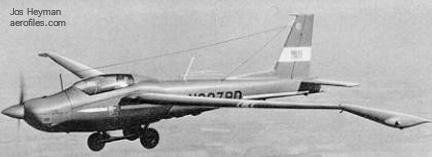

More of the BD-1:


Attachments

  • Bede BD-1.jpg
    Bede BD-1.jpg
    19.1 KB · Views: 331
  • bede1.jpg
    23.2 KB · Views: 339

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664

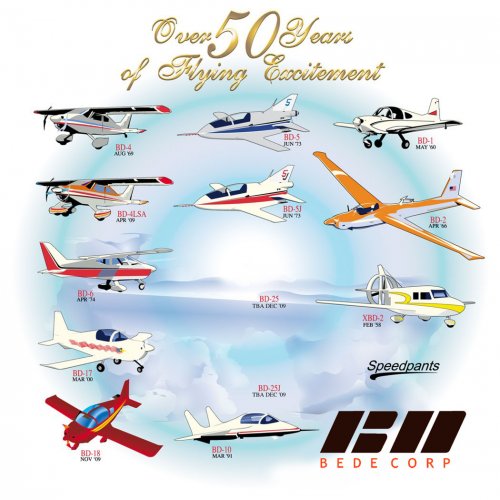

A nice summary (albeit rather incomplete):


Attachments

  • BedeWebArt6.jpg
    191.3 KB · Views: 351

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
walter said:
Jim Bede was a busy man. Here are some photos of other designs.


Hi Walter,


the Bede Wing was also called BD-9 Super Demoiselle.


Attachments

  • BD-9 Bede wing.jpg
    BD-9 Bede wing.jpg
    20 KB · Views: 57

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
hesham said:
the Bede Wing was also called BD-9 Super Demoiselle.

No need to reattach the exact same image. It adds unnecessary duplicate files on the server.

You can just copy the link to the thumbnail or the image and add it in the text here using the "Insert image" icon, like this:

index.php
index.php


Also I believe you are wrong. walter has posted both the Bede Wing AND Super Demoiselle (above) and it's obvious that they were two entirely different designs.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,803
Reaction score
4,969
Thank you my dear Skyblazer for your explanation,


the BD-11 was a six-seat light aircraft project,derivative of DB-10,but powered
by one turbofan engine.


djfawcett

I really should change my personal text
Joined
Dec 16, 2012
Messages
88
Reaction score
40
Hello, Actually, the BD-9 was Jim Bede's first effort in designing a ultra-light. He was contracted by a development group to do so. It was a high wing design that looked very much like a Part 23 aircraft. As to whatever happened with the program, I have no idea.
Best Regards
Dave


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
113
The Bede story continues.
The company (Bedecorp, LLC) is still very active and planning to show the prototype BD-22 (2-seat development of the BD-17 registered N224BD) at this year`s (2015) Sun`n-fun
The BD-18 is somewhat of a headache for me. The design is still being offered by Bedecorp, LLC, but I wonder whether a prototype was actually built/flown. A photo shows the BD-18 under constrcution. There is an aircraft (N813BD) on the FAA register called BD-18-217 and flown around May 2009. but I wonder what the connection is.
The BD-9 is not the Demoiselle (N590A), but was an entirely other design (see photo). If I remember well, plans were to market the aircraft by a company named NAC (National Aircraft Corporation?) under the name Dream. As Dave already remarked, the BD-9 was Bede`s first ultralight-class design. I have no idea whether a prototype was actually built.
The thing called the Wing reportedly had an inflatable wing and was apparently still in existence in 2009. I have absolutely no further information.
For the The Demoiselle (N590AS) I found the out-of-sequence HB-1 designation. The aircraft first flew in July 1966 (before the ultra-light era) and had a Continental A65 engine. Reportedly this aircraft was later briefly tested with an enclosed cabin (as the Super Demoiselle), the planned production model, but development was soon halteds.


Attachments

  • Bede bd18-2.jpg
    Bede bd18-2.jpg
    19.4 KB · Views: 56
  • Bede BD-9.jpg
    Bede BD-9.jpg
    39.9 KB · Views: 53

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
113

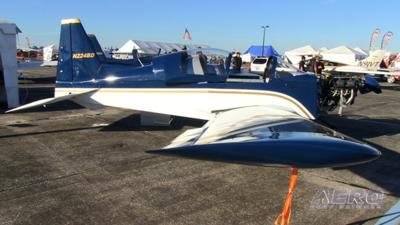

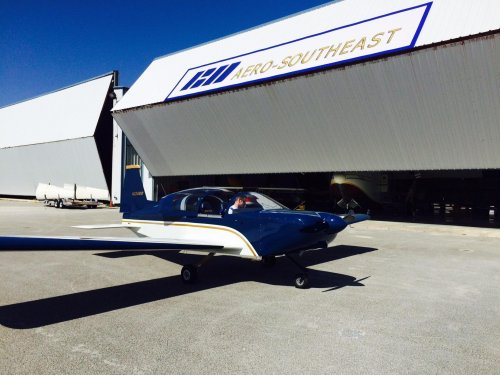

For a photo of the BD-22 prototype N224BD (First flight March 2015), Google Bedecorp BD-22
Sorry, but cannot upload my photo :-[


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
664
walter said:
For a photo of the BD-22 prototype N224BD (First flight March 2015), Google Bedecorp BD-22
Sorry, but cannot upload my photo :-[

There will likely be very few photos of the BD-22 as the aircraft [N224BD] crashed fatally on April 1.

http://www.tcpalm.com/news/local-news/st-lucie-county/plane-crash-reported-in-northern-st-lucie-county_33237742

FAA Registry for the aircraft: http://registry.faa.gov/aircraftinquiry/NNum_Results.aspx?NNumbertxt=N224BD

Forum page (called BD-22L): http://www.homebuiltairplanes.com/forums/aircraft-design-aerodynamics-new-technology/21406-bede-bd-22l-light-sport.html


Attachments

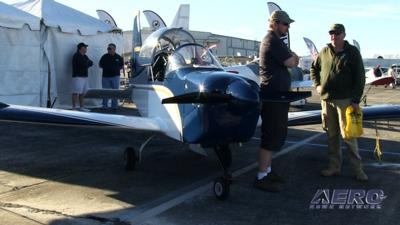

  • AEROTV-SAE-BedeCorp-0215a.jpg
    19.8 KB · Views: 59
  • AEROTV-SAE-BedeCorp-0215c.jpg
    17.7 KB · Views: 62
  • AEROTV-SAE-BedeCorp-0215d1.jpg
    16.9 KB · Views: 61
  • homemade aircraft bd 22.JPG
    homemade aircraft bd 22.JPG
    16.7 KB · Views: 53
  • SLC_Plane_Crash6_1427917414748_15973267_ver1.0_640_480.JPG
    84.3 KB · Views: 60
  • BD-22.jpg
    261.8 KB · Views: 63

Similar threads

Top
