I was reading a little about the Avro Canada CF-100 on the net yesterday, and came across reference to a proposed CF-103 program.
It stated that the CF-103 was a refined and swept wing development of the CF-100, when the CF-105 Arrow was unfortunately cancelled.
The article stated that only a wooden mock-up was ever completed!

Does anyone have any specifications, artist impressions, 3-view drawings or pics of the mock-up?

Regards
Pioneer


devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
Hi Pioneer.

The picture of a mock-up is, I shall find and I shall show


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
847
Reaction score
146

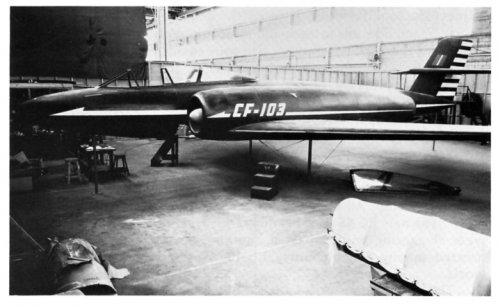

Sorry, it’s only a scan from a Xerox copy. It was published in Molson & Taylor’s Putnam title “Canadian Aircraft since 1909” (page 509). Neither specifications nor three-view drawing inside. Not much described about the background of this projected swept-wing version of the “Canuck”:
Considerable work was done on this project during early 1951 including wind-tunnel tests and the making of a full size mock-up. Cancelled in December 1951 as performance and delivery date were not compatible with the threat of Soviet attack over the arctic.”

In Larry Milberry’s otherwise excellent “The Avro CF-100” monography the CF-103 project is not mentioned :( .


Attachments

  • Avro 45 (CF 103 Mockup).jpg
    Avro 45 (CF 103 Mockup).jpg
    48.2 KB · Views: 914

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945
I've found a drawing on my HD, but it's about stamp size ... ::)


Attachments

  • CF103pl.jpg
    6 KB · Views: 1,237

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,475
Reaction score
203
From Arrow by R. Organ/R. Page/D. Watson/L. Wilkinson. The Boston Mills Press (A book recomended by Tony Buttler)

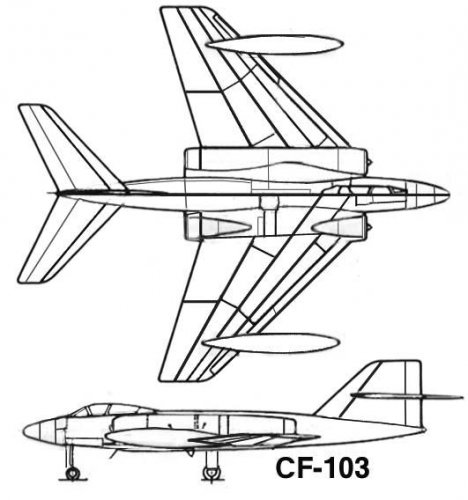

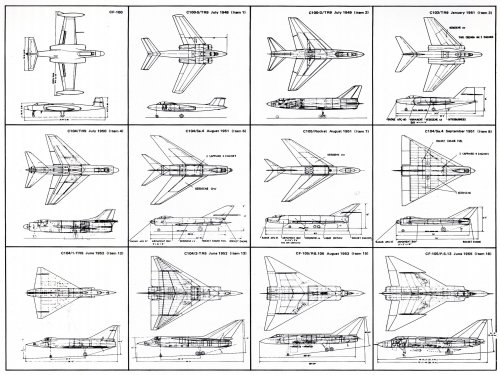

3 view drawings from C-100S and C-103


Attachments

  • C-100S.jpg
    44.7 KB · Views: 1,075
  • C-103.jpg
    56.3 KB · Views: 1,080

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,475
Reaction score
203
Also from Arrow by R. Organ/R. Page/D. Watson/L. Wilkinson. The Boston Mills Press

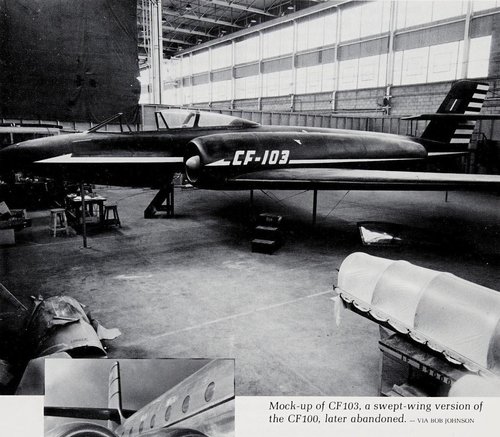

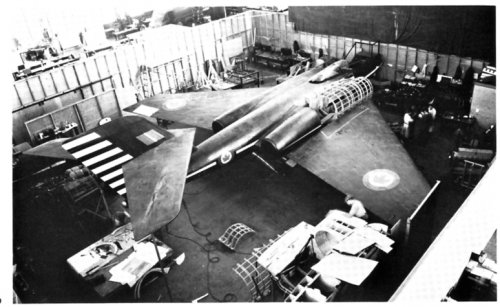

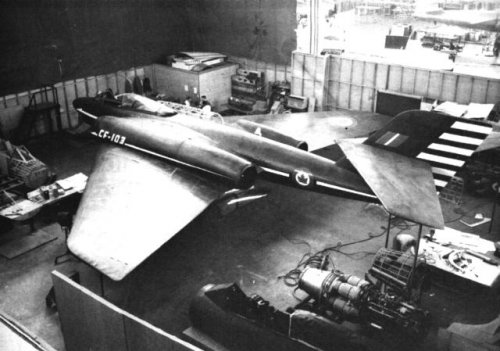

C-103 mockup pics.

The C-100S was submitted in December 1950. The design was later redesignated C-103 and preliminary data indicated supersonic dive capability. The CF-103 was considered a good interim aircraft between the CF-100 and the C-104 project. Estimated first flight was July 1952. Increased shopwork on CF-100 Mark 3 and Mark 4 rescheduled first flight to June 1953. But wind tunnel test, completed in November 1951 indicated no supersonic dive capability and with a first flight by 1953, the aircraft was considered to be obsolete before it could be produced in quantity. The program was cancelled in December 1951 and the priority was therefore raised on the proposed C-104 Advanced Fighter.


Attachments

  • C-103 Mockup 2.jpg
    C-103 Mockup 2.jpg
    186.6 KB · Views: 334
  • C-103 Mockup 1.jpg
    C-103 Mockup 1.jpg
    228.3 KB · Views: 1,057

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,838
Reaction score
197
Thanks guys for your speedy response to my request.
Its funny, it seems like a natural and logical step from the CF-100!
Yet it did not happen.
I think the CF-100 / CF-103 would have served the Royal Australian Air Force well in the 1050's, due to its range and (then) two engine reliability over water, as an all-weather interceptor!
Does anyone know if the RAAF (or RAF for that matter) consided the CF-100 for service?

Thanks
&
Regards
Pioneer


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
Mock-up looks like someone dusted off the CF-100 MU and put new wings on it. And supersonic? with those inlets? :D :D :D :D :D :D :D


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457
Johnbr said:
A list of the aircraft design that they worked on.

Fantastic document, Johnbr, thanks! (much more than just "a list", don't be modest! lol)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,383
Reaction score
2,570
Hi!

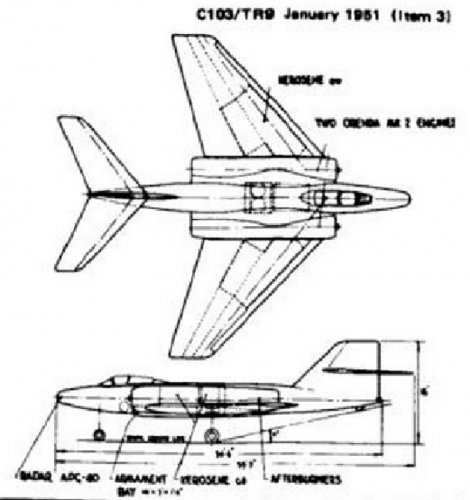

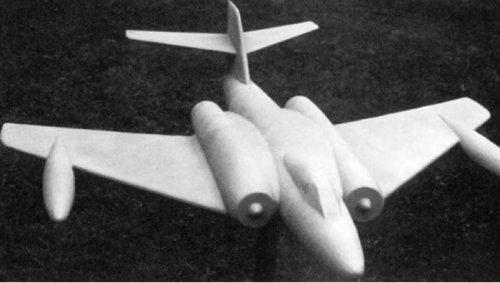

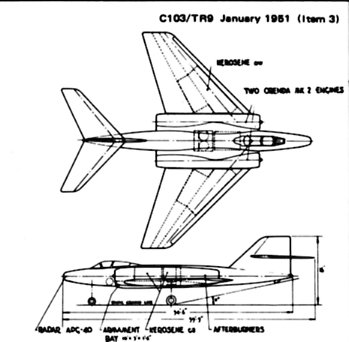

I feel mockup vertical tail stabilizer shape/horizontal tail stabilizer shape are different compared with this line drawing and this wind tunnel test model.
Also this line drawing shows fixed fuel tanks located wing leading edge.(But bottom drawing has no wing external tanks.)
I believe that mockup shows the final design shape.

https://memim.com/avro-canada-cf-103.html

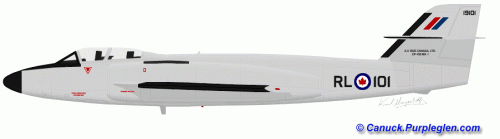

http://canuck.purpleglen.com/images/PROFILE%20-%2019101-cf103.gif


Attachments

  • CF_103_Mockup.jpg
    48.2 KB · Views: 139
  • PROFILE%20-%2019101-cf103.gif
    17.6 KB · Views: 113
  • CF-100 to CF-105.jpg
    CF-100 to CF-105.jpg
    914.5 KB · Views: 125
  • C-103_OFFICIAL_DRAWING.jpg
    72.3 KB · Views: 94
  • swept wing study.jpg
    swept wing study.jpg
    35.6 KB · Views: 92
  • Avro_Canada_CF-103_drawing.jpg
    38.8 KB · Views: 103

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,383
Reaction score
2,570

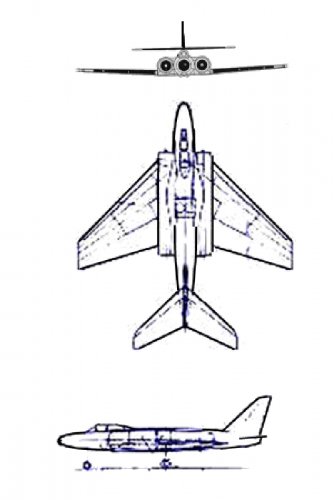

Also this line drawing is little different compared with mockup. Horizontal tail stabilizer position is low level and vertical tail stbilizer area is small.

http://www.globalsecurity.org/military/world/canada/cf-103.htm


Attachments

  • cf-103-line.jpg
    87.2 KB · Views: 94

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,717
Reaction score
3,493

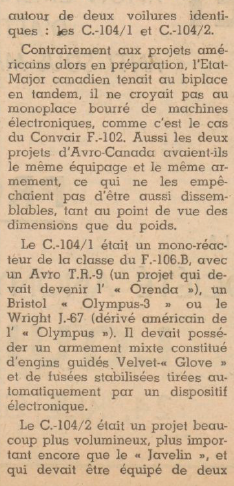

From Ailes 23/11/1957


Attachments

  • 1   23-11-1957.png
    1 23-11-1957.png
    238 KB · Views: 53
  • 1-1   23-11-1957.png
    1-1 23-11-1957.png
    134.4 KB · Views: 94
