Sferrin, I hardly doubt Adobe Systems even existed then=) This is colour transparent film as I think.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,604
Reaction score
111
flateric said:
Sferrin, I hardly doubt Adobe Systems even existed then=) This is colour transparent film as I think.
Dude, I'm talkin' about the F-35 shot on the right. ;) Actually I guess it would help if I posted the picture I was referring to eh? :p


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,738
Reaction score
143

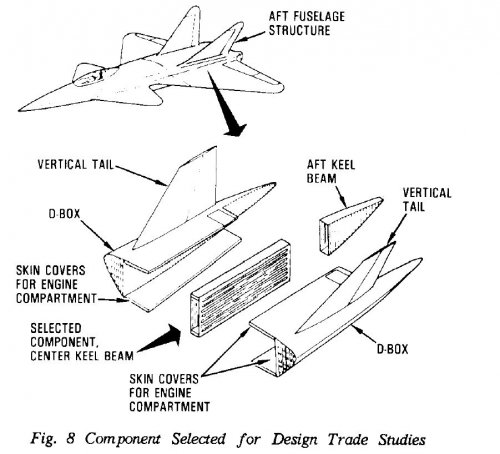

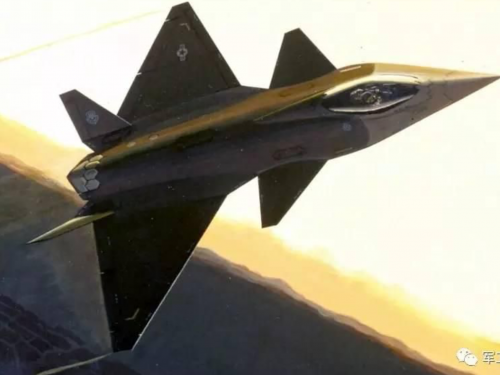

Well, Syd Mead's creature even did it way into Lockheed AIAA papers in 1989!

AIAA 1989-1407
ELEVATED TEMPERATURE ALUMINUM ALLOYS FOR ADVANCED FIGHTER AIRCRAFT
J. C. Ekvall, R. A. Rainenn, and D. J. Chellman
Lockheed Aeronautical Systems Company, Burbank, California
R. R. Flora
Air Force Wright Aeronautical Laboratory
Wright-Patterson Air Force Base, Ohio
M. J. Gerbach
Lockheed Aeronautical Systems Company,
Marietta, Georgia


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,604
Reaction score
111
That wasn't the Syd Meade design but a different one. Check the canard position on that one with the S.M. one.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,738
Reaction score
143
well, a*slightly* modified S.M. one)


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,581
Reaction score
18
Isn't that design, shown in the paper, the one illustrated in the first two pics on page one of your post in this thread, as is shown on the Wings cover?


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,738
Reaction score
143
No, that one with high-mounted canards, 'classic' Syd Mead's ATF


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,236
Reaction score
378
Renamed topic to remove typo :)


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
134
Website
deeptowild.blogspot.com

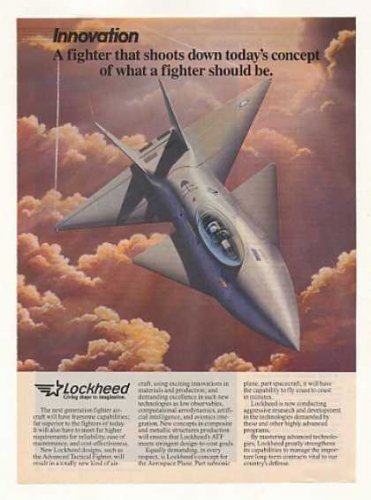

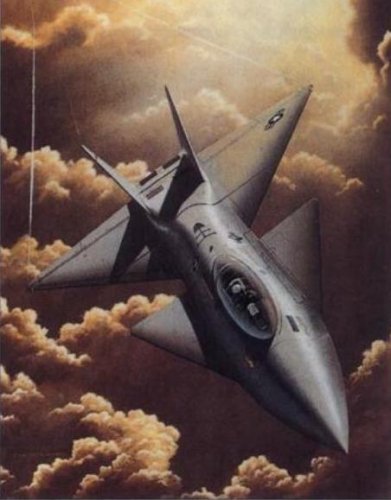

An artist's impression identified as a Lockheed ATF contender released in 1985 shows a chined nose similar to the SR-71, a fairly orthodox delta wing with canard foreplanes, and vectoring engine nozzles.

Source: Richardson, Doug. Stealth Warplanes Salamander Books Ltd. 2001.


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,738
Reaction score
143

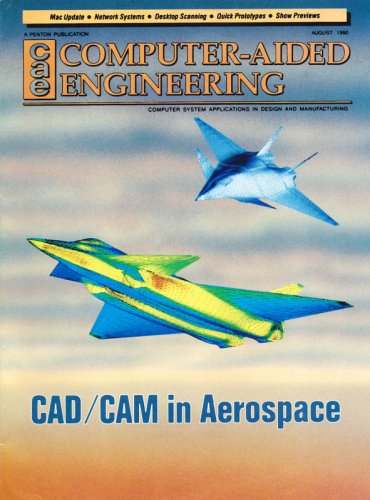

http://www.secretprojects.co.uk/forum/index.php/topic,1165.msg10545.html#msg10545

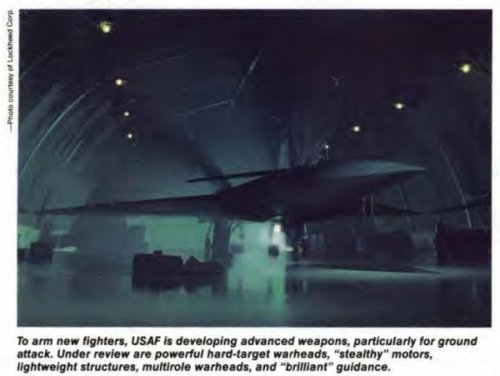

flateric said:
Stuff is claimed to be - of course - F-22. Interesting if this a pure speculation or another Lockheed's(?) desinformation CGIs
Confirmed as 'official' Lockheed speculation


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
134
Website
deeptowild.blogspot.com

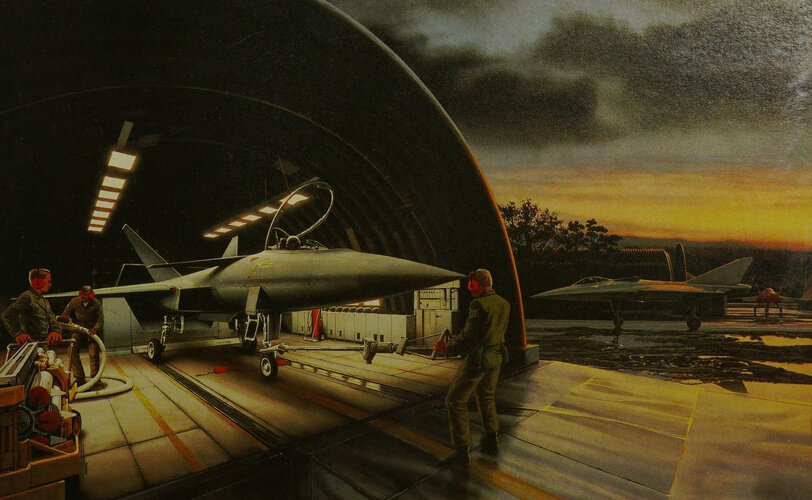

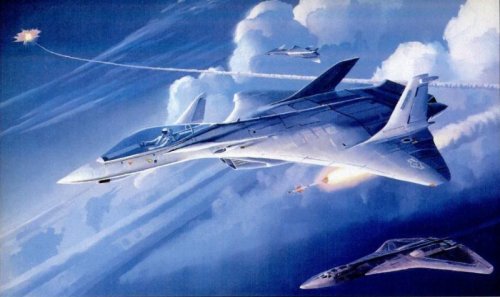

Artist's impression of Advanced Tactical Fighter by Attila Hejja appearing in December 1987 issue of Popular Mechanics.

Source: Cole, Tim. "Airpower 2000" Popular Mechanics December 1987 p. 72.


Attachments

airman

CLEARANCE: Top Secret
Joined
Oct 14, 2007
Messages
1,082
Reaction score
14
Website
zeef.com
http://en.wikipedia.org/wiki/Advanced_Tactical_Fighter

there are also diagram of concept aircraft submitted by aircraft corporations!


Airplane

CLEARANCE: Secret
Joined
Oct 3, 2015
Messages
432
Reaction score
0
Merv_P said:

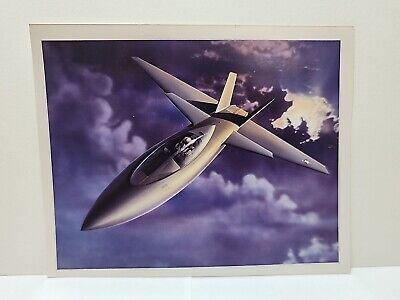

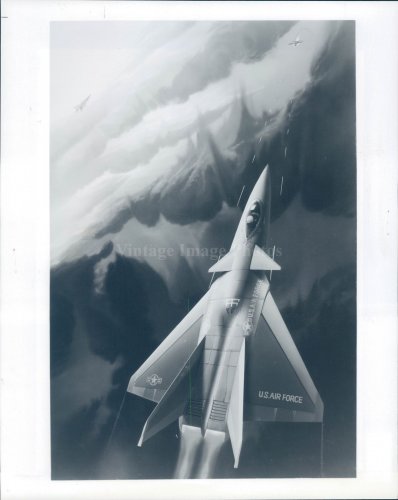

I found this on the DVIC site, on the first page of a search on 'ATF'. I haven't seen this design before; does anyone have more information?
This from a circa 1982 or 1983 publication of Popular Science. It was a USAF "design" intended to portray the concepts of the new fighter, namely 2D thrust vectoring, LO inlets, supercruise aerodynamics (then though needed to be tailless), and internal weapons.

If you actually look at, it is basically the F-22 minus the tail, right down to the one piece canopy. Lockmart gave the USAF exactly what they wanted.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,607
Reaction score
581

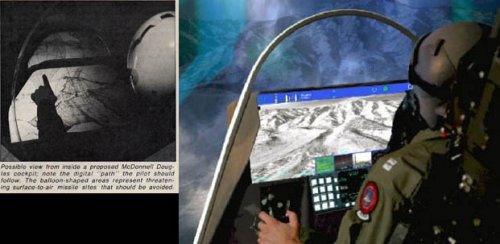

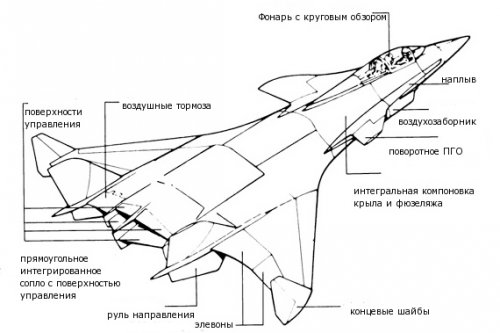

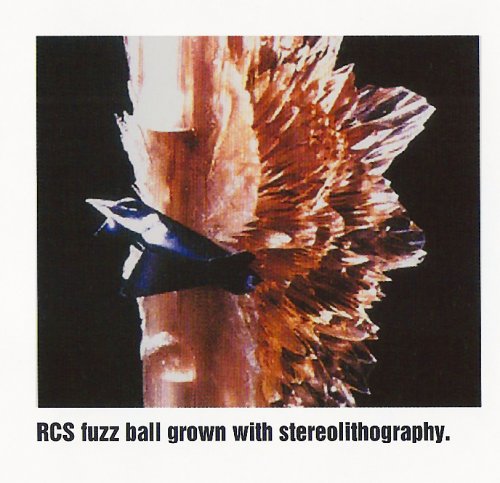

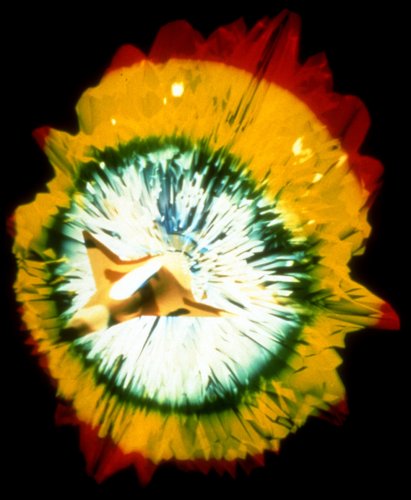

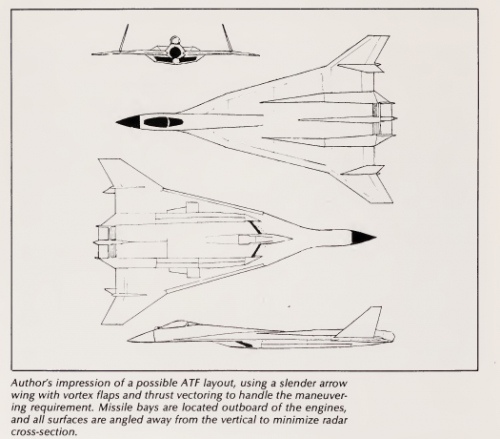

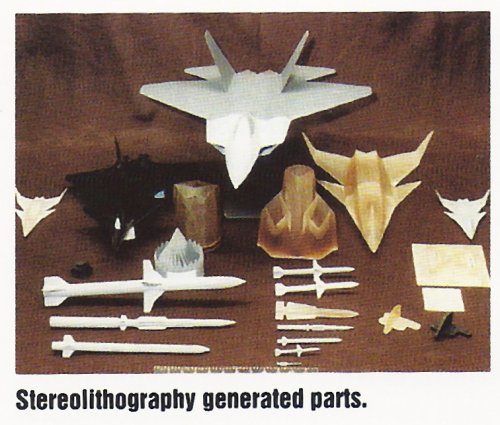

Also from; Advanced fighter technology
Bill Sweetman's drawing


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,604
Reaction score
111
LowObservable said:
Jebus on a Vespa, that looks oddly familiar.
https://www.youtube.com/watch?v=xezgTM097Fk


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,738
Reaction score
143
This is not ATF. ASTOVL


Dynoman

CLEARANCE: Top Secret
Joined
Jul 29, 2009
Messages
759
Reaction score
29
Thank you Flateric, I had it mis-labled in my ATF file.
