Air cushion landing systems for aircraft

SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
416
Reaction score
89

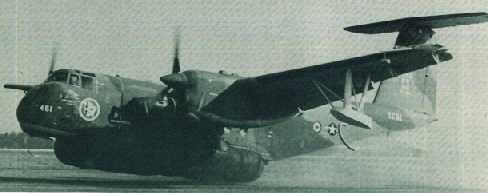

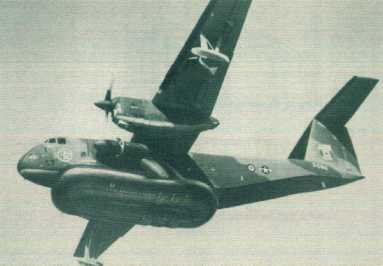

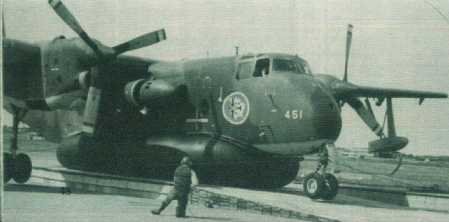

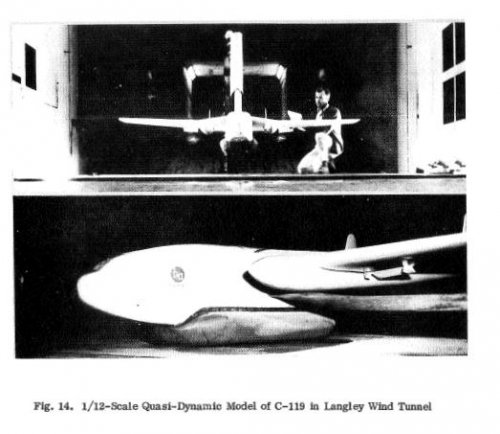

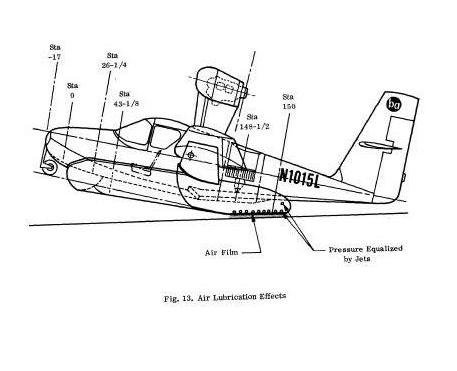

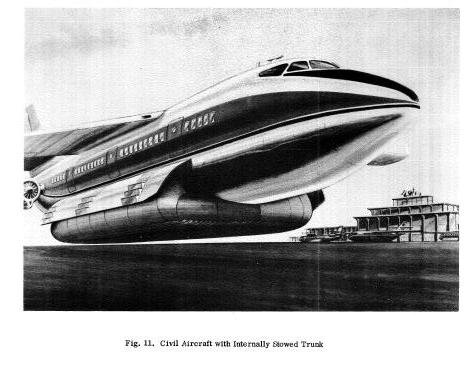

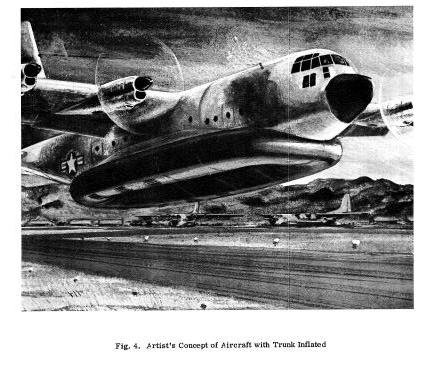

Always liked this concept. de Havilland Canada DHC-5A XC-8A Buffalo.


Attachments

  • cushion1.jpg
    10.5 KB · Views: 400
  • cushion2.jpg
    9.6 KB · Views: 50
  • cushion3.jpg
    10 KB · Views: 54

Machdiamond

ACCESS: Secret
Joined
Jan 15, 2007
Messages
326
Reaction score
11

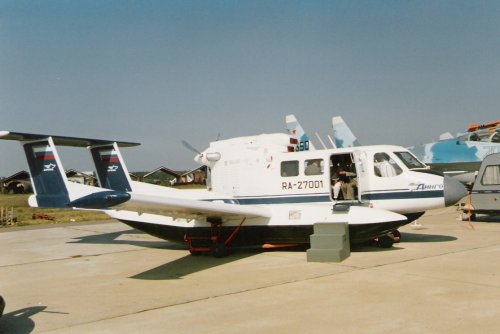

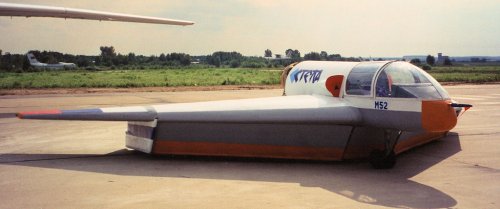

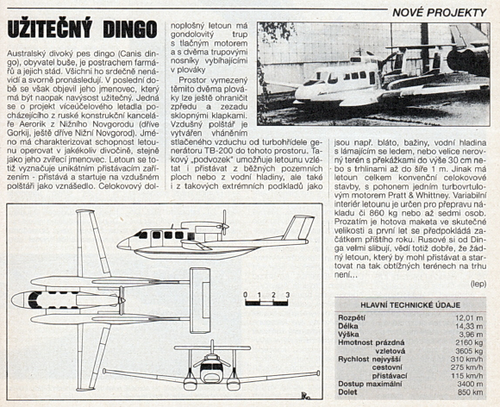

I took this photo at Zhukovsky in 1993, I have no other information but it does not look quite airworthy to me.
--Luc


Attachments

  • M52.jpg
    135.2 KB · Views: 101

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Re: Bell Textron Air Cushion Landing System (ACLS) for space vehicles

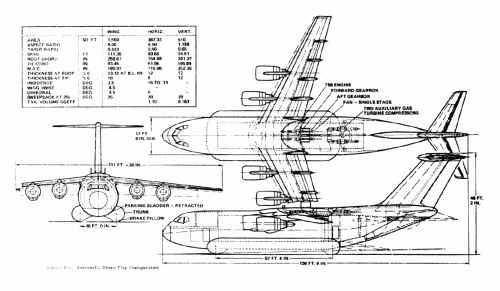

In the early 1970s, General Dynamics studied several configurations for what they called the MST program (better known as AMST).
Under Project 643A, they studied the use of an ACLS for the MST.

Source: www.dtic.mil/dtic/tr/fulltext/u2/767300.pdf


Attachments

  • MST with blown flaps and ACLS (Project 643A).gif
    MST with blown flaps and ACLS (Project 643A).gif
    241.8 KB · Views: 90

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19810010541_1981010541.pdf


Attachments

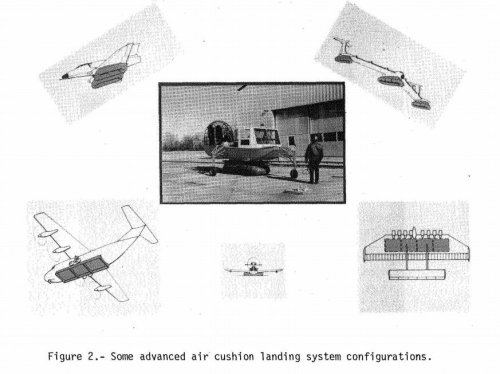

  • Air Cushion.JPG
    Air Cushion.JPG
    85.6 KB · Views: 71

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
570
Reaction score
194

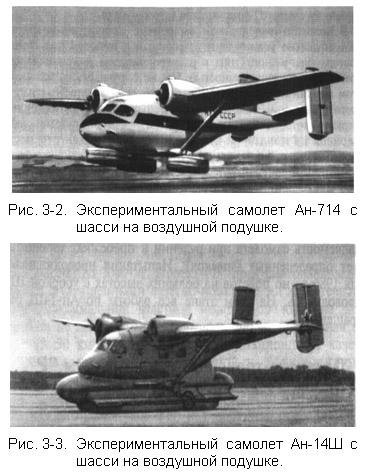

The An-14Sch was an experimental version of the An-14. It featured an test started with the Kubischev KB An-714. It was developed on through a tethered test rig. The An-14Sch flew at a height of 15-20 metres. It was fitted with an air cushion device powered by a TA-6A-1 APU located inside the cabin as a lift engine.

A test-bed, known as the An-14Sh, was developed for air cushion effect system which was intended to he used on large cargo aircraft types. To reduce the pressure on the surface, the air cushion unit (ShVP) comprised of an inflatable ring or skirt with four pairs of inner rings, located around the areas, where the compressed air was to be expelled. The energy of the air expelled was less than that in the ShVP with flexible skirt (like on the earlier An-714). The ShVP was folded in a special housing, beneath the fuselage, which reduced the drag. The An-14Sh could land in the conventional aircraft mode if the skirt was not deployed. During tests, the An-14Sh was tested on both paved and unpaved surfaces.

The design was explained in detail and illustrated in the magazine Aviastii Vreyma [Ukrainian Aviation Magazine] (1/96) [Page 11] and the book History of Aircraft Design in USSR 1951-1965 (Edited by Yu V Zaspkin and K Yu Kosminkov).


Attachments

  • An-14Sh.jpg
    112.2 KB · Views: 64

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540

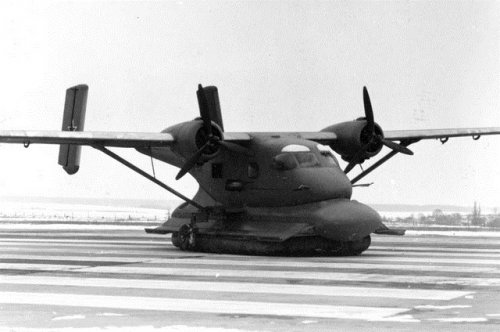

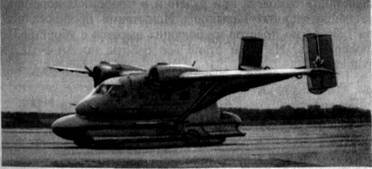

Cool pic! Here's another image of the An-14Sh:


Attachments

  • An-14SH.jpg
    9.8 KB · Views: 32

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
103
Interesting stuff!
I understand that the An-14Sh trials started around 1983. It seems that years before (1970) an An-14 was tested with some floatation gear (not air cushion) under the An-714 company (see photo).
The An-714 carried a civil registration, whereas the An-14Sh was apparently a military example.


Attachments

  • An-14SH.jpg
    34.8 KB · Views: 53
