Hi,

the AGO Ao.225 mock-up.
http://rareaircraf1.greyfalcon.us/GERMANY.htm


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,789
Reaction score
29

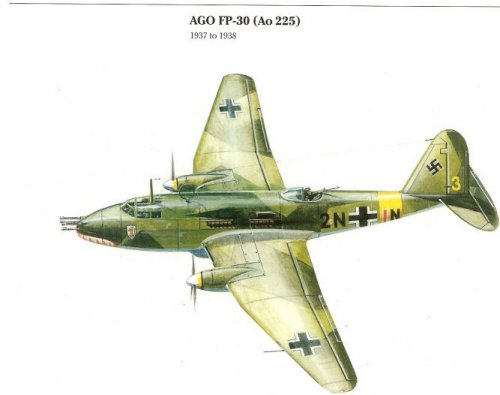

There is a lot of uncertainty about this concept...
The illustration shows the proposed armed version of the Ao-192B.
The Ao-225 should have been a much more advanced design of
wich only a few technical details survived....

Smith & Kay-German Aircraft of the Second World War
and other sources.


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
Hi guys,

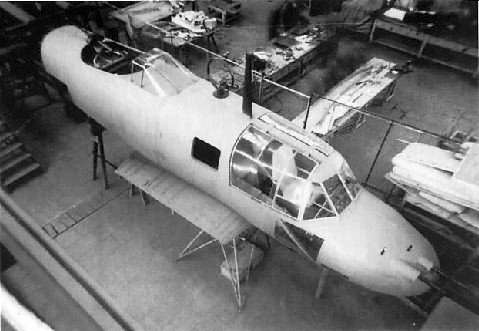

this is the mockup of the Ago Ao192C. The true Ao225 would have a fuselage mounted engine with power transmited via shafts to two propellers in the wings. Bye.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,841
Reaction score
351
airman, please take care when posting Midland Counties book excerpts
not so big images please

Book can be purchased here
http://www.ianallanpublishing.com/product.php?productid=38820&cat=0&page=1
and here
http://www.amazon.co.uk/Luftwaffe-Secret-Projects-Special-Aircraft/dp/1857801504


Attachments

Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
Hi chaps,

the Ao225 picture above is a "pastiche" of the wind tunnel model of the true Ao225 ( particullarly the tail assembly ) and a not very well rendered Ao192C ( on steroids and with a few errors ). I own Manfred Griehls new book on german aircraft armaments, and I hope to post soon a 3-view of the Ao192C ( original ). Regarding the Ao225, the wind tunnel model is well known.
Some time ago at Luftwaffe Experten Message Board a member named Ago Scheer drew a convincing aircraft, and said he was working on a book about Ago. He intervewed a man who used to work at the development department and managed to get data/drawings on an unknown design. Hope this work comes in book shape. Bye.


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,789
Reaction score
29
Indeed.And in the same file on the LEMB forum
here was a photo of an-inverted-windtunnel model also.


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
Hi guys,

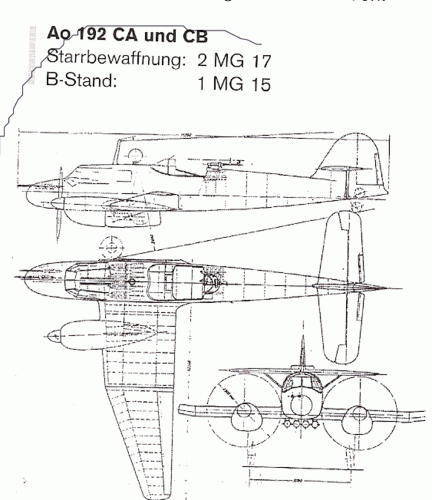

as promised, here goes the Ago Ao192C, taken from Manfred Griehl`s excellent "Deutsche Flugzeugbewaffnung bis 1945", Motorbuch Verlag.

Also some other very good stuff here: http://www.histaviation.com/AGO_Ao_192.html
Enjoy.


Attachments

Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
4
Wurger said:
Hi guys,

this is the mockup of the Ago Ao192C. The true Ao225 would have a fuselage mounted engine with power transmited via shafts to two propellers in the wings. Bye.
Although the AGO Ao 192 was also a two propellers retractable gear monoplane
it's easy to differentiate a courier aircraft from a military heavy fighter attack.
I think that the photo put by hesham shows really the AGO Ao 225 mock-up and there's a mistake
in the description of the draft put by Wurger ; this can't be the AGO Ao 192 ( even C military version ).
Does anybody knows how many airmen made the crew of the AGO Ao 225 ? Two, or more ..?


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
Just compare the photo with the 3-view drawing ::). Have you got any picture of the Ao 225?


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
4
Only what I can do is to look and enjoy the views of the AGO Ao 192 in my gallery of Luftwaffe aircraft.
I know my AGO Ao 192 Kurier very well in the light transport, ambulance, geometric survey
and liason versions, and when it's military used as a reconnaissance and a light bomber.
After all I can't believe that the attachment You've put shows the AGO Ao 225.
I know only one photo of the AGO Ao 225 mock-up, but tens photos of the Kurier.
That's why my list of the Luftwaffe aircraft begins this way :


Attachments

Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
After all I can't believe that the attachment You've put shows the AGO Ao 225.
That`s exactly what I was trying to do. The drawing of the Ao 192C matches the mockup. It isn`t the Ao 225.

It`s a pitty that I haven`t saved that nice Ao 225 depiction. The wind tunnel model does show a very warlike aircraft, not a "courier" on steroids. They were quite different.


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
4
Sorry, my dear Wurger. I committed a horrible error.
I should have written : " After all I can't believe that the attachment You've put shows the AGO Ao 192 ".
It is the AGO Ao 225 ;D


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,789
Reaction score
29

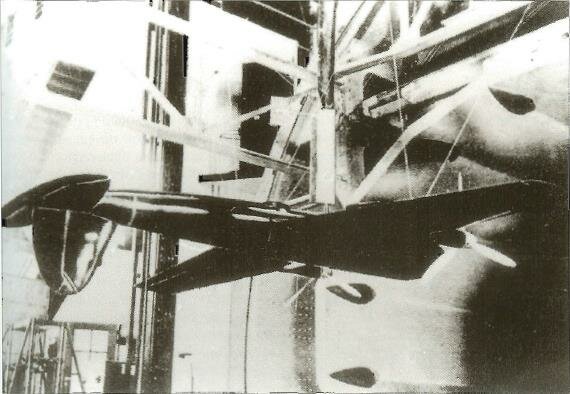

There's a photo of a Ao.225 wind tunnelmodel
on the LEMB forum.
According to AGOScheer who is working on a book about AGO
the first illustration shown in this thread should be a mockup
of the Ao.192C build at AGO musterbau Oschersleben..


Boogey

B'Boomelang
Joined
Feb 10, 2009
Messages
200
Reaction score
4
Lark, could You, please, give a link ? I can't find the photo ...


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,789
Reaction score
29
Go to : ***.luftwaffe-experten.org
and choose :projects,prototypes & what iff's 1933-45

change *** for www

Good luck.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,837
Reaction score
133

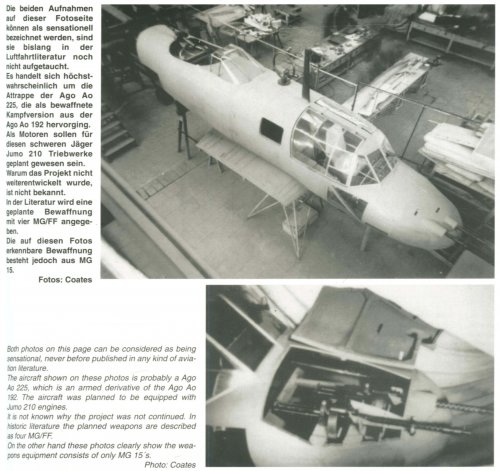

I found this intersting pictures of the Ago Ao.225...maybe..this should be an armed version of the Ao.192.
(Source: Flugzeug FotoArchiv 08)

topics merged ;)


Attachments

lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,789
Reaction score
29
It is indeed a projected armed version of the Ao.192
not the Ago Ao.225..

The real Ao.225 is a different concept described
by René Scheer in his lasted book about the Ago Flugzeugwerke.


AGO Scheer

AGO Flugzeugwerke
Joined
Sep 19, 2014
Messages
11
Reaction score
3
Hello Frieds,

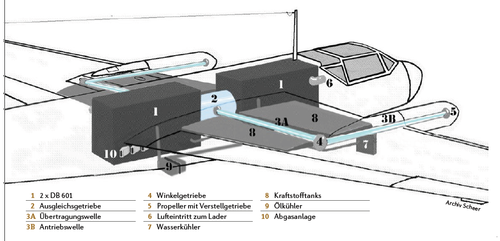

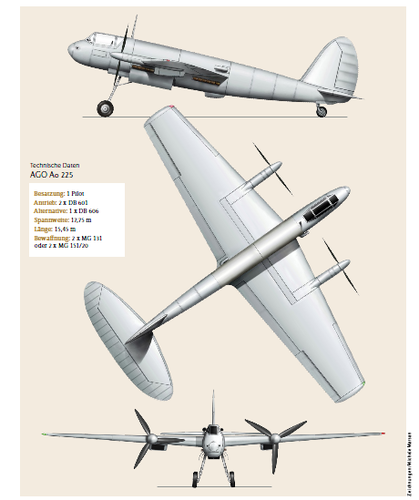

I´ve wrote a latest update for the project AGO Ao 225 (FP30) in "Klassiker der Luftfahrt" 7/2019 inclusive drawings based on Ex-AVA - Goettingen Material.
This is the 225- not as seen here in #4.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,903
Reaction score
1,689
Hello Frieds,
I´ve wrote a latest update for the project AGO Ao 225 (FP30) in "Klassiker der Luftfahrt" 7/2019 inclusive drawings based on Ex-AVA - Goettingen Material.
This is the 225- not as seen here in #4.

Yes,very beautiful one,thanks.


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
Thanks for the tip, Renée.

I haven`t forgot about that AGO pusher propeller heavy fighter you have discovered some years ago. Do you intend to publish about it?


AGO Scheer

AGO Flugzeugwerke
Joined
Sep 19, 2014
Messages
11
Reaction score
3
Dear Wurger- Unfortunalely I have not enough information for a reconstruction at this time.


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
869
Reaction score
18
Dear Wurger- Unfortunalely I have not enough information for a reconstruction at this time.

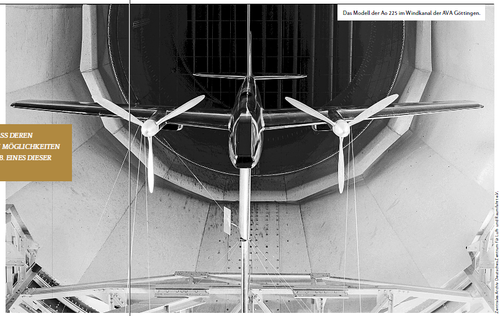

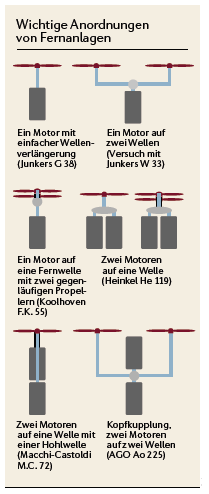

Thanks for the input, René. Your article is most interesting, adding that a twin fin configuration and DB 606 engined Ao 225 were considered. I also loved the front, upper and side views, this one slightly different from the one in "AGO-Flugzeugwerke: Vom Gitterrumpf zur Me 262.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,903
Reaction score
1,689
A good article about Ago Ao.225 in; Klassiker der Luftfahrt 7/2019.


Attachments
