Aerospatiale X 910 tilt rotor

MIRAGE 4000

ACCESS: Confidential
Joined
Mar 17, 2007
Messages
151
Reaction score
13

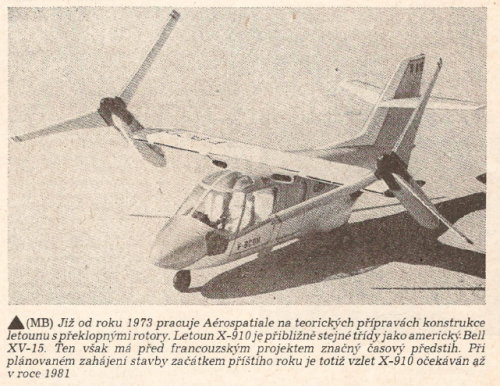

Aerospatiale study in the 70' a tilt rotor program, the X 910. It was only a "paper plane", but the rotor was tested.


Attachments

  • X910.jpg
    39.5 KB · Views: 1,072

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,982
Reaction score
1,374
A few figures for this interesting design. The X 910 dates from 1974, it was designed to carry a pilot and six passengers. Powered by two 1650shp Arriel I turboshafts it was to have a top speed of 321mph and a range of around 500 miles. Span was 7m, length 8.7m and height 3.3m.


MIRAGE 4000

ACCESS: Confidential
Joined
Mar 17, 2007
Messages
151
Reaction score
13

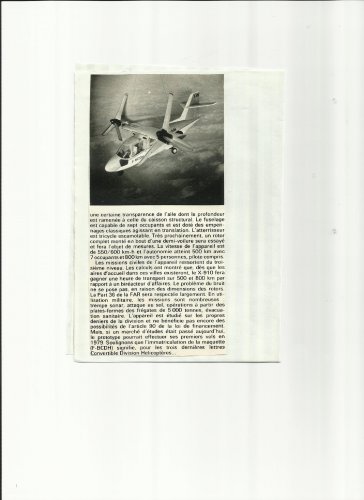

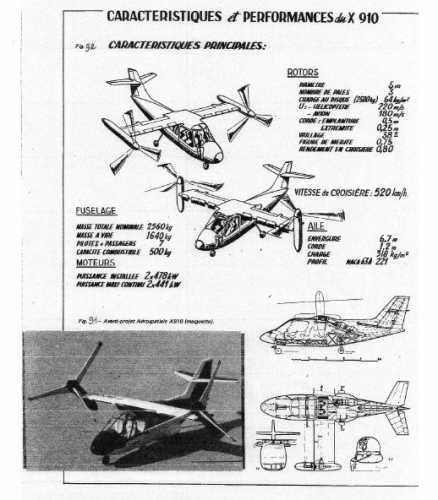

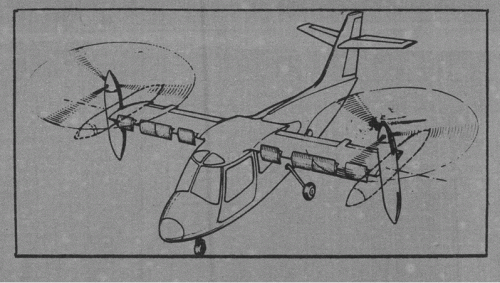

I have this little drawing from Aerospatiale
(Well, I find a good photo on the Rotojet project). Will post it !


Attachments

  • X 910 - 01.jpg
    X 910 - 01.jpg
    42.4 KB · Views: 995

amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
Very interesting project, any mention of this in French aviation magazines such has 'Le Fana de L'Aviation'?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
557
Website
deeptowild.blogspot.com
Via Internet Archive:

The X 910, was similar to the contemporary American Bell XV-15. The first wind tunnel tests were conducted at Marignagne in 1974 with a 1/5-scale model. Test were conducted with a full-scale tilt-rotor system at the Office National d'Etudes et de Recherches Aérospatiales (ONERA) S1 subsonic wind tunnel in Modane-Avrieux during June/July 1975 and June/July 1976. The conversion between hover and forward flight was the primary focus of the tests. In April 1977, the first flight was envisioned for 1981, but the program was soon cancelled.
  • Power: Two Turboméca Arriel I turboshaft engines with 650 hp (485 kW) internal in the fuselage and drove the rotors via shafts
  • Rotor: 5 m (16.4 ft) diameter; were able to operate in the horizontal position while the aircraft was on the ground, something that cannot be done with the XV-15 and V-22 Osprey.
  • Maximum Speed: 517 km/hr (279 kt)
  • Range with 4 passengers: 800 km (432 kt)
  • Range with 6 passengers: 450 km (243 kt)
  • Wing span: 7 m
  • Length: 8.7 m
  • Height: ~ 3.3 m
  • Airfoil: NACA 63A221
  • Maximum VTO Weight: 1,640 kg (3,615 lb)
  • Operational gross weight: 2,560 kg (5,645 lb)
  • Prototype gross weight: 2,455 kg (5,412 lb)
  • Capacity:

Source:
http://web.archive.org/web/20070306200806/http://www.aiaa.org/tc/vstol/unbuilt/index.htm


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014

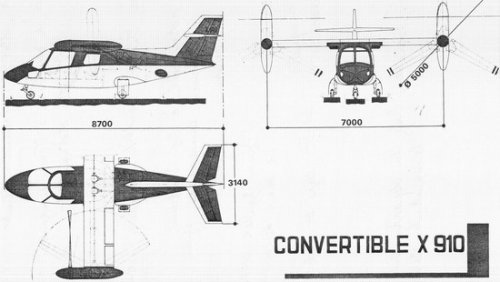

In InterAvia (sorry, didn't wrote down, in which issue ) I once found a drawing of the X-910,
which seems to depict it with a fixed landing gear. Another interesting point, I think, are
the slats, shown deployed in this drawing.


Attachments

  • Aerospatiale X 910.gif
    Aerospatiale X 910.gif
    296.1 KB · Views: 624

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
102
Hi Jens
Yes. It seems that it is a fixed landing gear


Attachments

  • Sans titre6.jpg
    Sans titre6.jpg
    401.3 KB · Views: 152

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,051
Reaction score
3,733

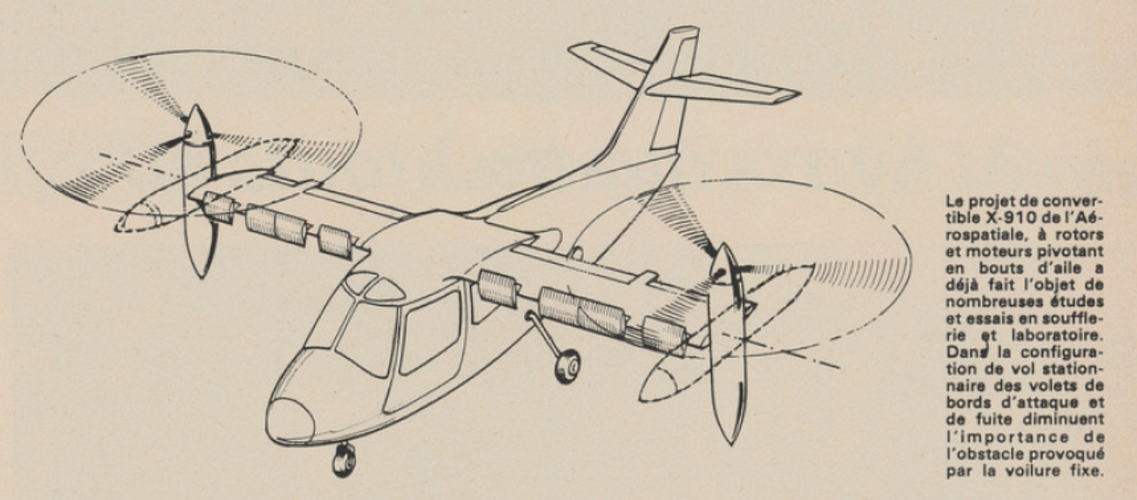

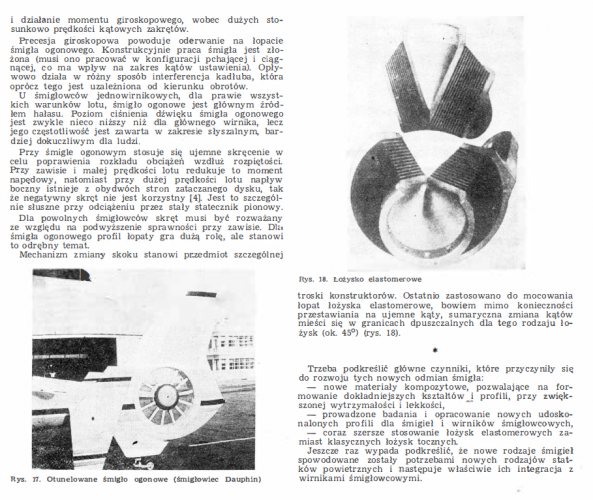

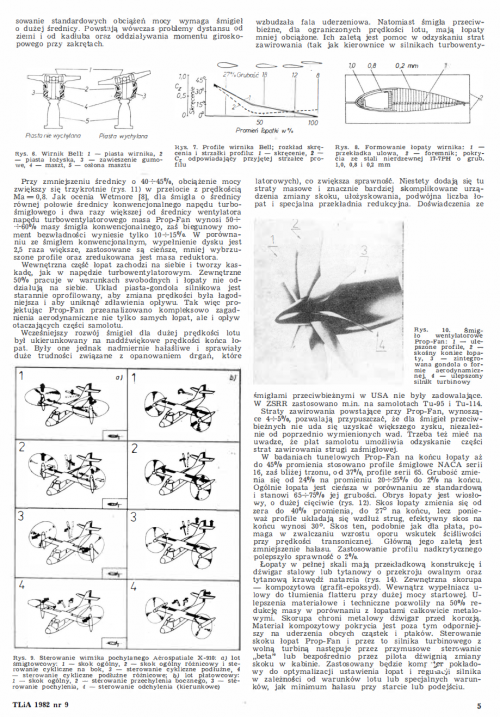

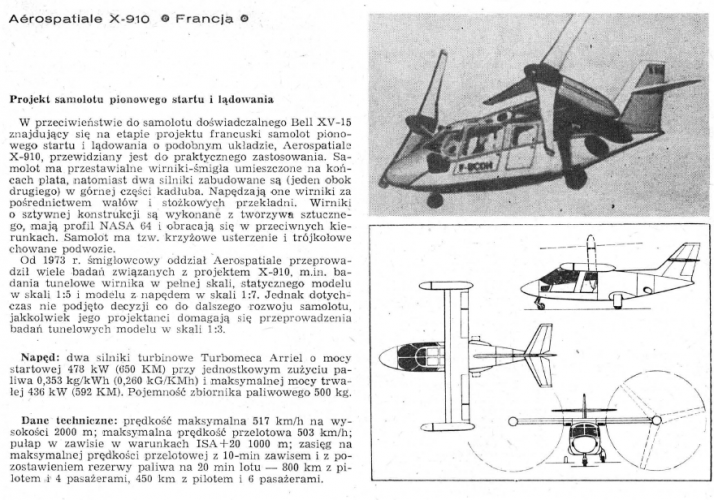

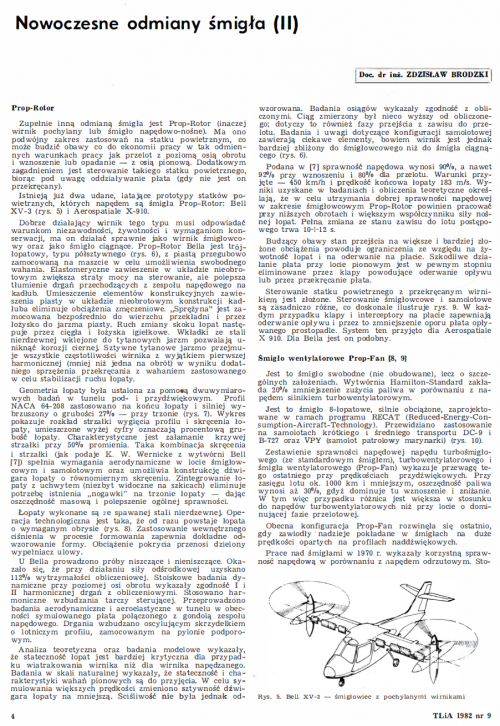

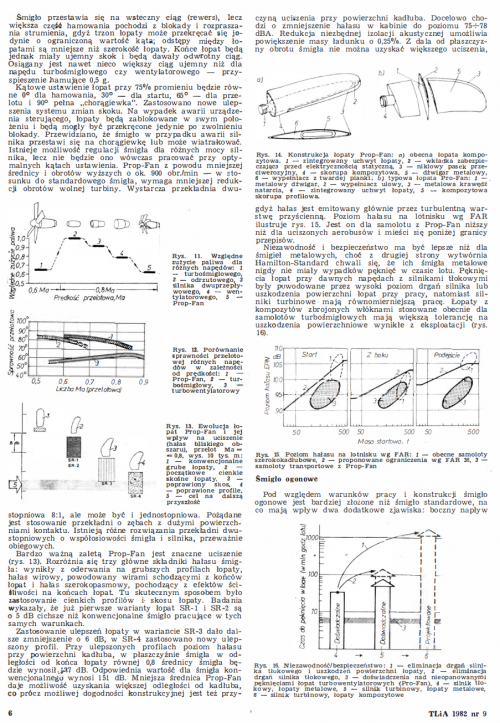

Hi,


the Aerospatiale X.910.



L’histoire des hélicoptères
en France
depuis 1945


Attachments

  • X.910.png
    292.1 KB · Views: 147

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
337
Reaction score
547

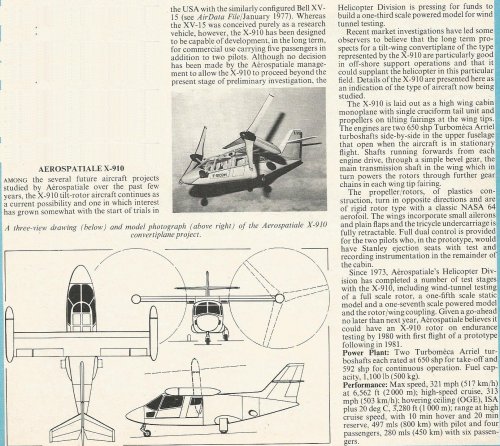

Further to the previous posts, here's the entry regarding the Aerospatiale X-910 from the Air Data section of the June 1977 issue of Air International


Attachments

  • Aerospatiale X910.jpg
    Aerospatiale X910.jpg
    853.3 KB · Views: 121
