Mil Mi-30 and Mi-32 tilt-rotor VTOL projects

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
80

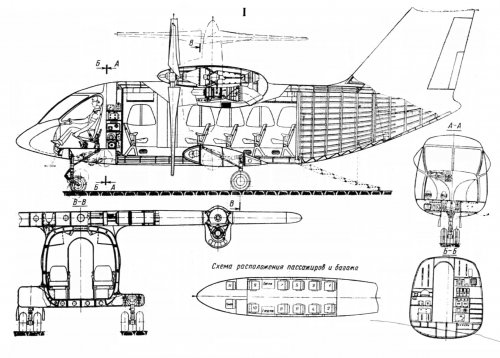

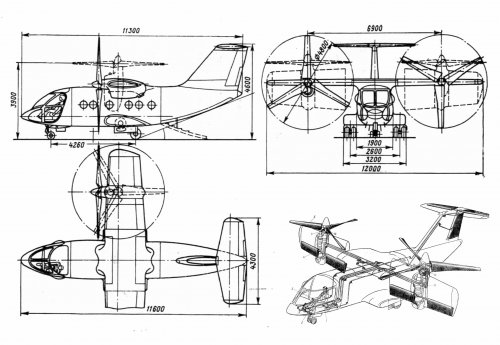

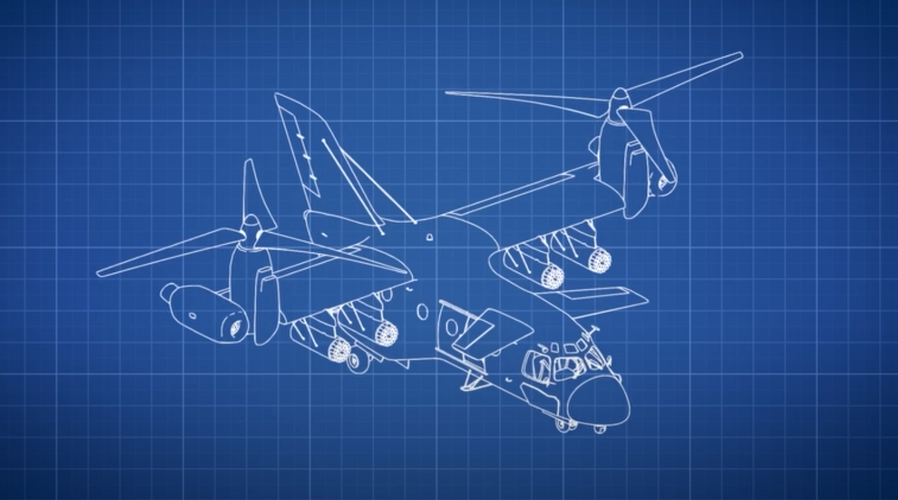

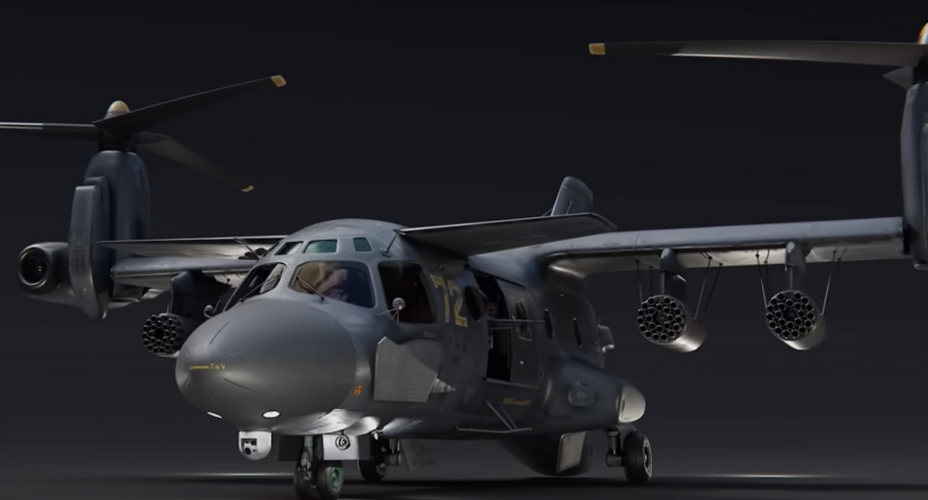

Pometabla - i have this drawing down as a Mil Mi-30A concept for a tilt-rotor, looks similar to the Moskoviya


Attachments

  • RUS- Mil Mi-30A_001.jpg
    RUS- Mil Mi-30A_001.jpg
    129.1 KB · Views: 1,010

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
17

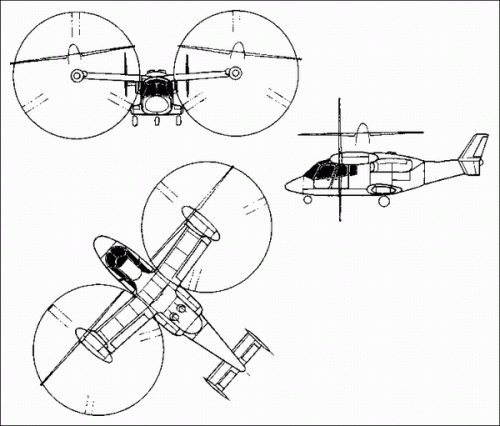

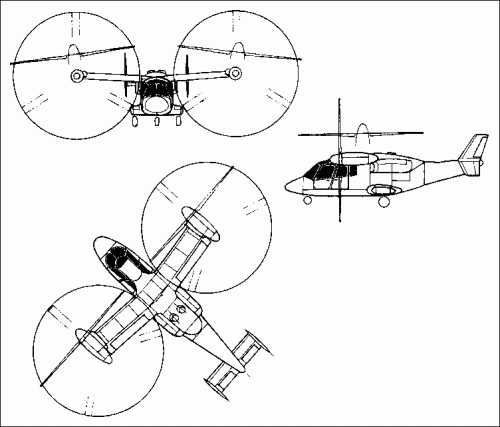

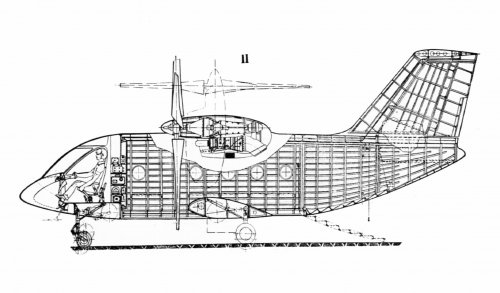

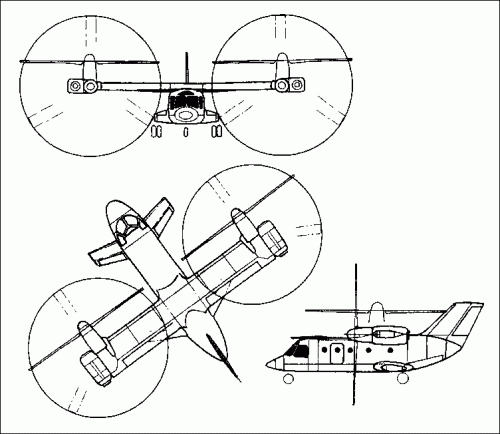

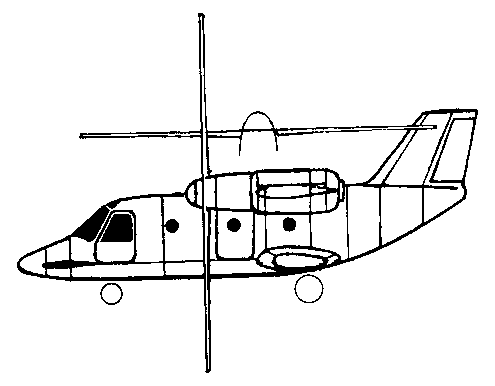

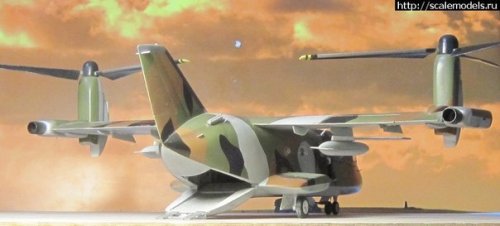

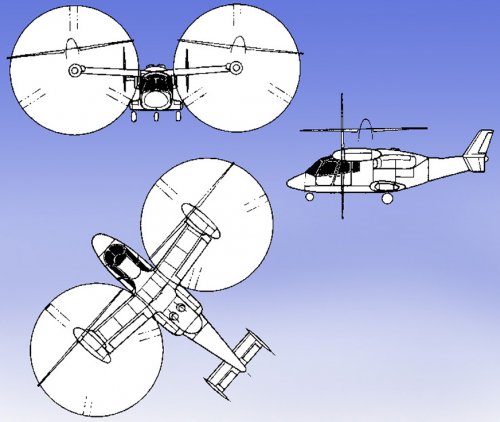

Below a drawing of the Mi-30 with maybe a bit better background.
Also an enlarged version sometimes called Mi-32.

Does anyone know if these designs were revealed to the West in the early/mid-1980s when they were developed?


Attachments

  • Mi-30.gif
    11.7 KB · Views: 793
  • Mi-32.gif
    12.9 KB · Views: 797
  • Mi-32.jpg
    29.7 KB · Views: 756

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147

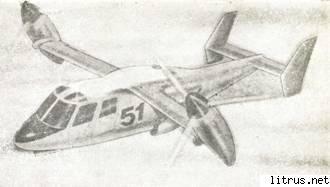

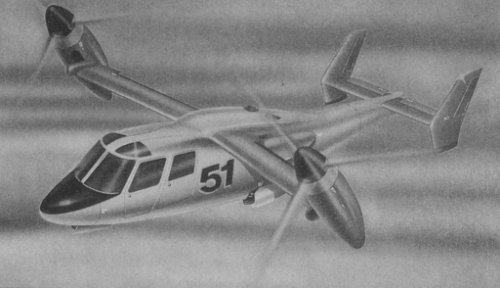

In FLUG REVUE 3/1993 a Mil tiltrotor design bears the designation ’Mi-51’. In my opinion the author misidentified it due to the number on the fuselage – I think it’s the Mi-30L. Or did Mil OKB rename the Mi-30L into Mi-51??? I don’t believe this, but nevertheless I want to ask you (mindful of Sukhoi renaming campaign …).


Attachments

  • Mil Mi-30L.JPG
    Mil Mi-30L.JPG
    94.1 KB · Views: 746

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
Dear boxkite,

I think it is anther helicopter,different from Mi-30L,SEE ALSO
http://avia.russian.ee/helicopters_eng/mi-30-r.html


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014

Attachments

  • mi-30s.gif
    73.3 KB · Views: 161
  • mi-30l.gif
    66.8 KB · Views: 150
  • mi-30d.gif
    4.3 KB · Views: 107

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
845
Reaction score
147
Btw, the original source for all these sites is Mikheyev's book "Moskovskiy vertolyotnyy zavod imeni M. L. Milya", published in 1998.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,558
Reaction score
3,834
Some clarification of the Mi-30 program comes in Take-Off (Vzlet) magazine, October 2006 issue.

Origins date back to 1972. Initially conceived as successor to Mi-8 with 19 passengers or 2t cargo. TV3-117 engines specified, with 11m diameter rotors. Weight was 10,600kg, speed 500-600km/h and range 800km.

Later on, the project had grown to a payload of 3-5t or 32 passengers, with TV3-117F engines and 12.5m diameter rotors with weight now 15,500kg.

Through the early 1980s size and powerplant fluctuated, with D-136, TV7-117 and D-27 propfans mentioned and weights of 11, 20 and 30t.

By 1991 three projects were under consideration: Mi-30S (3.2t payload, 20 passengers), Mi-30D (2.5t payload, 11 passengers), and Mi-30L (0.95t payload, 7 passengers). The largest version (13t) used TV7-117 turboprops with the smallest (3.75t) using the Al-34.


Attachments

  • mi-30.jpg
    77.6 KB · Views: 235

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,896
Reaction score
241
From the first artist impression that I sore as a kid of the Bell/Boeing-Vertol Tilt Rotor concept (XV-15 / V-22), in the 1980’s in a Bill Gunston book titled ‘Aircraft 20000’

I always thought that the then Soviet Union would make a crash program to develop their own V-22 equivalent to both test this concept and to counter the United States technology.
After all the Tilt Rotor concept would have been ideal for the Soviet / Warsaw Pacts military philosophy of fast and deep penetration shock warfare.

I still think that had the Soviets aviation Bureau’s been given the task to design, develop and field a combat tilt rotor concept, the Soviets would have done it simpler and faster than what the United States has been able too
For how long has it taken the United States to field its V-22 / MV-22 Osprey, from concept to operational service?????

Saying this I think that, had the Soviet’s been happy with the tilt rotor concept and its capabilities, we would have seen giant An-12-sized tilt rotors by now, whilst the yanks are only toying with this next step in evolution and capability

Regards
Pioneer


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,429
Reaction score
611
With a probability that I am demonstrating my utter ignorance of east European economics and politics; I suspect that the Russians are likely waiting for more than one country to operate the type. Given the huge areas that Russia must manage the type seems a natural extension of vertical aircraft for them. However there is also now (at least until the petro dollars start re-emerging) the likelyhood that any type must have some commercial viability as well. Look at the efforts to sell the Ka-50. I suspect that its inability to gain foreign customers had something to do with the re-emergence of the Mi-28. If and when (I prefer when) V-22 and BA-609 start to make a market, I think we will see Russian aerospace respond accordingly. There work on high speed rotorcraft came about in short order when western efforts started trending that way. If there is a market, the Russians will be part of it.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

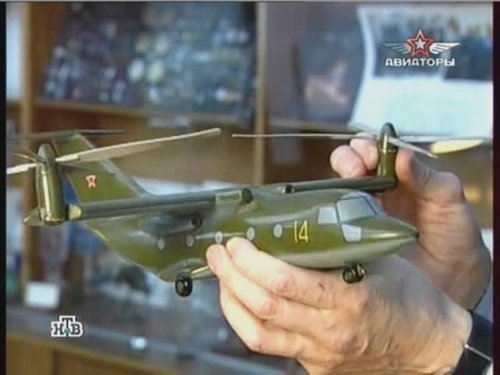

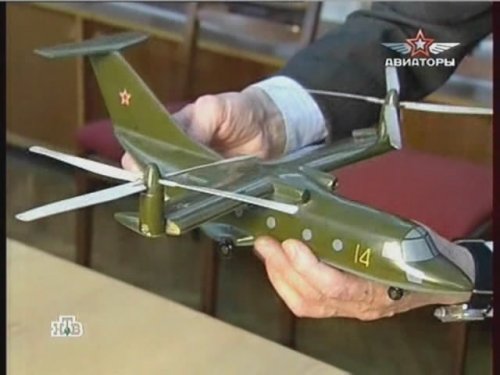

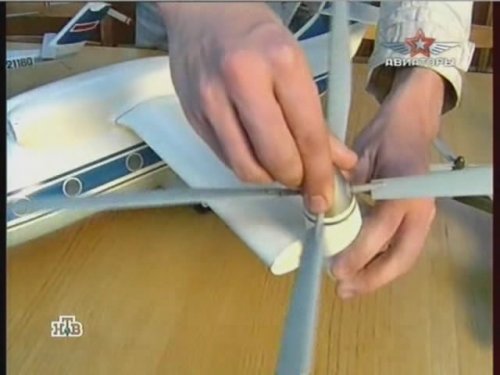

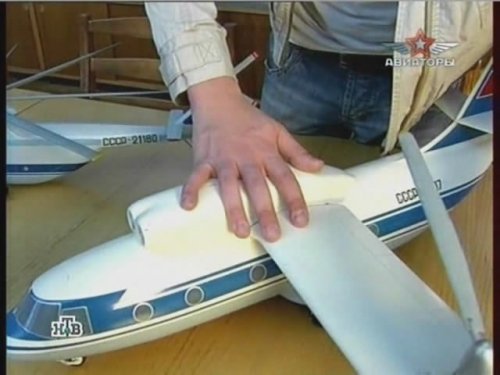

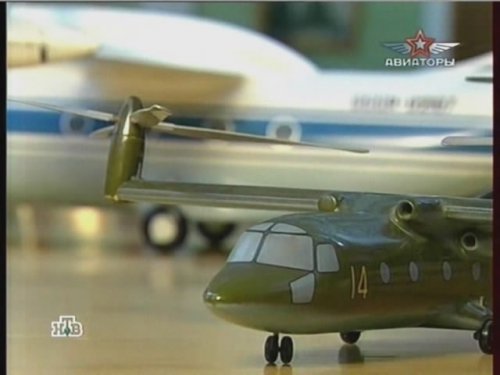

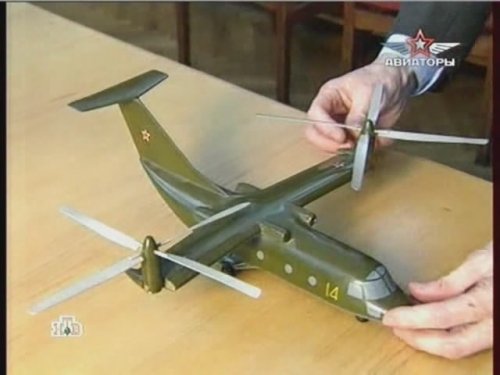

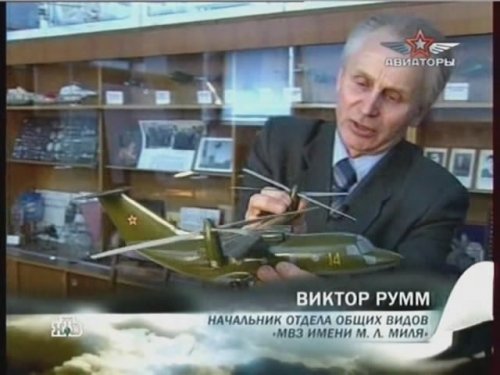

another iterations of Mi-30


Attachments

  • snapshot20090525030615.jpg
    42.8 KB · Views: 111
  • snapshot20090525031120.jpg
    57.5 KB · Views: 104
  • snapshot20090525031051.jpg
    52.2 KB · Views: 119
  • snapshot20090525031004.jpg
    48 KB · Views: 132
  • snapshot20090525030900.jpg
    45.8 KB · Views: 137
  • snapshot20090525030757.jpg
    46.7 KB · Views: 92
  • snapshot20090525030743.jpg
    53.8 KB · Views: 117
  • snapshot20090525030718.jpg
    47 KB · Views: 154

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
110
Another iterations of Mi-30 from:

Design and construction of aircraft with vertical take-off and landing.
F. Kurochkin 1977

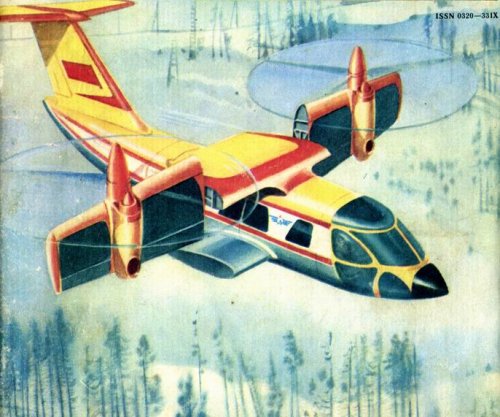

MI-30 in the presentation of the artist magazine "Technics of Youth."


Attachments

  • Mi-30 (art impres.).jpg
    Mi-30 (art impres.).jpg
    79.1 KB · Views: 95
  • (transport).jpg
    213.9 KB · Views: 269
  • Mi-30 (passenger).jpg
    Mi-30 (passenger).jpg
    299.8 KB · Views: 313
  • Mil  -3v.jpg
    Mil -3v.jpg
    364.4 KB · Views: 322

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,429
Reaction score
611
Indeed it is a great find! I have to wonder if Russia will ever relook tilt-wing or tilt-rotor technology given the huge areas they have.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
New topic split from generic V/STOL thread.

Has the "Mi-32" designation ever been confirmed for the enlarged version?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
boxkite said:
In FLUG REVUE 3/1993 a Mil tiltrotor design bears the designation ’Mi-51’. In my opinion the author misidentified it due to the number on the fuselage – I think it’s the Mi-30L. Or did Mil OKB rename the Mi-30L into Mi-51 ??? I don’t believe this, but nevertheless I want to ask you (mindful of Sukhoi renaming campaign …).


My dear Boxkite,


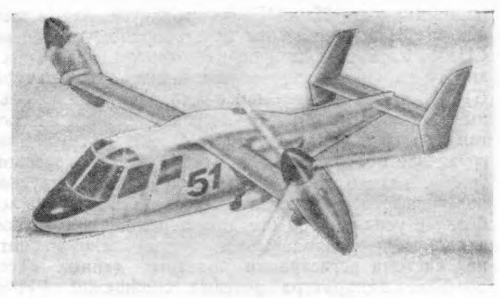

confirm,it was Mil Mi-30,the same artist drawing;
http://litrus.net/book/read/75193?p=33


Attachments

  • Mi-30.jpg
    9.7 KB · Views: 830

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Stargazer2006 said:
Has the "Mi-32" designation ever been confirmed for the enlarged version?

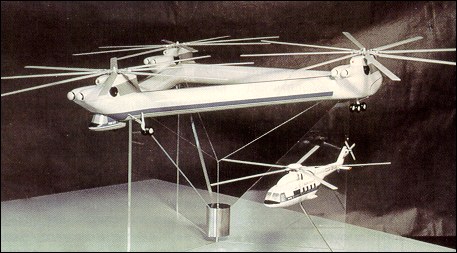

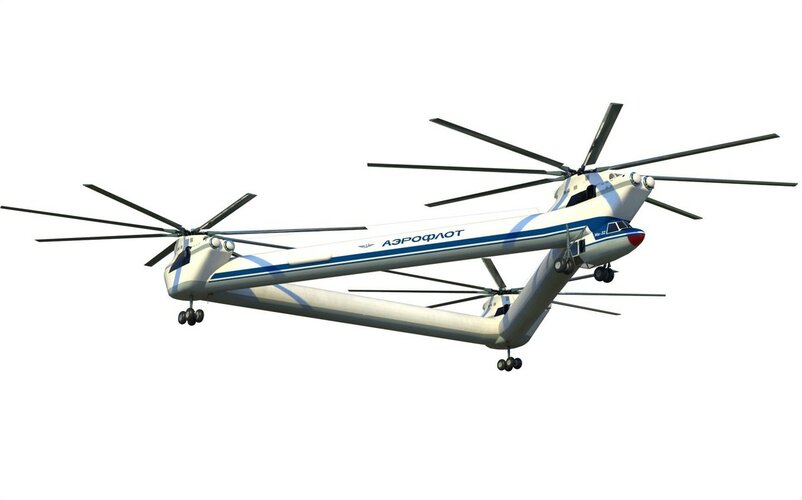

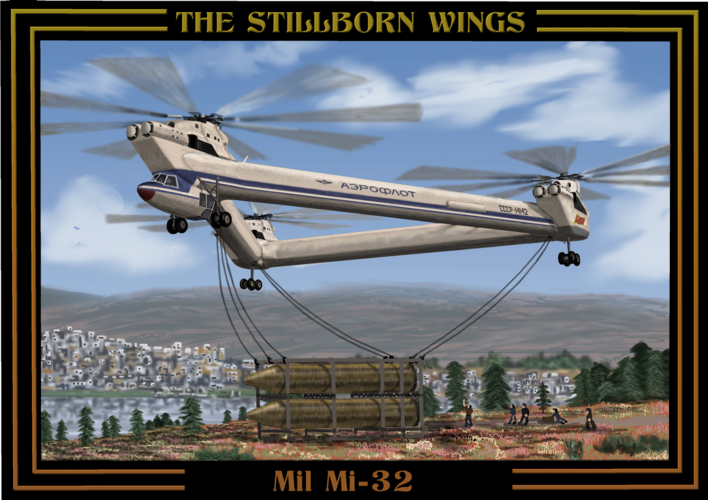

I hate to quote myself, but in the absence of any answer, I'm under the impression that no source mentions the designation "Mi-32." The only helicopter I have with this number is a project for a flying crane with three-rotors on a triangular structure... Or was it reused, as was sometimes the case? If any of you have an "Mi-32" tilt-rotor, please show it!

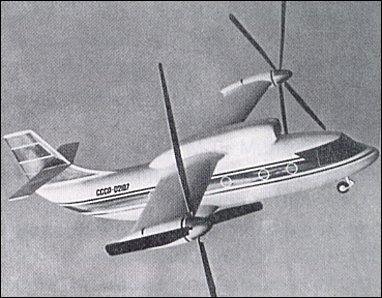

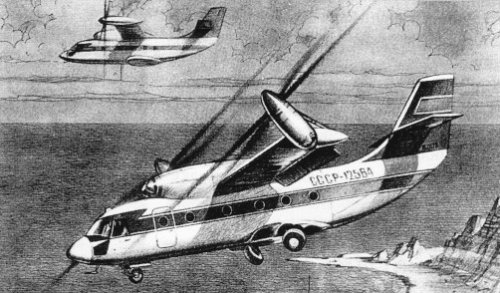

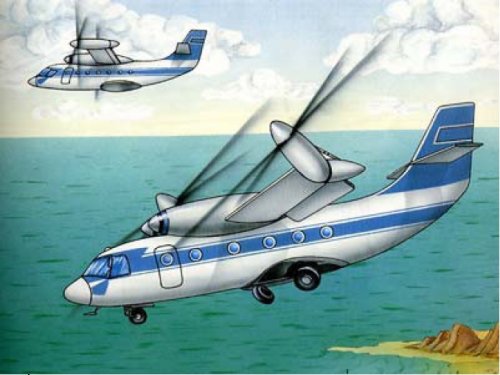

Meanwhile, some period artwork of the Mil Mi-30:


Attachments

  • artwork.jpg
    179.4 KB · Views: 706

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
342
Reaction score
11
I don't know about Mi-32 designation being confirmed, but I'm pretty sure I saw it mentioned in Jane's and other aviation pubs in the late '80s - early '90s.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,887
Reaction score
2,033
Jemiba said:

http://hushkit.wordpress.com/2013/10/04/ten-coolest-cancelled-helicopters/





hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
The Mil Mi-30.


http://vk.com/wall1182989_1475


Attachments

  • Mi-30.jpg
    33 KB · Views: 326

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,039
Reaction score
3,732
hesham said:
My dear Boxkite,

confirm,it was Mil Mi-30,the same artist drawing;

http://litrus.net/book/read/75193?p=33

Anther confirm from; Авиация и Космонавтика 1995-05


Attachments

  • aik-1995-5-1.png
    296.9 KB · Views: 39
