Matej said:

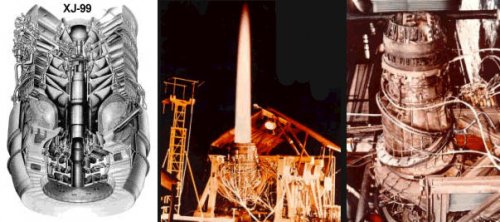

Equipped with Rolls-Royce/Allison XJ-99 lift engines and TVC nozzle, parts of which were later used in RB.199.

There's an issue of Airforce Magazine from the 80's that has some info on that XJ-99. Don't recall the issue but it had a picture looking into the front end of a turbofan on the front cover. They gave the specs as 9000lbs of thrust with a weight of 450lbs for a T:W of 20 to 1.
Further to the pictures produced on this subject, I have a bit more information to offer, though need help with some German magazines of the period.

Apparently both Boeing and then Fairchild Republic were involved with this project.

Initially Boeing seems to have been the partner, as an early drawing in a US magazine/Flight International shows a three view similar to the Boeing TFX bid.

Later the project evolved in three clear stages

AVS with a single box like mounting on the fuselage for its two thrust engines

AVS with separated out mountings for the thrust engines

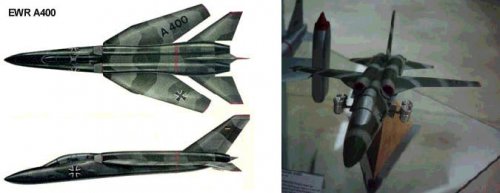

A400, the final version which is curvier and usually shown in two photos published about 1967. A model of this design is in a Museum in Germany.

What I would like to find is some copies of Flug Revue or similar German mags which show the earliest design ( a drawing of which did crop up in a US mag) which has conventional side engines like a Vigilante, but also has the swing wings and flip out jets.

The aircraft had no clear US requirement, though the German AF needed it to replace the F104 in the nuclear strike role.

UK 75
I dont know whether anyone has a collection of Flug Revue or Flieger magazines from the period 1967-68, but I need help finding a picture.

Some years ago I was lucky enough to get a bound edition of 1967-68 magazines in London, but the bag with them in was nicked in a pub (some unlucky nerk thought it was a laptop!). I remember in the back pages of one of them a black and white photo of the US German AVS swing wing plane.

What was interesting was that this was not one of the drawings/photos which have appeared on this site of the two versions with engines mounted above the fuselage. No, this one looked like a Vigilante/F111 with ordinary side mounted engines, but still with the vstol swing outs and swing wings. The plane looked very cool. I wonder if it was a Republic or Boeing design which pre-dated the FRG US effort.

Can anyone post a pic like this? It may also have appeared Stateside?

UK 75
Hello !

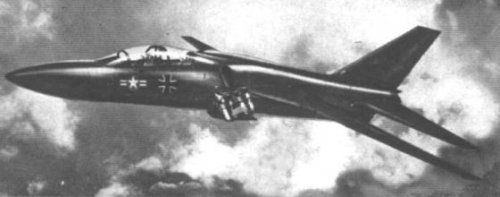

It is the Republic-EWR AVS ,predecessor of the EWR-Fairchild A 400
The A 400 had dorsal intakes (3 different layout )

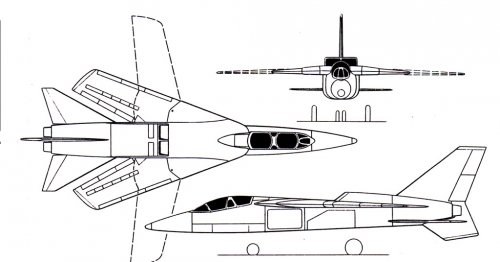

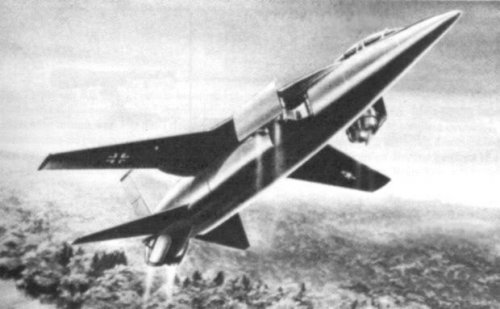

New scan of last AVS design.


  • AVS.jpg
    23.6 KB · Views: 1,288
  • AVS-1.jpg
    29.3 KB · Views: 661
This overlaps with a number of other threads, but I am trying to tease out info on Boeing and Republic swing wing/VTOL fighter bombers in the 1964-7 timeframe, which coincided with the later US/FRG AVS project already covered on a separate thread. I have seen a model of a Boeing aircraft which looks like AVS, but is not. There is also a list of so-called ADAM designs in an old German magazine which covers a whole host of projects.

UK 75
There is also a list of so-called ADAM designs in an old German magazine which covers a whole host of projects

any chance to have a look at it? ;)

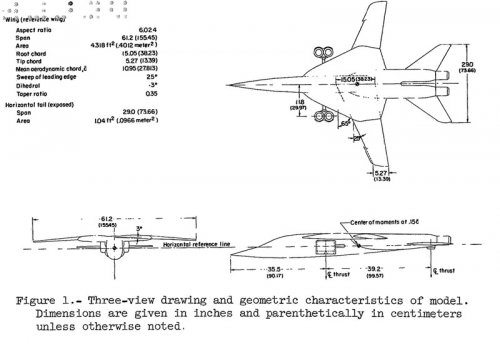

If you stretch the timescale to 1970, how about this model from a NASA document?

Looks a lot like later US - German studies in some areas.


  • NASA-VG-VSTOL-1970e.jpg
    70.9 KB · Views: 520
  • NASA-VG-VSTOL-1970d.jpg
    53.9 KB · Views: 580
  • NASA-VG-VSTOL-1970c.jpg
    78.7 KB · Views: 475
  • NASA-VG-VSTOL-1970b.jpg
    84.5 KB · Views: 614
  • NASA-VG-VSTOL-1970a.jpg
    77.4 KB · Views: 751
  • NASA-VG-VSTOL-1970.jpg
    59.2 KB · Views: 601

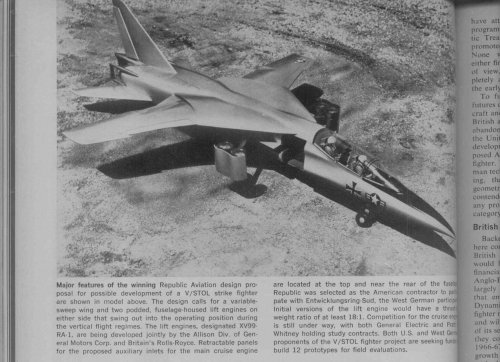

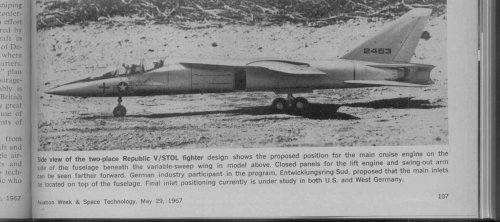

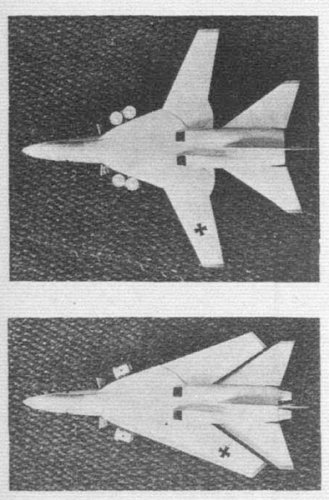

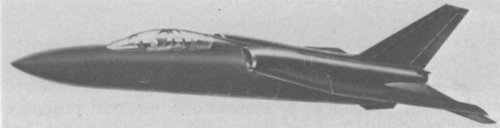

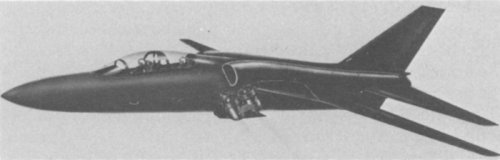

Here are 2 pictures of Republic/EWR proposals, which could be identical to the
NASA models.
(from Aviation Week, May 1967)


  • RepublicVSTOL-strike-fighter-1.JPG
    117.9 KB · Views: 852
  • RepublicVSTOL-strike-fighter-2.JPG
    210.5 KB · Views: 1,025

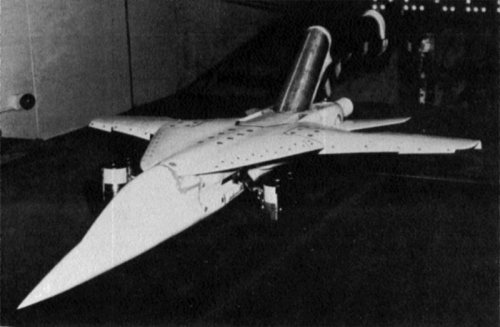

This is definitely AVS related

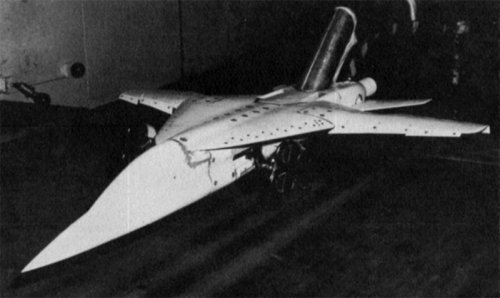

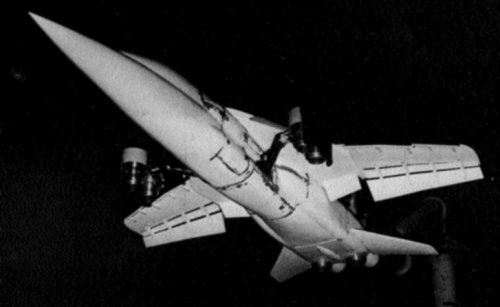

Cook, Summary of Lift and Lift/Cruise Fan Powered Lift Concept Technology


  • NASA-AVS-5.jpg
    79.1 KB · Views: 532
  • NASA-AVS-4.jpg
    63.4 KB · Views: 549
  • NASA-AVS-3.jpg
    89.3 KB · Views: 540
  • NASA-AVS-2.jpg
    23.5 KB · Views: 427
  • NASA-AVS.jpg
    24.7 KB · Views: 357
Last edited:
Better pic

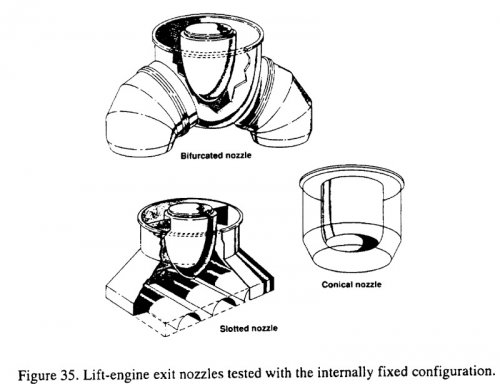

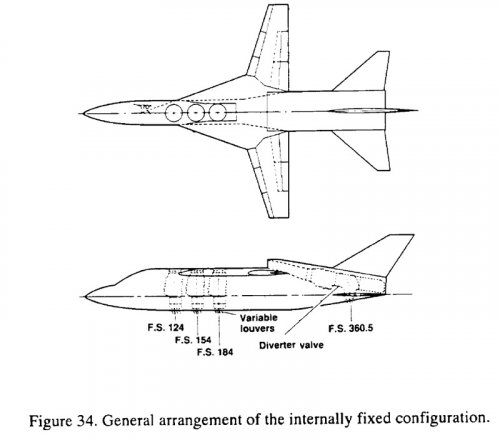

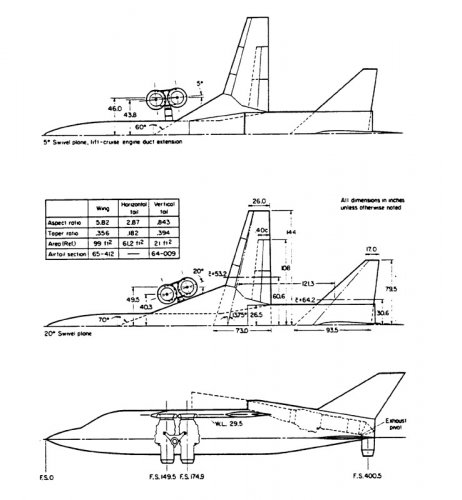

Hicky & Kirk. Survey of lift-fan aerodynamic technology



  • NASA-AVS-6.jpg
    53.6 KB · Views: 548
  • NASA-AVS-7.jpg
    65.9 KB · Views: 538
Last edited:
I love this site. Thank you, thank you. I have been after this stuff for lord knows how long

Uk 75
I will try and find the list of ADAM projects. It came from a German magazine called Fliegerrevue in about 1966 or so, but my cuttings are all over the place, so it will take a while to track down. Fliegerrevue is brilliant but hard to find.

UK 75

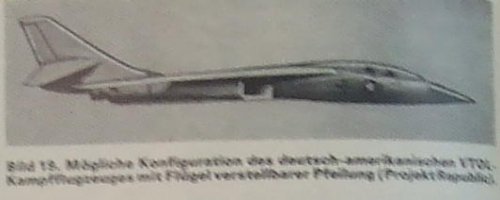

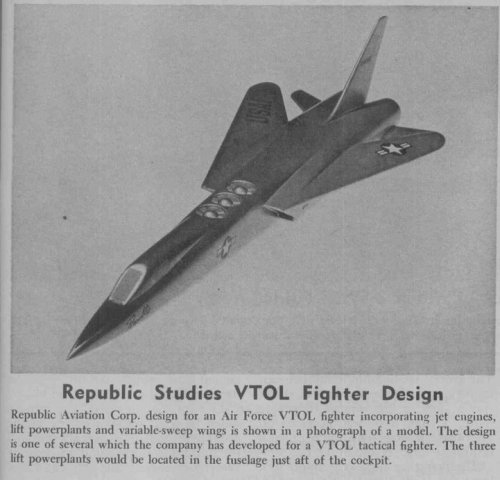

Another Republic VTOL fighter design with VG wings :
(from Aviation Week 1965 10-17)


  • Republic-VTOL-fighter.JPG
    66.7 KB · Views: 1,066
flateric said:
More pics of third configuration

Hmm, is it just me or does this configuration resemble the vstol version of the Type 583?
AVS info from Flight:

Article on demise of AVS


Dr Schroder, West German Defence Minister, on his visit to the MoD in Whitehall on Monday this week, was expected to sound out British reactions to dropping the BAC (Preston) VG project and joining in the NKF. The specification outlined by the West German Defence Ministry calls for STOL—in little more than 1,000ft at full gross weight—and a high subsonic speed on the deck. Speed at altitude is to be over Mach 1.5. Various roles which the aircraft is to perform include air defence, close air support and interdiction. The last role would be performed by a two seat aircraft which would also serve as a conversion trainer.

The two main German industry groups, VFW in the north and EWR in the south, are making studies independently. Proposals are expected in March. While it is expected that a joint proposal will be submitted, individual proposals may also be received by the Defence Ministry. VFW's work on the requirement centres upon possible developments of the at present experimental VAK 191B V/STOL aircraft, a joint project with Fiat in Italy. EWR's study is essentially a scaled down AVS, with one seat and a single engine. While retaining the swing-wings of the AVS, pop-out lift engines of the bigger US-German project are deleted. Main-engine thrust vectoring by means of a swivelling jet-pipe nozzle is, however, believed to be an AVS feature retained.



  • FlightAVS2.jpg
    71 KB · Views: 938
  • FlightAVS.jpg
    50.5 KB · Views: 1,053
The saga of the AVS fascinates me. From what I have found out so far there seem to be a number of distinct versions, reading from the last first:

A 400: The curvy version which later became the more conventional NKF predecessor to Tornado.

AVS (A300?): In this version the engines had been split at the back above the fuselage.

AVS (A200?): In this version the engines were paired together in a single box at the back above the fuselage.

AVS (early versions) First versions of the AVS seem to show an F111 type aircraft with underwing side engines.

Sources refer to Fairchild Republic taking over the US end of the programme from Boeing. Maybe Buttler's new book in October on US fighters will shed more light on the evolution.

UK 75
From UKVG files at National Archives, AIR20/11761

AVS Specs

RVTO: 265nm, 2000lb, internal fuel
STO: 235nm, 2000lb, internal fuel
Max warload: 16,000lb
Speed: Mach 1.2 (SL) Mach 1.6 (height)
Ferry range: 2600nm

Auto terrain following, LLLTV, laser rangefinder.

Development costs: £250 million
Unit cost: £1.5 million (production run of 500)

From USAF presentation & ZE/110/04 (Mintech, 24 Oct 1967)

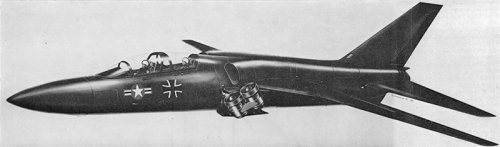

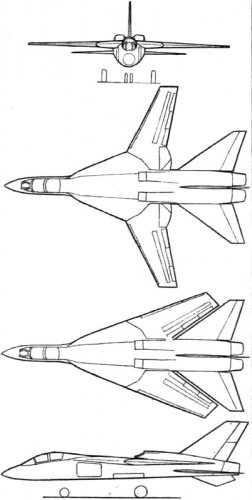

And just found : One more artist's impression of the AVS proposal,
from Flight Review, March 1968, unfortunately with very little further
information :


    38.9 KB · Views: 920

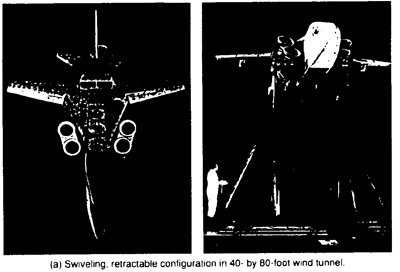

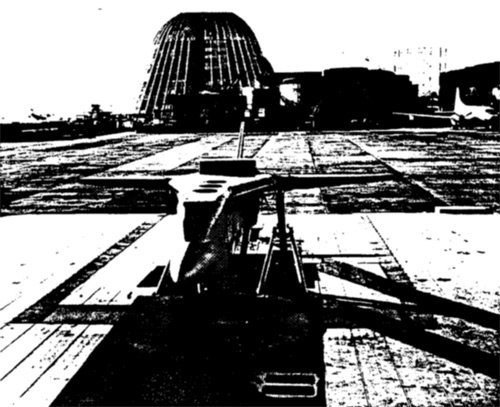

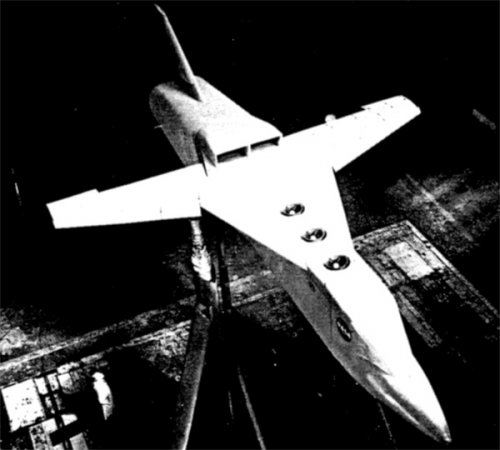

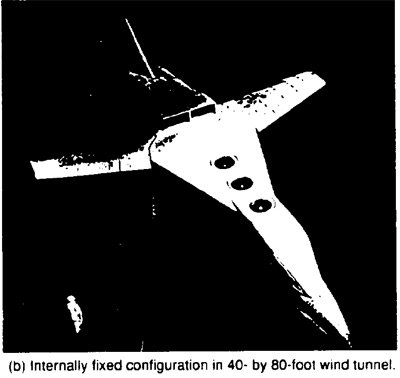

More AVS related testing at NASA

by Jerry V. Kirk and Jerry P. Barrack
Ames Research Center

Last edited:
More on the AVS.

Originally Boeing was the US partner on this project, and presumably hoped to get some work to make up for losing TFX. I am not able to find out anywhere why Boeing were replaced by Fairchild Republic.
Intriguingly the FR proposal in the 70s for a VSTOL carrier fighter seems to derive from their AVS work, but again no info.

UK 75

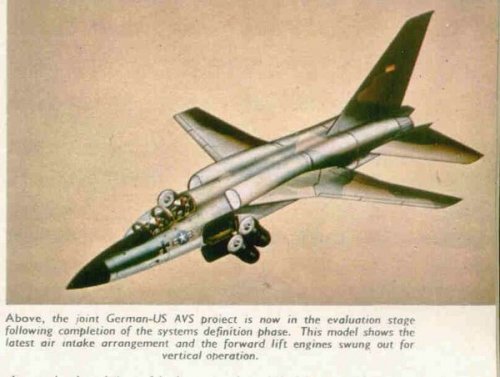

Better version of this known picture.


Flying Review International, August 1968


  • AVS.jpg
    56.1 KB · Views: 598

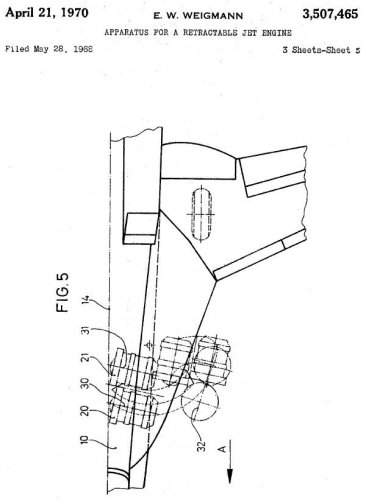

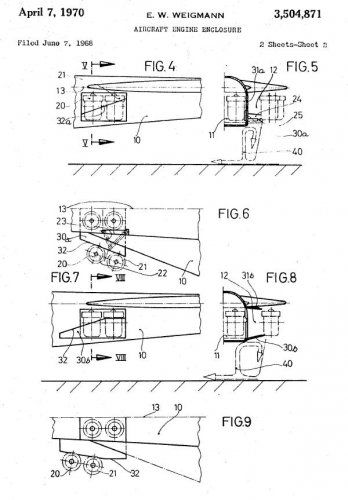

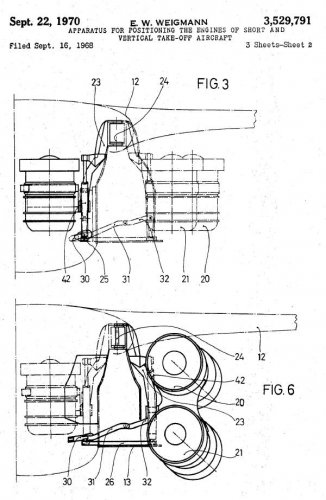

Found some patents which I believe are for the swing out engines.

Surely these things would create huge drag when deploying ???



  • avs003 (2).JPG
    avs003 (2).JPG
    73.6 KB · Views: 346
  • avs002 (2).JPG
    avs002 (2).JPG
    91.9 KB · Views: 314
  • avs001 (2).JPG
    avs001 (2).JPG
    50.9 KB · Views: 340
uk75/#26: Originally Boeing was the US partner on this project, and presumably hoped to get some work to make up for losing TFX. I am not able to find out anywhere why Boeing were replaced by Fairchild Republic. Start at:

It is legitimate for armchair contemplators like us to take known events, and kite some plausible links and causes. So: try this. It's 1964:
a) Boeing has lost TFX to GD/Grumman; that would have been built in Wichita, empty now (relatively) after B-47/B-52.
b) New W.German (FRG) Aero-industry is well-established in fabrication (F-104G &tc), but has as yet done little original R&D. It has footled with V/STOL, erratically, since 1958, part-funded by US MWDP/Paris, who also stimulated NBMR.3 V/STOL supersonic fighter-bomber, intended to replace MWDP/NATO FIAT/Dornier G.91. France scuppered that mid-64, by demanding anyMirage; UK, peevish, went off to do P.1154(RAF). What to do with new FRG-Aero (and FIAT), expensively tooled by US MSP, 1955-57?
c) NATO Battle Plans in disarray: WarPac IRBMs/SSMs reduce runways' utility. At what point does NATO utilise Theatre nukes?
d) FRG seethes as US/UK cheerily discuss such things, oblivious to the "Theatre's" landlord. Hello! Do I have a say in this? Well, No. No FRG finger on nuclear triggers.
e) 1963-65: much political noise about Multilateral (Nuclear) Force, or UK's spoiler, Atlantic Nuclear Force. Notions of mixed-manned Units (trialled on a US DDG as prelude to surface-launched Polaris A3), and of pooling of assets, inc. TSR.2 RAFG Squadrons.

So: great confusion. Do we invest in anything below Counter-Value Armageddon?

DoD funds Boeing mid-64 to study (to be AVS), in part as a sop, post-TFX (their most recent fighter had been a Peashooter). Much FRG/US/NATO money for new FRG teams to play at verticality. As part of UK's US-credit-package, starting 27/2/64 (Tory Govt.) with F-4K, expanded April,65 to inc. C-130K/F-4M/F-111K, "offset" incs. hefty US funding for RR/Allison/M.A.N XJ99 liftjet, and FRG/US money for RR/BSEL/M.A.N swivelling/vectoring/lifting RB145/153/193...with no evident US/UK berth.

In 1965 NATO settles on extension, even from Norge to Turk, of the dual-key scheme applicable since May,1958 to nukes in RAFG Canberra B(I)6/8. We all fly for Saceur, we all participate in his planning/targetting. Ditch MLF/ANF. FRG has its finger, equal with US/UK, and better than France (telling US 1/7/66 to scarper, all gone by 4/67). Kestrel Tripartite Evaluation Squadron (inc. Luftwaffe and USAF), 1/4-30/11/65, tells us that V/STOL has payload-range, maintainability, and expense issues.

Fairchild, having taken Hiller in 1964, adds Republic in 1965: idle, bored. Boeing launches 737, mostly to be fabricated in...Wichita. US SST contest now down to Boeing v Lockheed (2707 selected 31/12/66). (Buggins' turn), Boeing put their sweat to better use. Early-68, so does FRG Govt, dumping V/STOL for NKF-75, by July forming a team of 6 Nations/7 Air Arms on short-ish/TOL, very grunty (to be) Tornado.

V/STOL was killed by the exact engine technology that made it possible: all that vectoring and swivelling led to nozzles, power, longevity, maintainability, economy, that permitted short-ish ops from autobahns: what Sweden and Switzerland did with early jet types, UK, FRG, Italy could do with (to be RB199).

Just a thought.

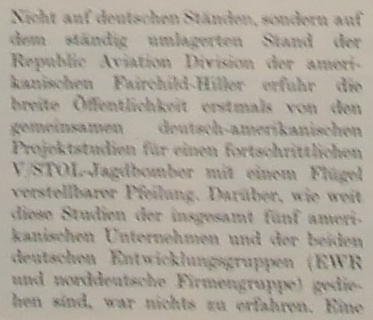

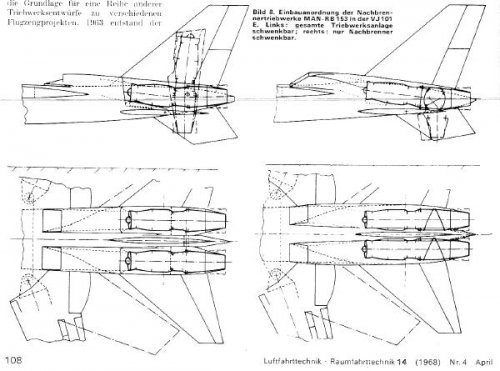

Apologies for the poor pictures but anyone know more about this one...?


  • DSCF1983 (2).jpg
    DSCF1983 (2).jpg
    23.4 KB · Views: 256
  • DSCF1983 (3).jpg
    DSCF1983 (3).jpg
    28.6 KB · Views: 191
  • DSCF1983 (4).jpg
    DSCF1983 (4).jpg
    14.5 KB · Views: 131
  • DSCF1983 (5).jpg
    DSCF1983 (5).jpg
    14.4 KB · Views: 162
Interesting find, haven't seen the concept for the completely tilting cruise/lift engines on the VJ-101E before !
Was there a complete drawing/3-view in Luft/Raumfahrttechnik ?
Last edited by a moderator:
Afraid not, I only copied the page that was on - there was a diagram of the rotating nozzle but I was in a hurry and didn't get that page.

Woo, colour!

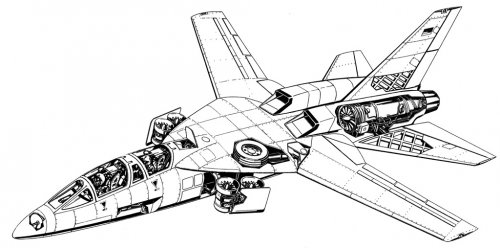

From From Above and Beyond the Encyclopedia of Aviation and Space Sciences Vol13 Tra to Win



  • scan0014a.jpg
    154.5 KB · Views: 940
Hi All -

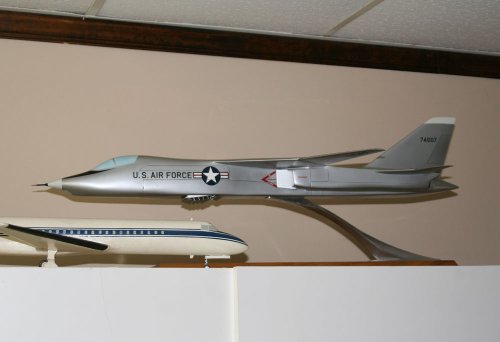

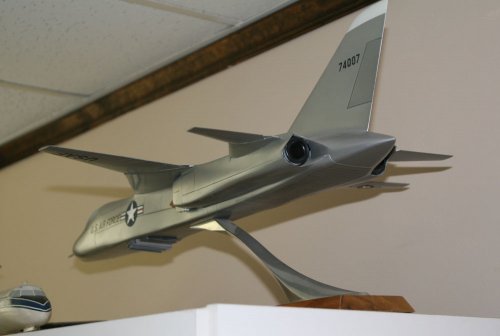

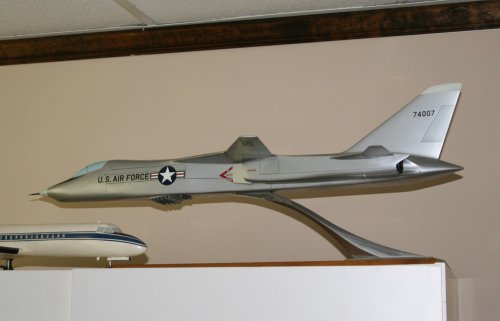

Stopped by the St. Louis Aviation Museum and while walking my son back through the building to the bathroom, I eyed the following model in one of the side rooms. Any ideas as to what it is?

Enjoy the Day! Mark


  • xUnk McD-D Model - 1.jpg
    xUnk McD-D Model - 1.jpg
    155.8 KB · Views: 819
  • xUnk McD-D Model - 2.jpg
    xUnk McD-D Model - 2.jpg
    88.4 KB · Views: 773
  • xUnk McD-D Model - 3.jpg
    xUnk McD-D Model - 3.jpg
    84.6 KB · Views: 792
Its not related to their TFX contender is it? Maybe a design concept?


Orionblamblam said:
It's VTOL, whatever it is...

The variable geometry *tailplanes* are certainly odd.

Great find!

Thats a lot of effort and engineering!
