ADF to LWF: Evolution of the General Dynamics F-16

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
688
Reaction score
423
Wow, the clean-ups look great! Thanks! I'm a big F-16 fan and have been collecting material on this bird since it was rolled out (I was in high school, a looong time ago). I fell in love with the YF-16 and thought it was the hottest looking plane around. I do have a nice F-16XL Cunningham drawing with the plane in r/w/b markings and a slightly different tail which I'll try to post this weekend.
Mark- I want to thank you for all your posts. I've been lurking around here for awhile and have been amazed by items you have posted. I have been especially pleased with the matieral on the naval version of the F-16, I tried to obtain this stuff from LTV years ago and they never responded (maybe it was a sore spot?).


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
688
Reaction score
423

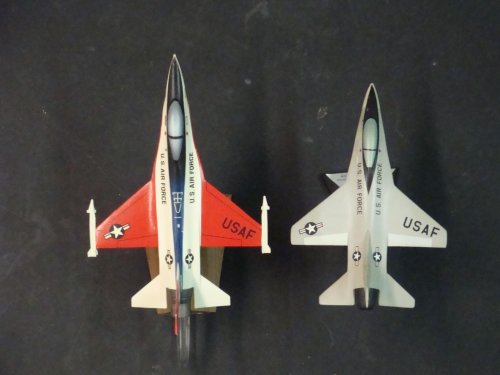

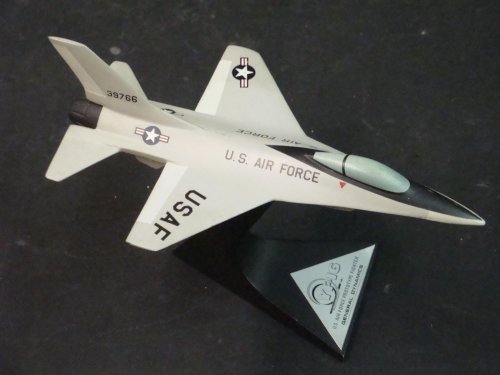

Hi- Wanted to share an intersting model with you. I found this on Ebay with a low Buy It Now price and grabbed it. It appears to be an in-house model of a close to final configuration for the F-16. It is a solid, pretty heavy little model. In the second photo I have it next to a Precise YF-16 for comparison. You can see it is a little smaller than the Precise -16 and is mounted differently. The markings also look like those found on early drawings for the model 401. Besides no wingtip missile rails, the engine exhaust is also a little different different.


Attachments

  • Model 401.jpg
    Model 401.jpg
    1.1 MB · Views: 189
  • Model comparison.jpg
    Model comparison.jpg
    1.1 MB · Views: 221

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,913
Reaction score
280
RAP said:
It appears to be an in-house model of a close to final configuration for the F-16.

You can see it is a little smaller than the Precise -16 and is mounted differently.

Very interesting find!! And very observant on your behalf RAP!!
I would be very interesting to see if the combined knowledge of our colleagues can confirm your analogy!
After all, if this is the case, I'm sure the likes of John Boyd, Pierre Sprey and Everest Riccioni would have been happier to have seen s slightly smaller and lighter F-16 to that of the F-16, which in itself grew in size and weight (and complexity) from that of the original YF-16A!!

Regards
Pioneer


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
688
Reaction score
423

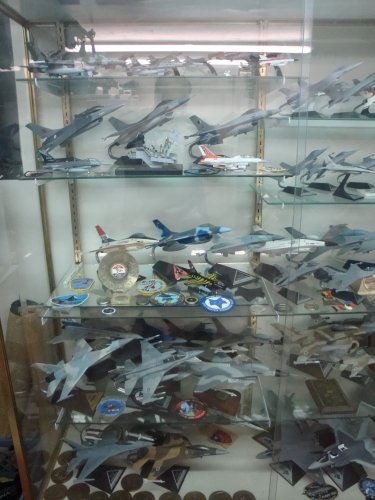

I had not thought about that. I thought if it was a GD model than perhaps they made it in a different scale. I think a lot of in-house models were made in different scales, i.e. 1/60 vs. 1/72, 1/40 vs. 1/48. I'm not sure why. Maybe someone with more knowledge of these can provide insight, Circle-5? Attached are 2 shots of my F-16 model collection. Its a combo of mfg. models and commerical models. Anyone out there with a unique F-16 model, please post a shot. (Don't know if this is the proper place for this so please move it its not, thanks).


Attachments

  • 003.JPG
    826.2 KB · Views: 1,845
  • 004.JPG
    829 KB · Views: 1,613

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240

Attachments

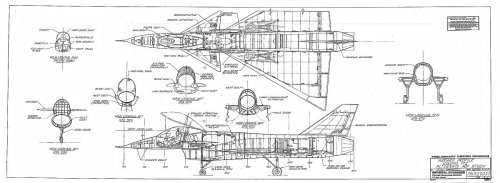

  • AA_19710406_ADF_Config_401B_1267828237_3743-sm.jpg
    166.5 KB · Views: 1,390
  • AA_19710813_ADF_Config_772_inboard_1267828237_5922-sm.jpg
    124.2 KB · Views: 2,472
Last edited:

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
688
Reaction score
423
Great stuff. Thanks!


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,054
Reaction score
336
They're *both* absolutely fascinating! The canard delta because its high LE sweep angle and uncropped tips are unmistakably reminiscent of famous predecessors from the era when the company was still known as Convair: sort of a F-106/F-16 missing evolutionary link! Meanwhile, the twin tail design is stunningly close to the Su-27 (and also the single-engine S-54/55/56) - I've always held that in purely technical terms (as opposed to military role) the F-16 resembles the Flanker most out of its Western contemporaries, rather than the F-14 or F-15.


Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,814
Reaction score
658
Very much a J-10 !!


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,860
Reaction score
317
Yeah, I immediately thought of the Convair model 200 series when I first saw it. I was wondering if it was an actual design, or a reference design just to use to compare it with their baseline LWF design. Whatever the reasoning, it's a cool looking design.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240
"Alternate ADF study" makes me think this was a deliberate evaluation of the Convair-200-style canard delta layout to make sure it wasn't better than the tailed layout.


kcran567

ACCESS: Top Secret
Joined
Aug 15, 2009
Messages
666
Reaction score
18
RAP said:

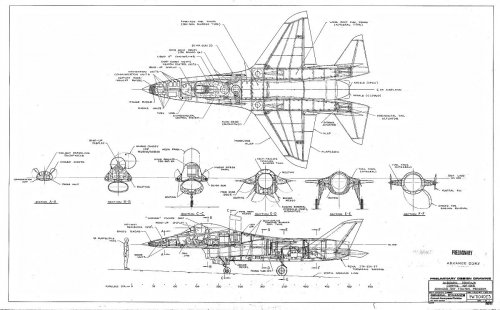

Here are a couple of drawings of the 401 twin tail design. I apologize for the quality, the drawings were large and folded. I have a couple of other drawings that I'll post a little later.


For some reason I really like this design. The wing planform reminds me of the space shuttle's delta shape.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240

Twin-Engine Lightweight Fighter
Configuration 503 was part of the design studies that led to the YF-16. Drawing dated 20 January 1972.

Uses two F-16 style pitot intakes with, presumably, twin GE J101 engines. Large drawing on CodeOne website.


Attachments

  • AA_19720120_LWF_Config_503_1267828237_6198-sm.jpg
    97.2 KB · Views: 2,189
Last edited:

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
9
Do you have another part of this drawing?


index.php


codeone

ACCESS: Confidential
Joined
Oct 7, 2010
Messages
56
Reaction score
4
what part?


We have some variations in the ADF collection (yet to be posted). Stay tuned.


I also have a collection of photos of desk models from the LFW design studies... somewhere.



--C1


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240

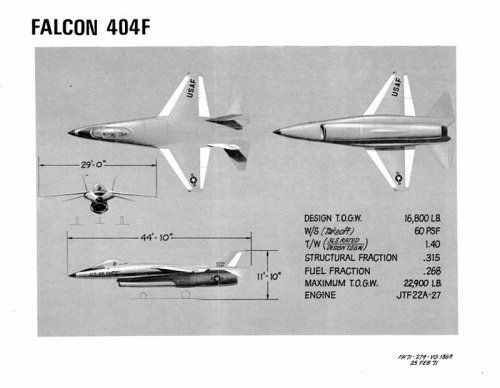

Another variation from Feb 1971 - 404F.


Source: CodeOne Facebook page


Attachments

  • 8511_680312125319429_2145604466_n.jpg
    51.8 KB · Views: 361

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240
RAP said:
Hi- Wanted to share an intersting model with you. I found this on Ebay with a low Buy It Now price and grabbed it. It appears to be an in-house model of a close to final configuration for the F-16. It is a solid, pretty heavy little model. In the second photo I have it next to a Precise YF-16 for comparison. You can see it is a little smaller than the Precise -16 and is mounted differently. The markings also look like those found on early drawings for the model 401. Besides no wingtip missile rails, the engine exhaust is also a little different different.


Tailplane trailing edge is straight as well, not swept forward and the LERX is straight edged.


If its not just inaccurate, it seems closest to Model 401F-10A

Last edited:

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
342
Reaction score
12
When I first saw that delta canard F-16 I thought it was related to the GD Model 200 but when I looked at it closer I realized it was more F-16 that 200 and even looks kinda like the Lavi. I think I've read somewhere here in SPF that an early Lavi design was a modified F-16, does this delta canard have anything to do with Lavi?


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,418
Reaction score
827

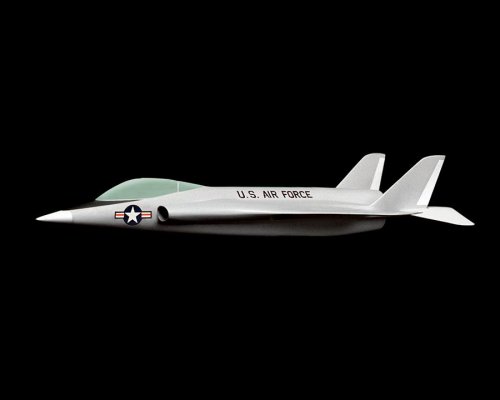

From CodeOneMagazine Facebook site.


Attachments

  • 1393428_804915252859115_1729228138_n.jpg
    15.2 KB · Views: 857

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,418
Reaction score
827
CodeOneMagazine - YF-16 Evolution B) ;D


The F-16, as finally completed in prototype form, was a synthesis of advanced state-of-the-art technologies that had been explored for years, but until the advent of the new General Dynamics airplane, had never been blended together in a single airframe.

These charts are from Harry Hillaker's F-16 presentation he often gave after his retirement.



I won't download all picture charts and attach them to this topic. It would just blow up this topic.
Maybe a Mod could attach all picture charts in one compressed file (.zip / .rar) to this topic.


Attachments

  • Hillaker_F16_01_1267828237_1542.jpg
    146 KB · Views: 692

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240
30MB PDF (61 pages) HERE.


Don't forget to visit CodeOne website


http://www.codeonemagazine.com/gallery_slideshow.html?gallery_id=170


And say thanks in comments on the site or via Facebook etc.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240
And now some discussions provoked by this document. Interesting pics of early concepts:


Attachments

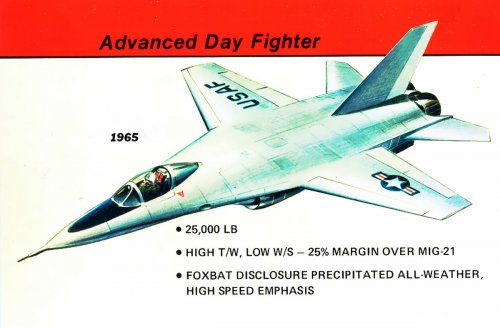

  • ADF.jpg
    160.1 KB · Views: 609
  • LWF.jpg
    162.9 KB · Views: 1,482

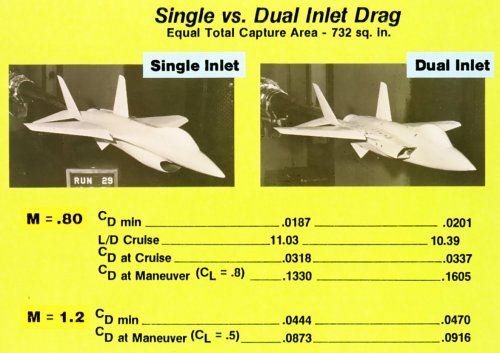

  • LWFIntakeModels.jpg
    180.6 KB · Views: 613

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,656
Reaction score
4,240

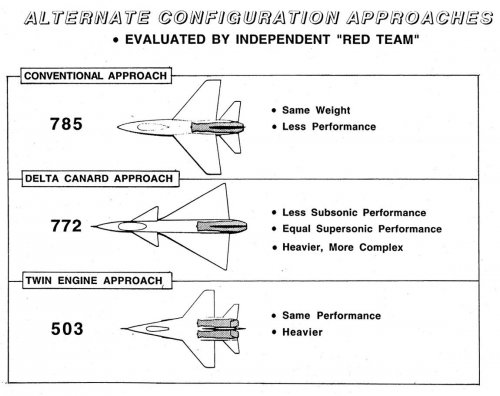

785, 772, 503 designs were alternate "Red Team" studies to test against the 401 design.


785: same weight, lower performance.


772: less subsonic performance, equal supersonic performance, heavier, more complex.


503: same performance but heavier


Attachments

  • Hillaker_F16_62_1267828237_2223.jpg
    104.6 KB · Views: 715

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,418
Reaction score
827
PaulMM, unfortunately I can't download your pdf-file. It stops at 6.2/ 29.5 MB. :(

Edit: Just downloaded it with my tablet. :)


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
688
Reaction score
423
Great find, thank you!


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,089
Reaction score
673
Website
beyondthesprues.com
Is it just me or does the 772 design look a bit like the J-10…or is that the J-10 looks a bit like the 772? ;)


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,860
Reaction score
317
So that twin engine single seat swing wing we've seen over at APR for a long time is just a swing wing version of the ADF. Very cool.
