1960s Focke-Wulf FW 260 and FW 300 VTOL jet airliners

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,873
Fw 260 medium range and Fw 300 short range transports

Source: Flying Review International Vol 18, Issue 11


Attachments

  • FW-260.jpg
    40.4 KB · Views: 631
  • Fw300.jpg
    42.5 KB · Views: 600

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,020
The Fw 260 with another engine layout:
(from AviationWeek 19 1962)


Attachments

  • Fw-260.JPG.jpg
    50.5 KB · Views: 559

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38

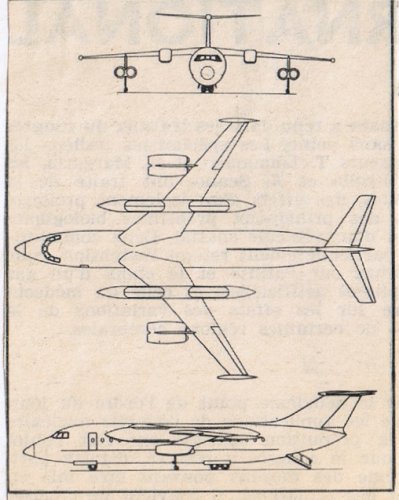

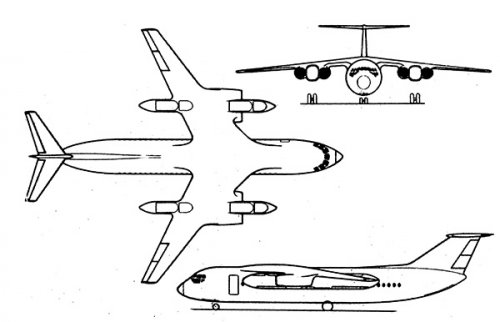

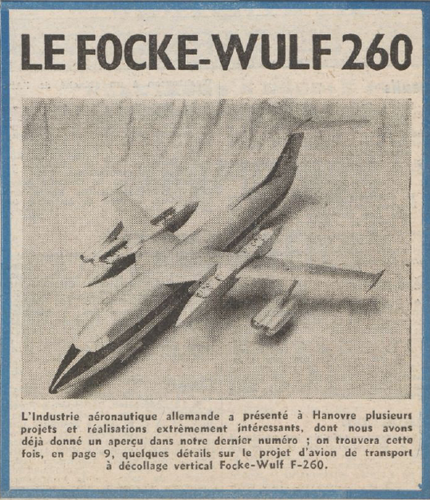

3 Views of the first FW 260 + FW 300

From Aviation Magazine and Flug Revue of the early 60'


Attachments

  • FW 260.jpg
    FW 260.jpg
    155 KB · Views: 601
  • FW 300.jpg
    FW 300.jpg
    139.6 KB · Views: 568

Vietcong

Avation Enthusiast from VN
Joined
Jan 11, 2010
Messages
76
Reaction score
4
Website
aviationprojects.blogspot.com
Can anyone explain to me for this pic .I don't know that this pic was fake or it was an another variant of fw 300 equipped with jet engines. ???


Attachments

  • focke-wulf-fw-300-reconn-1.jpg
    9.3 KB · Views: 76
J

joncarrfarrelly

Guest
Early 1960s project for a VTOL jetliner, nowt to do with the WWII period FW 300.

http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200872.html

http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200938.html

http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200997.html


Lauge

ACCESS: Secret
Joined
Jan 30, 2008
Messages
434
Reaction score
7
Additionaly, there's Aerospace Projects Review Issue V1N3 (http://www.up-ship.com/apr/volume1.htm), which describes the 1960'ies era FW 300 VTOL jet airliner, with podded underwing lift engines.

Or see also http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200871.html (lower right-hand corner of the page).

Regards & all,

Thomas L. Nielsen
Luxembourg


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com
Focke Wulf Fw 260 mid-range aircraft, design was begun in 1960.


From Flight International:

The Focke Wulf Fw 260 is intended to carry a useful load of 24,0001b and to cruise at 568 m.p.h. (M0.85) at 36,000ft. Cabin layout is for 85 tourist passengers, and economic stage lengths are between 310 and 1,250 statute miles, though this could be extended to 2,000 miles with reduced payload. Passenger access is by integral stairway under the tail. Empty and equipped weights are respectively 49.0001b and 53,6001b. Gross weight is 99,0001b. Span and length are respectively 80ft 6in and 11 lft.

From Luftfahrttechnik, Raumfahrttechnik Band 8 (1962): 163. West Germany:

Focke Wulf Fw 260 (1962)

  • Lift Power: 12 x 35.1 kN engines
  • Lift/Cruise Power: 4 x 40.7 kN engines
  • Cruise Speed: 910 km/h @ 11,000 m altitude
  • Maximum VTOL Range: 3,200 km (1730 nm)
  • Wingspan: 24.5 m (80.4 ft)
  • Wing Area: 89 m² (958 ft²)
  • Length: 33.9 m (108.3 ft)
  • Height: 7.4 m (24.3 ft)
  • Empty Weight: 22,350 kg (49,275 lb)
  • Payload: 11,000 kg
  • Capacity: 85 passengers
  • Maximum VTOL Weight: 45,000 kg (99,200 lb)

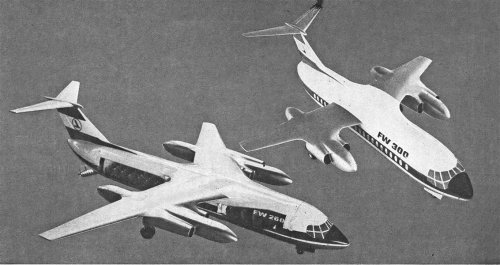

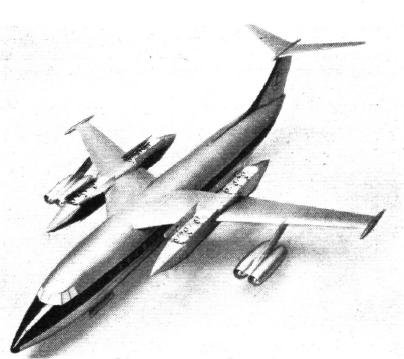

Model of Focke-Wulf Fw260 circa 1962.

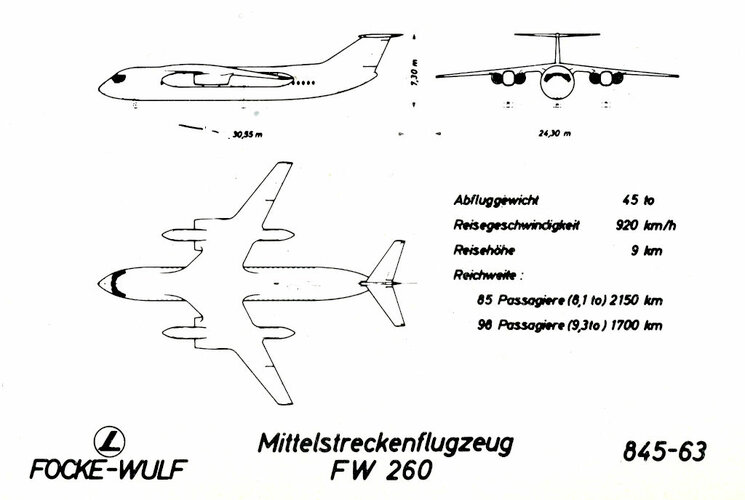

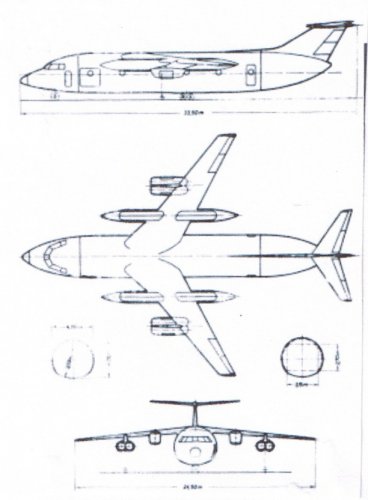

Three-view drawing of Focke-Wulf Fw260 circa 1962,

Sources:
http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%200689.html
http://www.aiaa.org/tc/vstol/unbuilt/
Luftfahrttechnik, Raumfahrttechnik Band 16 (1970): 15-20. West Germany.
The V/STOL Encyclopedia Series: Volume 1 Germany 16 July 2001.


Attachments

  • Fw260.JPG
    19 KB · Views: 71
  • fw_260a_3.jpg
    44.5 KB · Views: 94

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com
Focke Wulf Fw260 (1963)

  • Lift Power: 12 x 35.6 kN engines
  • Lift/Cruise Power: 4 x 40.7 kN engines
  • Cruise Speed: 920 km/h @ 9,000 m
  • Maximum VTOL Range: 3800 km (2050 nm)
  • VTOL Range with max Payload: 1700 km
  • Service ceiling: 9,000 m (29,500 ft)
  • Wingspan: 24.3 m (79.7 ft)
  • Wing Area: 89 m² (958 ft²)
  • Length: 30.55 m (100.2 ft)
  • Height: 7.5 m (24.6 ft)
  • Empty Weight: 22,350 kg (49,275 lb)
  • Maximum fuel load: 16,500 kg (36,376 lb)
  • Payload: 11,000 kg (24,250 lb)
  • Capacity: 98 passengers (1,700 km) or 85 passengers (2,150 km)
  • Maximum VTOL Weight: 45,000 kg (99,200 lb)


Sources:
http://www.aiaa.org/tc/vstol/unbuilt/
Luftfahrttechnik, Raumfahrttechnik Band 16 (1970): 15-20. West Germany.
The V/STOL Encyclopedia Series: Volume 1 Germany 16 July 2001.


Attachments

  • fw_260b_3.jpg
    39 KB · Views: 80

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com
Focke Wulf Fw300

  • Lift Power: 8 x 22.1 kN engines
  • Lift/Cruise Power: 4 x 20.1 kN engines
  • Cruise Speed: 845 km/h @ 9,000 m
  • Maximum Range with max Payload: 370 km
  • Maximum Range: 2,500 km (1350 nm)
  • Wingspan: 16.6 m (52.2 ft)
  • Wing Area: 47.7 m² (513 ft²)
  • Length: 22 m (72.2 ft)
  • Height: 6 m (16.7 ft)
  • Capacity: 58 passengers (range: 370 km)
  • Capacity: 48 passengers (range: 850 km)
  • Empty Weight: 11,035 kg (24,250 lb)
  • Maximum fuel load: 6,245 kg (13,768 lb)
  • Payload: 5,500 kg (12,125 lb)
  • Maximum VTOL Weight: 20,000 kg (44,092 lb)

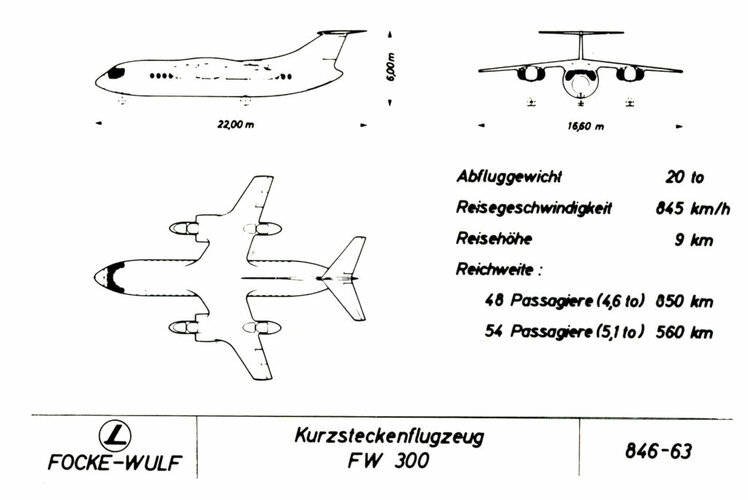

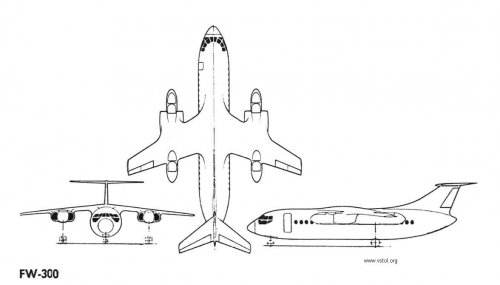

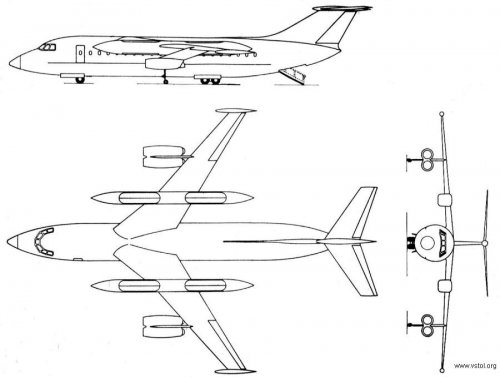

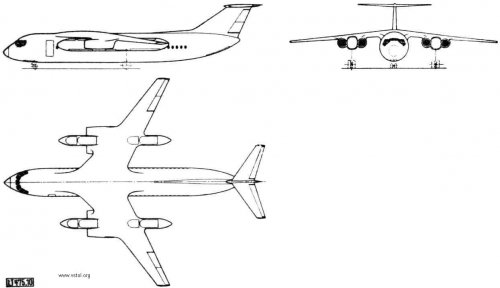

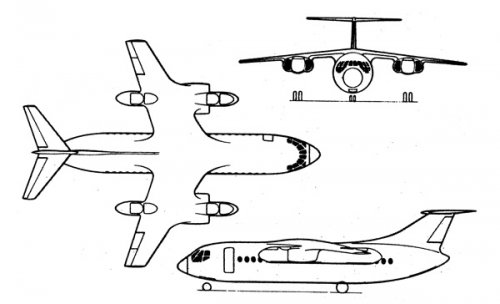

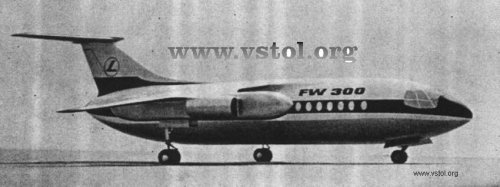

Three-view drawing of Focke Wulfe Fw300.

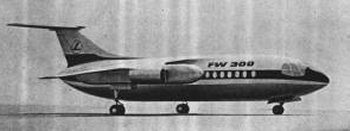

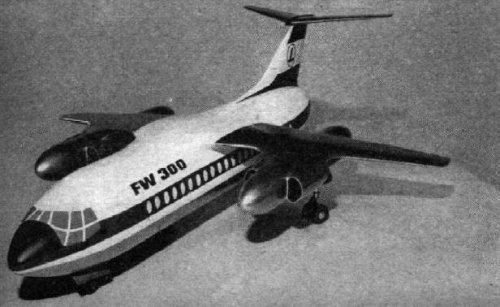

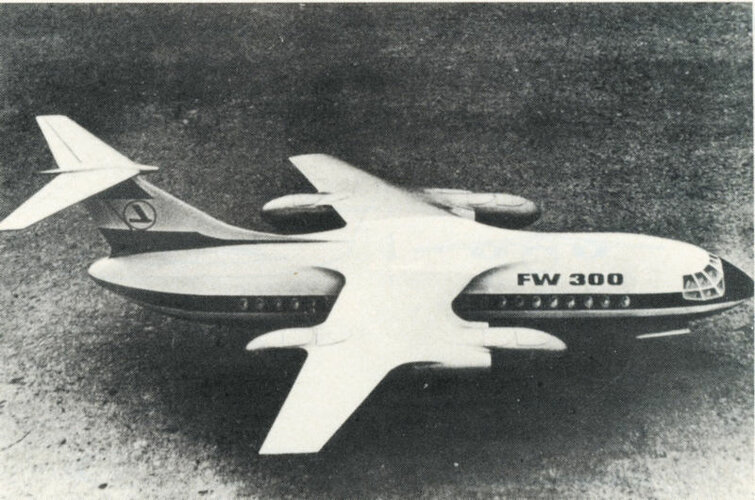

Model of Focke Wulfe Fw300.

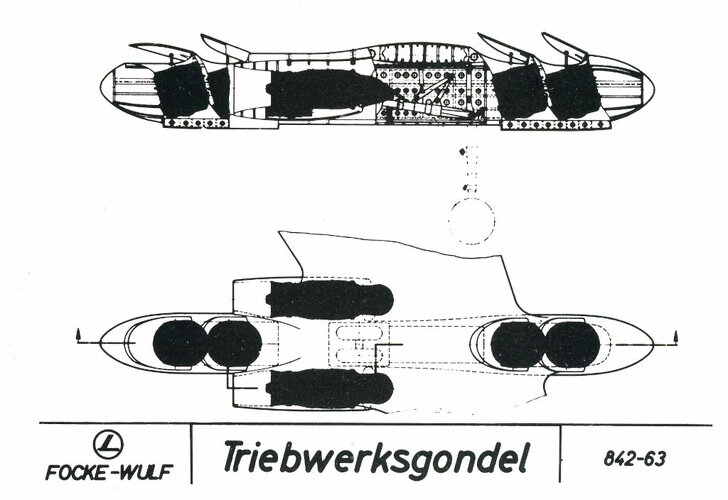

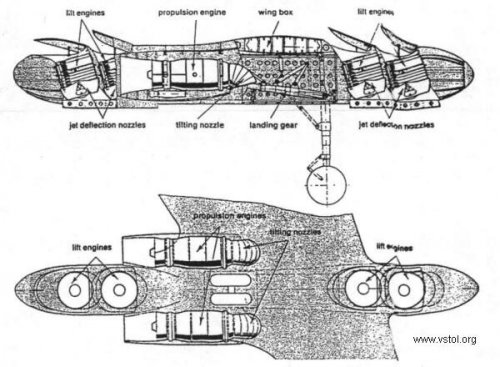

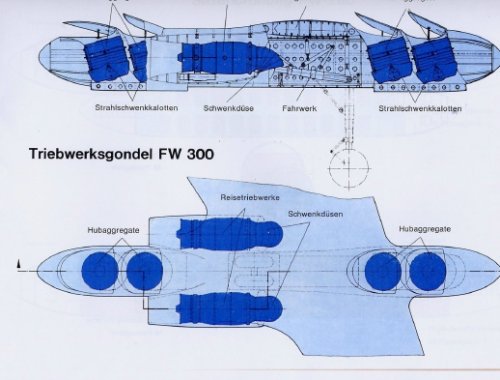

Diagram of Focke Wulfe Fw300 powerplant.


Sources:
http://www.aiaa.org/tc/vstol/unbuilt/
Luftfahrttechnik, Raumfahrttechnik Band 16 (1970): 15-20. West Germany.
The V/STOL Encyclopedia Series: Volume 1 Germany 16 July 2001.


Attachments

  • fw_300pod.jpg
    49 KB · Views: 445
  • fw_300.jpg
    40.2 KB · Views: 444
  • fw_300_3.jpg
    39.4 KB · Views: 464

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
467
Topics merged.

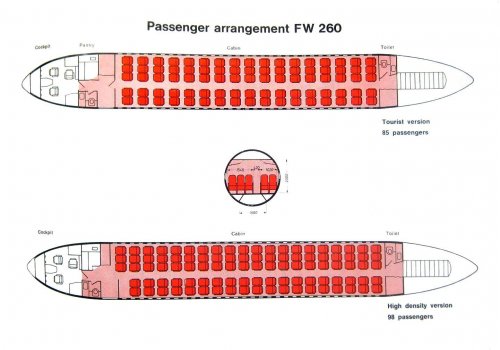

Here is a series of color pictures from an original company brochure (please forgive the slight warp on the seating arrangements, which results from the document being photographed and not scanned).


Attachments

  • FW brochure cover.jpg
    FW brochure cover.jpg
    356.2 KB · Views: 75

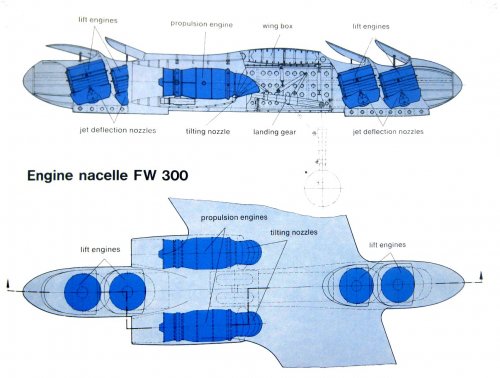

  • Engine nacelle FW 300.jpg
    Engine nacelle FW 300.jpg
    205.4 KB · Views: 83
  • passenger arrangement FW 260.jpg
    passenger arrangement FW 260.jpg
    163.4 KB · Views: 72

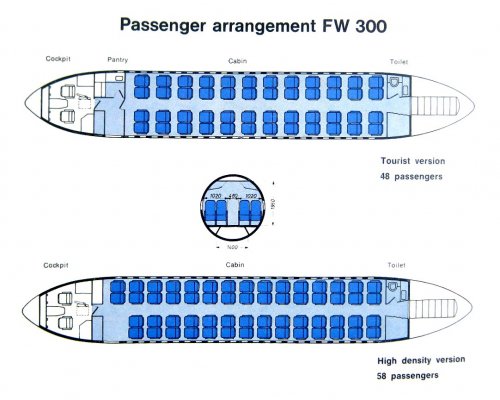

  • Passenger arrangement FW 300.jpg
    Passenger arrangement FW 300.jpg
    141.7 KB · Views: 55

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

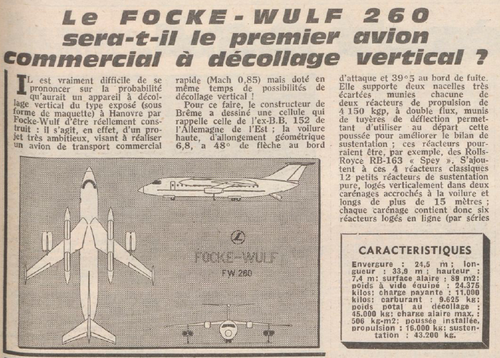

Source:
http://lotnictwo.net.pl/3-tematy_ogolne/13-lotnictwo_cywilne/67925-futurystyczne_projekty_samolotow_pasazerskich-5.html


Attachments

  • Focke-Wulf FW-260_SP_6-1963.jpg
    Focke-Wulf FW-260_SP_6-1963.jpg
    693.3 KB · Views: 67

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

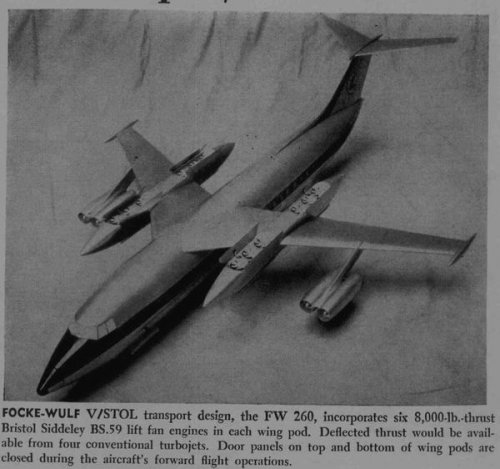

Model of Focke Wulf Fw260 and Focke Wulf Fw300

Aviation Week & Space Technology June 24, 1963


Attachments

  • 1963062474_1.jpg
    147.7 KB · Views: 60

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,076
Reaction score
3,754

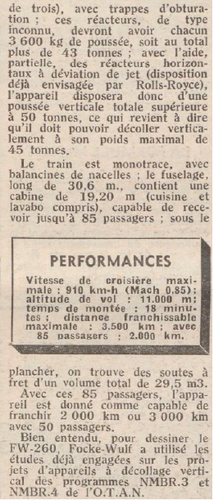

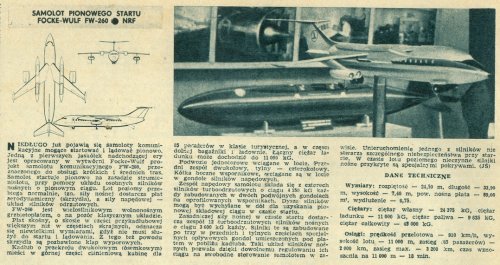

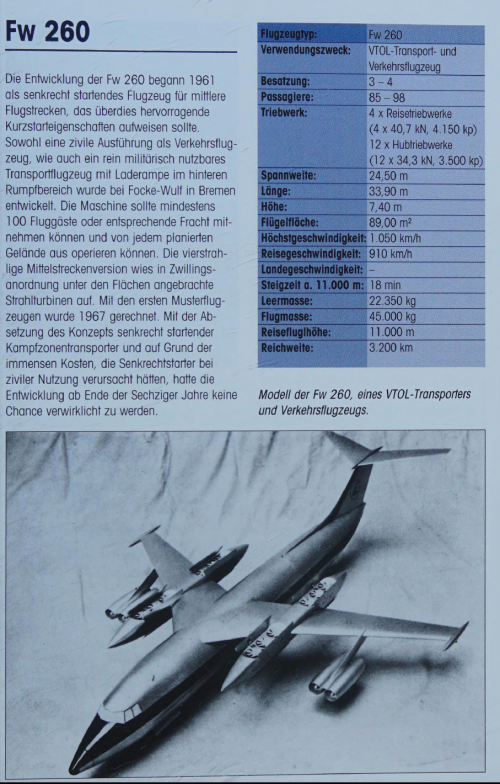

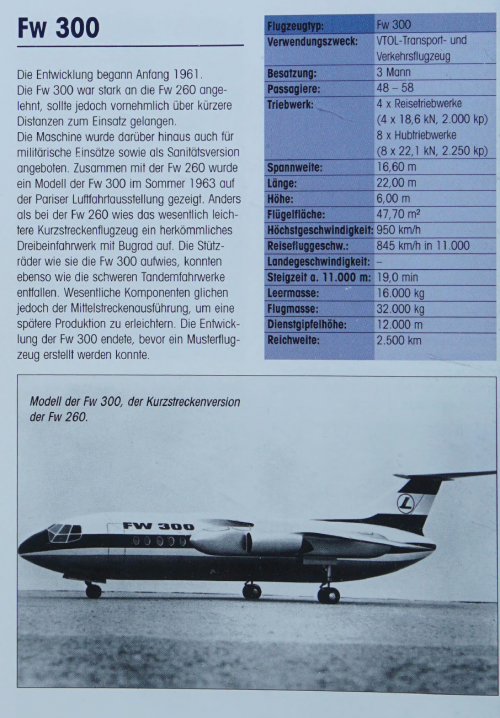

From Ailes 11/5/1962.


Attachments

  • 1.png
    610.4 KB · Views: 36
  • 2.png
    826.7 KB · Views: 28
  • 3.png
    280.6 KB · Views: 23
