1943 X-P0 and X-P1 Prototype Chinese fighters

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
14
Something about the last photo of the CAFX16 looks like a model posed in a setting. Igor Shestakov of Unicraft models made a bunch of photos of his Luft '46 models in settings like that. Very realistic, but still something about them.......



brontolino said:
I found in this two experimental fighters produced in China during 2 WW at these links:

http://cwlam2000hk.sinaman.com/cafx15.htm

http://cwlam2000hk.sinaman.com/cafx16.htm

Anyone can give me more information?


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891
A bit more on the XP-1. The use of bamboo is interesting.
http://www.j-aircraft.com/research/George_Mellinger/soviet_fighters_in_thesky_of_vi.htm

"At the beginning of the 1940s, under [American KL Zakharchenko's] leadership there began a project for a fighter monoplane project (XP-1). Its fundamental originality was a reversed-gull wing, and automatic slats. In June 1943 Zakharchenko returned to the USA, and the Chinese continued the projects and production themselves. They completed the first example at the beginning of fall. It was of mixed construction, the fuselage and outer wing panels of wood and the nose section of the fuselage and the wing center section of metal. The motor was a Wright Cyclone giving a projected speed of 588 km/h. But the machine was overweight, and in practice was capable only of 547 km/h. During one of its flights the aircraft suffered a catastrophic failure over Guiyan, in the opinion of the Chinese due to aerodynamic instability, and the pilot was killed. When the design of the aircraft was extensively examined at the aviation faculty at Chongqing, they uncovered this instability and wondered why it had not been uncovered earlier. They attributed it to "obsequiousness toward foreigners" but a second prototype was not constructed."


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

has anyone a drawings to those airplanes ?.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891

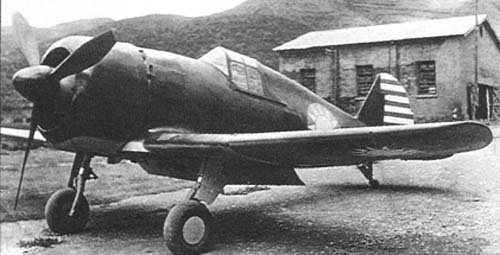

Maveric said:
Please tell me the name of the first one.

It is the 1943 Chu X-P0 prototype (produced at AFAMF No1, Kunming), designed by Maj-Gen Chu Chia-Jen.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,397
Reaction score
2,580

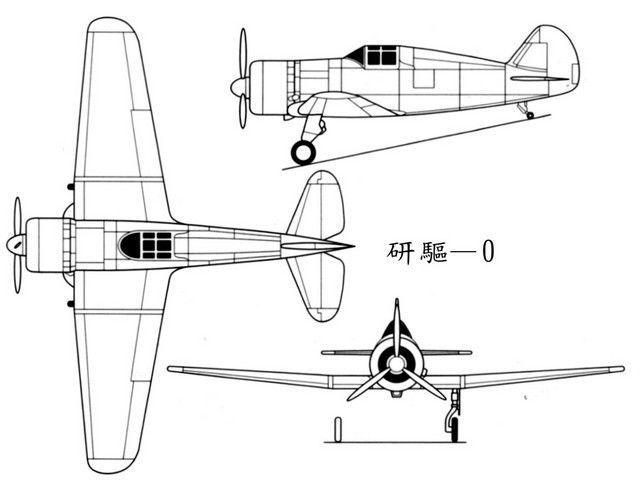

Hi!
http://www.airwar.ru/enc/fww2/xpo.html

the X-PO
Wing span, m 11.40
Length, m 8.80
Height: 3.70 m
Wing area m2 22.00
Mass, kg
empty aircraft 2100
normal takeoff 2810
Engine type 1 C.D. Pratt Whitney R-& 1830-S1C3-G Twin Wasp
Power, HP 1 x 1200
Maximum speed, km/h 500
Cruising speed, km/h 450
Range, km 1400
Service ceiling, m 9800
Crew 1
Armament: four 20-mm guns and light bombs.


Attachments

  • xpo-1.jpg
    49.3 KB · Views: 166

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891

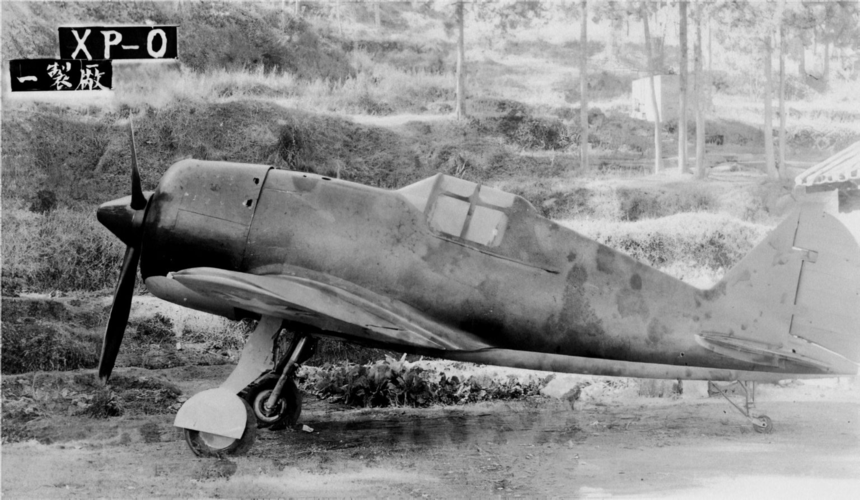

... the correct designation for the fighter plane called "X-PO" in this thread is actually XP-0.

In this thread? The aircraft's designation is only mentioned in two posts. In the first it is given correctly as XP-0. In the second, blackkite is quoting airwar.ru - the source of the 'X-PO' (originally given as a Cyrillic Kh-RO).



riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,111
Reaction score
553
Both of those prototypes are illustrated (1/72 scale 3 views) in Justo Miranda's book "Enemy at the Gates."


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273
... the correct designation for the fighter plane called "X-PO" in this thread is actually XP-0.

In this thread? The aircraft's designation is only mentioned in two posts. In the first it is given correctly as XP-0. In the second, blackkite is quoting airwar.ru - the source of the 'X-PO' (originally given as a Cyrillic Kh-RO).

I know that, but airwar.ru has the aircraft's designation wrong (the title of the page should have been updated to read XP-0 rather than XP-0).


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,111
Reaction score
553
sinorecords.org/XP-1
Contains plenty of development details and a few more photographs of the this Chinese prototype fighter.
