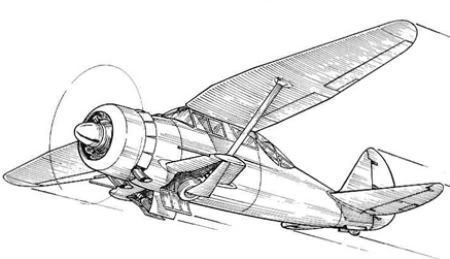

Looking for information about the Swedish SAAB L23 J23 "Swedish Mustang" I came upon this picture of a purported 1939 AFF P7 scout. Does anyone else have better information about this fascinating looking aircraft? Thanks


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
153
My two cents...

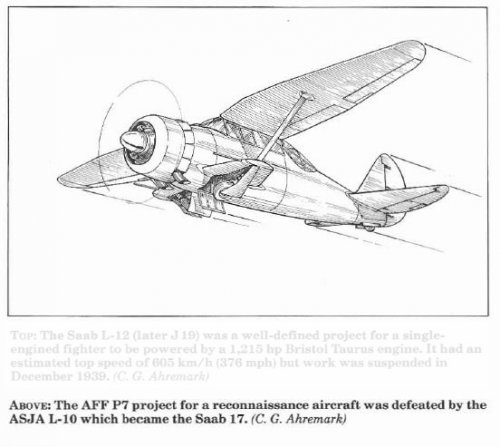

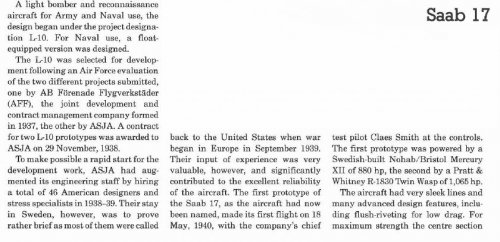

This pictures from "SAAB Aircraft since 1937" [Smithsonian Institution Press]
1)-page 22
2)-page 59


Attachments

  • ASJA L-10.jpg
    ASJA L-10.jpg
    83.3 KB · Views: 493
  • Clip_32.jpg
    172.6 KB · Views: 493

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,893
Reaction score
3,811
Website
www.amazon.com

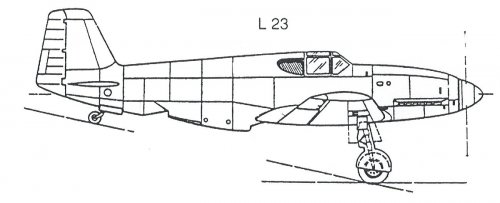

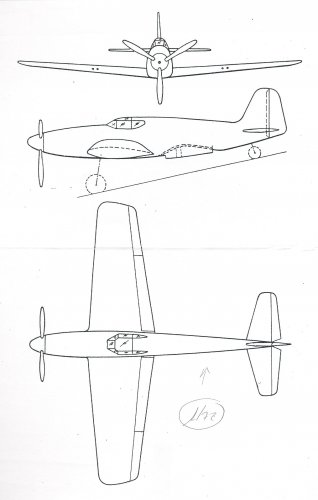

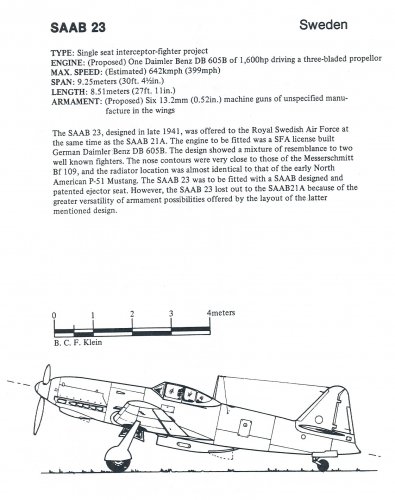

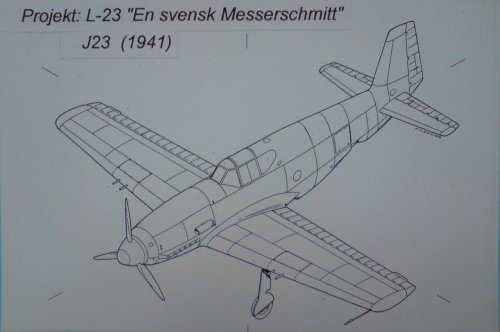

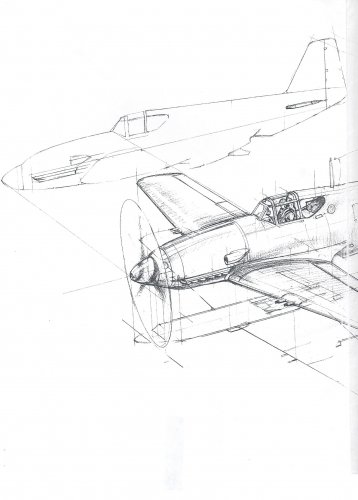

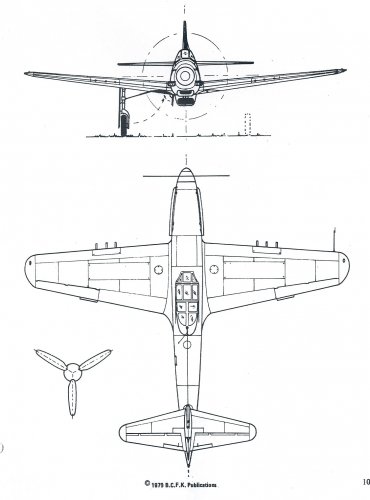

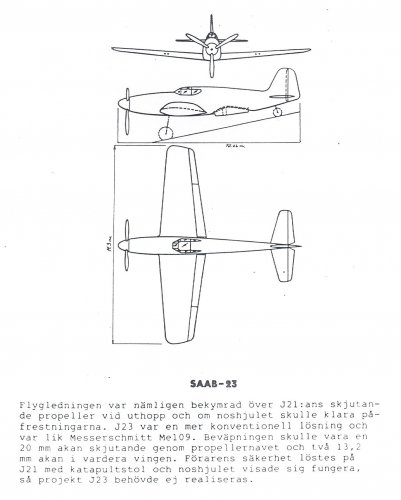

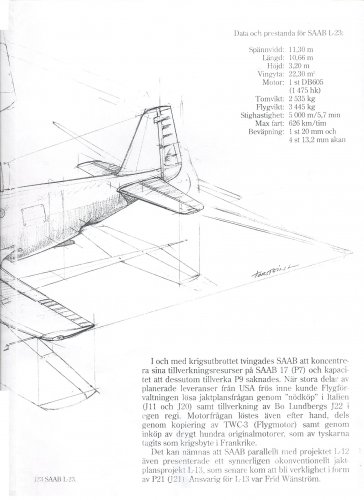

I have found some J-23 info
Post-1


Attachments

  • Escanear0007.jpg
    177.2 KB · Views: 119
  • Escanear0007.jpg
    177.2 KB · Views: 180
  • Escanear0006.jpg
    255.5 KB · Views: 239
  • Escanear0004.jpg
    60.5 KB · Views: 160
  • Escanear0003.jpg
    265.4 KB · Views: 124
  • Escanear0002.jpg
    133.5 KB · Views: 425
  • Escanear0001.jpg
    158 KB · Views: 415

Hardrada55

ACCESS: Confidential
Joined
May 31, 2008
Messages
89
Reaction score
35
J23 Two very different looking fighters

Why are there two very different looking drawings for the J23? Is one an earlier version of the J23? If so, which one is which and what caused the changes? Additionally, does anyone have a drawing of the AFV (AB Flygplanverken) GP 9?

"Both projects, the Saab L-12 (later J 19) and the AFV GP 9 were of a fairly conventional design but the GP 9 top speed was, surprisingly, given as high as 682 km/h (424 mph) against 605 km/h (375 mph) for the L-12. The cost of the GP 9 was 30 percent higher."


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,792
Reaction score
1,356
Properly, it was the Götaverken GP 9 as it was a product of the Götaverken Flygavdelning (Götaverken Aircraft Department) in Göteborg. Alas, no drawing ... but the GP 9 probably resembled the FFVS J 22. Both were designed by Bo Lundberg.

According to Urban Fredriksson, "the GV GP 9 was designed to use aluminum". But it influenced Lundburg's later design of the mixed-construction J 22 - "its landing gear where the wheels were rotated as the were retracted back into the fuselage ...".
https://groups.google.com/forum/#!topic/rec.aviation.military/qpXmLEAdFGk

The Götaverken GP 9 fighter design, designated P 9B by the Flygvapnet, was cancelled 1939. The P 9B designation shows that the GP 9 was in competition with the mentioned ASJA L 12 (Saab J 19) which was designated P 9A.

BTW: that Flygvapnet 'P' stood for Provflygplan (trials aircraft).

Another unbuilt Götaverken project was the GP 8. This was medium bomber (in competition with the ASJA G.1 which led to the Saab B 18). The GP, designated P 8B by the Flygvapnet was cancelled in 1939 after a mock-up was completed.

AFF P 7 'Scout': I have that as an army co-op aircraft. Although the P 7 designation suggests it was in the level bomber contest - P 7A was the ASJA L 10-2 (Saab B 17A prototype), P 7B was the ASJA L 10-1 (Saab B 17B prototype).


Hardrada55

ACCESS: Confidential
Joined
May 31, 2008
Messages
89
Reaction score
35
Very interesting! Thank you. What about the two versions of the L23? One with a bubble canopy and one with the streamlined "razor back" canopy.
