WS-300A(Fighter-bomber) Competition

devi

ACCESS: Confidential
Joined
Jul 17, 2006
Messages
118
Reaction score
4
I know, that in this competition participated North American Aviation and Republic Aviation:

North American Model NA-? or ?
Republic Model AP-?

Can be and other firms too participated in this competition?
What can you tell about this competition?


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi All!

WS-300A/FBX proposals:

1) North American Model NA-237
2) Republic Model AP-?
3) Martin Model M-315 (Fighter bomber (unconventional takeoff))
I think that participated.
4) Boeing Model B-7??
I think that participated.
5) GD/Convair Model ?
I think that participated.
6) Douglas model D-1???
I think that participated.
7) Lockheed Model CL-?
I think that participated.
8) McDonnell Model M-11?
I think that participated.
9) Northrop Model N-16? or PD-?
I think that participated.

What can we say about this?


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi All!

"USAF evaluation team is now reviewing its findings on Republic Aviation and North American Aviation Phase I entries and mock-ups for its supersonic fighter-bomber. Recommendations are to be made to the Air Council this week, and, presumably, the last of the Phase I "contests" will be decided this month. Announcement of Phase II contracts for the tactical bomber to Martin and the long-range interceptor to North American, are being held up by USAF pending decision on the fighter-bomber."

source: Aviation Week, 1956, Vol. 64, No. 19, 7 May, page: 25

Skybolt, If you can please show some Lockheeds.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,824
Reaction score
2,072
nugo said:
Hi All!

WS-300A/FBX proposals:

1) North American Model NA-237
2) Republic Model AP-?
3) Martin Model M-315 (Fighter bomber (unconventional takeoff))
I think that participated.
4) Boeing Model B-7??
I think that participated.
5) GD/Convair Model ?
I think that participated.
6) Douglas model D-1???
I think that participated.
7) Lockheed Model CL-?
I think that participated.
8) McDonnell Model M-11?
I think that participated.
9) Northrop Model N-16? or PD-?
I think that participated.

What can we say about this?

Hmmm I don't have the book at hand at the moment but weren't NA-237 and WS-300A two seperate designs in North American's case?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153

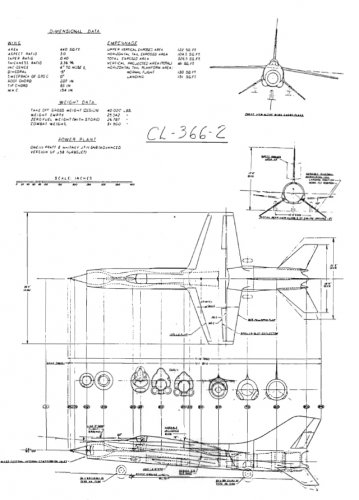

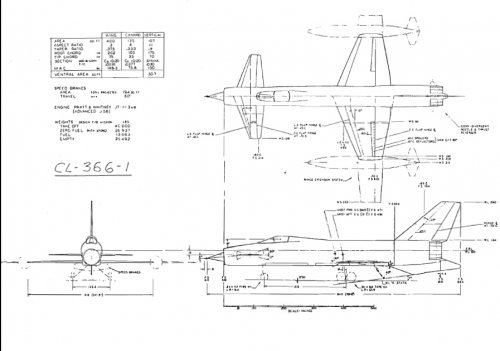

CL-366 was Lockheed-California submission to WS-300A for fighter-bomber with secondary interception capability due to enter service in 1962. At least two configurations were studied, one canard and one conventional. LCAC submitted CL-366-1 because it offered a better range (777 nmi combat radius versus 482nmi). Performance requested by RFP were inter alia max 1500 feet take-off run at combat weight and max speed in clean configuration of Mach 3.0 at 88.000 feet. Same general configuration was used for Navy/USMC of some months later. Navy version was CL-398. t is unknown if this last was in response to formal RFP or company tender. If former, could be a competitor of the unidentified USMC-marked NAA fighter found in model form by Tony Buttler some time ago.


Attachments

  • CL-366-1.jpg
    158.4 KB · Views: 2,411
  • CL-366-2.jpg
    202.4 KB · Views: 2,356

nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi Skybolt!

Thank you very much!
But, Model 366 later draft (1957). Competition of the WS-300A start at the end of 1954 or early in 1955 and ceased in 1956.
I think that if the firm Lockheed was involved in this competition were these projects: or CL-28? or
CL-29? or CL-30? or CL-31?;

( CL-280---version of the Constitutions ( proposal )
CL-281---?
CL-282---pre U-2 (p)
CL-283---?
CL-284---atomic engine bomber (p)
CL-285---?
CL-286---atomic engine bomber (p)
CL-287---?
CL-288---LRI (p)
CL-289---?
CL-290---?
CL-291---KCX (p)
CL-292---nuclear-powered missile carrier/airborne DEW line/aircraft carrier (p)
CL-293---atomic engine bomber (p)
CL-294---version of the Constellations (p)
CL-295---V/STOL fighter (p)
CL-296---?
CL-297---?
CL-298---?
CL-299---?
CL-300---?
CL-301---P2V-7 derivative
CL-302---?
CL-303---passenger aircraft (p)
CL-304---?
CL-305---P2V-8 study (p)
CL-306---?
CL-307---parasite version of the F-104s (p)
CL-308---?
CL-309---?
CL-310---L-188 Electra
CL-311---version of the SeaStars (p)
CL-312---version of the SeaStars (p)
CL-313---atom engine bomber (p)
CL-314---TZ (p)
CL-315---?
CL-316---?
CL-317---version of the F-104s (p)
CL-318---?
CL-319---atomic engine bomber (p)


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
You know it comes to mind that if the CL366-2 had become a reality, a visual range dogfight between a CL366-2 equipped force and a Mig 21 group would have not been fun. For either side.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
Yasotai, the WS-300A wasn't intended for any visual dogfight. Just run-hit-run. Same for the interceptor role. The entire concept was ETO-targeted.
Nugo, the CL-366 IS from early 1956. The date of the assignment of a TDN doesn't coincide with any individual design date. So TDNs that are apparently much earlier are really contemporaries. Lockheed used at least another TDN to WS-300A studies. This is CL-363-3, very clearly an F-104 derivative. But CL-366 was the final submission.
I forgot to mention that engine intended for the CL-366 was "advanced J-58". Ditto for the Navy derivative.


Attachments

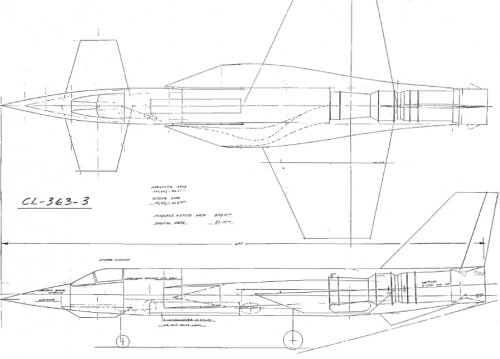

  • CL-363-3.jpg
    159.1 KB · Views: 2,053

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,545
Reaction score
820
Skybolt said:
Yasotai, the WS-300A wasn't intended for any visual dogfight.

Agree, I was just pondering that the profile of the picture with 366-2 written on it was similar to a Mig -21. It appears to be a much bigger aircraft though.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
MUCH bigger. Almost 150 per cent. The pilot provides scale.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,824
Reaction score
2,072
More like a Ye-152/166 or Sukhoi T-8 it would appear.


nugo

ACCESS: Secret
Joined
Feb 2, 2006
Messages
336
Reaction score
10
Hi Skybolt!

Thank you very much!
It remains to find projects of other, unknown competitors.
Interesting to know whether the firm McDonnell participated in the contest?
If it involved a project proposed?

Model M-?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
As they say : "Good question..." Keep in mind than till a few years back no-one remembered there even WAS a WS-300A competition....


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176

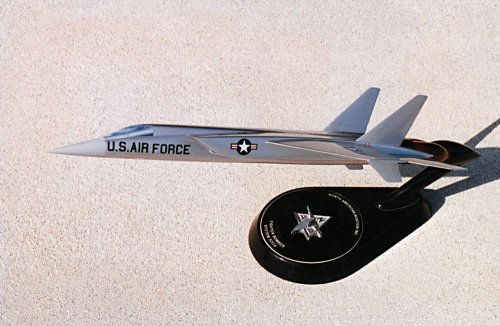

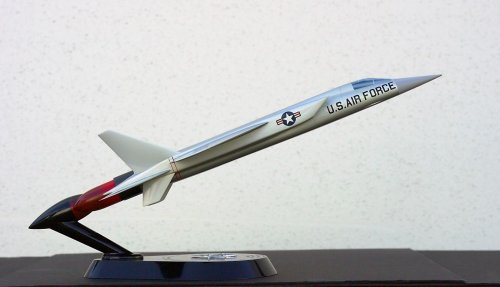

North American Aviation factory model of WS-300A proposal.


Attachments

  • NAA WS-300A.jpg
    NAA WS-300A.jpg
    61.9 KB · Views: 1,940

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,598
Reaction score
991
That must be the Long Range Interceptor (LRI) offering rather than FBX one? (both requirements cancelled 1956-7 along with TBX)

Some Flight articles from the era talk of the F-105 and F-107 being built to WS-300A whilst others talk of FBX being WS-300A.

I have the following from American Aviation Volume 19.

LRI: WS-202A (North American & Northrop), eventually became the F-108 Rapier
FBX: WS-300A (North American & Republic)
TBX: WS-302A (Douglas & Martin), Martin B-68 cancelled in 1957


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176
JFC Fuller said:
That must be the Long Range Interceptor (LRI) offering rather than FBX one? (both requirements cancelled 1956-7 along with TBX)

Some Flight articles from the era talk of the F-105 and F-107 being built to WS-300A whilst others talk of FBX being WS-300A.

The above photo is not the NAA LRI proposal (WS-202A). It really is the NAA proposal for WS-300A. See additional photos, attached. The stand is marked: North American Aviation, Inc. / Fighter Bomber System 300A / Secret.

I have the proposal models for NAA WS-202A (LRI) and WS-302A, which are very different airplanes. WS-202A photos have been posted elsewhere in this forum and I will get around to WS-302A at some point.

While it is very possible the F-107 was offered by NAA for WS-300A as an alternative, its light weight, short range and single engine would have required considerable redesign for any hope of meeting USAF WS-300A requirements.


Attachments

  • NAA WS-300A 02.jpg
    NAA WS-300A 02.jpg
    118.1 KB · Views: 1,757
  • NAA WS-300A 03.jpg
    NAA WS-300A 03.jpg
    117.9 KB · Views: 1,384

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,598
Reaction score
991
Well I can't argue with that! Thanks for posting the model pictures circle-5. I have had a hunt around my usual sources and I can not find any detailed history on LRI, FBX or TBX, is there a good source around for these? I would be particularly interested in seeing the requirements for WS-300A, they must have been demanding to produce an aircraft as large as the NA entry looks? Given the time-frame and the engine choice on the Vigilante I am thinking J-79, or even J-75 given the size?


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176

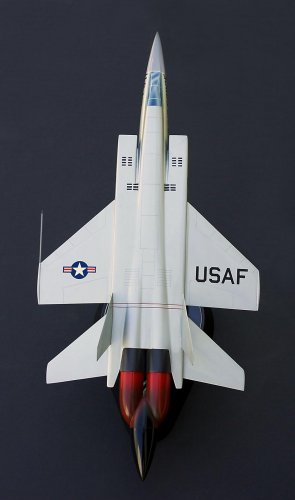

Top view of the NAA WS-300A factory proposal model, marked "Secret" from its classified origins. Note multiple bleed air louvers on variable intakes. Top of fuselage is occupied by what appears to be a row of equipment bays or large access panels.

Faux afterburner flames are part of the rotating base -- a signature detail of the North American Aviation model shops in Columbus and Los Angeles.

It's hard to believe we're looking at something designed barely 10 years after WWII.


Attachments

  • NAA WS-300A Top.jpg
    NAA WS-300A Top.jpg
    60.4 KB · Views: 1,138

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,596
Reaction score
364
circle-5 said:
It's hard to believe we're looking at something designed barely 10 years after WWII.

I'll second that comment, if someone had shown me that model and asked to guess when it was designed I'd have said the 70s.


Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,596
Reaction score
364
Are there any surviving specifications for the NAA WS-300A?


shine

ACCESS: Restricted
Joined
Oct 23, 2007
Messages
4
Reaction score
0
This could be the inspiration for MiG for the 25.
Did they had a man inside NAA?

Mark


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176
shine said:
This could be the inspiration for MiG for the 25.
Did they had a man inside NAA?

Mark

Mark, I think this discussion took off and landed over here.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
344
Reaction score
15
Looks like it could have as much Rapier influence is Vigilante.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,824
Reaction score
2,072
I'd really like to see a Vigilante/WS-300A/Rapier timeline. The Vigilante's design was probably locked down around 1956. Looks like the Rapier was '58-59. WS-300A?


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,009
Reaction score
709
It is sad for me to see this discussion. Your absolutely simplistic view on design and construction of planes, similarly as your view and inability to see difference between sketch done in 10-20 minutes and complex rendered picture done in 20-50 hours again let me ask what happen when we time by time still have to solve similar problems ? I'm not sure if it was Boeing F-32 but company produced hundreds (near to one thousand) possible and impossible designs and only one of them was selected as number one. And was criterion some similarity with some next plane or project? You really mean that from simple view you are able rebuild new plane? In last time I'm looking without result for a new infos on new or old secret projects. Is this theme already dead or closed and we will only presents our opinions on some events?


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,598
Reaction score
991
sferrin said:
I'd really like to see a Vigilante/WS-300A/Rapier timeline. The Vigilante's design was probably locked down around 1956. Looks like the Rapier was '58-59. WS-300A?

Thats an interesting question, Vigilante appears to have come first having received a development contract on the 29th August 1956. After that, for me at least, things get muddy, WS-300A appeared at about the same time as WS-202A (LRI/GOR-114) in 1955 but the WS-300A was cancelled sometime in late 1956 (along with WS-302A- the Martin XB-68) whilst NAA was given a development contract for the F-108 in June 1957 (original procurement target was 480) only for the type to be cancelled on the 23rd September 1959 though the F-108 evolved considerably over time.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,824
Reaction score
2,072
PlanesPictures said:
It is sad for me to see this discussion. Your absolutely simplistic view on design and construction of planes, similarly as your view and inability to see difference between sketch done in 10-20 minutes and complex rendered picture done in 20-50 hours again let me ask what happen when we time by time still have to solve similar problems ? I'm not sure if it was Boeing F-32 but company produced hundreds (near to one thousand) possible and impossible designs and only one of them was selected as number one. And was criterion some similarity with some next plane or project? You really mean that from simple view you are able rebuild new plane? In last time I'm looking without result for a new infos on new or old secret projects. Is this theme already dead or closed and we will only presents our opinions on some events?

What?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,799
Reaction score
4,523
JFC Fuller said:
sferrin said:
I'd really like to see a Vigilante/WS-300A/Rapier timeline. The Vigilante's design was probably locked down around 1956. Looks like the Rapier was '58-59. WS-300A?

Thats an interesting question, Vigilante appears to have come first having received a development contract on the 29th August 1956. After that, for me at least, things get muddy, WS-300A appeared at about the same time as WS-202A (LRI/GOR-114) in 1955 but the WS-300A was cancelled sometime in late 1956 (along with WS-302A- the Martin XB-68) whilst NAA was given a development contract for the F-108 in June 1957 (original procurement target was 480) only for the type to be cancelled on the 23rd September 1959 though the F-108 evolved considerably over time.

NAGPAW was an unsolicited proposal submitted January 1954.

Major design revisions were made early April 1955.

Design was largely fixed by February 1956, mockup review in March 1956

Engineering drawing release June 1957.


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,598
Reaction score
991
Thanks Paul, that suggests that it was the Vigilante that set the trend.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,824
Reaction score
2,072
JFC Fuller said:
Thanks Paul, that suggests that it was the Vigilante that set the trend.

It sounds like the Vigilante and WS-300A were virtually at the same time. WS-300A cancelled in '56 and Vigilante's mockup review in '56.


JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,598
Reaction score
991
Vigilante definitely seems to be earlier, NAGPAW was first offered in January 1954 whereas I can find no reference to WS-300A prior to 1955 and it does not seem to have made it to the mock-up stage.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600
However, let's not forget the "A" suffix letter on WS-300A, which strongly suggests a revision of the specifications thereof, and so there might have been earlier proposals to WS-300 including, maybe, earlier incarnations of the WS-300A submissions. Just a thought.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
176

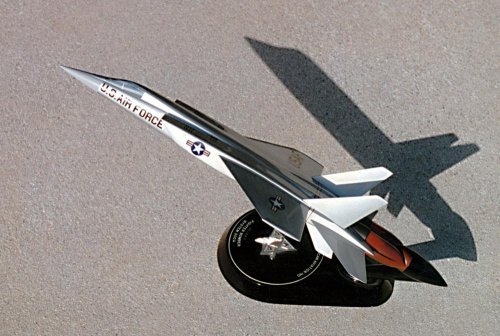

By popular (PM) request, two more photos of the NAA WS-300A proposal model, including a profile view.


Attachments

  • NAA WS-300A 11sml.jpg
    NAA WS-300A 11sml.jpg
    84.9 KB · Views: 1,170
  • NAA WS-300A 02sml.jpg
    NAA WS-300A 02sml.jpg
    80.6 KB · Views: 1,128

HeavyG

ACCESS: Confidential
Joined
Aug 21, 2009
Messages
74
Reaction score
4
From the top, its profile resembles that of a Mig-25 Foxbat/MiG-31 Foxhound.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,700
Reaction score
3,235

Attachments

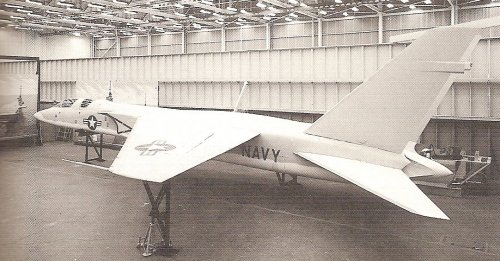

  • NAGPAW_A3J_MOCKUP_1956_2s.jpg
    161.9 KB · Views: 1,023

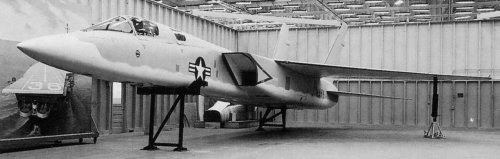

  • NAGPAW_A3J_MOCKUP_1956_3.jpg
    122.2 KB · Views: 997

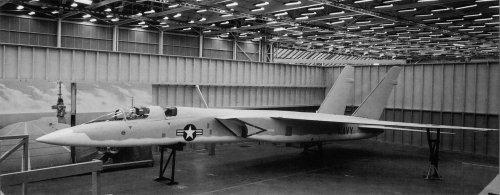

  • NAGPAW_A3J_MOCKUP_1956_1.jpg
    408.7 KB · Views: 956

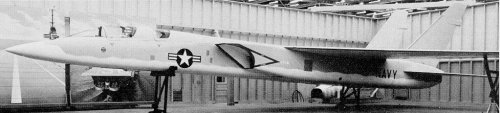

  • A3J MOCK UP.jpg
    A3J MOCK UP.jpg
    244.6 KB · Views: 220
Top
