Hesham's Wicko Windsor got me thinking about the two different Wicko Wizards.
http://www.secretprojects.co.uk/forum/index.php/topic,5442.0.html

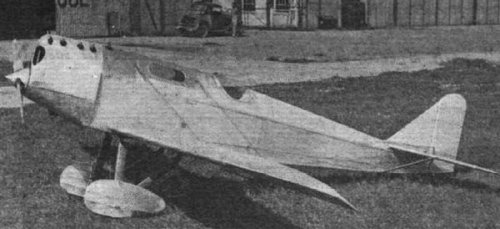

"An Australian production: The Wicko "Wizard" (Cirrus II engines) was designed by Mr. G.N. Wikner and does 120 m.p.h. Mr. Wikner is now looking for suitable opportunities in this country."

http://www.flightglobal.com/pdfarchive/view/1934/1934%20-%200835.html 16 Aug 1934

Wizard low-winged Cirrus-powered monoplane built in Australia in 1923. Geoff Wikner then emigrated to the UK. In 1936, another Wicko Wizard is proposed, this time a high-wing cabin monoplane.

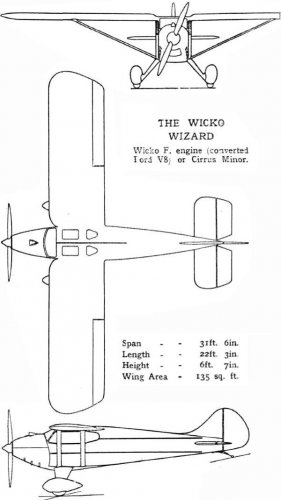

Power and dimensions for this new Wizard are shown on the drawing. Price was to be around 400. Other details published in Flight are chord 5 feet, empty weight 1000 lb, gross weight 1500 lb, wing loading 11 lb/sq ft., power loading 17.6 lb/hp, top speed 120 mph, cruising speed 100 mph, landing speed 45 mph, cruising range 250 miles.

http://www.flightglobal.com/pdfarchive/view/1936/1936%20-%202099.html 30 July 1936

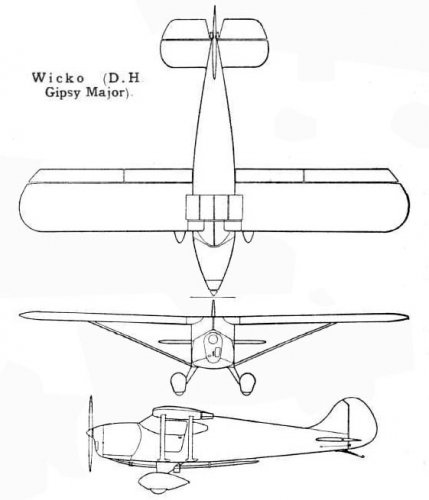

This high-wing Wizard may not qualify as an unbuilt project. Since the outline is all but identical, I work on the assumption that this Wizard emerged as the Ford-powered Wicko F.W.1. A production Wicko G.M.1 3-view is attached for comparison.


Attachments

  • Wicko-Wizard-low-wing.jpg
    40.8 KB · Views: 182
  • Wicko-Wizard-high-wing.jpg
    69.1 KB · Views: 187
  • Wicko-GM1.jpg
    44 KB · Views: 178

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,656
Reaction score
1,014

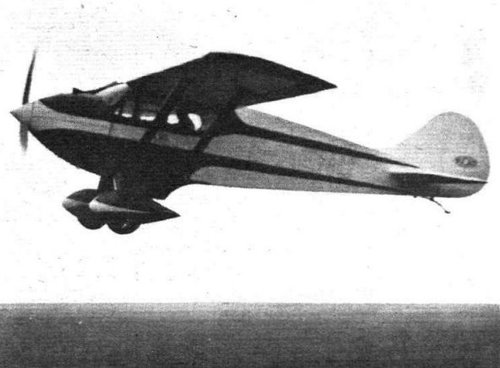

To me, the nose of the F.M.1 looks the same as the Wizard. Raising the question, what exactly were the differences between the two ... if any?


Attachments

  • wicko-fw-1.jpg
    43.9 KB · Views: 16
