What was this US amphibian glider

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457

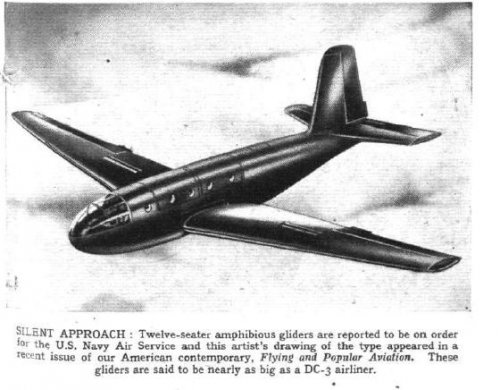

Hi,

http://www.flightglobal.com/pdfarchive/view/1942/1942%20-%200497.html


Attachments

  • US amphibian glider.JPG
    US amphibian glider.JPG
    42.7 KB · Views: 117

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,672
Reaction score
301

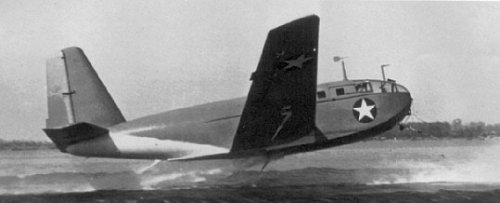

It should be the XLRA-1 amphibian glider, which was built by the Allied Aviation Corporation of Cockeysville, MD.
Although not powered in the air, it had outboard motors to maneuver in the water after landing.


Attachments

  • Allied_XLRA.jpg
    28.3 KB · Views: 124

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
Actually, I believe it could be either the Allied XLRA-1 design or the Bristol XLRQ-1 designs. Both of them were design against the same specification and both of them look like picture presented by hesham except that the picture shows round windows whilst the Allied and Bristol aircraft show square windows.
They were designed as a 12 seat flying boat transport glider intended to be used by the US Marine Corps for ‘island hopping’ in the Pacific.
Two aircraft were built by Allied as XLRA-1 and the serials were 11647/11648. The first flight took place in 1943.
Production of 100 production versions as LRA 1 and with serials 31403/31502 was cancelled as the proposed use proved not practical.

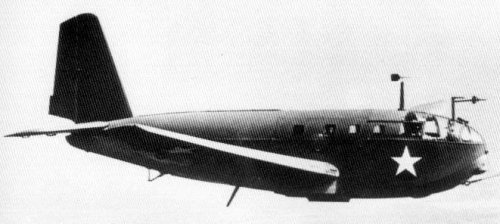

Four Bristol XLRQ-1s were ordered of which only the first two were completed with serials 11651/11652. The other two aircraft were cancelled and were to have serials 11653/11654. The first flight was in January 1943. Although ultimate production was estimated at 12,000 only 100 production LRQ-1s were ordered with serials 33715/33814 but these were eventually cancelled. A pic of the XLRQ-1 is enclosed.
Allied also proposed the LR2A which was a development of the LRA design with a conventional undercarriage which could be dropped after take off. Two aircraft were ordered as XLR2A-1 with serials 31503 and 31504. It is believed they were not completed and were cancelled.


Attachments

  • Q-LR1Q.jpg
    25.8 KB · Views: 111

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Thank you my dears Archipeppe and Jos.


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
618
Reaction score
273
Actually, I believe it could be either the Allied XLRA-1 design or the Bristol XLRQ-1 designs. Both of them were design against the same specification and both of them look like picture presented by hesham except that the picture shows round windows whilst the Allied and Bristol aircraft show square windows.

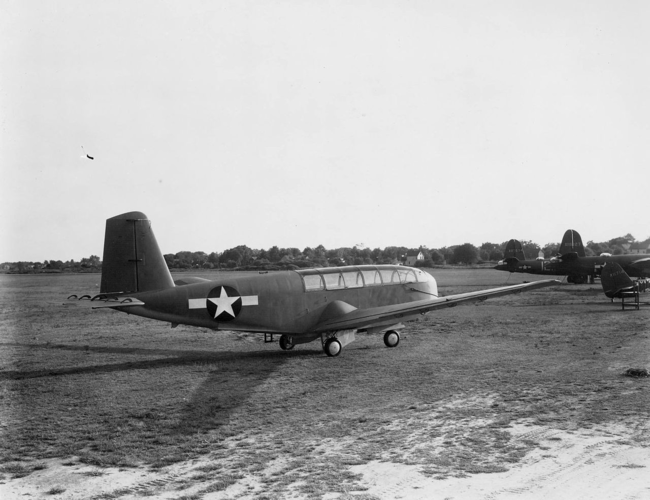

The Bristol LRQ had no windows, the troops instead being designed to sit inside an extended canopy containing the pilot as well. I've attached an image of the LRQ for convenience.

The glider in the picture by hesham is all in probability the Allied Aviation LRA except that the artist depicted the windows round because the LRA had yet to be built and flown when the article containing this image was published, and one desktop model of the LRA has rounded windows (https://www.secretprojects.co.uk/threads/allied-xlra-1-waterborne-troop-glider.7170/).



riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,098
Reaction score
546
Dear Moderators,
Please combine this thread with other threads about USMC water assault gliders, which only flew as prototypes.
Maybe link these water gliders with the thread on cargo gliders.

usmilitaryaircarft.files.wordpress.com
Includes pages on both these water, assault gliders.
