Wagner "Gegenpropeller" (Contra Propeller) 1918

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,198
As mentioned in the thread about the steam engine powered bomber, Dr. Rudolf Wagner transferred his ideas
about reducing the losses due to spin of the slipstream of a ships propeller to aircraft and filed a patent in
the year 1915. the basic idea is, to reduce the spin by using a "Gegenpropeller" (Contra Propeller), principally

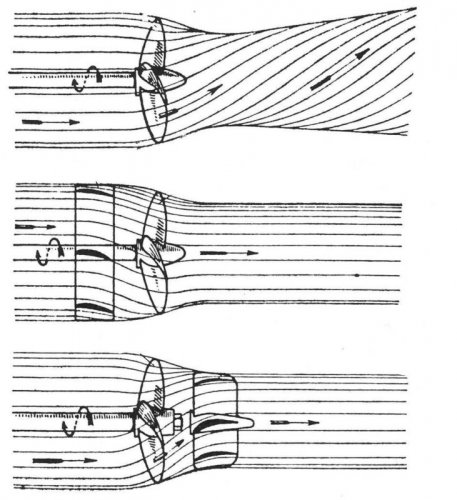

a set of guide vanes in front or aft of the prop (see Wagner_Gegenprop_schematic.jpg ).
Actually tested on ships and boats, such arrangements showed mixed results. Nevertheless, Dr. Wagner made

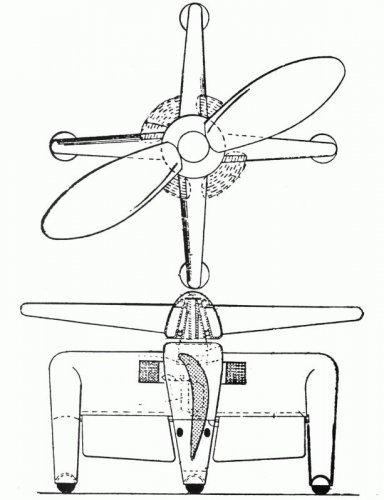

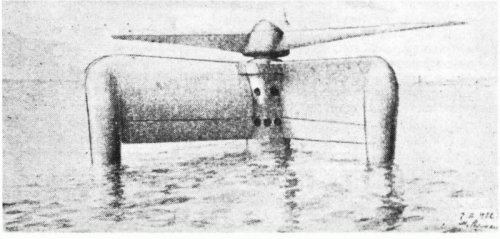

several proposals for the use in aircraft (see Wagner_Gegenprop_01.jpg )and even designed a kind of helicopter,
called "Schraubenflugzeug" (screw plane), that should use this principle to overcome the torque from the rotor.

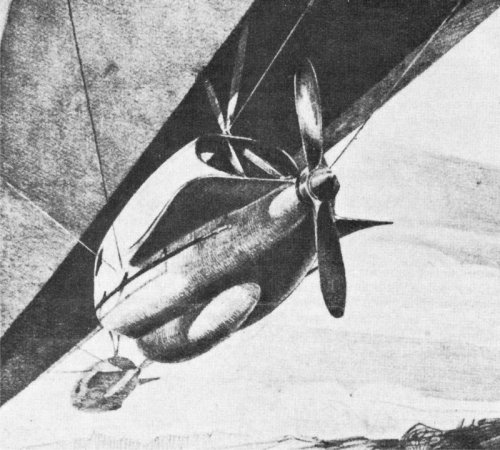

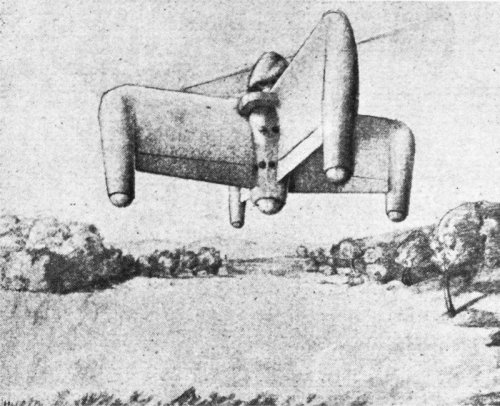

Intended as crane helicopter or flying sanatorium, the contra prop here was integrated in the complete structure
(see Wagner_Gegenprop_02 to _04.jpg ).

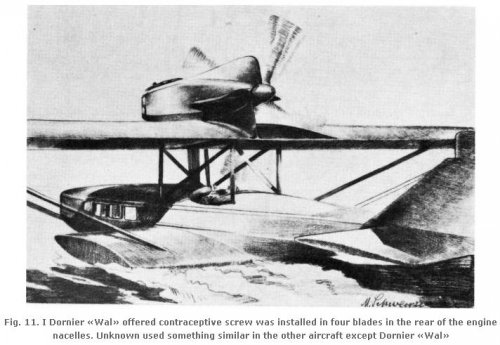

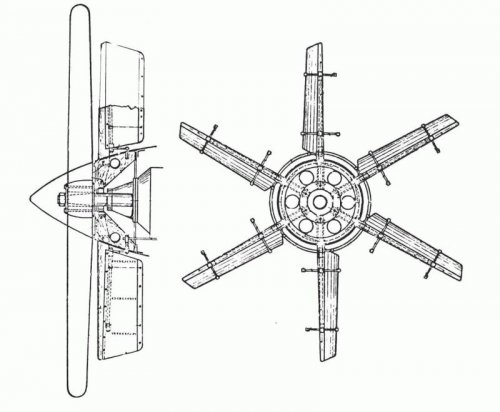

During the '20s several different solutions were developed, either fixed or articulated in front of the prop ( see Wagner_Gegenprop_12 and 13.jpg ), or fuselage mounted behind the prop, with the benefit of producing additional
lift (see Wagner_Gegenprop_07.jpg ).


Attachments

  • Wagner_Gegenprop_schematic.jpg
    96 KB · Views: 167
  • Wagner_Gegenprop_07.jpg
    23.4 KB · Views: 8
  • Wagner_Gegenprop_13.jpg
    22.3 KB · Views: 9
  • Wagner_Gegenprop_12.jpg
    36.1 KB · Views: 11
  • Wagner_Gegenprop_04.jpg
    128 KB · Views: 156
  • Wagner_Gegenprop_03.jpg
    65.8 KB · Views: 155
  • Wagner_Gegenprop_02.jpg
    49.7 KB · Views: 156
  • Wagner_Gegenprop_01.jpg
    53.6 KB · Views: 158

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,198

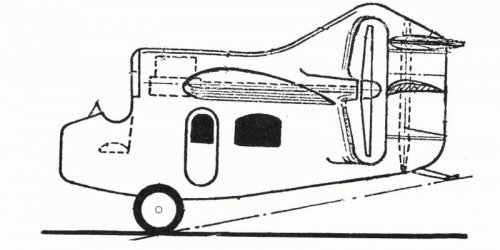

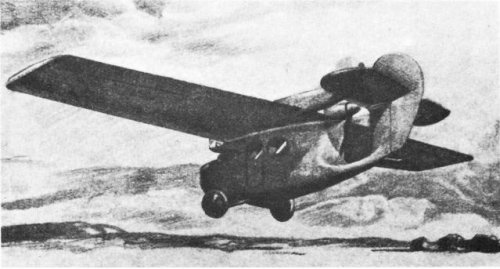

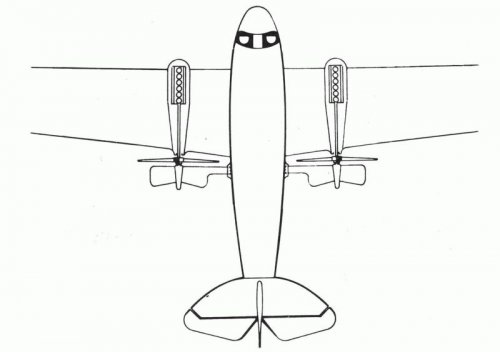

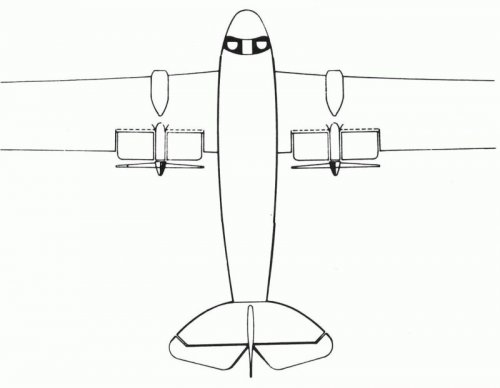

The twin engined light transport aircraft actually was an indigenous design by Wagner (see Wagner_Gegenprop_11.jpg ),
but the use of the contra prop was proposed for existing types, like the Dornier Wal, too, or even for airships
(see Wagner_Gegenprop_12, _14 and _15.jpg ).

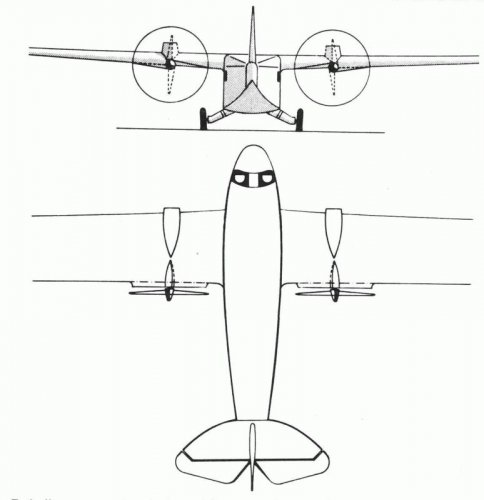

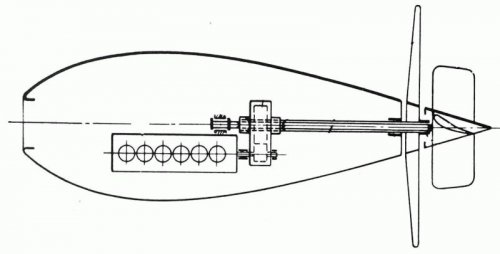

Another indigenous design was made for a ligt single engined aircraft, with a pusher prop driven by a nose mounted
engine via a long shaft. Here the contra prop was integrated into the tail surfaces ((see Wagner_Gegenprop_05 and

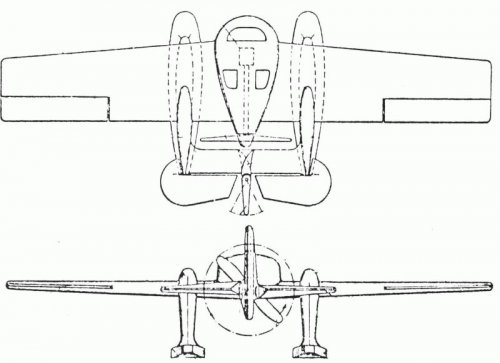

_06.jpg ). A similar, but larger design with twin booms was shown as civil transport in Germany, but as heavily armed
military aircraft in the contemporary US press (see Wagner_Gegenprop_08. and _09jpg )


Attachments

  • Wagner_Gegenprop_09.jpg
    43.2 KB · Views: 18
  • Wagner_Gegenprop_08.jpg
    69.6 KB · Views: 17
  • Wagner_Gegenprop_06.jpg
    40.4 KB · Views: 11
  • Wagner_Gegenprop_15.jpg
    25.3 KB · Views: 11
  • Wagner_Gegenprop_14.jpg
    134.1 KB · Views: 12
  • Wagner_Gegenprop_12.jpg
    36.1 KB · Views: 9

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,280
Reaction score
1,198

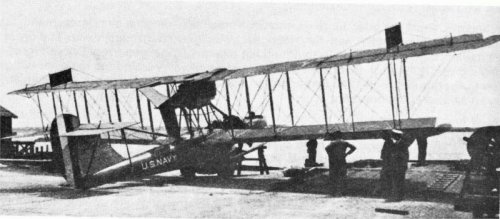

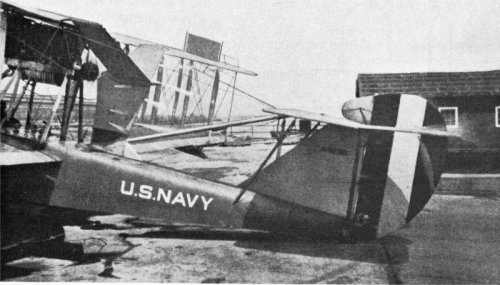

So, this invention seems to have aroused intention in the US. And tests actually were made during 1929 in
