Vought V-529 & V-531 Twin engined Corsair II projects

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,732
Reaction score
506
overscan said:
Some additional unbuilt projectsVought A-529D
Twin F404 engined version for the Navy
Source

  • Al Adcock A-7 Corsair II in Action Squadron-Signal, 1991

Thanks for this tread ... here are two illustrations of this twin-engined version !

Deino


Attachments

  • Vought V-529 twin A-7.jpg
    Vought V-529 twin A-7.jpg
    106.9 KB · Views: 2,654
  • twin engined A-7 - 3-side.JPG
    twin engined A-7 - 3-side.JPG
    70.5 KB · Views: 1,590

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,732
Reaction score
506

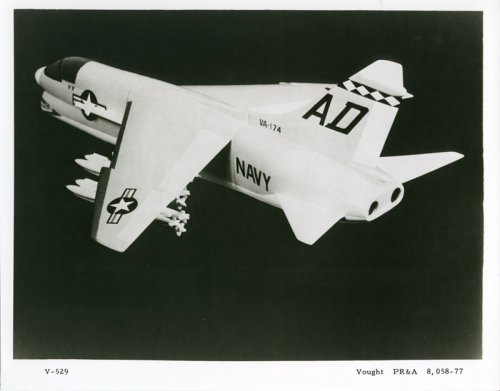

Just found at the ARC ... posted by "Phantomologist"

Cheers, Deino


Attachments

  • V-529_USAF_Howard_Hicks.jpg
    97.9 KB · Views: 1,027
  • Vought_V-529_USN.jpg
    53.5 KB · Views: 952

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,461
Reaction score
3,473
Thats a great find Deino. We may have tto rename this the "Vought Secret Projects" forum ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,235
Reaction score
953

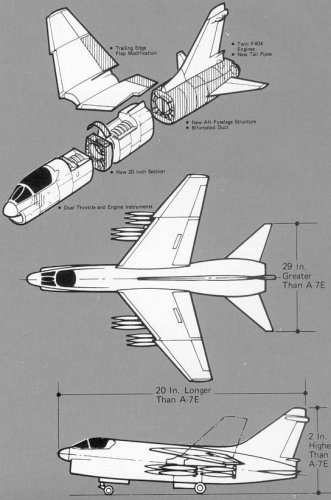

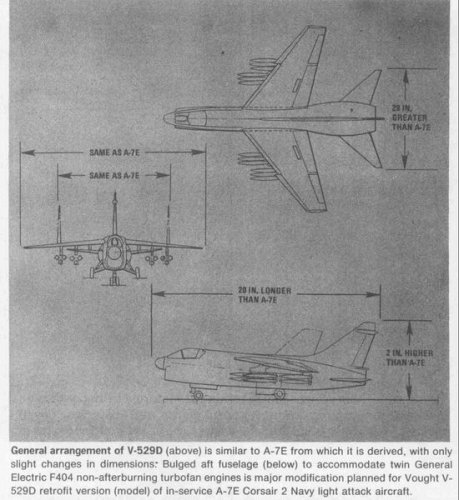

I thought, we had the the V-529D here before, hadn't we ? Or is this another
variant ? ???
(from Aviation Week .11.77)


Attachments

  • Vought_V529D_02.jpg
    43.8 KB · Views: 345
  • Vought_V529D_01.jpg
    63.6 KB · Views: 942

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580

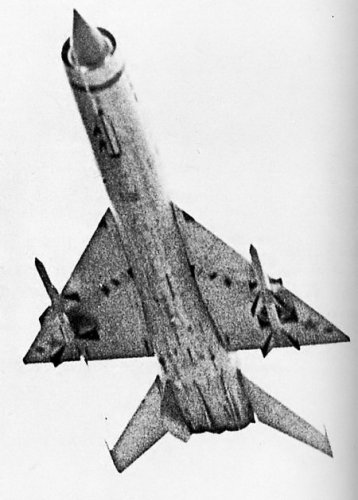

It had the same fascinating tail shape as Ye-152A.


Attachments

  • Ye-152.jpg
    66.6 KB · Views: 247

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317
Deino said:
Just found at the ARC ... posted by "Phantomologist"

Cheers, Deino

Ah I see these beat me here. There was also a proposal for a two seat, twin engine A-7D rebuild
called the V-531.

bill
(phantomologist on ARC)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,461
Reaction score
3,473

Twin-engined Corsair proposed

A TWIN F404-engined version of the Corsair II has been proposed by Vought as a future US Navy light attack aircraft. The two General Electric engines would total over 50 per cent more thrust than the single 15,000lb Allison of the A-7E. Vought has already built more than 400 A-7Es, and the type is in service with 24 USN squadrons. Although the force has so far flown for more than 750,000hr, the manufacturer claims that a typical squadron aircraft has more than 17 years of service life left and could soldier on into the 1990s. The proposed V-529D version is almost identical to the A-7E except for the two F404 engines, new tailpipes and a wider rear fuselage to house them, and 20in fuselage stretch to keep the e.g. within limits. Both engines would be fed from the existing nose intake, a bifurcated duct splitting the incoming airflow between the two powerplants. Maximum rear fuselage width would be only 29in greater than at present. Empty weight would rise from 19,050lb (A-7E) to 19,952lb as a result, but the internal fuel load would rise from 10,036lb to 12,674lb. The F404 will power the Navy's F-18 fighter, so its use in a modified Corsair would provide useful commonality. Vought does not plan to build all new V-529Ds, suggesting to the US Navy that existing A-7Es be rebuilt. Unit cost of the modification would be less than $3 million, the company claims. Vought has teamed up with General Electric and Grumman. Given a prompt go-ahead by the Navy, the companies hope to start ground tests early next year. First flight would be scheduled for 1979.

http://www.flightglobal.com/pdfarchive/view/1977/1977%20-%203858.html


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,630
Reaction score
512
Greetings All -

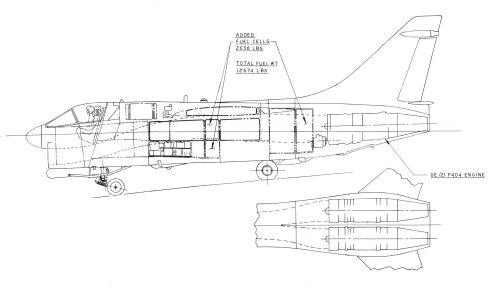

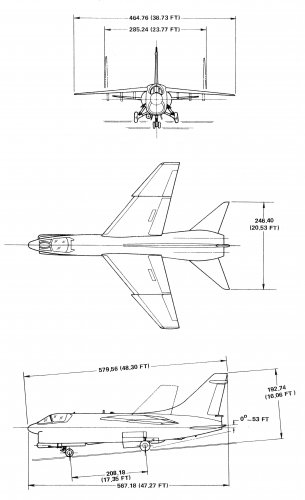

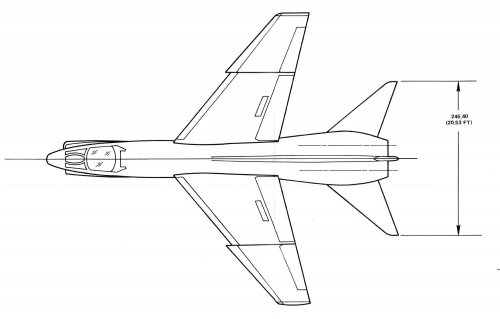

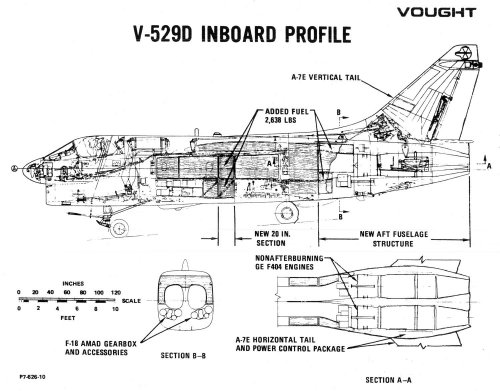

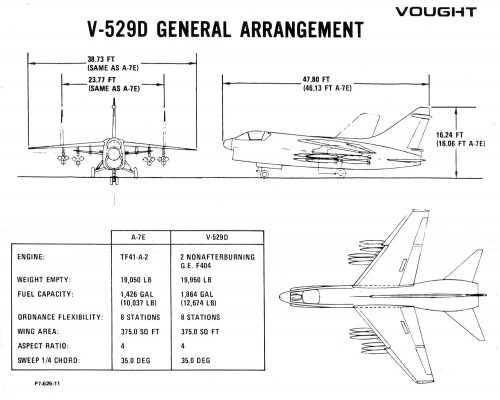

During the last visit to the Vought Archives, I copied a few drawings of the V-529 from the A-7X development.

Enjoy the Day! Mark


Attachments

  • xVought V-529D General Arrangement.jpg
    xVought V-529D General Arrangement.jpg
    149.7 KB · Views: 226
  • xA-7X 2-F404 Dry Inboard Profile - 1.jpg
    xA-7X 2-F404 Dry Inboard Profile - 1.jpg
    92.2 KB · Views: 175
  • xA-7X 2-F404 Dry General Arrangement - 2.jpg
    xA-7X 2-F404 Dry General Arrangement - 2.jpg
    70.3 KB · Views: 161
  • xA-7X 2-F404 Dry General Arrangement - 1.jpg
    xA-7X 2-F404 Dry General Arrangement - 1.jpg
    128.7 KB · Views: 170
  • xA-7X 2-F404 Dry 3V.jpg
    xA-7X 2-F404 Dry 3V.jpg
    694.1 KB · Views: 184

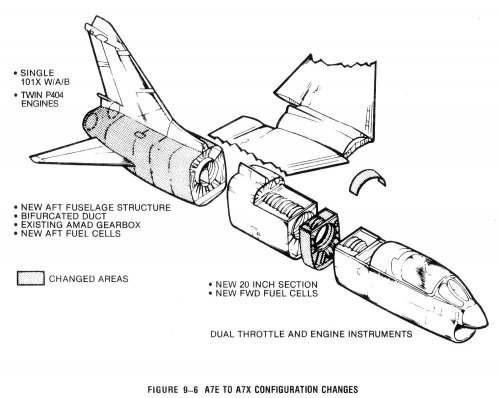

  • xA-7E to A-7X Configuration Changes.jpg
    xA-7E to A-7X Configuration Changes.jpg
    169.7 KB · Views: 172
  • xVought V-529D Inboard Profile.jpg
    xVought V-529D Inboard Profile.jpg
    216.4 KB · Views: 213

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,350
Reaction score
119
I've heard it claimed that the virtue of the twin-F404 A-7 variant at the time was that the engines were manufactured in district of the then Speaker of the House and in Ted Kennedy's home state, guaranteeing a fair measure of support on Congress. Sad to say, that's not too implausible.

The thought also occurs to me that a similar modification, but with afterburning F404s, would look interesting on a F-8.
