Vought V-463 Attack Crusader (Early A-7)

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,751
Reaction score
4,408
Courtesy of Tommy's blog and Vought Heritage.

http://tommythomason.com/


Attachments

  • Attack Crusader Model.jpg
    Attack Crusader Model.jpg
    131.4 KB · Views: 1,163

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

Scans of photocopies are not the best, from a visit to the Vought Retiree Club

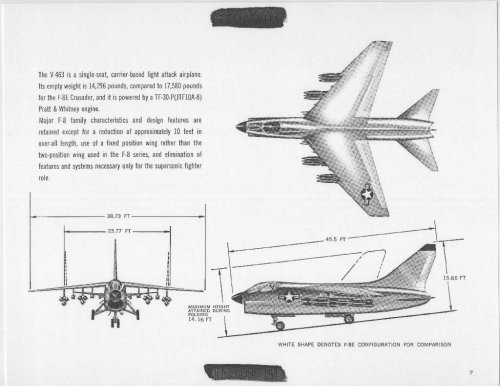

First a three view

bill


Attachments

  • Vought-V-463.jpg
    71.9 KB · Views: 465

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

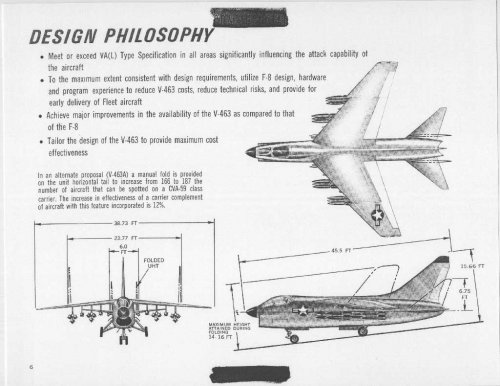

Second a three view of V-463A with
folding UHTs to save space.

Again Vought Retiree Club

bill


Attachments

  • Vought-V-463A.jpg
    84.7 KB · Views: 425

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

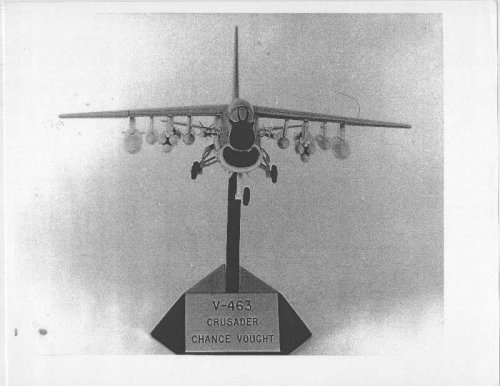

Front view of the model

Note the 8 weapons hardpoints underwing

Again Vought Retiree Club


Attachments

  • Vought-V-463-front.jpg
    49.8 KB · Views: 343

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

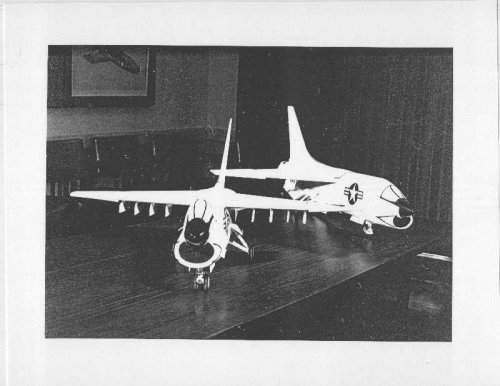

Model comparison of F-8 and V-463
I will try and scan the original pics
next time I visit.

Vought Retiree Club


Attachments

  • Vought-V-463-and-F-8-front.jpg
    47.4 KB · Views: 327

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

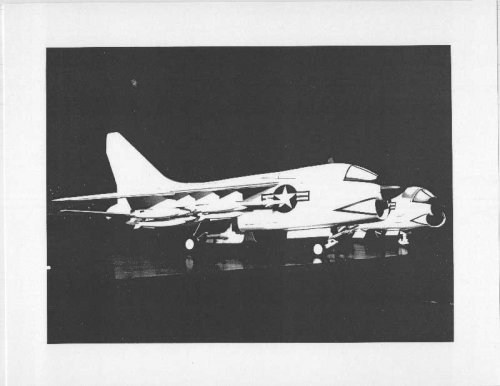

Side view of the two together

Vought Retiree Club


Attachments

  • Vought-V-463-and-F-8-side.jpg
    26.5 KB · Views: 107

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

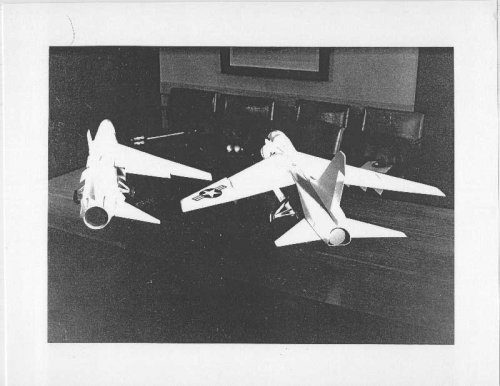

Last one. Showing some wing size comparison
and rear fuselage look.

Vought Retiree Club

bill


Attachments

  • Vought-V-463-and-F-8-rear.jpg
    45.4 KB · Views: 101

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,757
Reaction score
1,970
Re: Vought V-463 Attack Crusader

photogator said:
Model comparison of F-8 and V-463
I will try and scan the original pics
next time I visit.

Vought Aircraft Heritage Foundation

Have you ever found anything on Project Pluto there?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,751
Reaction score
4,408
Re: Vought V-463 Attack Crusader

Very nice. Definitely submitted to VA(L), from the text.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
578
Reaction score
429
Re: Vought V-463 Attack Crusader

Have you ever found anything on Project Pluto there?

All I found was an article cut out of Air Force Magazine and an artists concept of three inflight with a sunrise/sunset background


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,751
Reaction score
4,408
Re: Vought V-463 Attack Crusader

Tommy Thomason has pointed out that V-463 was built as the A-7A with very minor changes.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,751
Reaction score
4,408
Already posted on site:

index.php


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,669
Reaction score
690
Nice finds Bill - thanks for posting them.

I'm planning on coming down early November and seeing these images really gets me anxious to make the trip - way too long since the last visit.

Enjoy the Day! Mark
