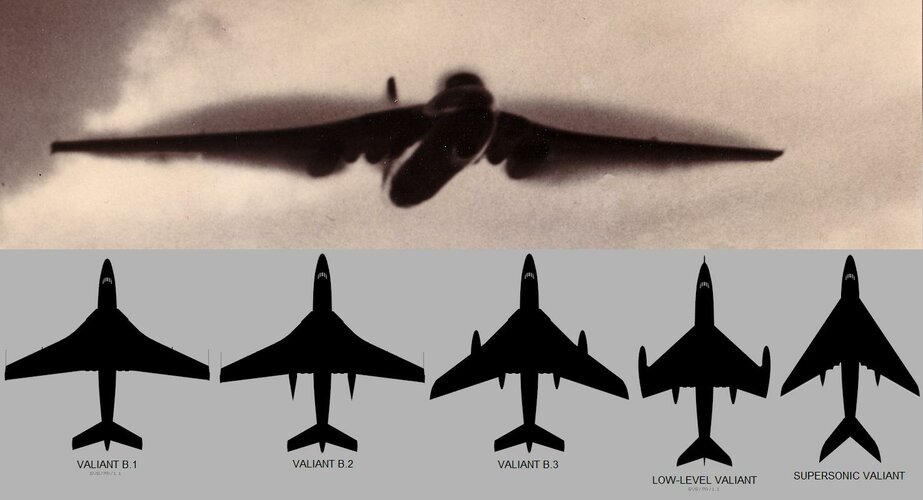

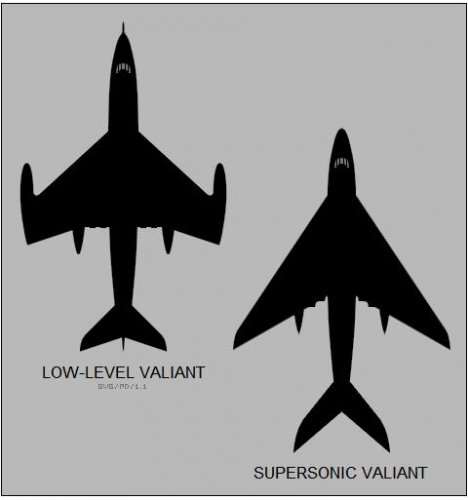

I browsed the Useful Links pages in Site Feedback, and in the Supermarine one posted by Lark there were two "blank" pictures 718 supersonic Valiant, and 718 low level Valiant
I've tried the site search engine, with no results.
Does anyone have any info on what these are?
(The low level Valiant outline shown is NOT the B2)

I should have 'Googled' before posting.
there is a tiny bit at:
A "low level Valiant" design featured a fuselage stretch, short wings, and additional fuel carriage. A "supersonic Valiant" design featured a highly swept ...
www.vectorsite.net/avval.html - 38k - Cached - Similar pages


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,723
Reaction score
3,495
Hi dear Smurf,

you can put it here.


Attachments

  • V.718.JPG
    18.6 KB · Views: 304

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,896
Reaction score
234
BSP2, pp.43-4 and 53, but no mention of them being type718,

cheers,
Robin.


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
547
Reaction score
26
Thanks. I thought I'd seen the supersonic Valiant before.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
-718- was the type number given by Vickers
to the planned production variant of the Valiant B Mk.2.

The order for 17 aircraft was cancelled and replaced by additional B Mk.1's.

Sources : Aerofax -Vickers Valiant by Eric B.Morgan.Midland Publishing.2002
Vickers Aircraft since 1908 by CF Andrews & EB Morgan.Putnam.1989.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
Eric B. Morgan in his already mentioned book gives the following specifications of the two Valiant's derivatives:

Low-altitude Bomber

Bomb-carrying capacity 10,000 lb (4,536 kg)
Max. speed Mach 0,85
Range 4,300 nm (7,964 km)
Cruise speed with drop tanks 521 kts (965 kph)
Cruise speed w/o drop tanks 566 kts (1,049 kph)
Span 81 ft (24.7 m)
Length 124 ft 6 in (37.9 m)
Wing area 2,150 sq.ft (200.0 sq.m)
Basic weight 99,200 lb (44,997 kg)
Max. weight 306,000 lb (138,802 kg)

Supersonic Bomber

Four reheated Convay 3s engines
Take-off weight 177,000 lb (80,287 kg)
Basic weight 102,000 lb (46,267 kg)
Max. speed at 30,000 ft (9,144 m) Mach 1,46
Max. speed at 36,000 ft (10,973 m) Mach 1,48
Span 85 ft (25.9 m)
Length 130 ft (39.6 m)
Wing are 2,000 sq.ft (186.0 sq.m)

What should be noticed is that, as Morgan puts it, "Both projects were the result of informal discussions between Vickers and the Air Staff and represented preliminary examinations without any detail design".

There are sketches of the both variants in the book, but as it was published by Midland Publishing, which is a subsidiary of Ian Allen, it would be wisely not to reproduce them here.

Best regards,
Piotr


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
618
Reaction score
276
BSP2, pp.43-4 and 53, but no mention of them being type718,

cheers,
Robin.
BSP2 does mention Vickers 718 on page 216, making clear it refers to both the low-level and supersonic Valiant variants. Buttler forgot to mention the Type 718 designation when discussing the low-level and supersonic Valiant versions.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,902
Reaction score
1,225
The Vickers Type 718 was the planned production Valiant B.Mk.2 and not related to the Low-Level and Supersonic design studies.


RLBH

ACCESS: Secret
Joined
May 5, 2007
Messages
327
Reaction score
154
Couldn't find a dedicated Valiant thread, so hopefully this is a suitable place.

BSP2 mentions a dedicated PR Valiant to OR.279 with Conways and enlarged wings. Has a drawing or specifications for this version been published anywhere?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,723
Reaction score
3,495
BSP2 mentions a dedicated PR Valiant to OR.279 with Conways and enlarged wings. Has a drawing or specifications for this version been published anywhere?

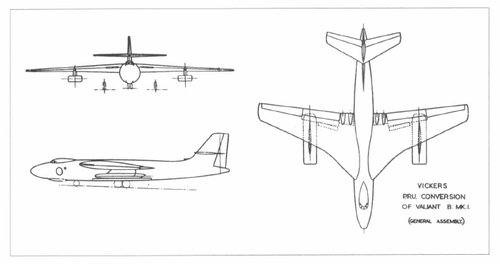

From Aerofax's book.


Attachments

  • 2.png
    62.9 KB · Views: 138

RLBH

ACCESS: Secret
Joined
May 5, 2007
Messages
327
Reaction score
154
BSP2 mentions a dedicated PR Valiant to OR.279 with Conways and enlarged wings. Has a drawing or specifications for this version been published anywhere?

From Aerofax's book.
Is that the dedicated OR.279 aircraft? The caption refers to it as a conversion of a B.1, and neither modifications to the wings nor to the powerplant seem to be in evidence.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,723
Reaction score
3,495

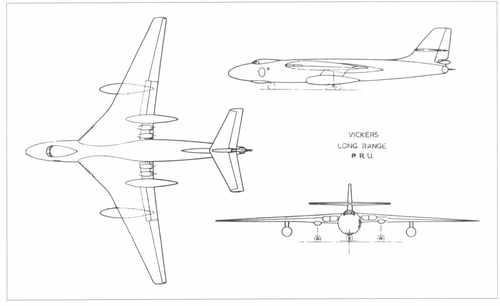

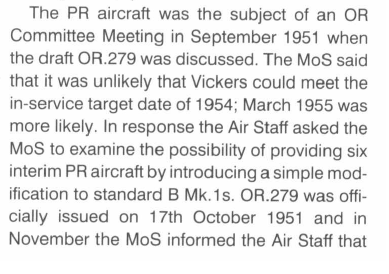

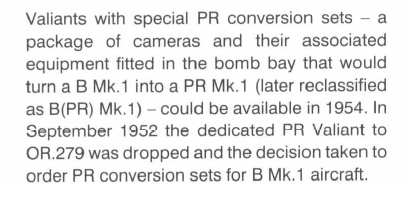

From the same source.


Attachments

  • 3.png
    68.4 KB · Views: 104
  • 4.png
    49.3 KB · Views: 87
