Various Focke-Wulf projects

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
Stargazer2006 said:
... the Focke-Wulf Volksflugzeug ("peoples' aircraft") contender, ...
I think, we discussed this before, the term "Volksflugzeug" in German parlance quite clearly indicates
a civil light aircraft. The program, which saw the He 162 as the winner was called "Volksjäger" (peoples'
fighter), "Volksflugzeug" to my opinion is just a faulty translation.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
98
Jemiba said:
Stargazer2006 said:
... the Focke-Wulf Volksflugzeug ("peoples' aircraft") contender, ...
I think, we discussed this before, the term "Volksflugzeug" in German parlance quite clearly indicates
a civil light aircraft. The program, which saw the He 162 as the winner was called "Volksjäger" (peoples'
fighter), "Volksflugzeug" to my opinion is just a faulty translation.
I won't dispute with you on that one since it's your mother tongue...

(though I can't help thinking that the Phaeton or Scirocco are "Volkswagen" although they hardly correspond to the image of an economic people's car... ;D )


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Oh yes,thank you my dear Jemiba.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Hi,

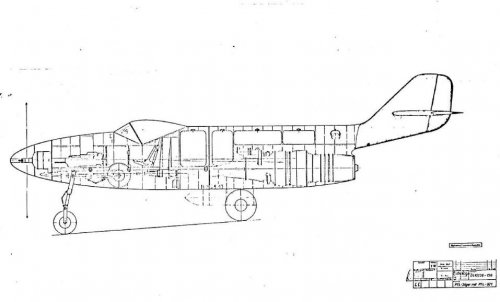

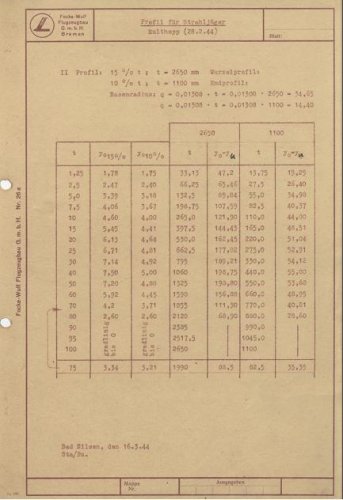

we know the Focke Wulf P.0310226-127 fighter project,sometimes called P.127,and here
is some details of its design.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Hi,

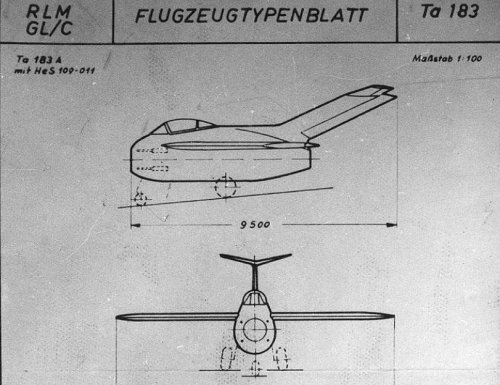

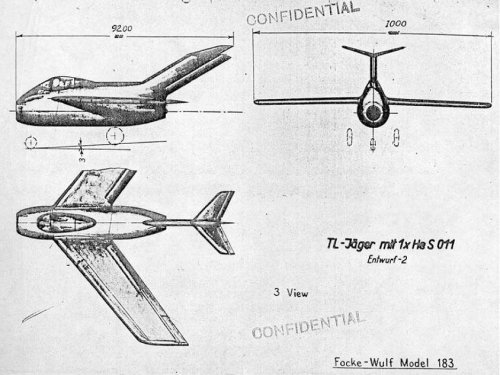

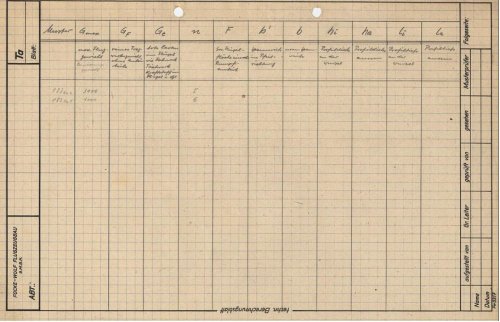

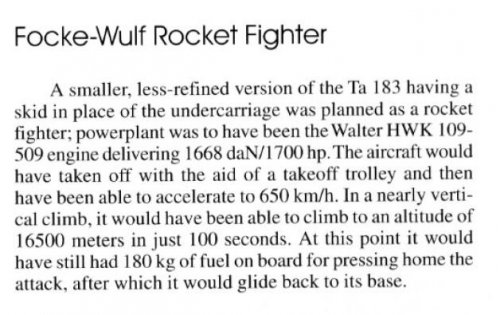

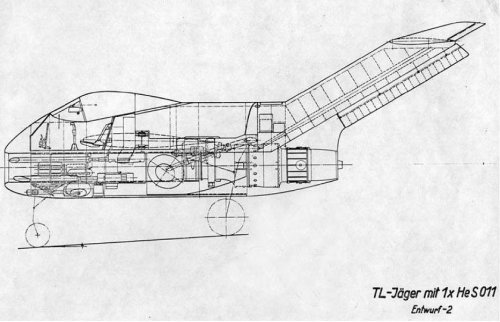

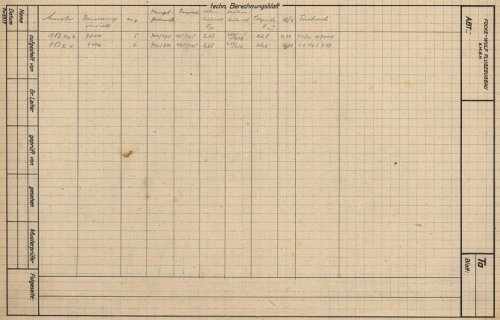

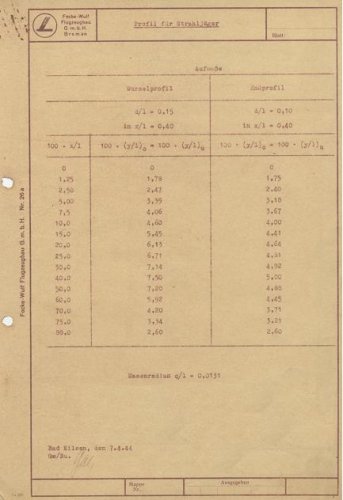

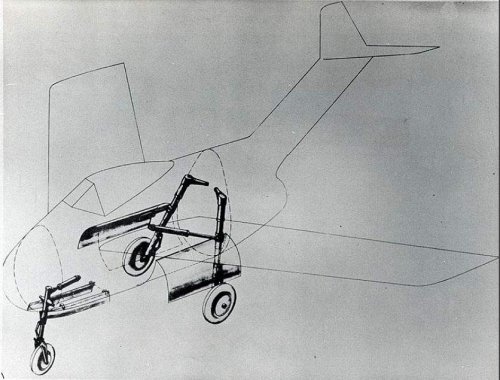

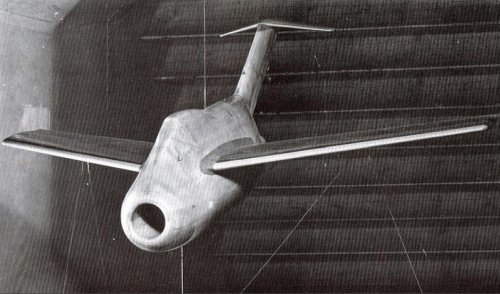

from www.scribd.com,here is a file about Focke Wulf Ta.183,but they delete it now,
and I'll send all of its pages.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Hi,

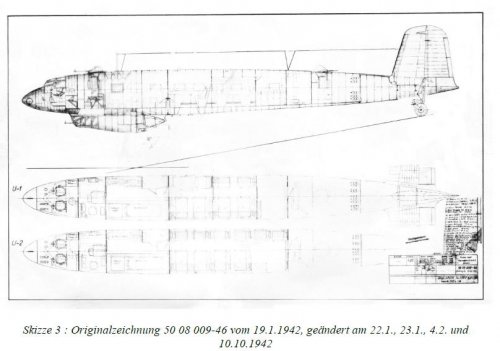

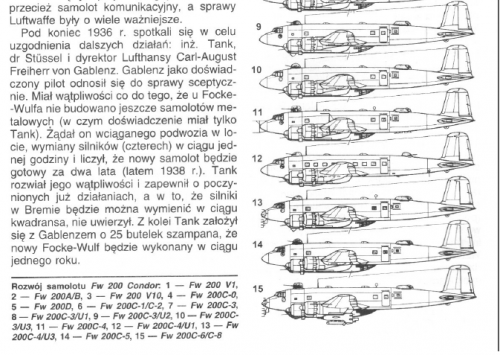

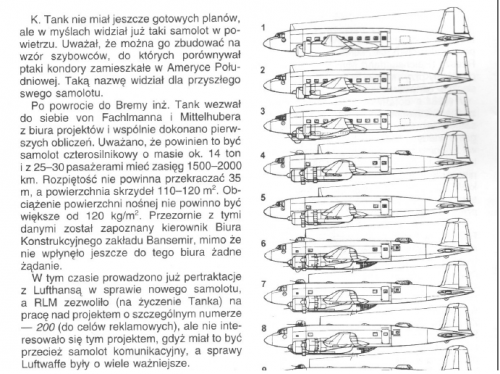

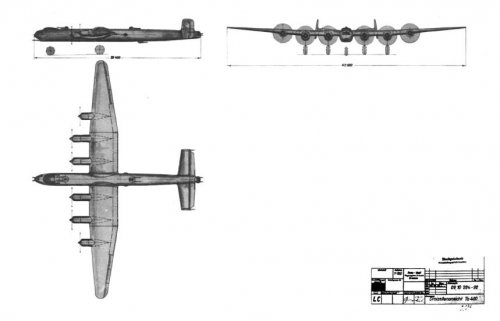

here is also the drawing No 50 08.009-46 for Focke Wulf FW.200,from the file;
Focke Wulf Fw 200 C-3U-4 Fernaufklarer.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
If we assume, that the numbers given by Novarra are at least correctly applied to the
projects, may they be drawing numbers, or whatsoever, then "P.0310226-127" was a
single seat fighter with a turboprop engine (#35) and "0310251-51" was a 3-seat nightfighter with
two jet engines, both types having at best a superficial similarity (swept wings). And looking at
the original drawings we've seen so far, those numbers were used without the prefix "P.", but
appear often with it. Logical, "P" for "project" ... but not necessarily correct, just repeated over
and over again ! ::)
So, I'll better back away from my statement in my post here http://www.secretprojects.co.uk/forum/index.php/topic,17112.msg203800.html#msg203800
We may be opening a can of worms here and I'm afraid , even when reffering to otherwise trustable
sources, we may stumble over errors here.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Hi,

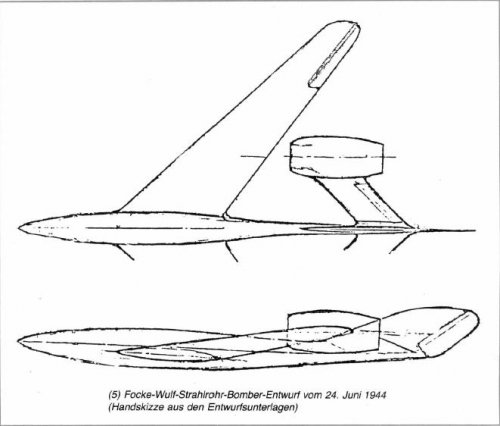

here is Focke-Wulf jet bomber project of 1944,but I don't know if it was unmanned or not and

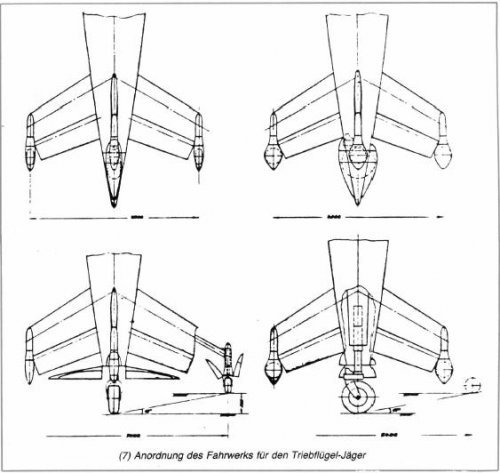

the landing gear system for Focke-Wulf Triebflugel from Luftfahrt 12/1980.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
The bomber design is called "Strahlrohr-Bomber", so pobably intended to be
driven by ramjet engines (Lorin engines). To my opinion, it would have been
manned, as an unmanned bomber was still quite out of the scope of the
technology then.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Hi,

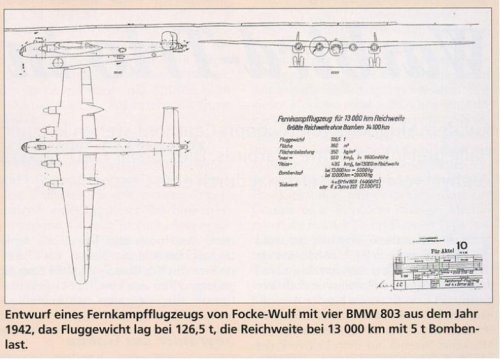

here is a 3-view drawing to Focke-Wulf project used the BMW 803 engines,I tried
to read the project number,I saw this 03.10206-22,I could be wrong,and in the
article they mention that it was FW.238,but I know this design was taken the project
number 03.10206-21,so may be it was anther version ?.


the source is; Flugzeug Classic 3/2006


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
My dear Apophenia,


I know FW.238H and its drawings number,but that project called 03.10206-22,and
it was powered by four 803s and not 801s.


Basil

CLEARANCE: Confidential
Joined
Aug 10, 2009
Messages
199
Reaction score
10
The Strahlrohr-Bomber clearly shows area ruling although this was not "invented" at that time (besides the Junkers patent).


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
If there really would have been area ruling in this design, wouldn't the fuselage
haven't to be thinner already in the area after the wing leading edge ?


Basil

CLEARANCE: Confidential
Joined
Aug 10, 2009
Messages
199
Reaction score
10
I have not calculated the diameter curve of the model but the forward swept engine mounts could give a nice Sears-Haack profile.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Hi,

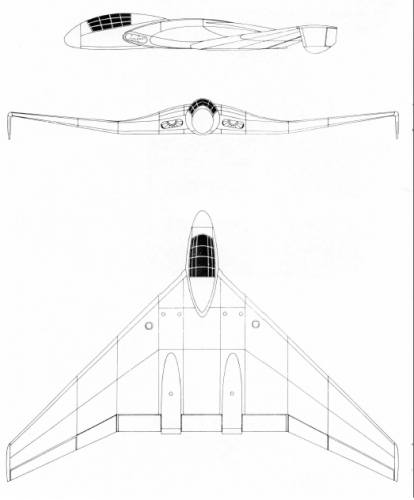

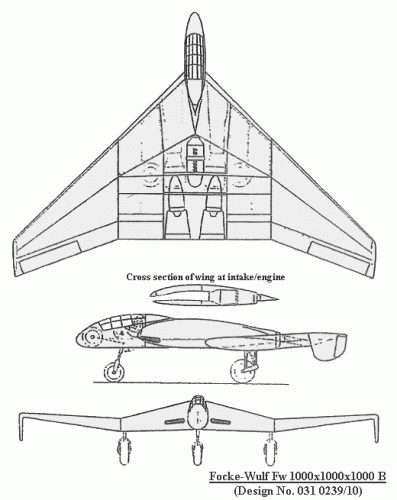

in Waffen Arsenal 139,I found this drawing to a tailless aircraft,and they didn't write
anything about it,it looks like Focke Wulf Fw 1000X3 B bomber project,but there is
a little different between the two drawings,is it FW aircraft ?.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196

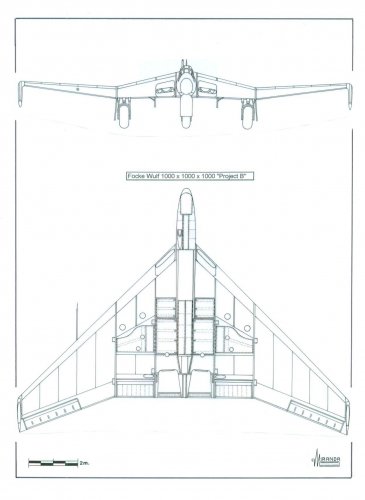

Pretty sure, it's the 1000 x 1000 x 1000. The concept wasn't actually finished, so
drawings we know, just show different design stages, I think, or maybe different
interpretations of the existing sources.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
I agree with you my dear Jemiba,


but there is many different in configuration,air intakes,position of rear thrust exist and also
the wing !.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Thank you my dear Justo.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,632
Reaction score
42
Justo Miranda said:

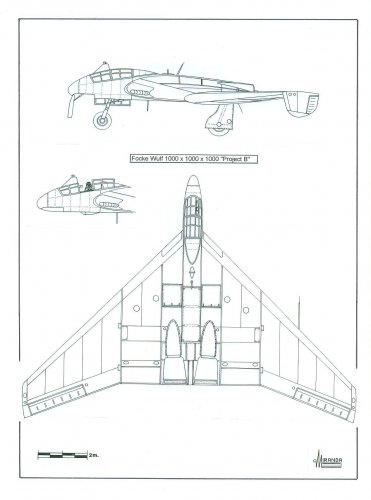

From my next book "Ultimate Flying Wings of the Luftwaffe" ;)
The only thing I would change would be in the side view and the partial side view in the first image. I would show the pilot in the cockpit with the canopy open in the full side view that shows the landing gear extended. I would show the partial nose image with both the canopy and the nose gear closed/retracted. It makes more sense that way. Unless the pilot takes off then opens the canopy to get the smell of fuel out of the cockpit. ;)


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,500
Reaction score
160

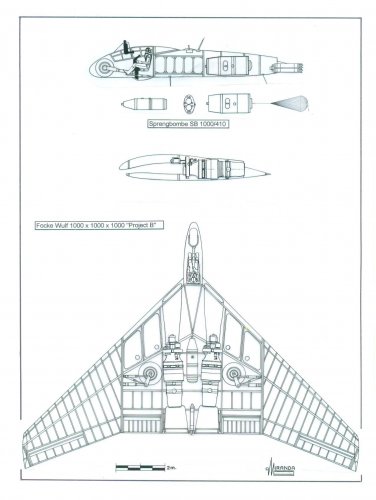

The Fw 1000x1000x1000 has been intercepted by a Meteor night fighter over Kent and the pilot is opening its cockpit to bail out. It did not have an ejector seat.
It is being described in the text of the book.... ::)

Jemiba said:
I would second Sundog, probably it would be possible, but not very probable with the upcoming
jet age. But I remember, that I had chosen such a "configuration", too, quite while ago ....
(http://www.secretprojects.co.uk/forum/index.php/topic,8781.msg78617.html#msg78617)

Nevertheless an interesting title, surely worth waiting for ! ;)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
hesham said:
in Waffen Arsenal 139,I found this drawing to a tailless aircraft,and they didn't write
anything about it,it looks like Focke Wulf Fw 1000X3 B bomber project,but there is
a little different between the two drawings,is it FW aircraft ?.

My dear Justo,


to this moment,we don't know how come those differences from ?.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
Justo Miranda said:
The Fw 1000x1000x1000 has been intercepted by a Meteor night fighter over Kent and the pilot is opening its cockpit to bail out. It did not have an ejector seat.
It is being described in the text of the book.... ::)
Ah, sorry, had forgotten this. Actually it was that attack from the rear, that led to the installation of a fixed rearward firing
armament, as noticable by the "Rückblickfernrohr" (rear view telescope), that was used for aiming such weapons.
And that on the other side forced the RAF to introduce "schräge Musik" (oblique upward firing guns) for the mentioned
Meteor nightfighters, as losses had increased dramatically before. .. ;D
Just kidding of course, actually I like details like open cockpits, or extended tailhooks or the like !


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,500
Reaction score
160
In the "Dive bomb" mode the airplane flew in 30º shallow dive attack starting at 5000 m. using the BZA "Bombenzielanlage für Strurzflug" bomb-aiming computer with the RF2C periscope and PV 1B sighting head.
No rear armament aiming mode.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
Thanks for puttig me right, seems to be the same installation then, as in the Ar 234B. Had never
associated the periscope with a forward looking bombsight, especially not, as the Ar 234 was a
candidate for a rearward firing gun, too. Quite a draggy installation then, to my opinion, especially as
forward view from the cockpit wasn't obstructed by a nose mounted engine ! ???


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,750
Reaction score
14
Jemiba said:
Thanks for puttig me right, seems to be the same installation then, as in the Ar 234B. Had never
associated the periscope with a forward looking bombsight, especially not, as the Ar 234 was a
candidate for a rearward firing gun, too. Quite a draggy installation then, to my opinion, especially as
forward view from the cockpit wasn't obstructed by a nose mounted engine ! ???
And using this system, there's no need for a flat windshield, to use the sight through...

cheers,
Robin.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
Correct, but a horizontally arranged apparatus and an aperture in the windshield would
have answered the same purpose, I think. But a dive angle of just 30° probably puts higher
demands on the sight, than a steeper, nearly vertical dive.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028

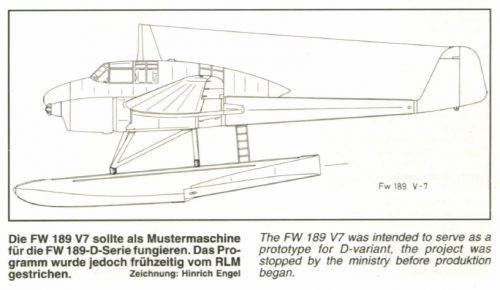

From Jet & Prop 1/1996,


here is the Focke Wulf Fw.189 V.7 or Fw.189D project with twin float.


Attachments

Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
865
Reaction score
11
Hesham,

you spoil us!!! Keep pumpin` stuff from "Jet & Prop", please!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028
Wurger said:
Hesham,

you spoil us!!! Keep pumpin` stuff from "Jet & Prop", please!

OK my dear Wurger,and many thanks.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,147
Reaction score
1,028

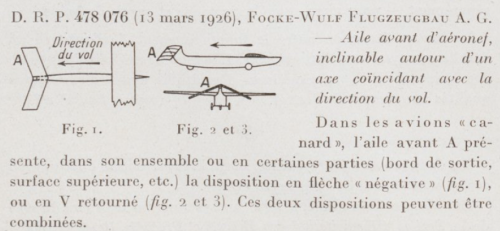

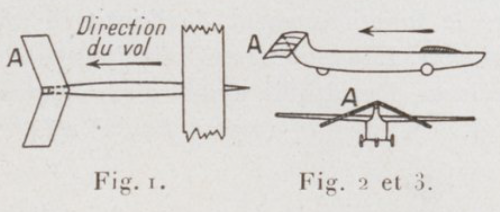

From l'Aeronautique 1932,


a strange patent for Focke-Wulf.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,020
Reaction score
196
The patent describes a method of flight control around the vertical axis by a
canard wing, that is pivoting around the longitudinal axis.
