Various Bell tilt-rotor projects

dragon72

ACCESS: Confidential
Joined
Aug 8, 2006
Messages
63
Reaction score
4

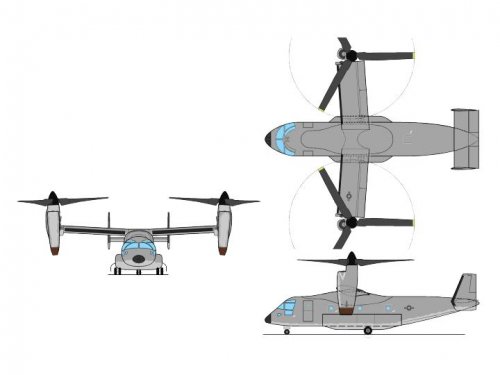

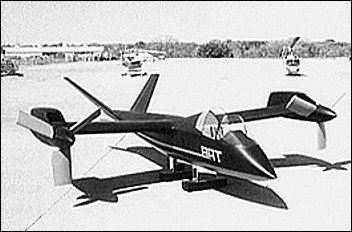

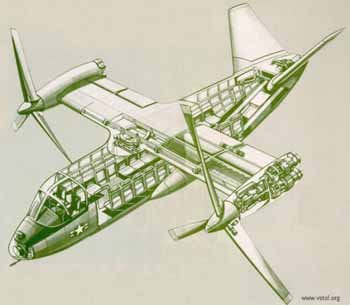

Some more AV 22 pics





F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,810
Reaction score
269

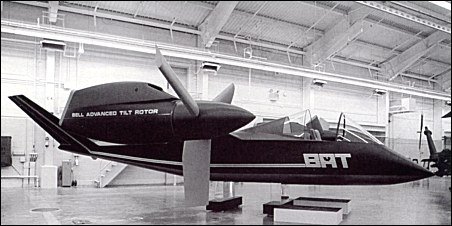

In response to a post a while back saying that some of the illustrations look like an LHX proposal, I am attaching two pictures of Bell's Tilt-Rotor proposal for LHX. Unfortunately, when it became apparent that a Tilt-Rotor (from Bell or from Boeing) would have easily outclassed a conventional rotorcraft, the Army changed the rules so as to effectively eliminate Tilt-Rotors.

Hope the pictures come through!


Attachments

  • bat5.jpg
    24.6 KB · Views: 657
  • bat4.jpg
    33.3 KB · Views: 443

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

my dear pometablava spoke before about those
tilt rotor aircraft projects for Bell;

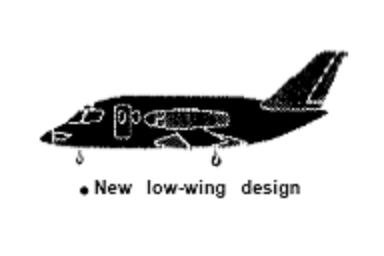

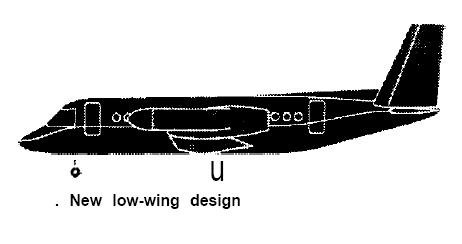

CTR-800 eight seat tilt rotor project in size of XV-15.
CTR-1900 19-seat new tilt rotor with low wing.


Attachments

  • CTR-800.JPG
    6.4 KB · Views: 284
  • CTR-1900.JPG
    7.4 KB · Views: 283

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,303
Reaction score
1,314

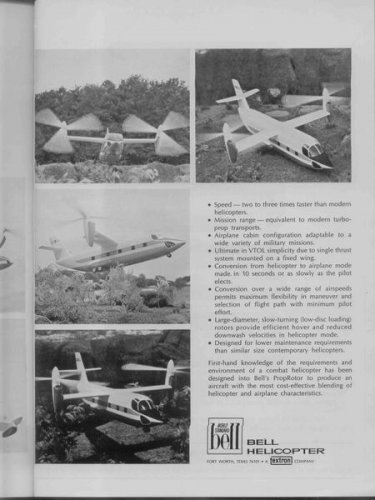

Looks similar to the tilt-rotor in this advert from
Aviation Week .10.1967


Attachments

  • Bell-tilt-prop-VTOL.JPG
    43.8 KB · Views: 387

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
107
looks like the Bell model 266...

(aaia.ovl)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Yes my dears Jemiba and Lark,

and the completing;

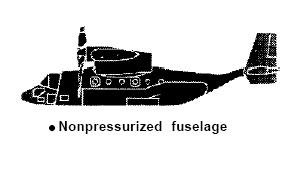

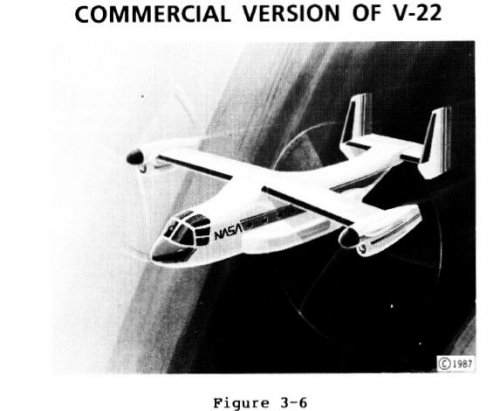

CTR 22 a 31-passengersand many changes of V-22.
CR derivative of V-22 as 39-passengers aircraft.


Attachments

  • CTR 22.JPG
    CTR 22.JPG
    8.4 KB · Views: 313
  • CR.JPG
    11 KB · Views: 300

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

and the CTR-7500 75-seat tilt rotor aircraft project.


Attachments

  • CTR-7500.JPG
    13.1 KB · Views: 250

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

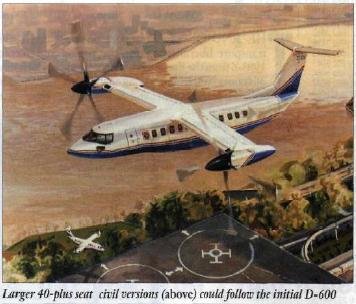

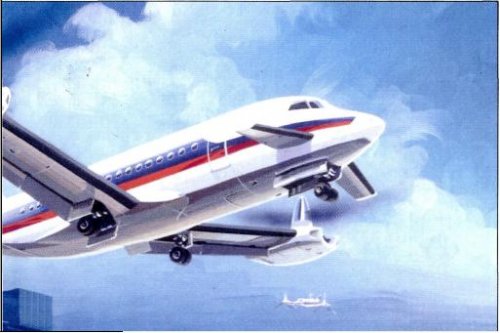

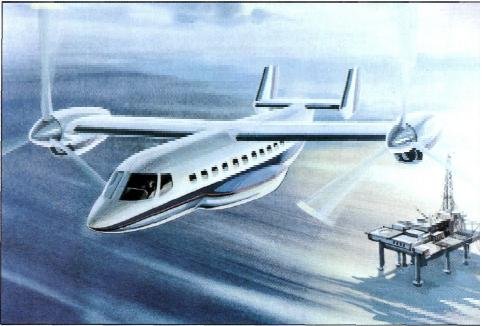

the Bell-Boeing D-600 civil tilt-rotor aircraft,it was
developed from CTR.
http://www.flightglobal.com/PDFArchive/View/1996/1996%20-%202896.html?search=Bell%20D%20helicopter%20project


Attachments

  • Bell D-600.JPG
    Bell D-600.JPG
    23.2 KB · Views: 303

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,551
Reaction score
358
From Avion Revue (Spanish magazine) June 1984

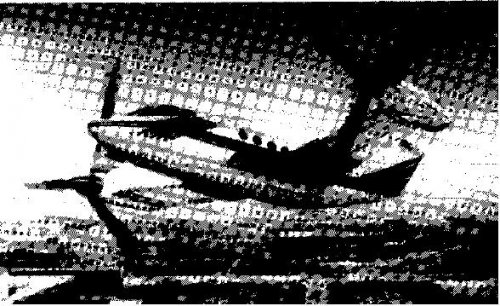

Bell Model 303 (passenger)

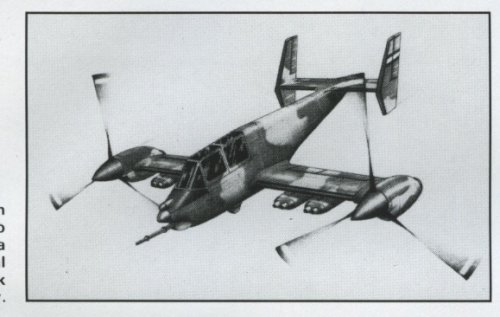

Bell Model 314 (gunship) and 314D (radar) designed in 1975 as a OV-1 replacement


Attachments

  • Model 303.jpg
    Model 303.jpg
    25.9 KB · Views: 286
  • Model 314.jpg
    Model 314.jpg
    70.6 KB · Views: 364
  • Model 314D.jpg
    Model 314D.jpg
    84.5 KB · Views: 356

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,002
Reaction score
401
Hi pometablava,

do you have some technical data for these projects? :eek:

Servus


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,642
Reaction score
1,062

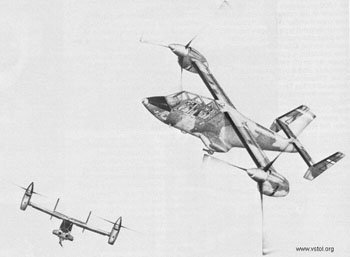

I have attached a picture of a Bell concept (Son of BAT) that was put together when the US Army asked the industry to show them what they could do as far as rapid production aircraft. Using composites and glue none the less. While I do not recall all of the details, I remember seeing a briefing where the fuselage came in two pieces (top and bottom), as did the wings. As far as I know the project never went further than the initial effort of design.


Attachments

  • a5WETY.jpg
    48 KB · Views: 416

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

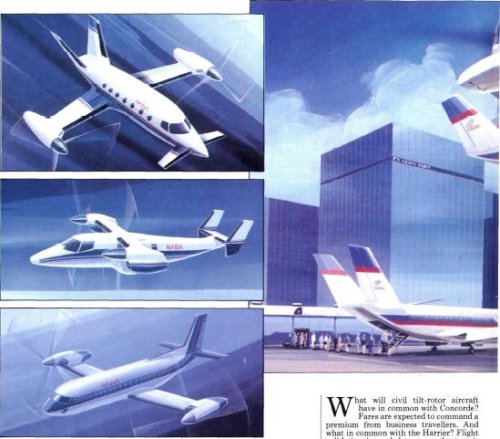

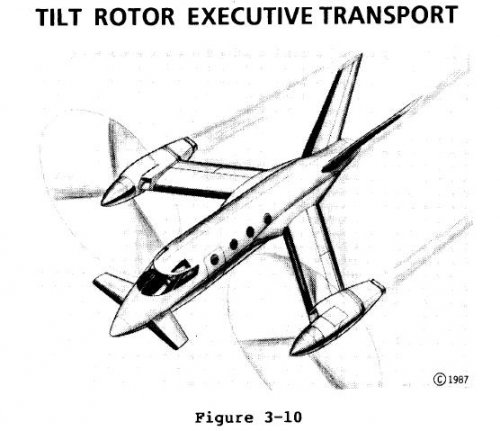

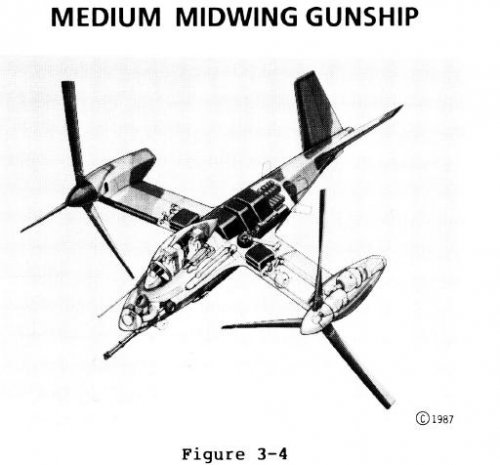

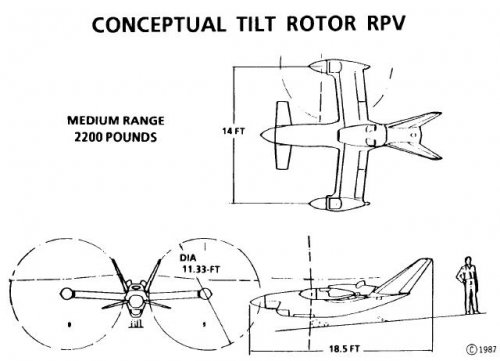

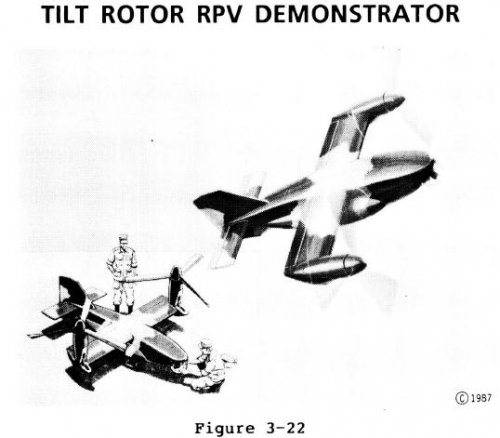

http://www.flightglobal.com/PDFArchive/View/1987/1987%20-%201848.html


Attachments

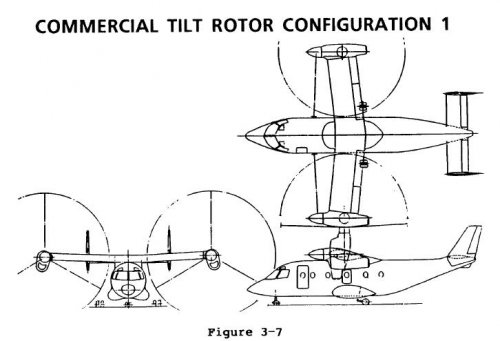

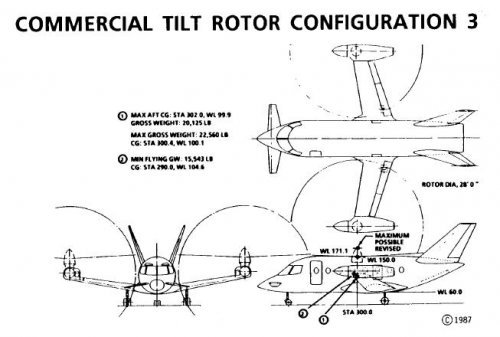

  • TILT-ROTOR 5.JPG
    TILT-ROTOR 5.JPG
    30.8 KB · Views: 186
  • TILT-ROTOR 4.JPG
    TILT-ROTOR 4.JPG
    28 KB · Views: 260
  • TILT-ROTOR 3.JPG
    TILT-ROTOR 3.JPG
    29.2 KB · Views: 256
  • TILT-ROTOR 2.JPG
    TILT-ROTOR 2.JPG
    28.7 KB · Views: 263
  • TILT-ROTOR 1.JPG
    TILT-ROTOR 1.JPG
    45.7 KB · Views: 289

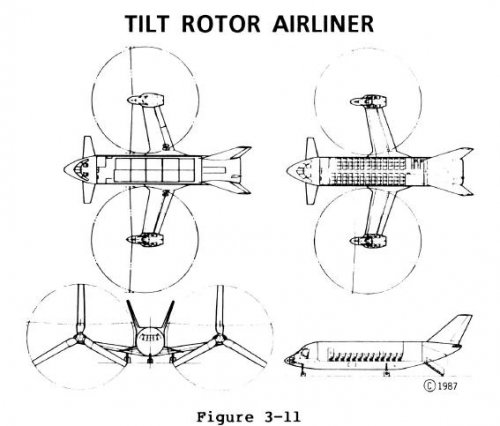

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216

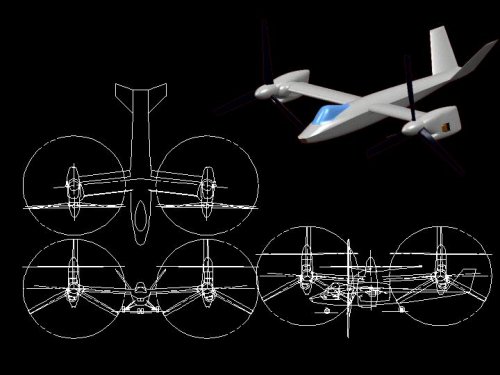

Hi,

http://ntl.bts.gov/lib/000/600/636/913205.pdf


Attachments

  • BELL 1.JPG
    BELL 1.JPG
    80.1 KB · Views: 113
  • BELL 2.JPG
    BELL 2.JPG
    47.9 KB · Views: 133

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,642
Reaction score
1,062

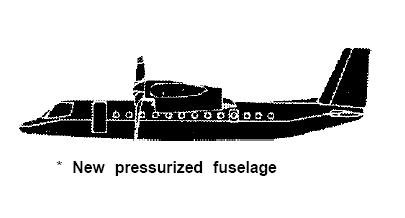

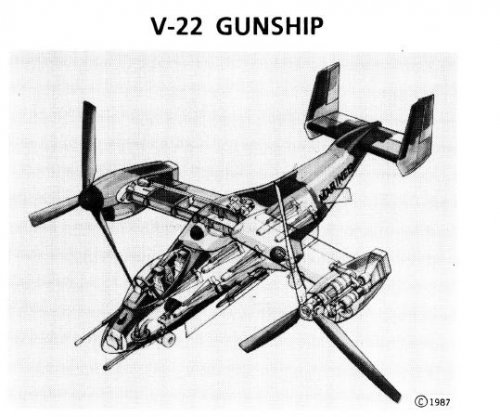

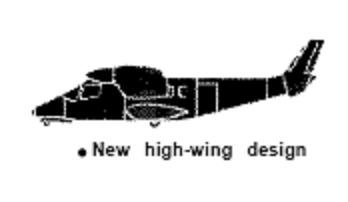

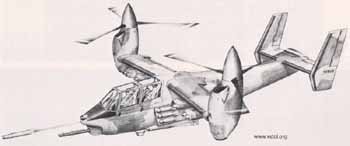

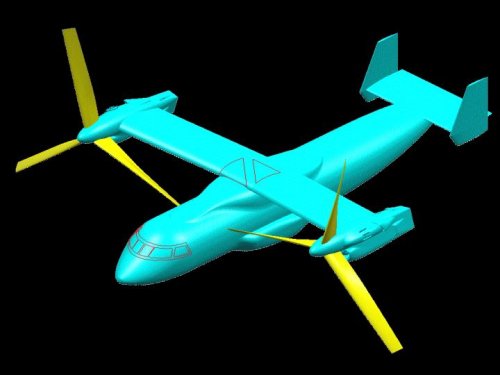

Floating through old briefings I came across a couple of Bell designs. The first two are is a Pressurized V-22. It also appears to have a fixed wing , vice a turnable one for ship storage. It may be my imagination but the prop-rotors appear to be larger as well, leading me to believe that this was/is intended for a land based platform.

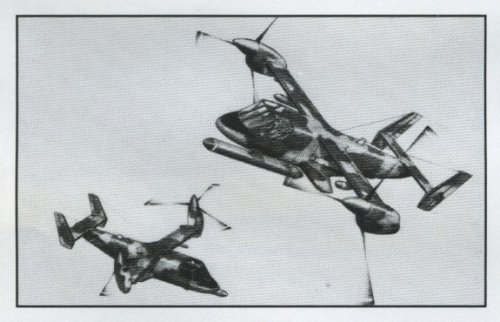

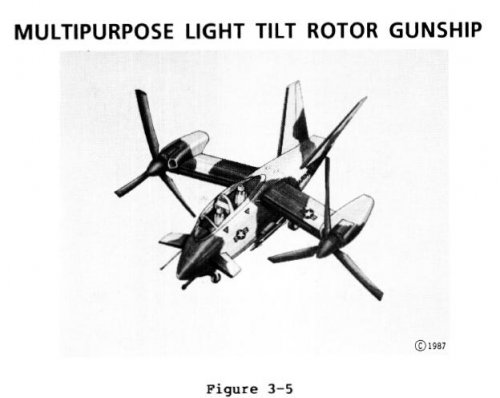

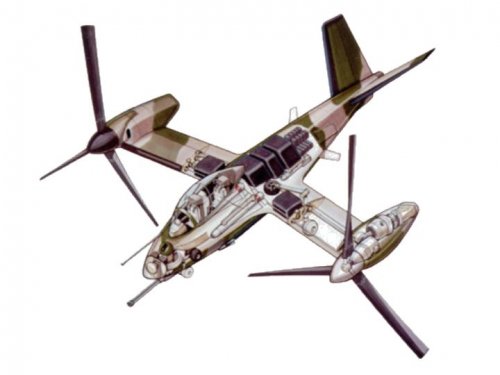

The third is obviously an attack TR. I think it was the final work on a Army project to do rapid assembly rotorcraft. That is however a guess on my part.


Attachments

  • TR_ATK_LT.jpg
    26.1 KB · Views: 586
  • Pressurized V-22_2.jpg
    Pressurized V-22_2.jpg
    23.3 KB · Views: 330
  • Pressurized V-22_1.JPG
    Pressurized V-22_1.JPG
    28.2 KB · Views: 271

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

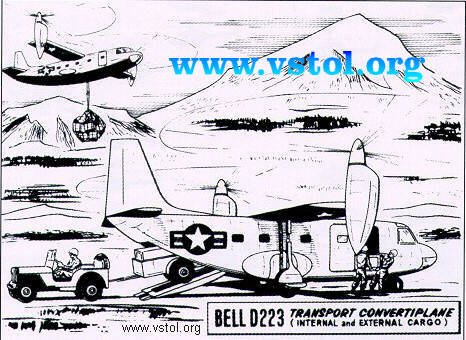

some Bell tilt-rotor aircraft.


Attachments

  • D-323.jpg
    16 KB · Views: 268
  • D-314G.jpg
    12.2 KB · Views: 238
  • D-314F.jpg
    8.4 KB · Views: 257
  • D-314E.jpg
    21.4 KB · Views: 230
  • D-314C.jpg
    19.5 KB · Views: 271
  • D-314A.jpg
    15.4 KB · Views: 264
  • D-312.jpg
    22.8 KB · Views: 226

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,174
Reaction score
1,382
yasotay said:
The third is obviously an attack TR. I think it was the final work on a Army project to do rapid assembly rotorcraft. That is however a guess on my part.

Aren't they the same - http://www.secretprojects.co.uk/forum/index.php/topic,1222.msg25898.html#msg25898


Attachments

  • a5WETY.jpg
    48 KB · Views: 629

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,642
Reaction score
1,062
I suspect that the one you (re)posted, which I know to be really nothing more than a academic drill for industry on composite construction, might draw heavily from the earlier attack tilt rotor. There are several differences that I think make them different design efforts. One has fixed engines that Bell stopped work on a while back while the others have the (now) trademark tilting nacelles. One is a single seat while the other is two, something that is not a simple as carving out some of the fuel tank in rotorcraft. So while I suspect their is a lineage between the two concepts, I think that they are different works. Perhaps someone else on the Forum could provide more info....


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216

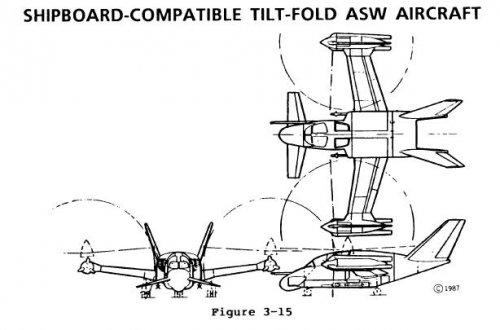

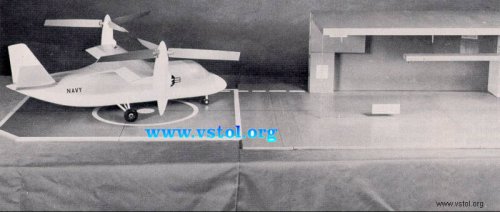

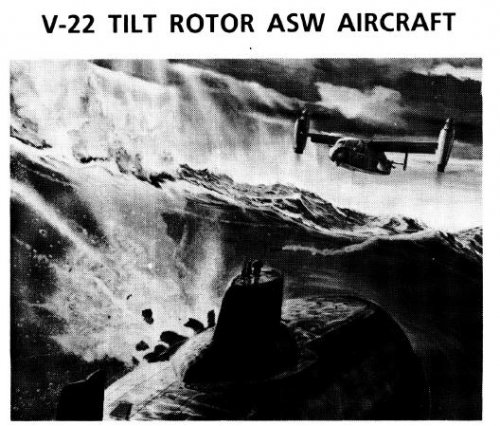

And notice the ASW variant;


Attachments

  • 13.JPG
    29.2 KB · Views: 243
  • 12.JPG
    35.3 KB · Views: 264
  • 11.JPG
    34.6 KB · Views: 275
  • 10.JPG
    33.5 KB · Views: 201
  • 9.JPG
    37.8 KB · Views: 175

F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,810
Reaction score
269
hesham said:
And notice the ASW variant;

An "SV-22" (see Hesham's first post yesterday was seriously considered early on for a number of reasons. Two of the big ones were to get the broad geographical coverage necessary to deal with the expected high speed subs under development by the Soviet Union prior to its collapse, especially when there was no CV around. The second concern was it may have been the only practical way to search for Typhoon and other SLBM subs operating under the ice


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216

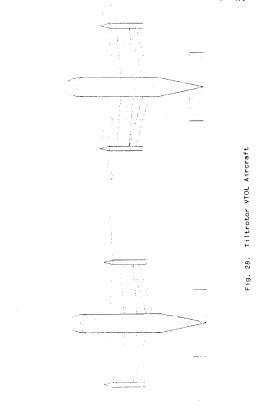

Hi,

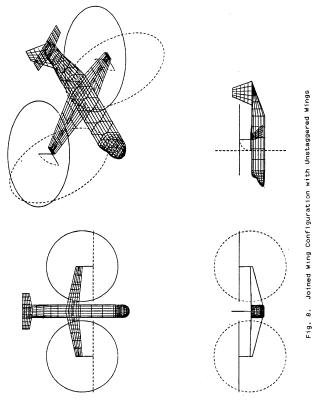

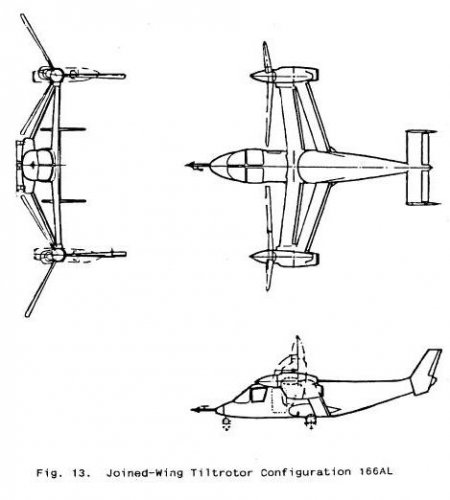

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19900005777_1990005777.pdf


Attachments

  • tiltpropfan.JPG
    6.1 KB · Views: 93
  • 3.JPG
    17.4 KB · Views: 86
  • 1.JPG
    25.7 KB · Views: 102

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216

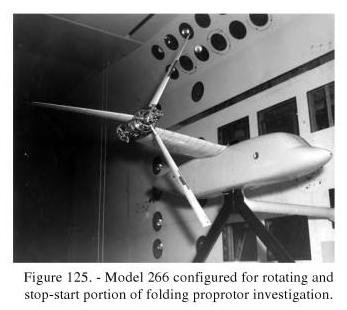

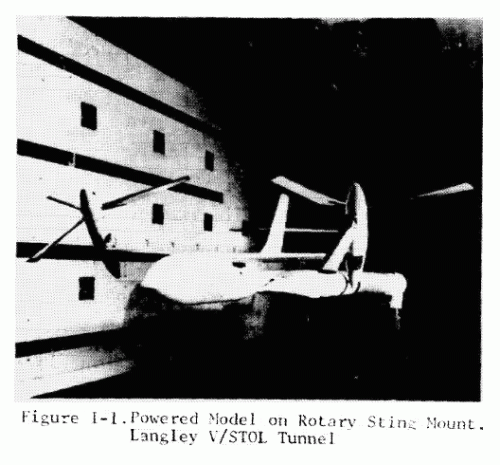

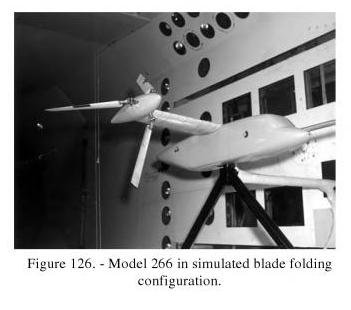

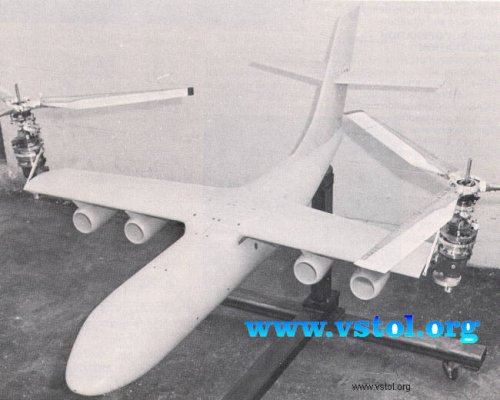

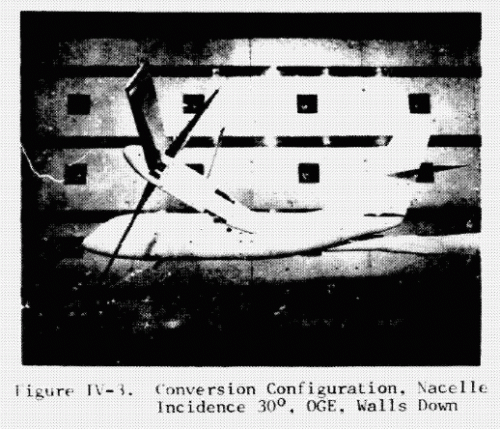

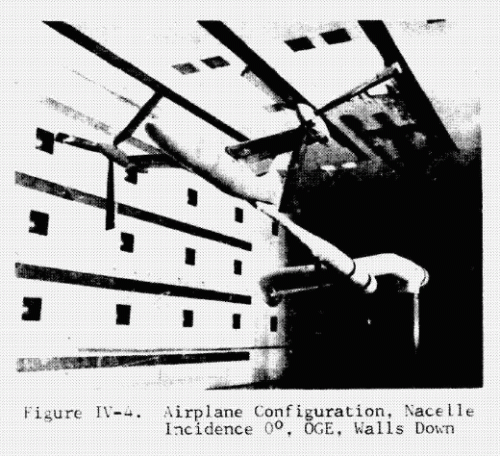

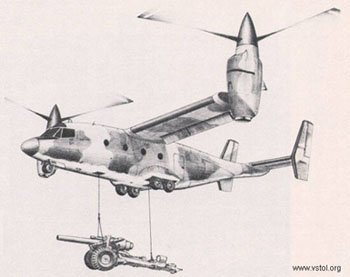

There is a little differents between Bell D-266 and Model-266,see the tail.

http://www.aiaa.org/tc/vstol/unbuilt/index.htm
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730015345_1973015345.pdf


Attachments

  • D_266-armyb.jpg
    29.6 KB · Views: 189
  • Model-266.JPG
    33.7 KB · Views: 179

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

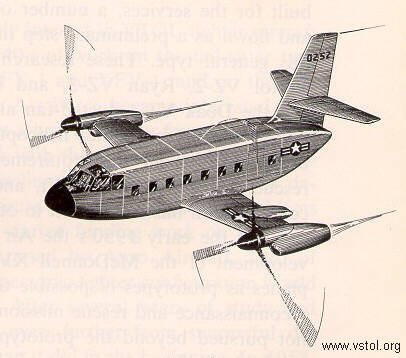

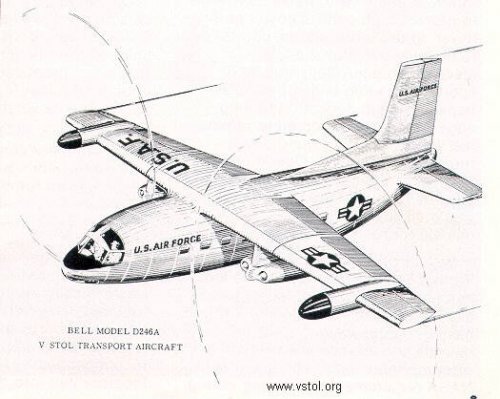

Artist's impression of Bell D-252 VTOL transport aircraft with two T64 turbines. Entered into Tri-Service competition and designed to meet these requirements:

  • Weight: 35,000 lbs.
  • Payload: 4 tons
  • Operating Radius: 200-300 miles
  • Ferry Range: 2,200-2,600 miles
  • Cruising Speed: 250-300 knots
  • Maximum Speed: 300-400 knots

Source:
http://www.aiaa.org/tc/vstol/unbuilt/


Attachments

  • D_252a.jpg
    24.2 KB · Views: 171

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

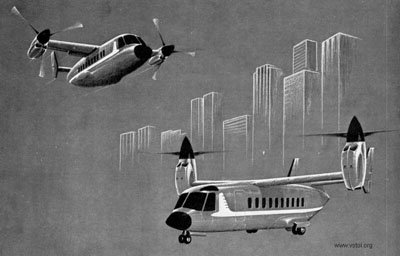

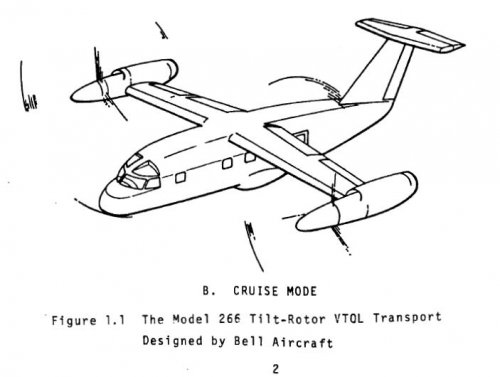

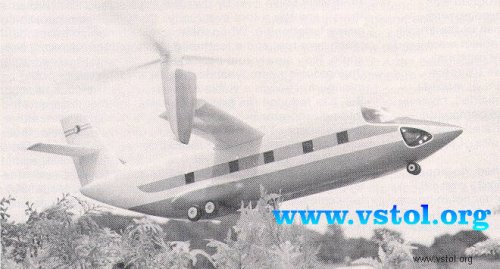

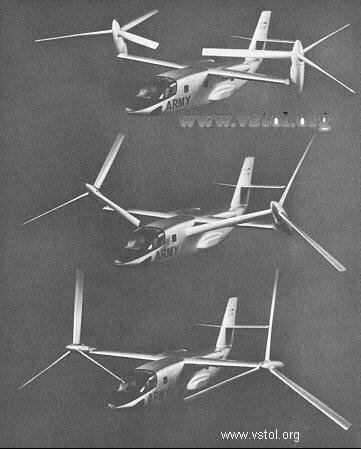

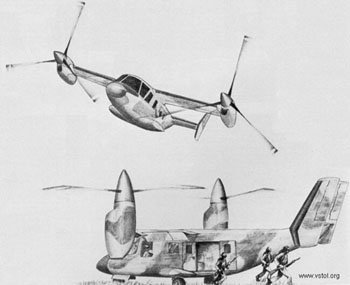

Artist's impression of Bell Model 266 V/STOL transport circa 1966. Project funded in 1966 & 1967 via US Army Composite Aircraft Program.

Characteristics:

  • Power: Two General Electric T-64's which power three-bladed proprotors.
  • Speed: 370 knots (686 km/h)
  • Weight: 35,000 lbs. (15,875 kg.)
  • Capacity: 25 seats

Source:
http://www.aiaa.org/tc/vstol/unbuilt/


Attachments

  • D_266-coma.jpg
    57 KB · Views: 190

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
875
Website
deeptowild.blogspot.com

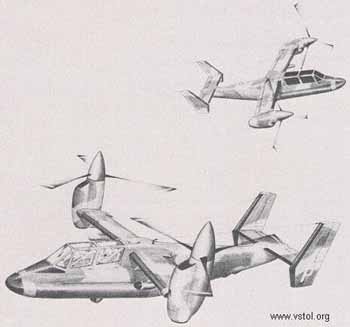

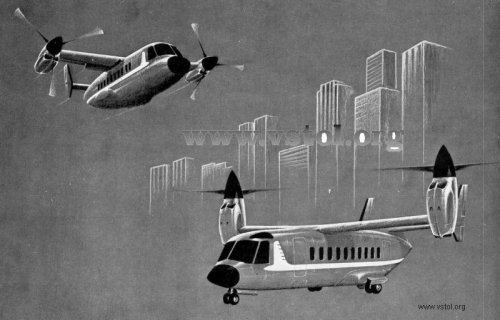

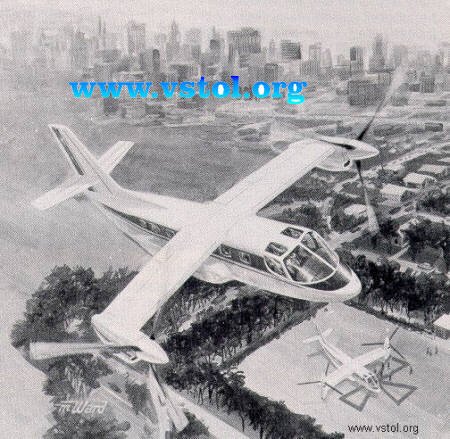

Artist's impression of Bell D-267 tilt rotor 4-26-1968.

First design study for a full-scale tilt rotor demonstrator. Significantly smaller than the D-266, and oriented toward commercial rather than military operation.

Source:
http://www.aiaa.org/tc/vstol/unbuilt/


Attachments

  • D_267a.jpg
    51.1 KB · Views: 171

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216

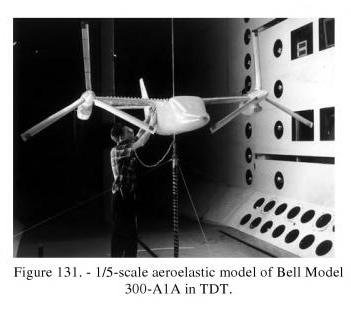

Hi,

here is two variants to both of those Bell Models;

Model 266 with tilt-rotor
Model 266 with folded tilt-rotor

Model 300-A1A with normal tail

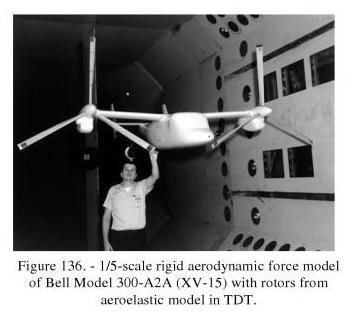

Model 300-A2A (XV-15) with H-tail

http://books.google.com.eg/books?id=m0Jd3ZJhRcgC&pg=PA99&dq=Bell+DUCTED+ROTOR&hl=ar&ei=kVOwTJ_1CY-hOqvr-PsN&sa=X&oi=book_result&ct=result&resnum=17&ved=0CHwQ6AEwEA#v=onepage&q&f=true


Attachments

  • 266-1.JPG
    17.7 KB · Views: 462
  • 266-2.JPG
    16.2 KB · Views: 446
  • 300-A1A.JPG
    16.9 KB · Views: 440
  • 300-A2A.JPG
    17.8 KB · Views: 93

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

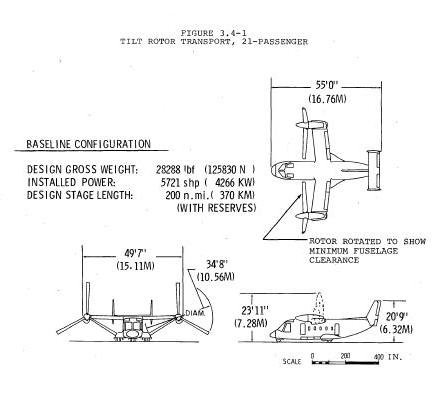

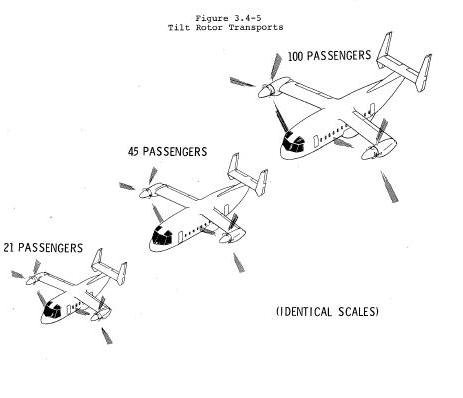

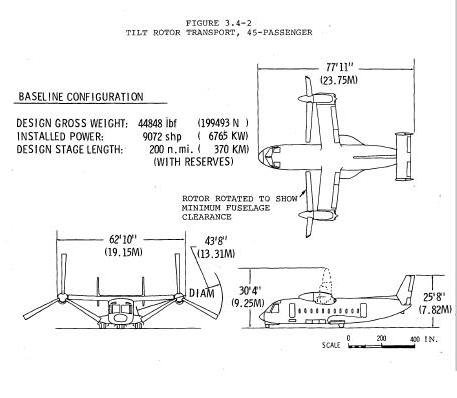

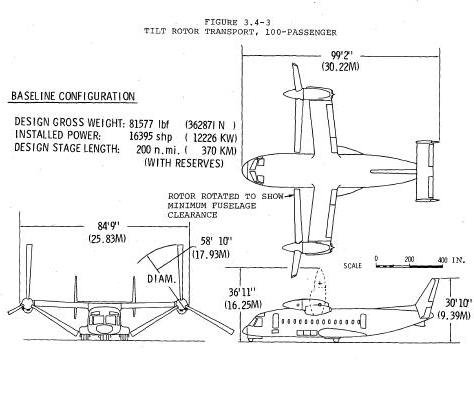

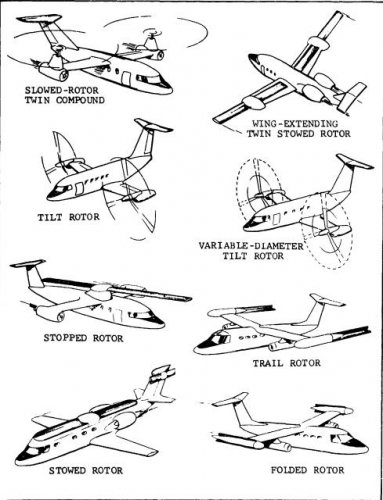

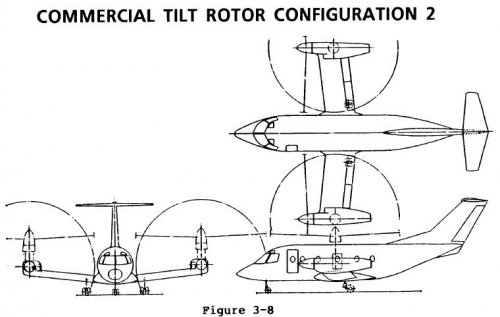

here is the Bell tilt-rotor projects; 21-passenger,45-passenger
and 100-passenger.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19750013184_1975013184.pdf


Attachments

  • all.JPG
    17.2 KB · Views: 147
  • 100.JPG
    29 KB · Views: 154
  • 45.JPG
    26.8 KB · Views: 151
  • 21.JPG
    22.9 KB · Views: 147

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,216
Hi,

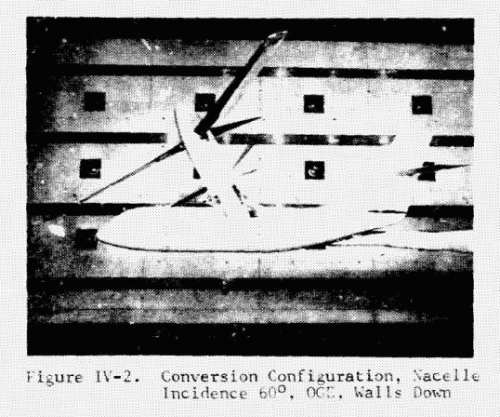

The AVLABS-Bell compound helicopter is unknown to me.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD684317&Location=U2&doc=GetTRDoc.pdf


Attachments

  • 2.png
    56.5 KB · Views: 70
  • 1.JPG
    56.4 KB · Views: 270
  • AVLABS-Bell.JPG
    51 KB · Views: 187

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
701
Reaction score
131
Website
www.tommythomason.com
hesham said:
Hi,

The AVLABS-Bell compound helicopter is unknown to me.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD684317&Location=U2&doc=GetTRDoc.pdf

When the D266 didn't "fly" as a government-funded program, Bell initiated a scaled-down version as the Model 300 on IR&D funds. It was to be powered by two PT6s and resulted in the 25-foot diameter rotor and gearbox proposed for the Model 301 in response to the NASA/Army RFP for a Tilt Rotor Research Aircraft. The Model 301 was powered by two T53s to meet the one-engine-inoperative requirement and was designated XV-15.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703

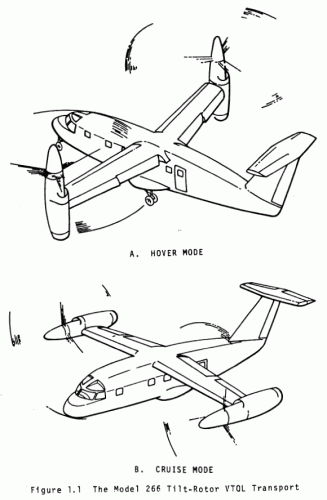

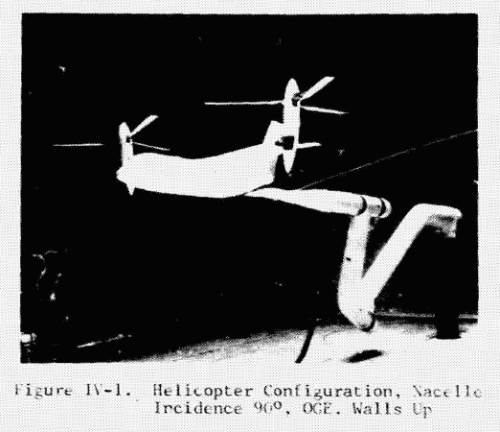

Found these pics of the Bell Model 266 project at NTSR:

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730015345_1973015345.pdf


Attachments

  • Bell 266 hover-cruise.gif
    Bell 266 hover-cruise.gif
    73.3 KB · Views: 631

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703

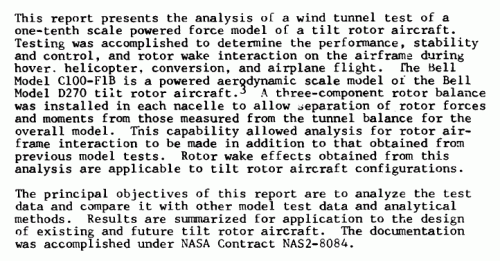

More pics of the C100-F1B:


Attachments

  • C100-F1B_1.gif
    86.3 KB · Views: 85
  • C100-F1B_2.gif
    176.6 KB · Views: 68
  • C100-F1B_3.gif
    70.1 KB · Views: 66
  • C100-F1B_4.gif
    125.6 KB · Views: 80

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,675
Reaction score
736
Greetings All -

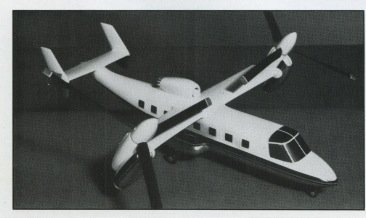

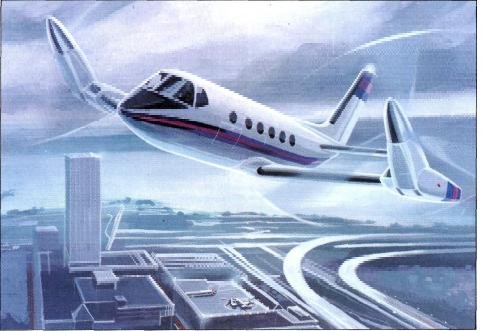

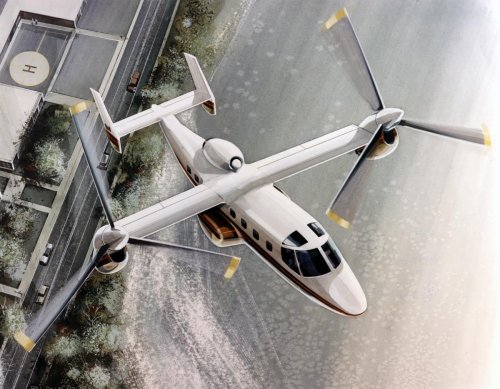

From Gerald Balzer's collection artwork labeled "XV-15 Civilian Version". Appears to be the Model 303 to me.

Enjoy the Day! Mark


Attachments

  • xXV-15 Civilian Version.jpg
    xXV-15 Civilian Version.jpg
    173.3 KB · Views: 416
