Bell D313 STOL tilt-rotor transport for 100 passengers

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,144
Reaction score
5,665

Attachments

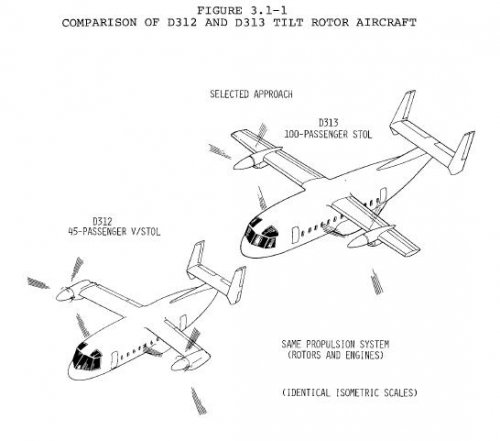

  • 1.JPG
    22 KB · Views: 165

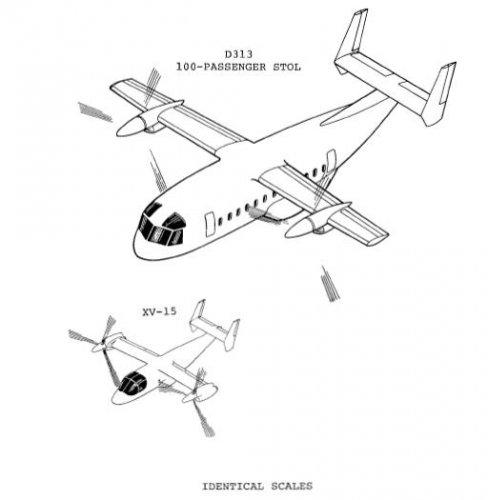

  • 2.JPG
    27.1 KB · Views: 172
  • 3.JPG
    37.1 KB · Views: 186

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,219
Reaction score
223
Interesting that with a few hundred feet of concrete you get twice the productivity out of the same power.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
920
Website
deeptowild.blogspot.com

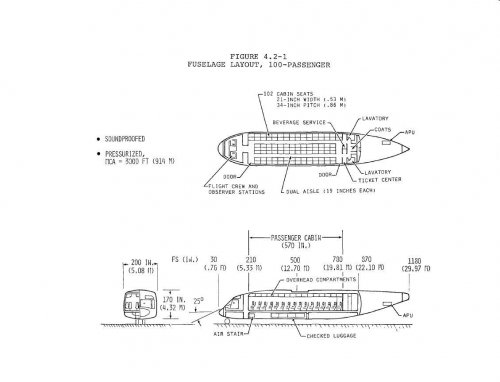

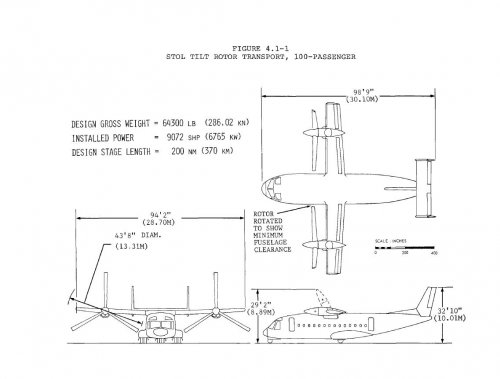

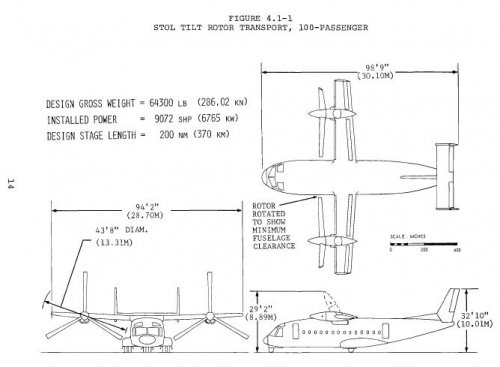

Larger three-view drawing and drawing of interior fuselage of Bell D-313 as part of the NASA 1985 Commercial V/STOL program.

Source:

Sambell, K. W. Conceptual Design Study of 1985 Commercial Tilt Rotor Transports. Volume 3: STOL Design Summary Bell Helicopter Company April 1, 1976

Abstract:
A conceptual design study is presented of 1985 commercial tilt rotor STOL transports for a NASA 200 n. mi. (370 km) STOL Mission. A 100-passenger STOL Variant (Bell D313) of the Phase I VTOL Tilt Rotor Aircraft is defined. Aircraft characteristics are given; with the aircraft redesigned to meet 2,000-foot (610 m) field criteria, with emphasis on low fuel consumption and low direct operating cost. The 100-passenger STOL Tilt Rotor Aircraft was analyzed for performance, weights, economics, handling qualities, noise footprint and aeroelastic stability.

URL: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19760015087_1976015087.pdf
