Bell D326 « Clipper » tilt-rotor for 30 passengers

[Triton]

Artist's impression of Bell D-326 Clipper tiltrotor.

Via Internet Archive:

Commercial Tiltrotor
Specifications include:

• General Electric CT-64 Engine
• Design gross weight: 37,000 lbs.
• Operational weight empty: 24,740 lbs.
• Crew (3): 510 lbs.
• Passengers (30): 6,000 lbs.
• Fuel: 5,750 lbs.
• Long range cruise speed (20,000 ft.): 290 knots
• Radius (45 minute reserve, 5% conservative): 300 nautical miles
• Hover ceiling, OGE, ISA + 20º: 1,000 ft.
• Maximum range (16 passengers, max. internal fuel, 25,000 ft., 30-min. reserve): 1,330 nautical miles

Source:
http://web.archive.org/web/20070306200806/http://www.aiaa.org/tc/vstol/unbuilt/index.htm



[Triton]

Artist's impression of Bell D-326 Clipper tiltrotor.



[Stargazer]

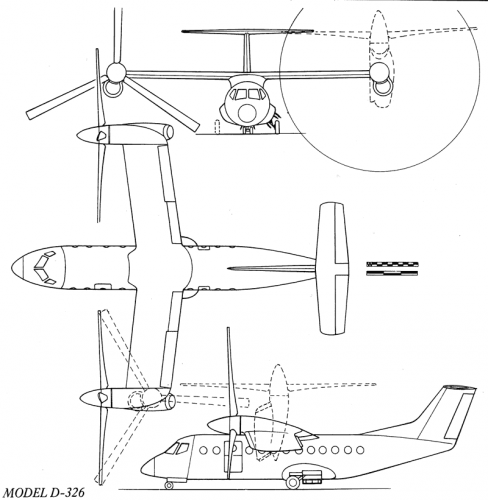

A three-view arrangement:



[Stargazer]

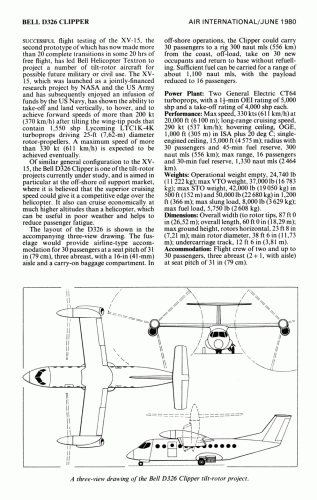

An article on the Bell D326 Clipperwith specs and three-view drawing, taken from Air International dated June 1980:
