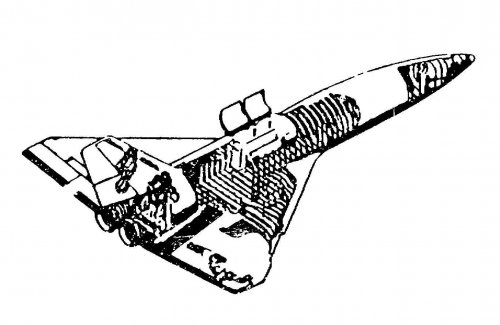

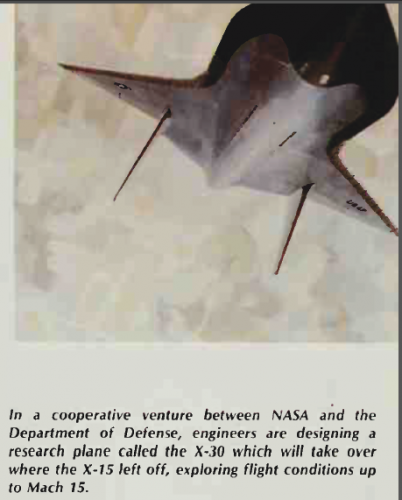

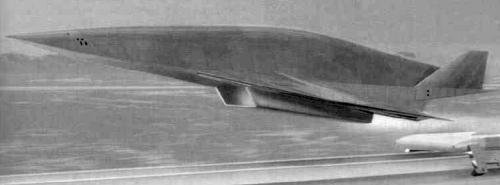

Does anyone know source of this drawing?


Attachments

  • COPPER CANYON.jpg
    COPPER CANYON.jpg
    11.1 KB · Views: 959

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,058
Reaction score
1,475
Website
www.aerospaceprojectsreview.com
I've seen that. I think it was in Aerospace America, but I'm not sure... but I *am* reasonably sure that it's a much-later-than-Copper-Canyon design. I *believe* it's from the mid to late 1990's, I think dealing with the maglaunch concept (magnetic levitation catapult).


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204
Scott - Using sleds doesn't make exact timeframe... AFAIK Copper Canyon study at Battelle Labs started not only as a next step after SCIENCE DOWN/SCIENCE REALM/HAVE REGION programs, but main push went when Robert Williams, father of NASP, went in love with Tony duPont hypersonic SSTO concept.

It was ideal in computer calculations to reach orbit, but duPont didn't get into account that real hardware has to use undercarriage and whole bunch of other things aircrafts use to have, and was a 50 000 lbs class vehicle (!) so the only way to launch this was to use sleds. Lockheed's NASP entry was to be sled-launched as well.

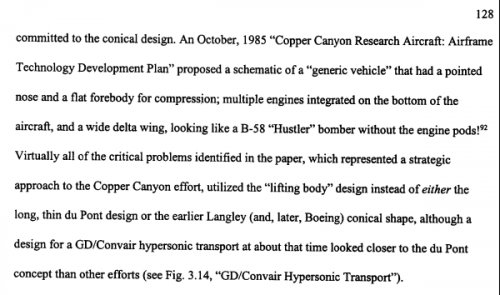

Actually, attached is description of Copper Canyon 'generic vehicle'. If Williams liked duPont design, researchers did not.


Attachments

  • copper_hallion.jpg
    88.6 KB · Views: 631

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204
Scott (as it used to be always) is right - that is NOT COPPER CANYON, that is 1997 concept...


Dronte

Argentinean ugly bird
Joined
Feb 19, 2006
Messages
96
Reaction score
24

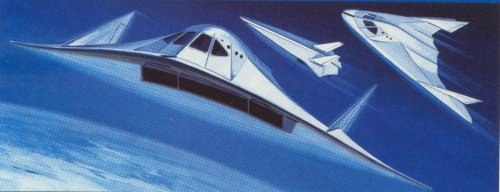

To my reminds me to the NASA/Ohio State's "unmanned test unit of hipersonic engine"
(1991 -in the center of the first image surrounded by other two designs of waveriders)(source: PM Argentinean edition 3/1991)

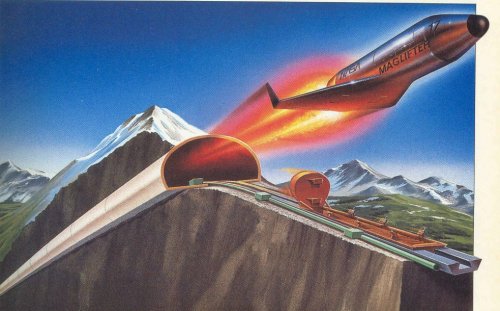

The second image corresponds to an artistic conception of the Maglifter
(PM Argentinean edition 1/1996)


Attachments

  • Waveriders.jpg
    89.7 KB · Views: 810
  • maglifter.jpg
    182.7 KB · Views: 691

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Copper Canyon is also the name of a restaurant across the street from Kirtland AFB. Do you think that could have been the inspiration for the name of the Copper Canyon program?


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
791
Reaction score
227
British Secret Projects: Hypersonics, Ramjets and Missiles

In his unpublished memoir on ramjet development at Bristol Aero Engines and BSEL, John Lane describes a series of papers he wrote with Robin Jamieson on air-breathing high-speed propulsion systems. Lane makes a very interesting statement: “The papers caused quite a stir when they came out and were ahead of the field. The work was trotted around the US by the author for Rolls Royce in the 1980’s. The author found that the US had not recorded their own work and had forgotten most of it.’

By 1p85 the US had embarked on the Copper Canyon hypersonic studies and the National Aerospace Plane and by 1989 rumours were rife of a hypersonic aircraft operating in the western US. Perhaps like the cavity magnetron, the atomic bomb and that unsung hero of WW2, the strain gauge, Britain’s high-speed propulsion research went across the Atlantic, to live on and even reach the hardware stage.

8)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204
"During the past 25 years the Air Force and NASA have conducted numerous studies and technology programs that could be used to support the development of a reusable launch vehicle, or a military transatmospheric aerospace plane. While none of the programs actually developed an operational vehicle, they provided critical technology and data that could be used to develop a near term aerospace plane.

Isinglass

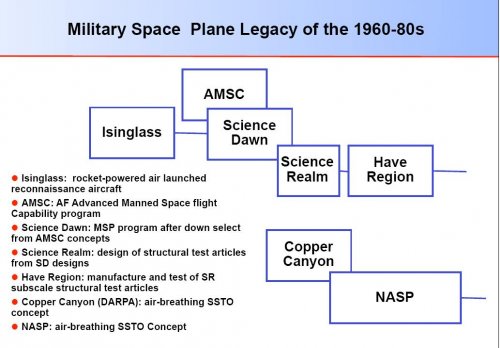

• Light weight structure and TPS concepts applicable to reusable launch vehicle concepts
Science Dawn
• 3 Military space plane concepts
• In-depth preliminary designs by hand picked design teams
• Upgraded SSME performance, 109 and 115 %, horizontal operation, 2-position nozzle
Have Region
• 3 structural concepts, 2 partial successes, 1 validated concept
• Stainless steel hydrogen tank liner
• Propellant utilization fraction of 0.88

Isinglass was a rocket powered air launched vehicle. In the mid 1960s a follow-on global reconnaissance aircraft was considered. During Isinglass McDonnell developed a new lightweight structure and TPS concept for an air-launched Mach 17+ rocket powered aerospace plane. A structural test articled was designed, built and successfully tested.

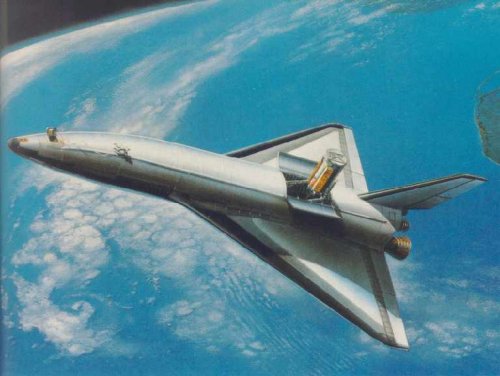

The Air Force Advanced Manned Spaceflight Capability (AMSC) study investigated a wide range of reusable launch vehicle concepts and military missions for such a vehicle might do. During the Air Force AMSC program the Air Force Space and Missile Division was looking at a rocket-powered reusable aerospace plane proposed by Boeing called RASV. The RASV was initially formulated for NASA as a candidate to replace the Space Shuttle. The RASV used a hot structure approach Boeing derived from their Dyna Soar program in the late 1950s and early 1960s. Isinglass and RASV provided the bases for further investigation of a military aerospace plane by the Air Force.

At the conclusion of the Air Force AMSC program, the Air Force initiated Science Dawn to determine the technical feasibility of a military aerospace plane. Science Dawn was an in depth technical feasibility study focused on rocket powered aerospace plane concepts by Lockheed Skunk Works, McDonnell, and Boeing. Rocketdyne, Air Products, and the AF SAC supported the three primary contractors. Three airframe contractors plus Rocketdyne and Air Products participated in the program.

Science Dawn numbers:
10,000-lb Payload to Polar Orbit from Grand Forks
1,227,000 lb Assisted SSTO


At the conclusion of Science Dawn it was determined that while propulsion and the other key technologies were sufficiently developed, structures and TPS needed further development to reduce risk. Have Region was initiated to address the structures, TPS issues. While Have Region was progressing, the Air Force, NASA and DARPA initiated the National AeroSpace Plane program (NASP).

During Have Region, a structural concept was demonstrated that could provide the propellant utilization fractions needed for
the two stage-to-orbit aerospace plane. The contractors investigated using the Space Shuttle main engine (SSME) for their design concepts. Rocketdyne concluded that the modification needed for horizontal operations plus the addition of a two position nozzle were achievable with relatively low risk. An additional 20 years of experience with the SSME engine since Science Dawn has proven that the engine is reliable.

During Have Region large scale structural test articles were built and tested. Of three test articles built only one was validated. The validated structural test article was a hot structure concept. The test article contained over 90% of the parts that would have gone into the flight article. Figure shows the Boeing hot structure test article.

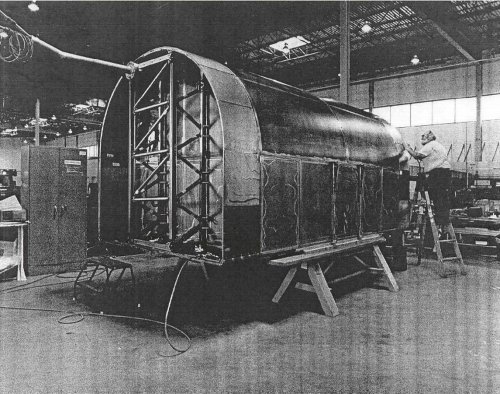

The Boeing test article was a half scale representative section of the vehicle containing the wing carry through structure, propellant tank with flat bulkheads, and the engine thrust attachment structure. The actual weight of the test article was lighter then predicted by the design code.

The people that conduced Isinglass, Science Dawn and Have Region all had a record of successful flight projects. Norm Nelson, program manager of Have Blue, headed the Lockheed Skunk Works team. Larry Smith, Chief Engineer on F-15, F-18, and AV-8,
headed the McDonnell team. Andy Hepler, structural lead on Dyna Soar and program manager on RASV, headed the Boeing team. Each team had corporate support at the Corporate Presidential level. Resources were provided as required by the program managers."

Adopted from AIAA 2004-3731
The Formulation of a Near Term Stepping Stone to a Low Cost Earth-to-Orbit Transportation System Based on Legacy Technology
Ramon L. Chase, ANSER


Attachments

  • Boeing Have Region test article.jpg
    Boeing Have Region test article.jpg
    262.4 KB · Views: 429
  • Science Down_Boeing_RASV_1.jpg
    Science Down_Boeing_RASV_1.jpg
    126.8 KB · Views: 121
  • Science Down_Boeing_RASV_2.jpg
    Science Down_Boeing_RASV_2.jpg
    34.1 KB · Views: 158

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204
More complete list of DoD/USAF RLV programs to 1992 from ANSER paper

A Near Term Reusable Launch Vehicle Strategy
Ramon L. Chase, Warren Greczyn, Leon McKinney
February 2003



1965-70 Air Force Aerospace plane and DynaSoar programs
1965-68 CIA Isinglass program
1975-78 NASA and Air Force single stage to orbit studies
1978-79 Air Force Military Crews in Space study
1979-80 AF HQ (RDSL) mission analysis and cost benefit studies
1980-82 Air Force Advanced Manned Space-Flight Capability study
1980-82 Air Force Transatmospheric Vehicle study
1982-84 Air HQ (RDSL) Science Dawn program
1984-85 Air Force Science Realm program
1984-86 DARPA Copper Canyon study
1986-88 Air Force Have Region program
1986-92 DOD-NASA National AeroSpace Plane (NASP) program


Attachments

  • DoD_RLV.jpg
    79.3 KB · Views: 116

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204
Following add-ons are taken from Tuomas Narvainen web-page at http://personal.inet.fi/cool/foxfour/black/index.html

Science Dawn
A classified program, based on a 1982 Boeing proposal, to build a sled-launched horizontal-takeoff / horizontal-landing single stage to orbit (SSTO) launch vehicle. Three hand-picked design teams participated. By 1984 it had become clear that horizontal takeoff was inappropriate use of rocket power, and the program was abandoned.

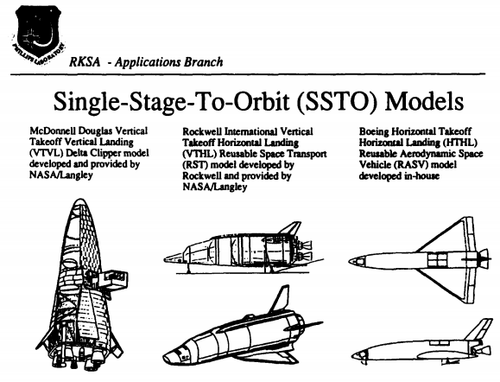

The Boeing Reusable AeroSpace Vehicle (RASV) comprised a ground-based sled to accelerate the aircraft to takeoff speed on a conventional runway, and a delta-winged, piloted orbital vehicle. The RASV was designed to be constructed of conventional refractory metals such as titanium and Rene-41, with the cryogenic liquid hydrogen and liquid oxygen propellants contained withing the "hot structure" wing acting as a heat sink to cool the airframe and reduce weight (by largely eliminating heavy insulation materials). Powered by two modified Space Shuttle Main Engines, the RASV attracted considerable attention from the Air Force, which invested $3 million in the project for technology development in the early 1980s. In December 1982 Boeing chairman T.A. Wilson gave the RASV effort a go-ahead to build a $11.4 billion half scale prototype vehicle. As it turned out, both the USAF and Boeing funds allocated for the RASV went to the development and redesign work of the B-2 bomber instead.

Science Realm
The program was initiated in 1984 as a follow-on to Science Dawn. In contrast to Science Dawn, which stressed horizontal takeoff, Science Realm investigated vertical takeoff SSTO designs, capitalizing on the high thrust-to-weight ratio of a rocket engine.

Have Region
In 1986 Science Realm was followed by the Have Region program, to complement the ongoing air-breathing work in the NASP program. Under the program three prototype lightweight structures were fabricated primarily from exotic metals to evaluate near-term flight readiness. Although the results were generally promising, in 1988 it was concluded that the materials developed for the NASP were more promising.

Copper Canyon
In June 1983 DARPA initiated the classified Copper Canyon program to investigate the potential military applications of air-breathing hypersonic and single stage to orbit vehicles and technologies. Funded with a tiny seed of $6 million for 1983, by 1985 that had risen into hundreds of millions of dollars. Concepts for future hypersonic and orbital vehicles included high speed cruise missiles, two stage to orbit satellite launchers, high-Mach bombers and reconaissance aircraft. In mid-1985 the Transatmospheric Vehicle (TAV) group at the USAF Aeronautical Systems Center became aware of the work being done under Copper Canyon. The TAV studies and contractor designs had concentrated on rocket-based single stage to orbit vehicles rather than the air-breathing vehicles envisioned by Copper Canyon. Soon both groups were discussing a multibillion dollar effort to produce a single stage to orbit aircraft in collaboration with NASA and other DOD agencies to reduce the cost of access to space. During October 1985 the USAF ASC launched the Advanced Aerospace Vehicle (AAV) program to develop advanced hypersonic military aircraft.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204

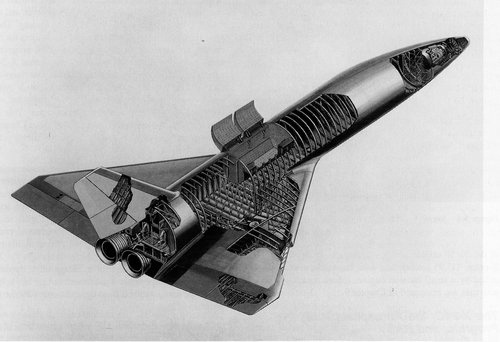

have found another nice RASV cutaway


Attachments

  • rasv_sm.jpg
    319 KB · Views: 190

antigravite

ACCESS: Top Secret
Joined
Apr 25, 2008
Messages
746
Reaction score
96
Very intriguing Air Force Systems Command (AFSC) patch (Edwards AFB Hospital) definitely showing the RASV concept (and the Saturn V as well).


Attachments

  • AFSC-HOPSITAL-EDWARDS.jpg
    47.3 KB · Views: 107

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204
...program called HAVE REGION executed in the late 1980’s. HAVE REGION fabricated and tested major airframe cross sections of high propellant mass fraction RLV’s. The airframe cross sections were then tested using liquid nitrogen in the propellant tanks and quartz lamps on the outside to simulate multiple ascent and orbital reentry mission cycles respectively. Throughout the test, dynamic mechanical loads representative of the ascent and descent environment were imposed on the test structure.
Boeing, Lockheed-Martin, and McDonnell Douglas built and tested airframe cross sections at scales ranging from 40 to 100% of full scale and at costs ranging from $11 to 15 million.

from AFRL-WS 07-0646, Fully Reusable Access to Space Technology FAST


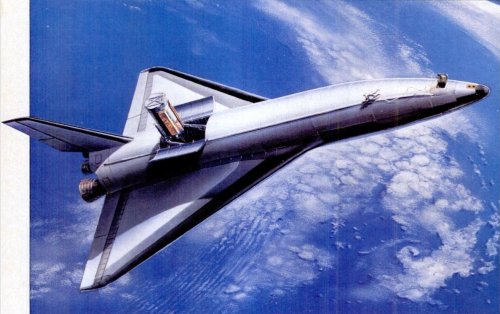

another RASV artist's impression from Popular Mechanics

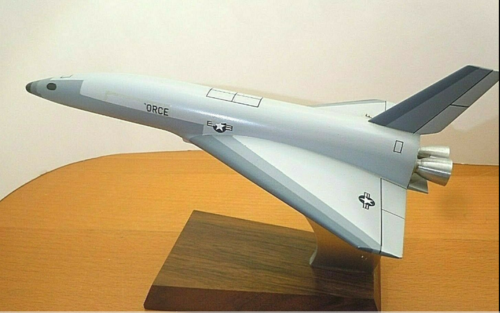

Boeing Have Region test article color photo


Attachments

  • Boeing RASV.jpg
    Boeing RASV.jpg
    575.8 KB · Views: 134
  • have region.jpg
    have region.jpg
    14.1 KB · Views: 872

quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,192
Reaction score
239
flateric said:
During October 1985 the USAF ASC launched the Advanced Aerospace Vehicle (AAV) program to develop advanced hypersonic military aircraft.

100 internets to the author. I have to dig around quite a bit to find it, but I do have an interesting public reference to this program from several years later.


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
33
quellish said:
I have to dig around quite a bit to find it, but I do have an interesting public reference to this program from several years later.

At least one reference is The Hypersonic Revolution. Volume II. From Scramjet to the National Aero-Space Plane (1964-1986) p.1362. As I said before I'm working on better versions of those short program descriptions - I'll try to hurry up a bit as I think they are somewhat outdated and badly worded.


Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
425
Reaction score
33
Here are updated versions of most of the program descriptions, I'll update my homepage once I have RASV and ALSV figured out also. Comments and corrections are welcome.

Advanced Military Space Flight Capability (AMSC)
Initiated by AFSC with one-year study contracts awarded to General Dynamics and Rockwell in 1981. Technology studies of small manned spacecraft based on two generic launch concepts: subsonic air launch and "staged" ground launch. Replaced by the Advanced Military Space Technology (AMST) program with a contract awarded to Boeing in January 1984 to determine key aerodynamic and performance parameters associated with air-launching a so-called AMST/TAV orbiter from a carrier aircraft.

Transatmospheric Vehicle (TAV)
Program begun in mid-1982. Stanley Tremaine coined the term “Transatmospheric Vehicle”, as the craft should be able to operate with equal efficiency both within the atmosphere and in space and be capable of transitioning from space into the atmosphere and back. Phase I of the TAV study began in May 1983 with Battelle Laboratories working with Boeing, General Dynamics, Lockheed, and Rockwell. McDonnell-Douglas submitted its own unsolicited TAV proposal. Phase I ended in December 1983 and resulted in 14 vehicle concepts. Phase II started in August 1984 with a twelve-month contract to Science Applications. In Phase II selected industry concepts were evaluated against alternative solutions such as advanced aircraft and the necessary technologies were further examined with emphasis on determining the military effectiveness of a TAV. The TAV was expected to be the size of a small airliner with a gross liftoff weight of 1 to 1.5 million lbs and using up-rated SSMEs for propulsion in the first generation. A TAV Project office was established in December 1984 under the direction of Lt Col Vince Rausch. By early 1986 the TAV program had been replaced by NASP with the entire TAV staff transferring into the NASP JPO.

Science Dawn
A classified program begun in 1982 to determine the technical feasibility of a military aerospace plane. Requirements were for a sled-launched horizontal-takeoff / horizontal-landing single stage to orbit (SSTO) launch vehicle powered by a modified SSME with a two-position nozzle. Dry mass was to be 100,000-150,000 lb, takeoff mass 1,2-1,5 million lb with a 10,000 lb payload to a polar orbit from Grand Forks AFB. AMSC concepts from Boeing, Lockheed and McDonnell Douglas were hand-picked for further development with Rocketdyne and Air Products as propulsion contractors. The Boeing concept was apparently their RASV vehicle. The McDonnell Douglas proposal, possibly GRM-29A, had a down- pointing SSME in the nose to cater for the runway requirements, whereas Lockheed used a ramped takeoff with two solid boosters. By 1984 it had become clear that horizontal takeoff was inappropriate use of rocket power, and the program was superseded by Science Realm.

Science Realm
The program was initiated in 1984 as a follow-on to Science Dawn. In contrast to Science Dawn, which stressed horizontal takeoff, Science Realm investigated vertical takeoff SSTO designs, capitalizing on the high thrust-to-weight ratio of a rocket engine. During the program structural test articles were designed based on Science Dawn designs. The cost of Science Dawn and Science Realm together was about $20 million.

Have Region
In 1986 Science Realm was followed by the Have Region program, to complement the ongoing air-breathing work in the NASP program. Main goal was to further develop structures and TPS to reduce risk. Under the program three prototype lightweight structures in scales from 40 to 100% were fabricated from exotic metals, primarily titanium and high-temperature superalloys, to evaluate near-term flight readiness. In tests the Boeing concept was validated and the built but untested Lockheed and McDonnell Douglas designs were classified as partial successes. The test articles were within 3% of required SSTO design weights. Regardless in 1988 it was concluded that the materials developed for NASP were more promising. Total cost of Have Region was around $40 million.

Copper Canyon and NASP
In June 1983 DARPA initiated the classified Copper Canyon program to investigate the potential military applications of air-breathing hypersonic and single stage to orbit vehicles and technologies with Vince Rausch as project director. Tony DuPont’s initial design from 1983 originated from a NASA study into engine cycles and was a 50,000 lb “F-15 sized“ aircraft. Funded with $6 million for 1983, with Battelle Laboratories doing the main work and initial contracts for airframe work to Boeing, Lockheed and General Dynamics, and propulsion work to Marquardt and GASL. In mid-1985 the TAV group at the USAF Aeronautical Systems Center became aware of the work being done under Copper Canyon. The TAV studies and contractor designs had concentrated on rocket-based single stage to orbit vehicles rather than the air-breathing vehicles envisioned by Copper Canyon. Soon both groups were discussing a multibillion dollar effort to produce a single stage to orbit aircraft in collaboration with NASA and other DOD agencies to reduce the cost of access to space. In October 1985 the USAF ASC launched the Advanced Aerospace Vehicle (AAV) program to develop advanced hypersonic military aircraft. In December 1985 the National Aerospace Plane (NASP) program was born, a civilian led national effort to develop a single stage to orbit vehicle. NASP JPO was established in January 1986, and president Reagan announced the NASP in his first state of the union address in February 1986. Copper Canyon constituted Phase I of NASP program.
The objective of NASP was to develop two flight vehicles with air breathing propulsion from takeoff to orbit. Rocket engines were to be used for final orbital insertion and orbital maneuvers. Airframe, engine module and test facility RFPs were sent out in November 1985. In April 1986 the first design contracts for the NASP program were awarded. Contractors included Boeing, Lockheed, McDonnell Douglas, General Dynamics and Rockwell, with Pratt & Whitney and General Electric for propulsion research. Rocketdyne later contributed to NASP under its own funding. In October 1987, following Phase 2A evaluation, Lockheed and Boeing were dropped from the NASP program, alongside General Electric.
Throughout the NASP program the Department of Defense had an 80% share of all money spent on the program. In 1989, during his first week of office as the Secretary of Defense, Richard Cheney terminated the DoD NASP effort. A program review by the National Space Council recommended extending Phase 2 to 1993. In 1991, the National Team program approach combined the resources of the five contractors in a joint-venture partnership to develop a single X-30 concept. Upon completion of the Phase 2D technology development portion in 1993, the technological maturity was deemed not to be at the level required to justify a $15 billion investment to develop two X-30 aircraft in Phase 3, and the NASP was finally cancelled in May 1993.

Sources:
The Hypersonic Revolution. Volume II. From Scramjet to the National Aero-Space Plane (1964-1986). Richard P. Hallion (Ed.), USAF Aeronautical Systems Division, 1987.
The Hypersonic Revolution. Volume III. The Quest for the Orbital Jet: The National Aero-Space Plane Program (1983-1995). Larry Schweikart, Air Force History and Museums Program, 1998.
A Near Term Reusable Launch Vehicle Strategy (http://chapters.nss.org/ny/LongIsland/articles/ANSER.PDF)
http://fas.org/irp/mystery/index.html
http://www.netwrx1.com/skunk-works/v04.n036
(Aviation Week and Space Technology, 11 October 1993, p.49)
http://www.secretprojects.co.uk/forum/index.php/topic,315.0.html


Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
925
Reaction score
324
From page 7 of DARPA's "Reusable Space Systems-21st Century Technology Challenges"

Page was missiong from previous releases. Includes HAVE REGION configurations for Lockheed, Boeing, and MacAir vehicles.

Full powerpoint available at nianet.org


Attachments

  • Have Region.doc
    221.5 KB · Views: 124

Dynoman

ACCESS: Top Secret
Senior Member
Joined
Jul 29, 2009
Messages
925
Reaction score
324
http://www.nianet.org/resources/Education/Continuining-Education/Seminars-and-Colloquia/Seminars-2009.aspx

June 17th publication


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,128
Reaction score
1,204

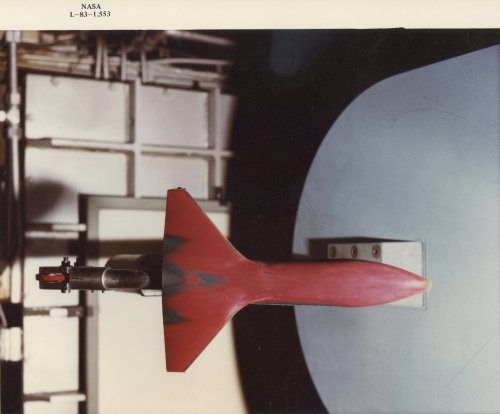

Boeing RASV WT model I guess


Attachments

  • L-83-1553.jpg
    686.3 KB · Views: 494

DSE

ACCESS: Secret
Joined
Apr 13, 2010
Messages
461
Reaction score
25
Meteorit said:
Copper Canyon and NASP
Contractors included Boeing, Lockheed, McDonnell Douglas, General Dynamics and Rockwell, with Pratt & Whitney and General Electric for propulsion research. Rocketdyne later contributed to NASP under its own funding. In October 1987, following Phase 2A evaluation, Lockheed and Boeing were dropped from the NASP program, alongside General Electric.

FWIW, Rocketdyne initially funded their own efforts, but was awarded a contract when GE was dropped.


Mr London 24/7

ACCESS: Secret
Senior Member
Joined
Apr 27, 2008
Messages
407
Reaction score
93

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,757
Reaction score
1,970
"McDonnell Douglas called its vehicle the Global Range Mach 29 Aerospace Plane (GRM-29A)"

Scott's ARP has an article on that one. Wayyyy cool. (Probably the others too.)


Attachments

  • banv5n2.jpg
    36.5 KB · Views: 258

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,103
Reaction score
2,968
More complete list of DoD/USAF RLV programs to 1992 from ANSER paper

A Near Term Reusable Launch Vehicle Strategy
Ramon L. Chase, Warren Greczyn, Leon McKinney
February 2003



1965-70 Air Force Aerospace plane and DynaSoar programs
1965-68 CIA Isinglass program
1975-78 NASA and Air Force single stage to orbit studies
1978-79 Air Force Military Crews in Space study
1979-80 AF HQ (RDSL) mission analysis and cost benefit studies
1980-82 Air Force Advanced Manned Space-Flight Capability study
1980-82 Air Force Transatmospheric Vehicle study
1982-84 Air HQ (RDSL) Science Dawn program
1984-85 Air Force Science Realm program
1984-86 DARPA Copper Canyon study
1986-88 Air Force Have Region program
1986-92 DOD-NASA National AeroSpace Plane (NASP) program

Adding some bits to that list

1954-1964
Convair FISH & KINGFISH
ROBO / BOMI / HYWARDS / BRASS BELL (end 1957)
DynaSoar (1958 - 1964)
Aerospaceplane (1959 - 1964?)

1964-67
-GD-Convair ISINGLASS (ramjets, mach 5-6)
& MDD RHEINBERRY (mach 22, XLR-129 rocket engine, one test article build)
-Douglas 176 FDL-7 & Lockheed FDL-5MA (the later: 1/2 size mockup)

1967-69 USAF- NASA ILRV (STAR-Clipper & Triamese > pre-Shuttle)

1975-78 NASA and Air Force single stage to orbit studies
(Len Cormier Windjammer > Salkeld & Beichel > Langley 1972-77 > SAMSO 1977-82 > Boeing RASV)
1978-79 Air Force Military Crews in Space study
1979-80 AF HQ (RDSL) mission analysis and cost benefit studies - Air Launched Sortie Vehicle
1980-82 Air Force Advanced Manned Space-Flight Capability study
1980-82 Air Force Transatmospheric Vehicle study
1982-84 Air HQ (RDSL) Science Dawn program
1984-85 Air Force Science Realm program
1984-86 DARPA Copper Canyon study
1986-88 Air Force Have Region program
1986-92 DOD-NASA National AeroSpace Plane (NASP) program

Last edited:

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,805
Reaction score
235

My new article will appear in the next couple of weeks (probably April 19). I complied several of the previous articles, but then added in a bunch of new stuff from a slightly later study on the ALSV. The ALSV was proposed by somebody at the Air Force, then studied by several contractors, including Pratt & Whitney with Boeing as the subcontractor.

My article is going to appear in a couple of weeks. Based upon my research (some of which you can also figure out using the above links), it looks like the ALSV was the initial proposal, coming from the Air Force itself. So the ALSV was studied in several forms around 1982. It then appears that the Air Force asked several contractors to look at the broader issue of "Trans Atmospheric Vehicles," which seems to have been a slightly obtuse way of saying horizontal launch of a reusable space vehicle. So various contractors then looked at several options under the TAV banner:

-new carrier aircraft and rocket-powered orbiter
-existing carrier aircraft (either 747 or C-5) and rocket-powered orbiter
-horizontal rocket-sled launch of a rocket-powered orbiter

Although the records are incomplete, the similarity of the different contractor studies strongly implies that USAF asked for these studies and defined the concepts. Otherwise, it's not clear that all of the contractors would have looked at rocket sleds.

I'm primarily interested in the ALSV proposal because that seems to have received the most attention, and it was the most near-term proposal. Some estimates indicated that they could go operational about 8 years after the go-ahead, meaning around 1991 or so. The other proposals would require a lot more development time, making them operational in the mid-1990s. (Note that the proposed development time for the ALSV would have been about equal to that for the space shuttle.)

Something that I discovered with some new research is that although Pratt & Whitney did the initial ALSV study with Boeing as a subcontractor, it appears that Boeing later got a prime contract to study it. That's because the initial study assumed that the engines drove the design, so they put an engine contractor in charge. But when it came to the TAV, there was no way that P&W could have done all those studies, so it made more sense for Boeing to do that. Somewhat ironically, the Pratt & Whitney study envisioned a lot of engines--an SSME on the tail of the 747 and 9-10 RL10 engines in the ALSV orbiter. But once Boeing took over the study, the number of engines went down.


Similar threads

Top
