US M103 Heavy Tank

sferrin

sferrin

ACCESS: USAP
Senior Member
Joined
3 June 2011
Messages
16,982
Reaction score
8,183

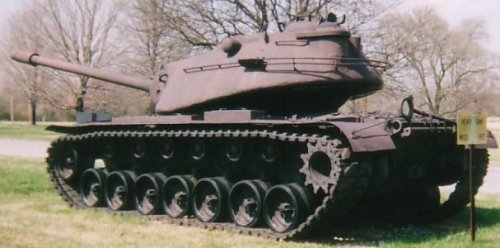

Was suppose to be a counter to the Russian JS III heavy tank. It weighed in at 65 tons with a 120mm gun. Although it did make it into service in small numbers it was a rarity.


Attachments

  • m103heavy.jpg
    53.3 KB · Views: 391

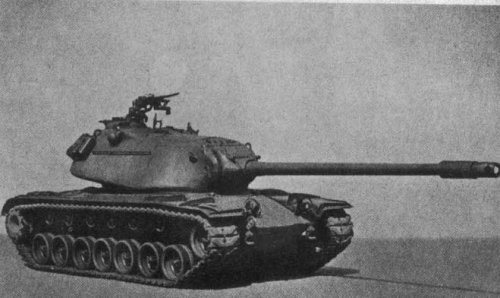

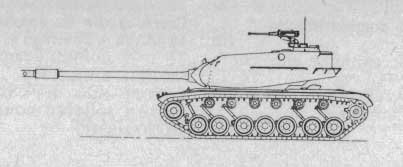

A frontal view and a profile.
It was used both by the Army and the Marines. The two version differed because the Army's one had a gasoline engine :eek: while the Marines adapted the M60A1 diesel engine. Stated service in 1955, was retired circa 1966. Last Army tanks were converted to diesel.


Attachments

  • M-103.jpg
    32 KB · Views: 393
  • M-103_prof.jpg
    8.3 KB · Views: 404
Skybolt said:
A frontal view and a profile.
It was used both by the Army and the Marines. The two version differed because the Army's one had a gasoline engine :eek: while the Marines adapted the M60A1 diesel engine. Stated service in 1955, was retired circa 1966. Last Army tanks were converted to diesel.
Click to expand...

Well, not exactly:

The orginal M103 had a petrol engine, as was the standard case for all the US 1950s era combat vehicles (for the sake of logistics, all the US Army vehicles had to be fed with gasoline)

The M103 was indeed designed to cope with the Soviet "heavy" tanks, the JS III being the best known example at the time. The British Conqueror was designed with the same aims and used the same gun, while the French AMX-50 prototype got a 120mm gun firing the US ammo.

The M103 was heavy and cumbersome, built in small numbers and not exactly a very successful vehicle. The Marines got a few of them and found ample space for improvements, creating a diesel powered A2 variant using the M60 powertrain. The Army saw the advantages and got some from the USMC, although the last one was retired in 1966. The M103A2 soldiered with the USMC till 1972 when the M60A1 replaced it.

Just my opinion - I think the Soviet JS III heavy tank had it over the M103 in ballistic shape, weight (ans I would guess in cross country mobility!!) and lower silhouette!
And probably more important the JS-III was built in greater numbers!

A little off topic -but........
Many allied soldiers have wrote about the dreaded German Tiger tank in combat
But I would be interested to know what the German infantryman (or tank crews) thought about the 'JS' series in combat?

Just my observation

Regards
Pioneer

Hi
Pioneer said:
Just my opinion - I think the Soviet JS III heavy tank had it over the M103 in ballistic shape, weight (ans I would guess in cross country mobility!!) and lower silhouette!
Click to expand...

Yes; but, on the other hand, the Western 120 mm tanks were better armed, with high velocity guns (1067 m/s for AP-T, 1143 m/s for HEAT-T) and modern ammunition. Equipped with optical rangefinders and ballistic calculators, they could hit the target from a very long distance. IS-3 had a D-25 gun with simple optical sight. This gun shoot the classic APHE rounds with muzzle velocity 780 m/s.

I was in the USN on an LSD 1960-1962. Some of the USMC units we operated with were equipped with the M-103. As a landing party platoon leader we encountered some M-103s head on in manuevers on Vieques. Perhaps not so effective in tank vs tank, but really impressive for an infantry style unit when one comes over the crest of a hill heading in your direction.

Best regards,

Artie Bob

Pioneer said:
Just my opinion - I think the Soviet JS III heavy tank had it over the M103 in ballistic shape, weight (ans I would guess in cross country mobility!!) and lower silhouette!
And probably more important the JS-III was built in greater numbers!
Click to expand...

Well, the JS-III was actually mechanically unreliable and that was why it was never issued in very large numbers and why the fUSSR and the Warsaw Pact and other client states were supplied with the JS-II in far greater numbers. While the fUSSR tried to correct the problems of the JS-III and produced the JS-IIIM it was never very popular and was quickly passed onto category 2 and 3 units until most JS-IIIs of all marks were either passed onto the Middle-Eastern Arab states or used as stationary pillboxes in the Far East.

Personally, I'd trade one unreliable tank for 10 reliable ones of lesser quality any day. As the German Tiger showed, there was little value in having a super-uber tank which usually breaks down or gets bogged (more Tiger Is and IIs were lost to mechanical breakdown and getting bogged than enemy action).

I've had the good luck to talk to a few guys who operated the M103. They were actually pretty confident about it when it came to comparisons with Russian heavy tanks (IS-3 and T-10). Mainly due to their optics and the fact that they would be fighting on the defensive. A moving Russian IS-3 or T-10 would have a damn hard time spotting a hull down and possibly camoflauged M103. Plus the M103 carried significantly more ammo.

ysi_maniac said:
Was this tank dubbed 'Kennedy'?
Click to expand...

I think this name is a marketing artifact for a Japanese made model from the '60's. Could easily be wrong tho.

Just call me Ray said:
M-103 never had a designation beyond "M-103"
Click to expand...

Weren't the upgraded diesel engined ones designated M-103a1?

See 'Firepower: A History of the American Heavy Tank" by R. P. Hunnicutt for the complete story of the M-103.

joe

According to the American Fighting Vehicle Database ( http://afvdb.50megs.com/ ), the M103 shared the same turret ring diameter as the M60 and M1 (85.0 inches / 215.9 centimeters).

Hypothetically, could the M103 be fitted with the turret of the M60A3 SLEP or M60-2000 armed with the M256 120mm L44 smoothbore gun?

Rickshaw said:
Pioneer said:
Just my opinion - I think the Soviet JS III heavy tank had it over the M103 in ballistic shape, weight (ans I would guess in cross country mobility!!) and lower silhouette!
And probably more important the JS-III was built in greater numbers!
Click to expand...

Well, the JS-III was actually mechanically unreliable and that was why it was never issued in very large numbers and why the fUSSR and the Warsaw Pact and other client states were supplied with the JS-II in far greater numbers. While the fUSSR tried to correct the problems of the JS-III and produced the JS-IIIM it was never very popular and was quickly passed onto category 2 and 3 units until most JS-IIIs of all marks were either passed onto the Middle-Eastern Arab states or used as stationary pillboxes in the Far East.

Personally, I'd trade one unreliable tank for 10 reliable ones of lesser quality any day. As the German Tiger showed, there was little value in having a super-uber tank which usually breaks down or gets bogged (more Tiger Is and IIs were lost to mechanical breakdown and getting bogged than enemy action).
Click to expand...
Also consider that many Tigers were abandoned due to shortages of fuel, ammo and spare parts. By the time WALLIES encountered Tigers in significant numbers - summer 1944 in Normandy - German supply lines had been badly damaged by heavy-bombers (Lancaster and B-17), medium-bombers (B-25 Mitchell) and strafers (Typhoon).

In comparison, M-4 Sherman was much less of a tank, but was easily repaired and spare parts were pushed forward at a rapid rate along with plenty of replacement tanks (see Canadian Essex Regiment in Normandy summer 1944)..

You need to take into account the workload and crew requirements of any vehicle. The M103 has TWO loaders, high workload in a still cramped space makes the thing unweldy and less efficient in the intended role so the M60 replacing the m103 was a no brainer.

Foo Fighter said:
You need to take into account the workload and crew requirements of any vehicle. The M103 has TWO loaders, high workload in a still cramped space makes the thing unweldy and less efficient in the intended role so the M60 replacing the m103 was a no brainer.
Click to expand...
In fact, I'd wager that purchasing M60A1s early instead of upgrading the USMC M48s to A3 and M103s to A2, or upgrading the M48s straight to a pseudo-A5 standard would have been better for the cost than keeping a bespoke M103 fleet supported by 90mm M48s.

Especially when in fact, the cost of the M60A1s was paid for when the USMC finally bought it in the 70s, so in fact you'd save the money of the M48 and M103 upgrades plus the inflation effect on the M60A1 (a 70's M60A1 is more expensive than a 60's one), which could save enough to switch to M1 early in the 80s or to upgrade the M60A1s to A3 standard.

Rickshaw said:
Pioneer said:
Just my opinion - I think the Soviet JS III heavy tank had it over the M103 in ballistic shape, weight (ans I would guess in cross country mobility!!) and lower silhouette!
And probably more important the JS-III was built in greater numbers!
Click to expand...

Well, the JS-III was actually mechanically unreliable and that was why it was never issued in very large numbers and why the fUSSR and the Warsaw Pact and other client states were supplied with the JS-II in far greater numbers. While the fUSSR tried to correct the problems of the JS-III and produced the JS-IIIM it was never very popular and was quickly passed onto category 2 and 3 units until most JS-IIIs of all marks were either passed onto the Middle-Eastern Arab states or used as stationary pillboxes in the Far East.

Personally, I'd trade one unreliable tank for 10 reliable ones of lesser quality any day. As the German Tiger showed, there was little value in having a super-uber tank which usually breaks down or gets bogged (more Tiger Is and IIs were lost to mechanical breakdown and getting bogged than enemy action).
Click to expand...
We are discusing JS-3 instead of T-10, the most recent Soviet Tank of the 50's.

Christopher Wang said:
According to the American Fighting Vehicle Database ( http://afvdb.50megs.com/ ), the M103 shared the same turret ring diameter as the M60 and M1 (85.0 inches / 215.9 centimeters).

Hypothetically, could the M103 be fitted with the turret of the M60A3 SLEP or M60-2000 armed with the M256 120mm L44 smoothbore gun?
Click to expand...
What would be the point of putting a newer turret into such an old, and larger, hull? And, although the turret ring is the same, the turret basket is, I believe, deeper in the M60 series, so you might need a riser so the basket bottom clears the inside of the hull.

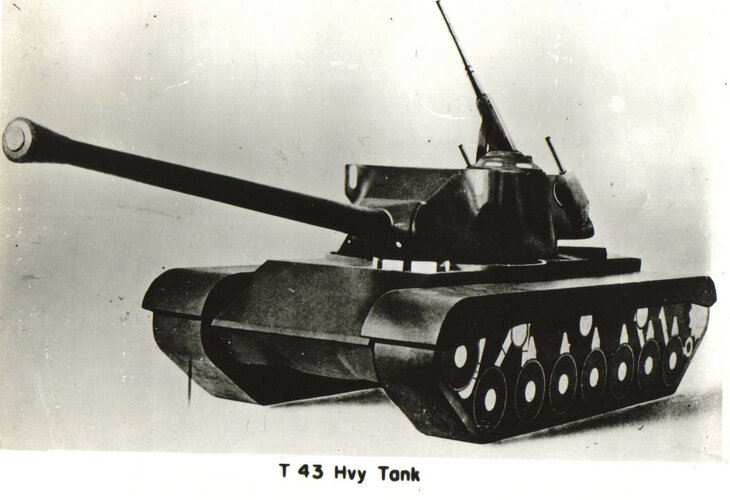

T43 mock-up from 1948 (possibly the first?). Had a few changes before it eventually became the M103.


Attachments

  • T43 1948 (Remote MGs).jpg
    T43 1948 (Remote MGs).jpg
    126.3 KB · Views: 46
jstar said:
Christopher Wang said:
According to the American Fighting Vehicle Database ( http://afvdb.50megs.com/ ), the M103 shared the same turret ring diameter as the M60 and M1 (85.0 inches / 215.9 centimeters).

Hypothetically, could the M103 be fitted with the turret of the M60A3 SLEP or M60-2000 armed with the M256 120mm L44 smoothbore gun?
Click to expand...
What would be the point of putting a newer turret into such an old, and larger, hull? And, although the turret ring is the same, the turret basket is, I believe, deeper in the M60 series, so you might need a riser so the basket bottom clears the inside of the hull.
Click to expand...
It would not be the first time that a newer tank turret is fitted onto an older tank hull. The M60-2000 is basically an M1A1 Abrams turret fitted onto the M60A3 hull. Before that, the M48A4 would have featured surplus conventional 105mm M60 turrets removed from the M60A2 "Starship" and fitted onto spare M48 Patton hulls.

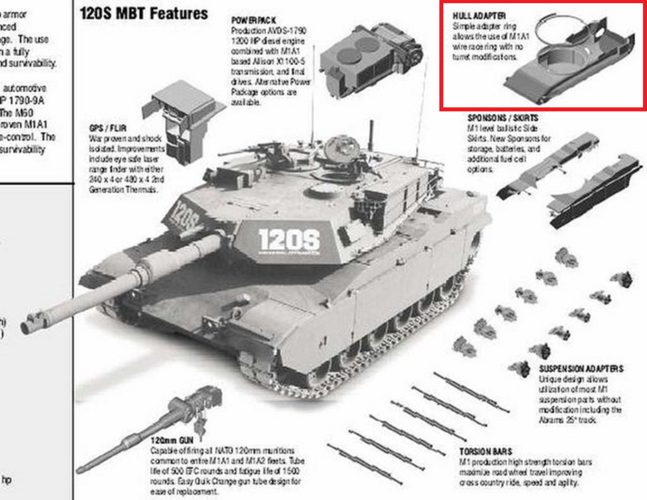

The M60-2000 did feature a hull adapter ring that "allows the use of M1A1 wire race ring with no turret modifications" (below, marked in red), so you may be right about the need for a hull riser or adapter for the M103:
Source: https://forum.warthunder.com/index.php?/topic/396788-120s-mbt/

Christopher Wang said:
It would not be the first time that a newer tank turret is fitted onto an older tank hull. The M60-2000 is basically an M1A1 Abrams turret fitted onto the M60A3 hull. Before that, the M48A4 would have featured surplus conventional 105mm M60 turrets removed from the M60A2 "Starship" and fitted onto spare M48 Patton hulls.
Click to expand...
...or an AMX FL-10 turret onto a M4 Sherman... :)
