US prototype tanks with oscillating turrets

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
AFAIK, the only tank with an oscillating turret automatic reloading systems was French AMX-13, one of the best light tanks ever built. Much less known is that in early 1950s US Army had a numeber of tank protos built and tested. US designs were for medium and heavy tanks. I have info on three of these projects.Don't assume that thery were created in the order I present them.
First in the T54E1 (frist image): used the M-48 chassis with an oscillating turret and a 105 mm gun. Turret was designed and built by United Shoes Manufacturing. This project was considered quite high priority, because a parrallel design without oscillating turret, the T54E2, was pursued: it had a 105 mm gun with a semi-automatic reloading system designed by Detroit Arsenal. Neither were series built.

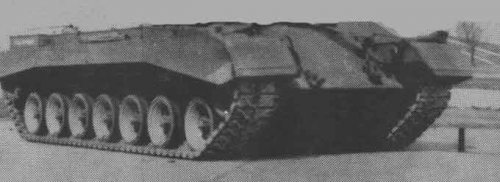

Second is the T57, based on the chassis of the T30 heavy tank with an oscillating turret and a 120 mm gun. I have only chasssi photo.
Third was a medium-to-light tank, based on the chassis of the T-42 (same as the M-42 one) and a 90 mm gun in an oscillating turret.

Has someone more infos on these and other US projects with oscillatiing turrets. And any info of oscillatin turret tank from other countries?


Attachments

  • T54.jpg
    45.1 KB · Views: 685
  • T57_chassis.jpg
    13.8 KB · Views: 554
  • T69.jpg
    63.3 KB · Views: 632

glmm

ACCESS: Confidential
Joined
May 21, 2006
Messages
52
Reaction score
4
You are forgetting the AMX-13 big brother, the AMX-50 heavy tank. Plus there were other smaller French prototypes with oscillating turrets, although they never were put into production.

Finally, the Austrian SK 105 uses a license built French oscillating turret as fitted to the AMX-12 (the FL12 IIRC)


JC Carbonel

ACCESS: Secret
Joined
Sep 7, 2006
Messages
218
Reaction score
99
I think the US did something called the T-92 which was kitted by Tamiya in 1/48 and 1/55 scale and by another company in 1/20 scale .

JCC


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Well, I shoulld have said "only tank to enter in service"... And, besides, are you sure the T-92' semi-automatic loader was of the oscillating turret type? ???


eltf177

ACCESS: Restricted
Joined
Sep 8, 2006
Messages
47
Reaction score
2
Hi, new member.
If you can find it the book FIREPOWER: THE HISTORY OF AMERICAN HEAVY TANKS by (I believe) R.P. Hunnicutt has lots of information on these.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,554
Reaction score
360
This book has the "no available" label at amazon :'(


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
246
IIRC the T92 was a light tank for Airborn Forces. It did not have a oscillating turret but a cleft turret and also feature two sub turrets with 12.7mm HMG.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,423
Reaction score
269
I'll agree JohnR about it being a light tank. According to the Presidio Press book on light tanks, it was successful but lost out when a change in concept/tactics required a tank that could float without any assistance, like a comparable Soviet light tank, and the basic Sheridan was adopted instead. Low=profile cleft turret, semi-automatic loader, and such worked well. I've got a few ideas for what could've been done with this concept for a medium tank, but those are for another forum.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
Hunnicut books are great, but they are almost all out of print, and the few copies that once in a time reach the used books market have APPALLING prices... :mad:

And the Soviet tank was the PT-76, in my opinion a completely different kind of beast (low pressure gun etc.)


shokaku

ACCESS: Restricted
Joined
Mar 5, 2006
Messages
14
Reaction score
8
Some other photos


Attachments

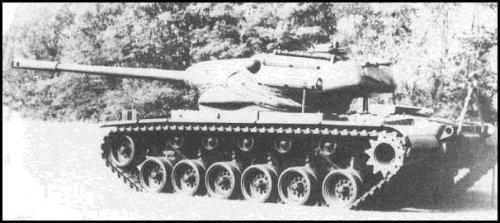

  • T54E1.JPG
    31.1 KB · Views: 542

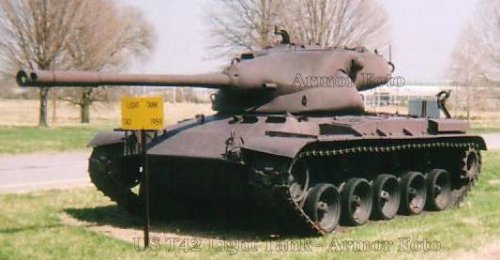

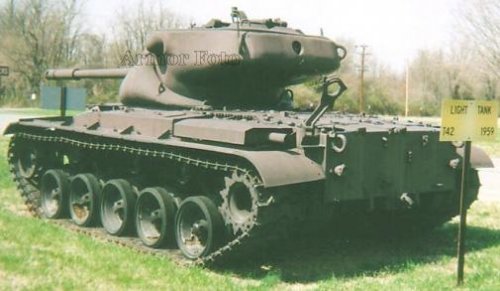

  • t42-002.jpg
    56.8 KB · Views: 573
  • t54-002.jpg
    133.4 KB · Views: 234
  • T54.JPG
    32.7 KB · Views: 215

shokaku

ACCESS: Restricted
Joined
Mar 5, 2006
Messages
14
Reaction score
8

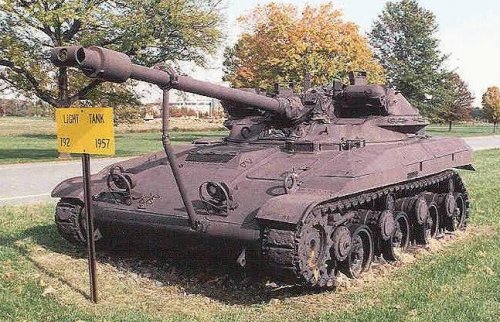

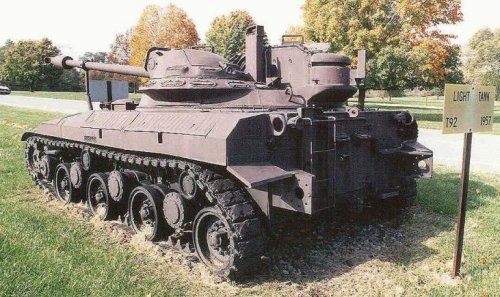

... and something about the T92 (correctly, this isn't a oscillating turret tank)


Attachments

  • t92-001.jpg
    130.9 KB · Views: 287
  • t92-002.jpg
    129.9 KB · Views: 208

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,423
Reaction score
269
shokaku said:
... and something about the T92 (correctly, this isn't a oscillating turret tank)

The thought occurs to me that if you used a hydro-pneumatic suspension with a high range of travel and differential travel (as on the Strv105), you could fix the gun in the turret and still get the elevation you need. This would likely work with a larger gun/tank package, too.

Oh, there was a kit of this T92 produced back in the 1950s by ITC; I wish Glencoe could find the molds for that one.


banken

ACCESS: Restricted
Joined
Sep 27, 2006
Messages
26
Reaction score
6
hello skybolt my name is banken and i am new to the forum.
I read your topic about US prototype tanks with oscillating turrets and your desire to aquire the hunnicutt books
Well I have three of them
first PATTON
second ABRAMS
third FIREPOWER
There is the T54E1 on the chassis from the M48 with a 105mm gun, there is also a mock-up on the same chassis called T77 with a 120mm gun.
There is also the T69 on the chassis from the T42 tank
These two tanks are described in the book Patton from hunnicutt.

The T57 you mentioned is not based on the chassis from the T30 tank but on those from the T43 the basis for the M103 heavy tank. That should correctly be armed with a 120mm gun.

In the book firepower they speak also from the T58 tank on the chassis off the T43 tank armed with a 155 mm gun

There are lots off photo's iff I can scan them and I can get them on the site i'll post them for you.

I'll excuse me for the corrections and for my simple english. (I am a belgium)


banken

ACCESS: Restricted
Joined
Sep 27, 2006
Messages
26
Reaction score
6
Thank you very much.
I am trying to scan some off my pictures but my scanner is old I'll will scan the T58 for you an some of the T69
will post it later


banken

ACCESS: Restricted
Joined
Sep 27, 2006
Messages
26
Reaction score
6

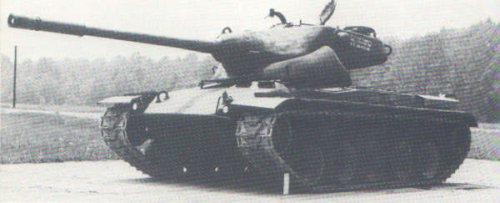

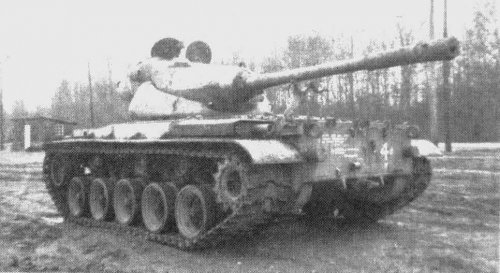

here are my photos

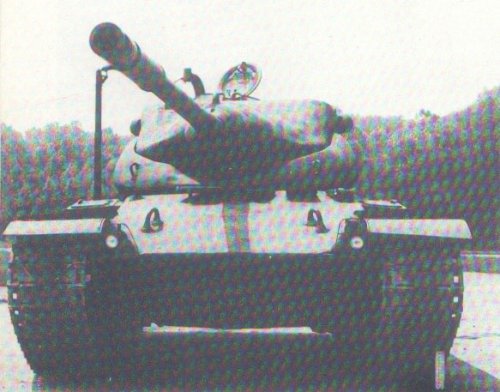

first T69 and then T58


Attachments

  • t69-1.jpg
    23.8 KB · Views: 288
  • t-69-2.jpg
    90.1 KB · Views: 269
  • t-69-3.jpg
    28.3 KB · Views: 293
  • t-58-1.jpg
    55.7 KB · Views: 299

banken

ACCESS: Restricted
Joined
Sep 27, 2006
Messages
26
Reaction score
6

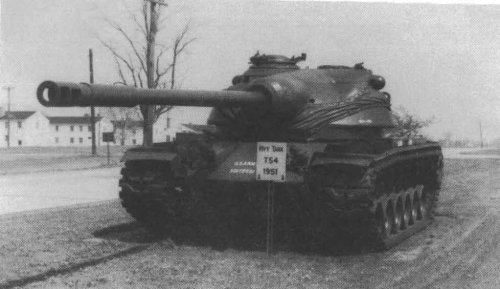

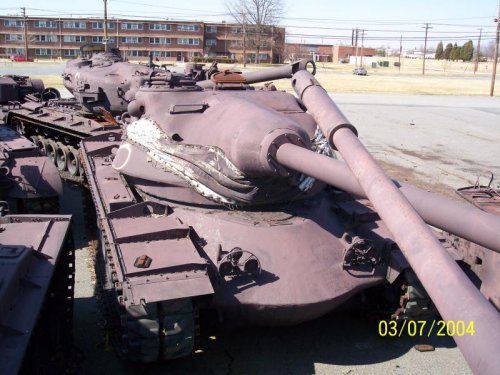

one more picture off the T54e1, dont know the whereabout of it but it gives you a good idea off the turret. Right behind it is the T30 heavy tank.


Attachments

  • 127813991djVUCp_ph.jpg
    88.2 KB · Views: 206

banken

ACCESS: Restricted
Joined
Sep 27, 2006
Messages
26
Reaction score
6
Could be, Aberdeen proving ground is big.
Maybe hidden treasures as in bovington museum. A location were they keep unrestored prototypes.

Have you anymore information or photos off oscillatingturret tanks ?
Are you interresed in the T95 ?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
178
What I have I posted. Lot of photos of AMX 13s, but that's easy... ;)


banken

ACCESS: Restricted
Joined
Sep 27, 2006
Messages
26
Reaction score
6
The only photos I have I must scan.

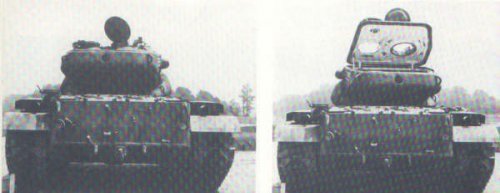

But i have two more off the T69 for you


Attachments

  • 34236491gcxAnd_ph.jpg
    26.5 KB · Views: 190
  • 34236497htHTHV_ph.jpg
    26.3 KB · Views: 154

greengiant

ACCESS: Restricted
Joined
May 4, 2011
Messages
2
Reaction score
0
:-\ Do any of you have any interior pictures of these army prototypes. I was at aberdeen proving grounds in the 60's (stationed there for my AIT training) and Ive seen them all on tank road except for the t69 . I know that as late as 2005 they were in outside storage by the museum and not generally available for public viewing. I would really like to get some tec drawings of the interiors.
