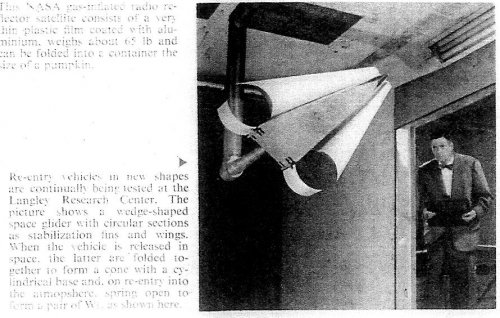

Anyone know if these relate to any particular project ???


Attachments

  • scan0016 (2).jpg
    scan0016 (2).jpg
    132.7 KB · Views: 110
  • scan0025 (2).jpg
    scan0025 (2).jpg
    120.2 KB · Views: 97

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
155

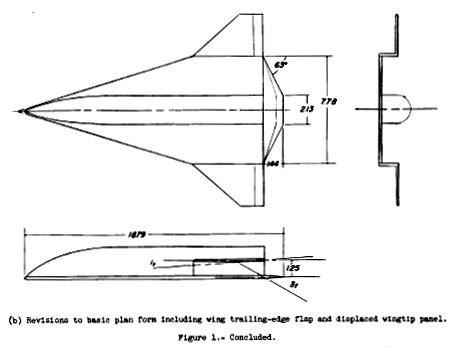

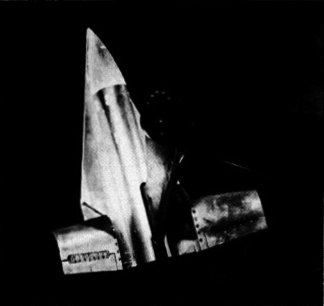

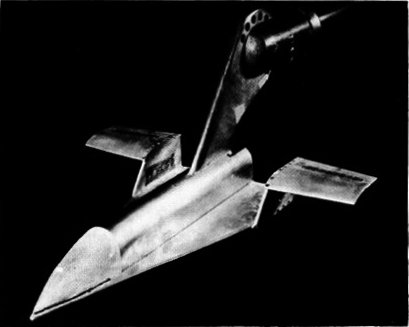

The second re-entry vehicle is the subject of the NASA report TM-X-288 "AN INVESTIGATION AT SUBSONIC SPEEDS OF AERODYNAMIC CHARACTERISTICS AT ANGLES OF ATTACK FROM -4 DEG TO 100 DEG OF A DELTA-WING REENTRY CONFIGURATION HAVING FOLDING WINGTIP PANELS "

Link via:
http://ntrs.nasa.gov/search.jsp?R=75488&id=1&as=false&or=true&qs=Ntt%3Dnasa%2BTM-X-288%26Ntk%3DReport%2B-%2BPatent%2BNumber%26Ntx%3Dmode%2Bmatchall%26Ns%3DHarvestDate%257c1%26N%3D0


Attachments

  • 2010-06-28_215724.jpg
    49.1 KB · Views: 53
  • 2010-06-28_215754.jpg
    38 KB · Views: 49
  • 2010-06-28_215834.jpg
    57.3 KB · Views: 49
