General Dynamics PLAME re-entry vehicle concept

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
604
Reaction score
135

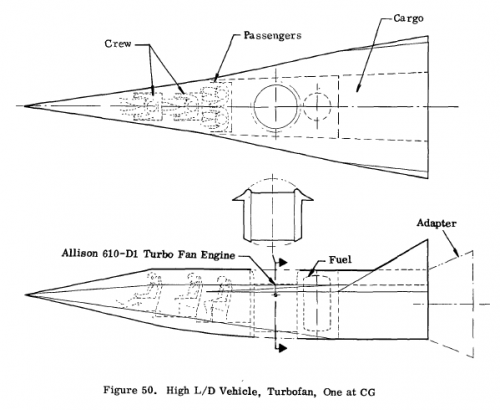

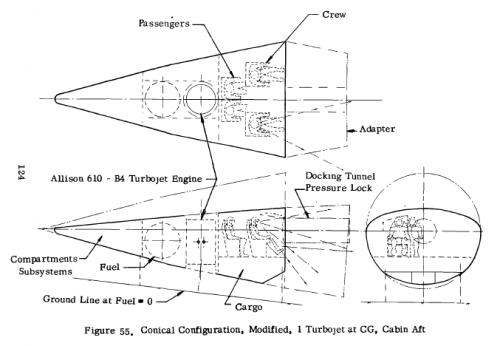

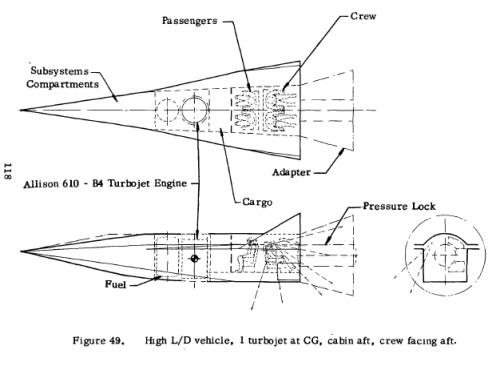

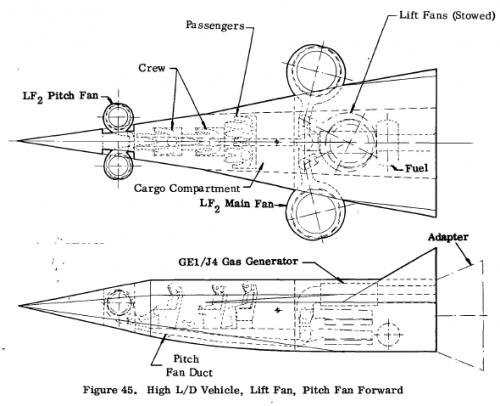

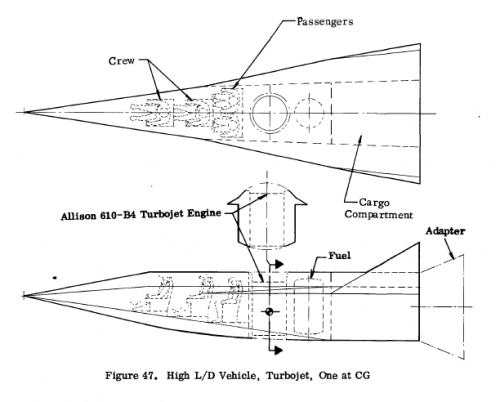

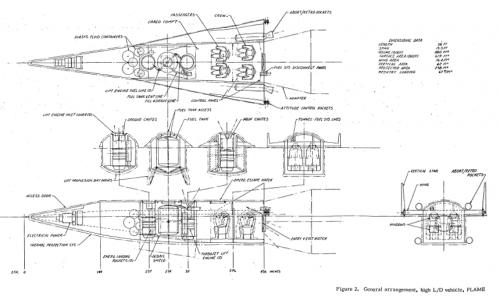

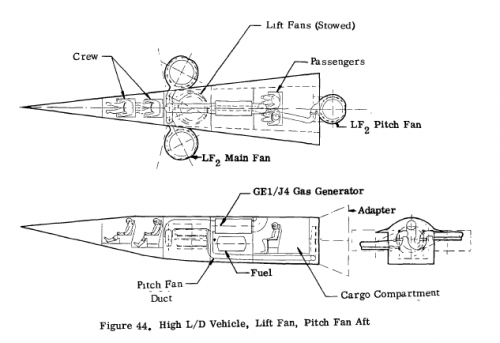

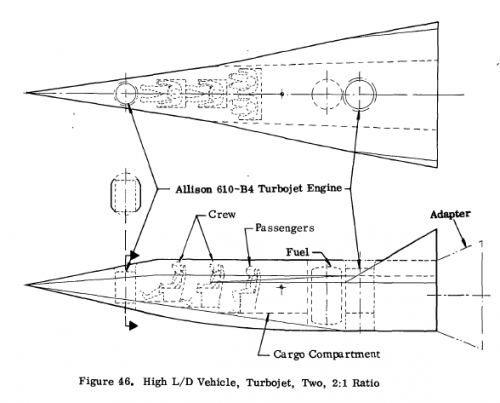

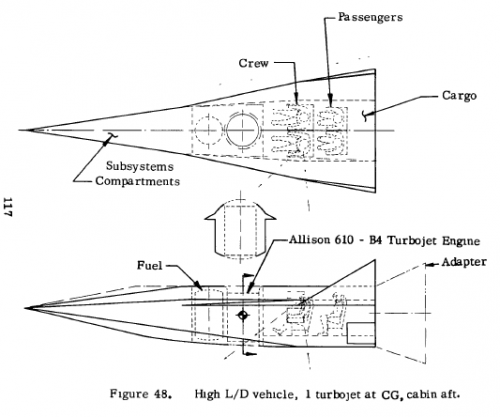

Strange V(TO)L re-entry vehicle concept designed by General Dynamics under a NASA contract in 1966-67.

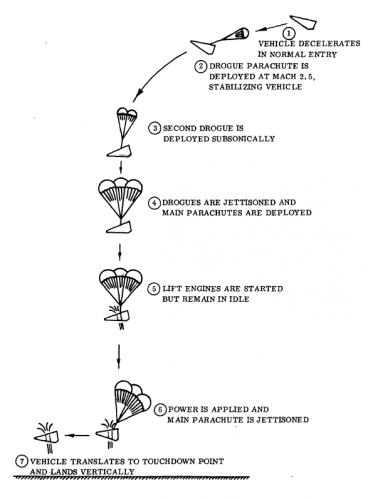

After a normal re-entry and a parchutal descent, lift-engines are started, parachute is jettisson, and the vehicle operate as a VTOL aircraft to accomplish a certain amount of ranging to a suitable touchdown point where it lands verticaly.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19770082994_1977082994.pdf
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19830071860_1983071860.pdf
