Hi,

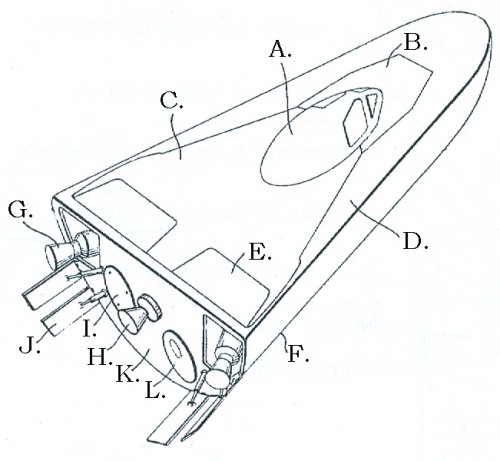

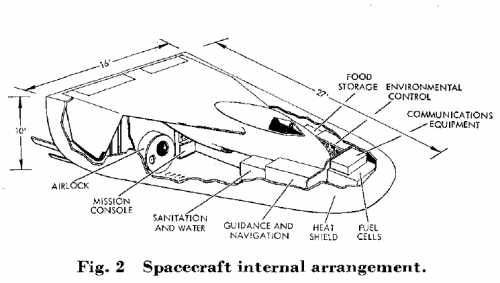

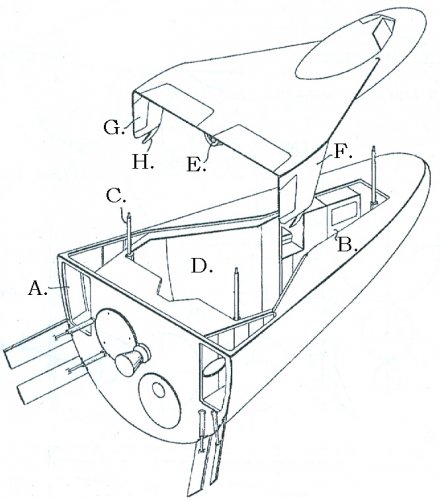

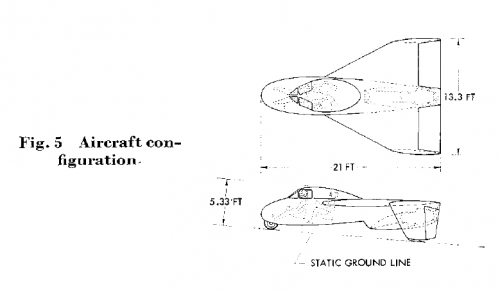

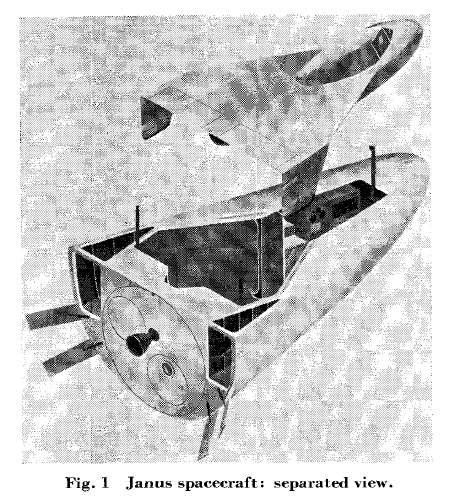

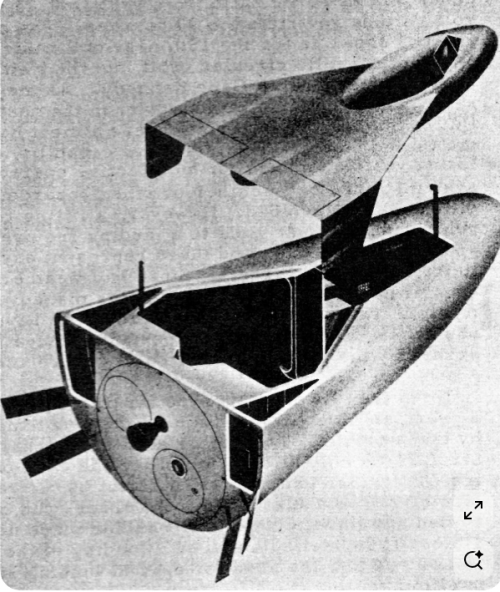

the Janus was created by TRW Space Technology Laboratories,Redondo Beach,California
in USA,and it was a manned orbital spacecraft with a delta wing stage as a re-entry vehicle.


http://arc.aiaa.org/doi/abs/10.2514/3.28224


Anyone wants this file,please send to me a private massage with his E-mail address,and
I will send the report to him.


Attachments

  • 1.png
    81 KB · Views: 302
  • 2.png
    27.5 KB · Views: 299
  • 3.png
    16.6 KB · Views: 301

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,635
Reaction score
6,482

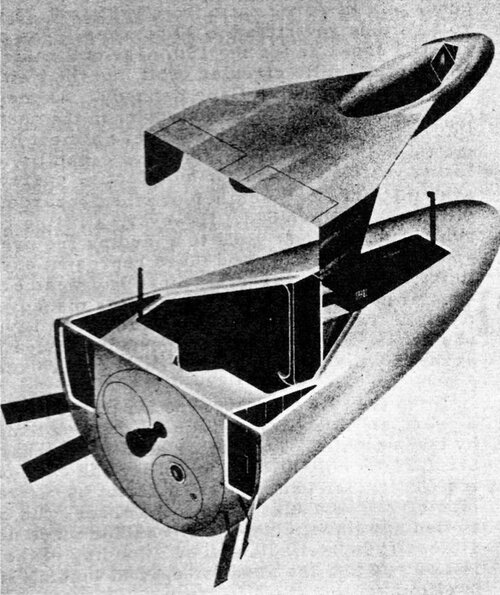

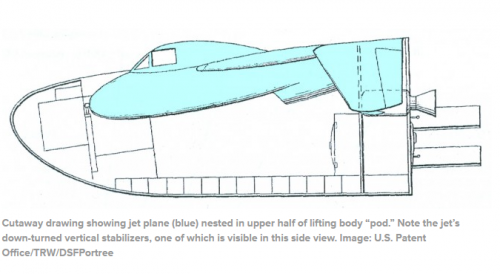

And from anther site;


http://www.wired.com/2013/03/a-novel-1964-plan-for-a-piloted-earth-orbital-spacecraft-with-staged-reentry/


Attachments

  • 1.png
    150 KB · Views: 200
  • 2.png
    91.5 KB · Views: 182
  • 3.jpg
    188 KB · Views: 54
  • 4.jpg
    227.1 KB · Views: 50

publiusr

The Anti-Proxmire
Joined
Sep 24, 2011
Messages
600
Reaction score
308
F-111 escape option for a light crew...especially coming back from the Moon. Here is the scenario: you have delivered your cargo. You make it into space, but Starship gets a tile damaged. This staged re-entry gets the crew back with the cone getting the worst of it. It parachutes back with rocks. The astronauts have a plane now that the storables are gone...and Starship stays in space for repair. Remember what Musk told the Everyday Astronaut about how NASA couldn't innovate because shuttle is what you come back in? Same here guys. This is why I liked Buran, because you didn't need the orbiter to test the rest of the Energia stack-which SLS can evolve into allowing large side mount winged test articles. Musk is killing the cause of winged spaceflight otherwise...thus my continued support for SLS-Americanized Buran concepts. Remember, Mars Starships will be coming back even faster...and I do remember a LockMart Lunar OSP that was a lifting body. Where the Blue Origin lander has good abort profiles going to the Moon, Starship coming back with the above described nested system would also give lunar astronauts a second chance...outside of docking with a Falcon Heavy launched Dragon and hoping it reaches you before the air leaks out the same hole in the tile that spaced you to begin with.


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
996
Reaction score
505
F-111 escape option for a light crew...especially coming back from the Moon. Here is the scenario: you have delivered your cargo. You make it into space, but Starship gets a tile damaged. This staged re-entry gets the crew back with the cone getting the worst of it. It parachutes back with rocks. The astronauts have a plane now that the storables are gone...and Starship stays in space for repair. Remember what Musk told the Everyday Astronaut about how NASA couldn't innovate because shuttle is what you come back in? Same here guys. This is why I liked Buran, because you didn't need the orbiter to test the rest of the Energia stack-which SLS can evolve into allowing large side mount winged test articles. Musk is killing the cause of winged spaceflight otherwise...thus my continued support for SLS-Americanized Buran concepts. Remember, Mars Starships will be coming back even faster...and I do remember a LockMart Lunar OSP that was a lifting body. Where the Blue Origin lander has good abort profiles going to the Moon, Starship coming back with the above described nested system would also give lunar astronauts a second chance...outside of docking with a Falcon Heavy launched Dragon and hoping it reaches you before the air leaks out the same hole in the tile that spaced you to begin with.

Have you met "Hercules"? :)

I haven't actually watched the EDA series yet, probably won't as Musk's voice has gotten to the point it annoys me. I will note that in essence Musk is literally 'reinventing' the Shuttle in Starship specifically with all the 'tasks' he's piling on it and the supposed "advantages" and outcomes. While I understand the 'idea' you're having the "problem" (from Musk's POV at least) is that this vastly increases complexity and manufacturing costs for what he sees as little value. Having an abort system requires a lot of mass and added levels that could possibly go wrong. (Not likely as much as it might seem but again see Hercules above) Yes Musk is "killing" the "cause" of winged (I prefer the term "lifting" but that's me :) ) vehicles because they actually don't work anywhere but on Earth.

You can argue he has a point I supposed but that also presupposes that a vehicle launched directly from Earth to land directly on the Moon or Mars and then return to the Earth for another landing is actually the best and most economical way to do the whole mission. (Seriously questionable)

Lifting vehicle wise you don't need something the size of Buran or the Shuttle, (or arguably Starship) as it's not single flight payload that matters but flight rates. If Starship only flies rarely then it will be just about as expensive to operate as SLS or the Shuttle was. Reusability only works for a certain flight and usage rate. Hence why he keeps pitching "other uses" for Starship/SuperHeavy in order to get that flight rate up.

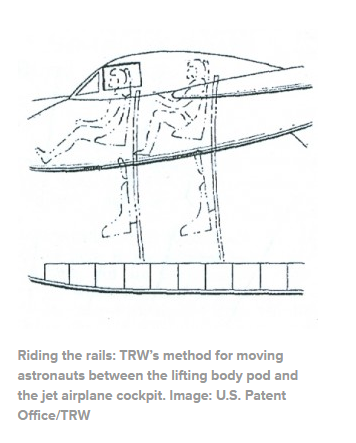

Getting back to Janus it makes some sense if we hadn't gone to the Moon and been more focused on regular orbital missions and LEO development in that it actually does play into the individual strengths of the separate systems. Kind of the reason the Soviets came up with the similar idea of the Raketoplane. In context it might give you an early on-orbit working facility, (the lifting body lab) and a versatile landing craft in the aircraft portion. The concept still needed a lot of work though, (dear lord the length of the needed 'seal' and how much it would have leaked :) ) everything from the interface to the "moving seats" really shows a pretty shallow amount of work but it had potential I think.

Kind of wonder how the trade between Janus and something like the "Propulsive Lift Capsule" would come out.

Randy


publiusr

The Anti-Proxmire
Joined
Sep 24, 2011
Messages
600
Reaction score
308
Frassanito did a bit of art on a big version of that…the MTKVA the largest concept…rather like the Adama maneuver but atop Energia Vulcan was it?


Byeman

ACCESS: Top Secret
Joined
Jan 8, 2010
Messages
919
Reaction score
101
F-111 escape option for a light crew...especially coming back from the Moon. Here is the scenario: you have delivered your cargo. You make it into space, but Starship gets a tile damaged. This staged re-entry gets the crew back with the cone getting the worst of it. It parachutes back with rocks. The astronauts have a plane now that the storables are gone...and Starship stays in space for repair.
Not feasible. How is the Starship get into LEO while the plane enters? And, since it is for emergencies, it would be a capsule and not winged.
2. Remember what Musk told the Everyday Astronaut about how NASA couldn't innovate because shuttle is what you come back in? Same here guys. This is why I liked Buran, because you didn't need the orbiter to test the rest of the Energia stack-which SLS can evolve into allowing large side mount winged test articles.
SLS can not evolve into side mount. Nor is there any legitimate reason for it to happen.
3. Musk is killing the cause of winged spaceflight otherwise...
3. Good, no need for wings in space
4. thus my continued support for SLS-Americanized Buran concepts.
4. Like that is going to matter
5. Remember, Mars Starships will be coming back even faster...and I do remember a LockMart Lunar OSP that was a lifting body. Where the Blue Origin lander has good abort profiles going to the Moon, Starship coming back with the above described nested system would also give lunar astronauts a second chance...outside of docking with a Falcon Heavy launched Dragon and hoping it reaches you before the air leaks out the same hole in the tile that spaced you to begin with.
5. And your idea is not workable. A spacecraft coming back from the moon or Mars can not be met by another spacecraft launched from earth


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,592
Reaction score
6,749
Publius sr... Ranulf... The Jim... holly cow, SPF space section is turning into Usenet vintage 1995. LMAO. Except for the whackiest whacky crazy trolls.


publiusr

The Anti-Proxmire
Joined
Sep 24, 2011
Messages
600
Reaction score
308
There was a something Henry or Henry something back then…a different world. Though much wasn’t being done on the New Space front…things somehow felt more optimistic. It feels like Elon used up our planet’s good luck.
